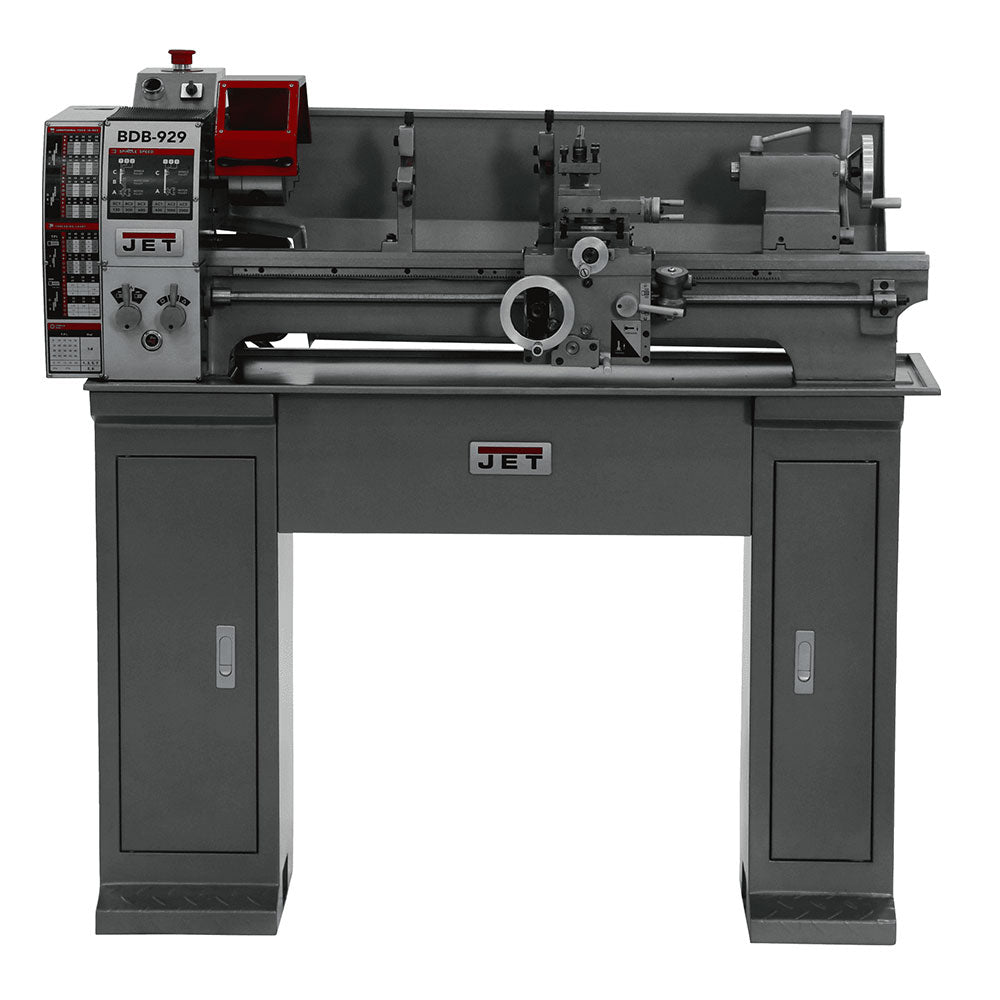

JET 321372K BDB-929 115V 3/4 HP Belt Drive Bench Lathe w/ Stand

by Jet

$4,269.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: JET-321372K

Features
  • Induction hardened and ground bed way
  • Spindle supported by precision tapered roller bearings
  • Safety on/off switch
  • Emergency Stop within easy reach of the Operator
  • Chuck Guard
  • Quick change gearbox provides wide range of inch and metric threads
  • Power longitudinal feed allows threading and reverse threading
  • Quick locking tailstock
  • Standard 1-1/2" x 8 TPI spindle mount allows for many aftermarket accessories
  • Reversing switch for added versatility
  • Full length splash guard
  • Backlash adjustments provided throughout the carriage
What's in The Box
  • 4" 3-Jaw Chuck
  • 7-1/2" 4-Jaw Chuck
  • 7" Face Plate
  • Steady and Follow Rest
  • 4-Way Tool-post
  • Set of Tools
  • MT-2 and MT-3 Centers
  • Owner's Manual
Warranty
  • 5 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU 321372K
Brand JET
Horsepower 3/4
Volts 115V
Motor Single Phase
Swing Over Bed 8-3/4 in
Swing Over Cross Slide 5 in
Distance Between Centers 27.5 in
Spindle Bore 3/4 in
Spindle Mount 1-1/2 x 8 TPI
Number of Spindle Speeds 6
Range of Spindle Speeds 130-2000
Spindle Taper w/ Sleeve MT-3
Range of Longitude Feeds 0.0006 - 0.0368
Number of Inch Threads 27 in
Range of Metric Threads 8 - 56
Number of Metric Threads 12
Range of Metric Threads 0.5 - 3.5
Max Tool Size 1/2 in
Compound Slide Travel 1-7/8 in
Cross Slide Travel 4-1/4 in
Carriage Travel 26.5 in
Tailstock Spindle Travel 1-9/16 in
Taper in Tailstock Spindle MT-2
Follow Rest Capacity 1-3/4 in
Width of Bed 4-1/2 in
Length 51 in
Width 22 in
Height 20 in
Weight 287 lbs
