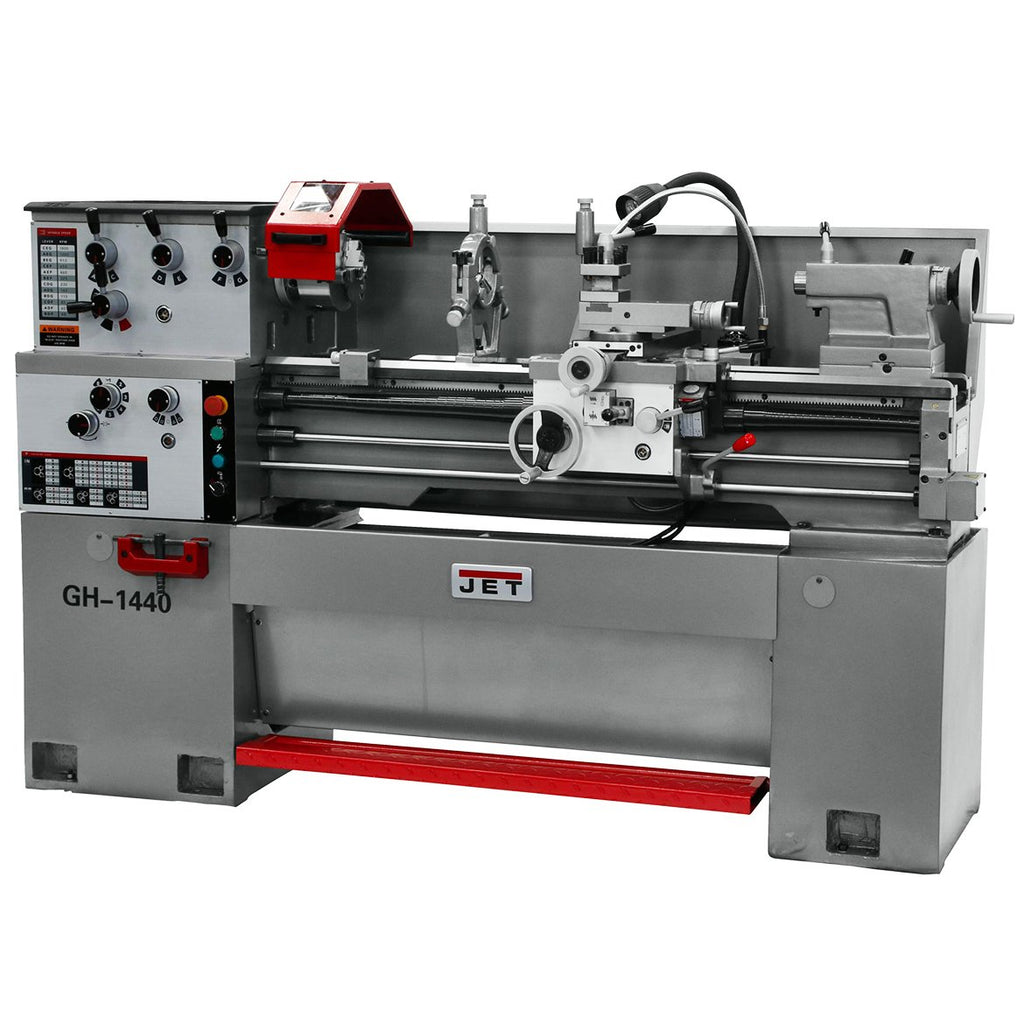

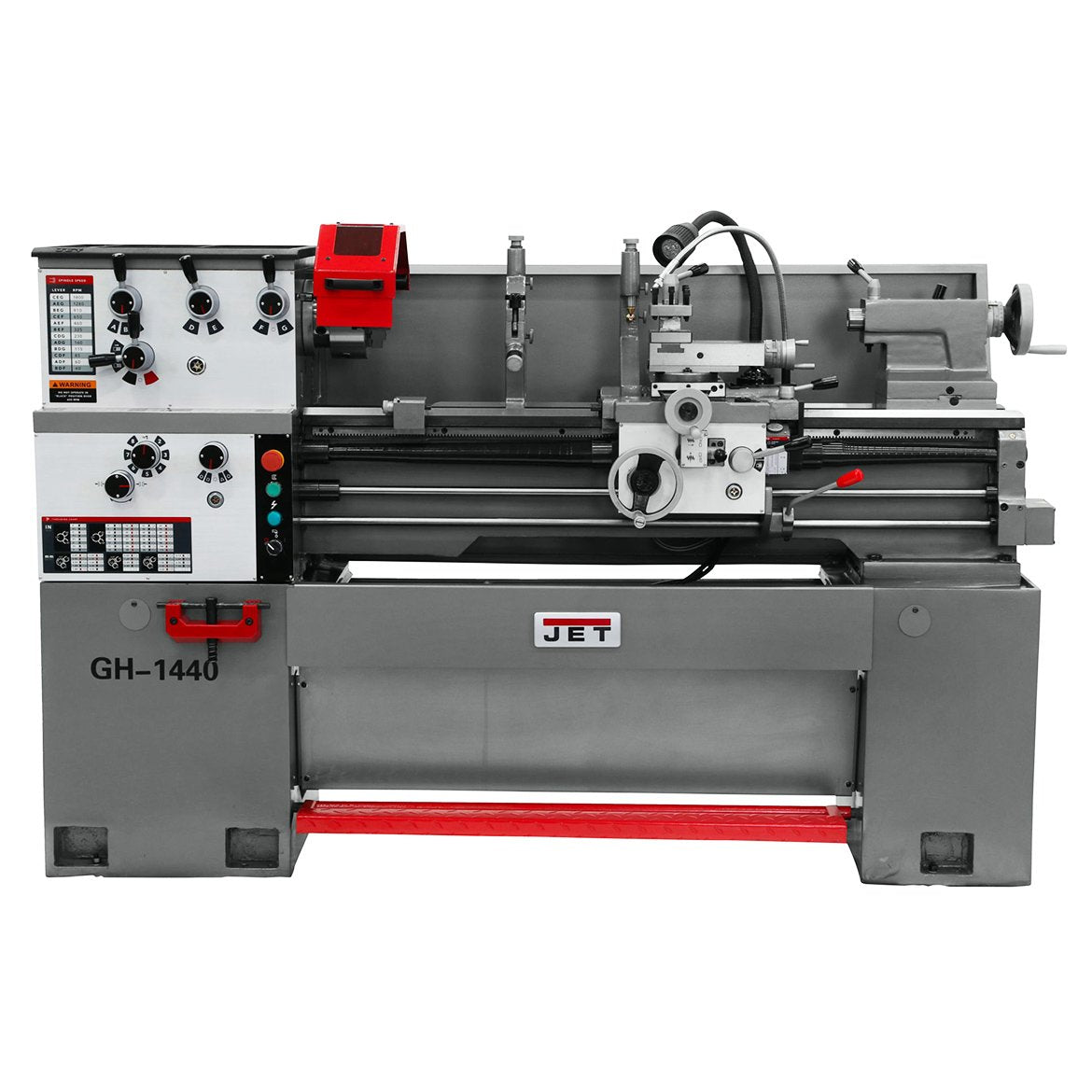

Jet 323403 14-Inch x 40-Inch 3-Phase Geared Head Bench Lathe w/ 200S Dro

by Jet

$19,699.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: JET-323403

Features
  • V-way bed design is induction hardened and ground
  • Splined, not keyed, shafts are utilized
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Independent leadscrew and feed rod
  • Adjustable gibs are incorporated in the carriage and slideways
  • Safety on/off switch
  • Emergency Stop within easy reach of the Operator
  • Electronic Chuck Key Docking Station
  • Chuck Guard
  • Foot Brake
  • Gearbox provides larger threading and feed capabilities with no gear changes
  • Spindle actuation control is apron mounted
  • Gap bed section provided for larger diameter work
  • Inch-metric dials are standard
  • Compound and cross slide have backlash elimination
  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
  • Front removable chip tray
  • Spindle jog button for easy gear engagement and spindle inching
  • Coolant system
  • Full length splash guard
What's in The Box
  • 14-Inch x 40-Inch Geared Head Lathe
  • Acu-Rite 200S Digital Readout
  • Owner's Manual
Warranty
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku 323403
Model GH-1440-3
Brand Jet
Voltage 230v
Horsepower 3 Hp
Phase 3-Phase
Swing Over Bed 14 in.
Swing Over Cross Slide 8-1/5 in.
Swing Through Gap 20 in.
Length of Gap 9-3/8 in.
Distance Between Centers 40 in.
Spindle Bore 1-1/2 in.
Spindle Mount D1-4
Spindle Taper w/ Sleeve MT-5
Number of Spindle Speeds 12
Range of Spindle Speeds 40 Rpm - 1,800 Rpm
Number of Longitudinal
and Cross Feed Rates
40
Range of Longitudinal Feeds 0.012 Ipr - 0.0294 Ipr
Range of Cross Feeds 0.0004 Ipr - 0.0103 Ipr
Number of Inch Threads 40
Range of Inch Threads 4 Tpi - 112 Tpi
Number of Metric Threads 23
Range of Metric threads 0.45 - 7.5
Max Tool Size 5/8 in. x 5/8 in.
Compound Slide Travel 3-1/2 in.
Cross slide Travel 6-3/8 in.
Carriage Travel 37-1/2 in.
Tailstock Spindle Travel 4-3/4 in.
Taper in Tailstock Spindle MT-3
Follow Rest Capacity 2-5/8 in.
Steady Rest Capacity 3-1/2 in.
Width of Bed 10-1/5 in.
Length 74-4/5 in.
Width 28 in.
Height 46 in.
Product Weight 2,336 lbs.
