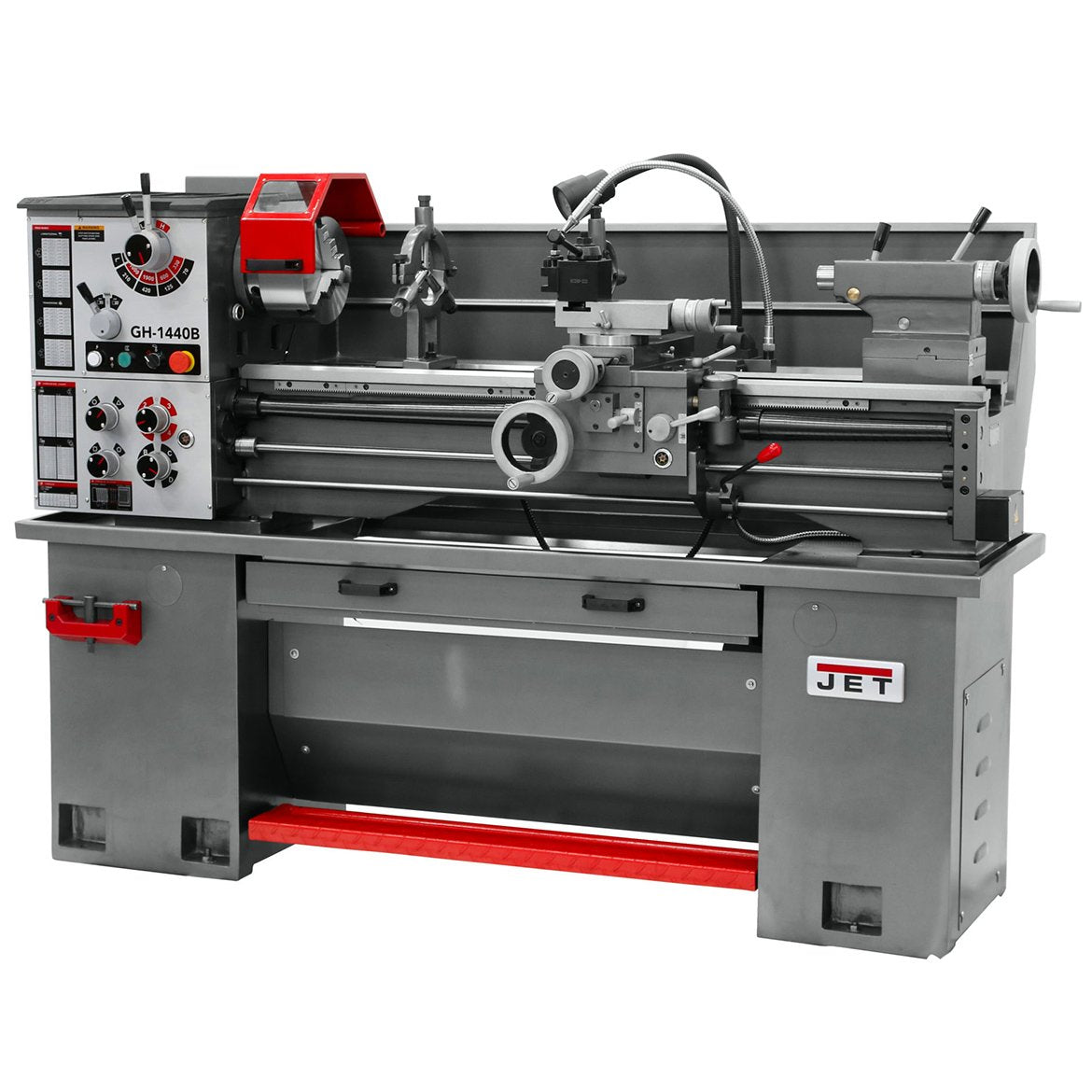

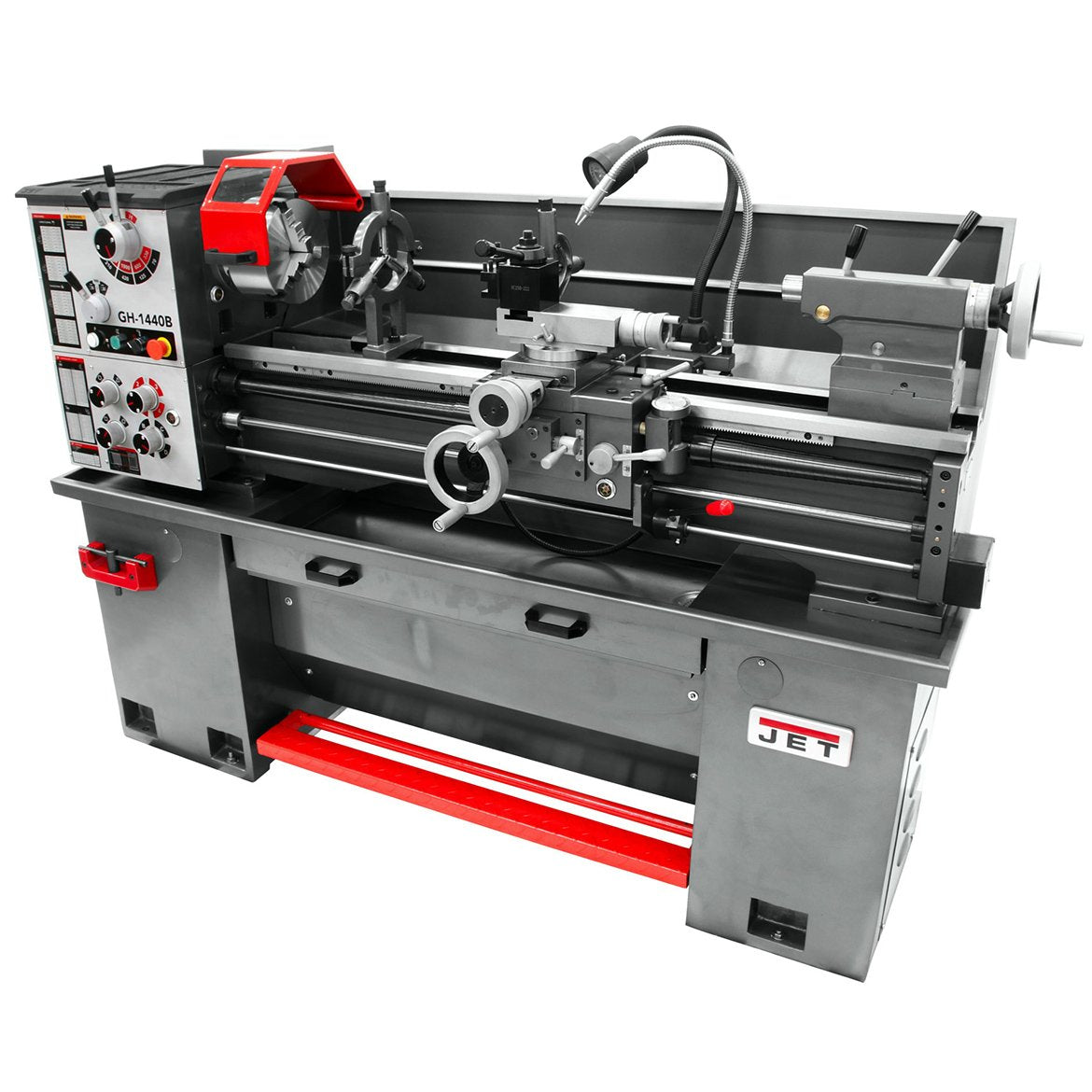

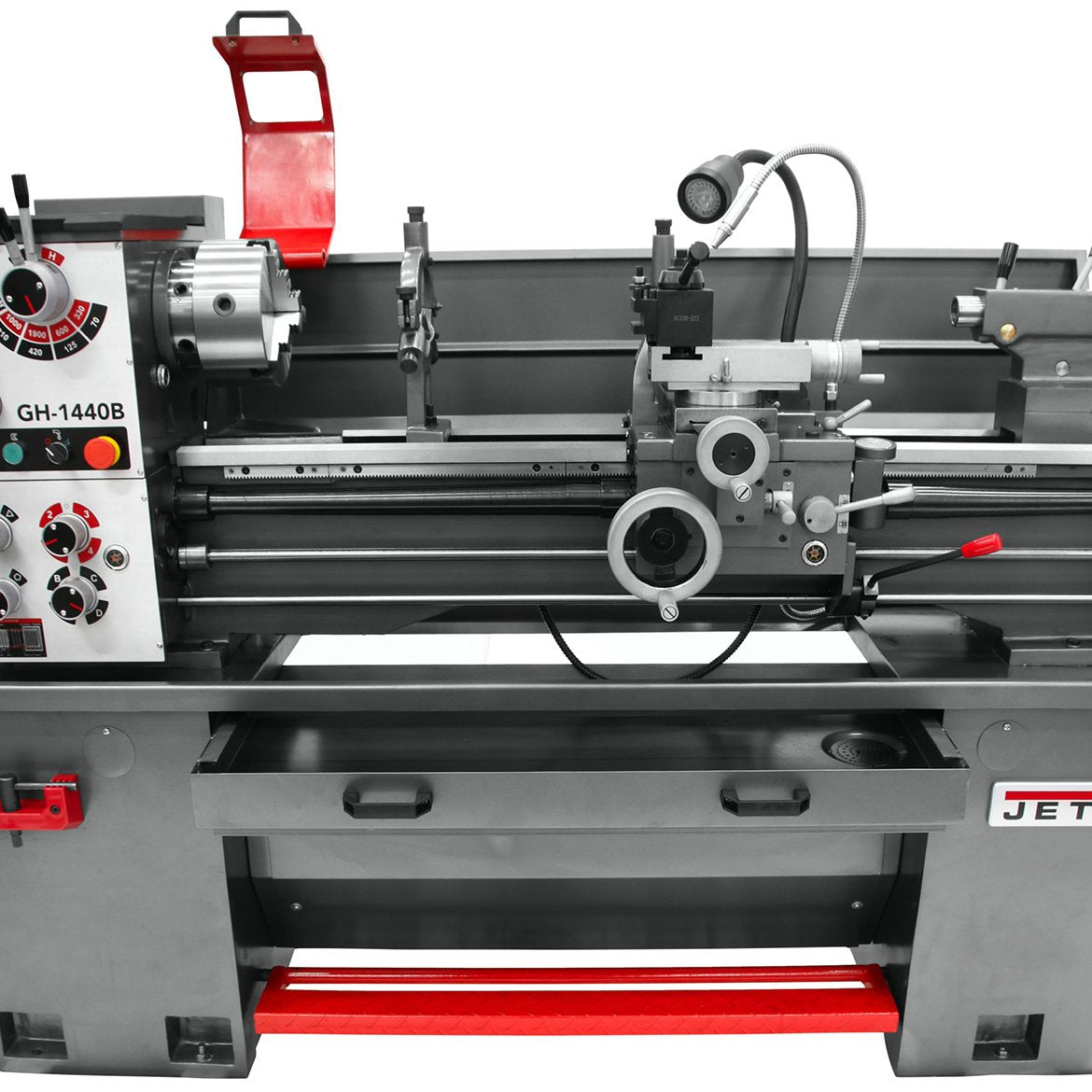

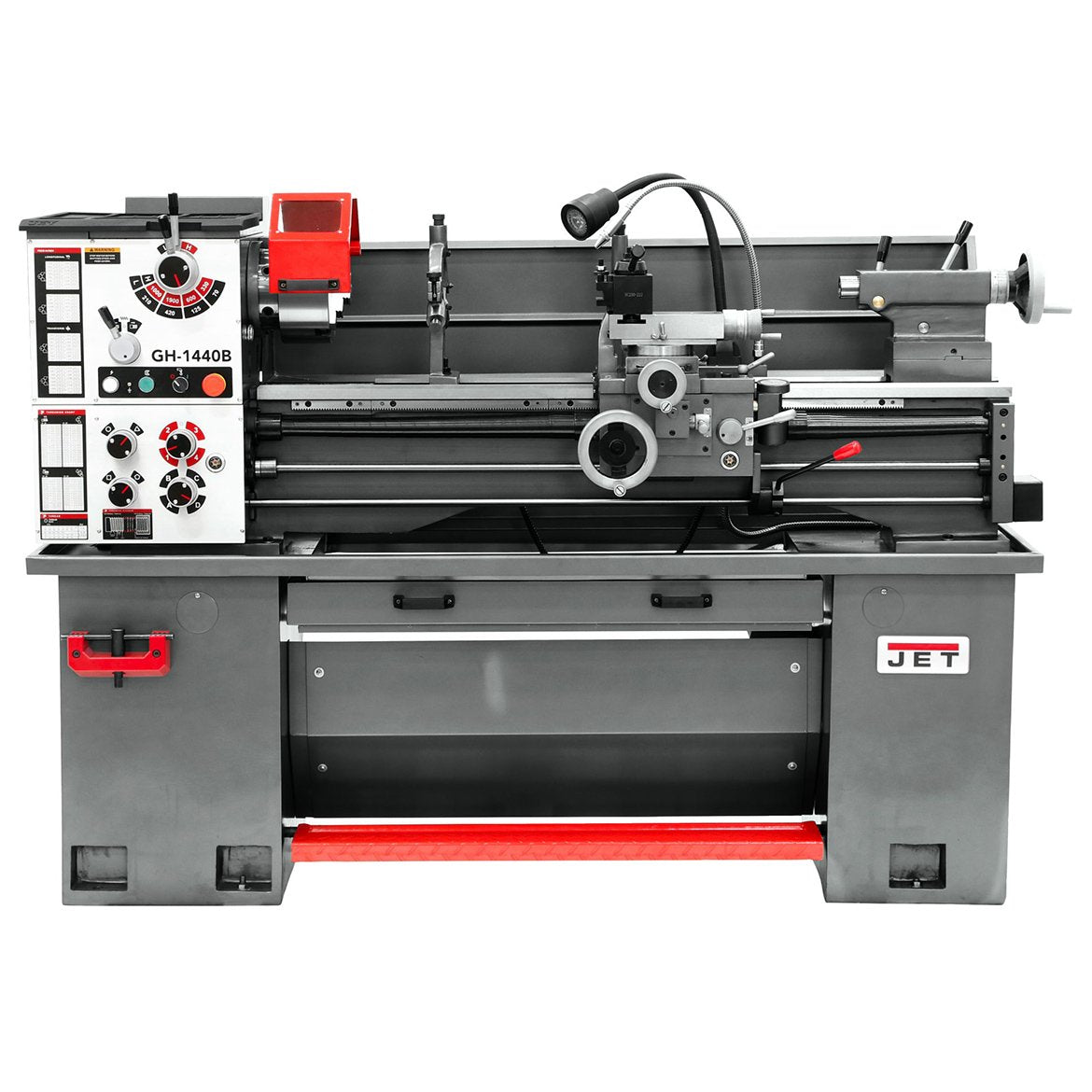

Jet 331440 14-Inch x 37-Inch 1-Phase Geared Head Bench Lathe w/ Stand

Jet


×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.
Express checkout with and plus more available at checkout.

Condition: New

SKU: JET-331440

This item ships via Freight. Appointment is required for delivery. Click for details.


Features
  • Precision spindle roller bearings
  • High quality steel hardened gears in headstock
  • Lead screw cover
  • Cast iron Stand
  • Foot Brake comes standard
  • Emergency Stop within easy reach of the Operator
  • Emergency Stop within easy reach of the Operator
  • Chuck Guard
  • Electronic Chuck Key Docking Station, provides Operator safety as the Lathe will not turn without the chuck key being docked
  • Mounted on Cast Iron stand with foot pedal, coolant, chuck key docking station ready to use

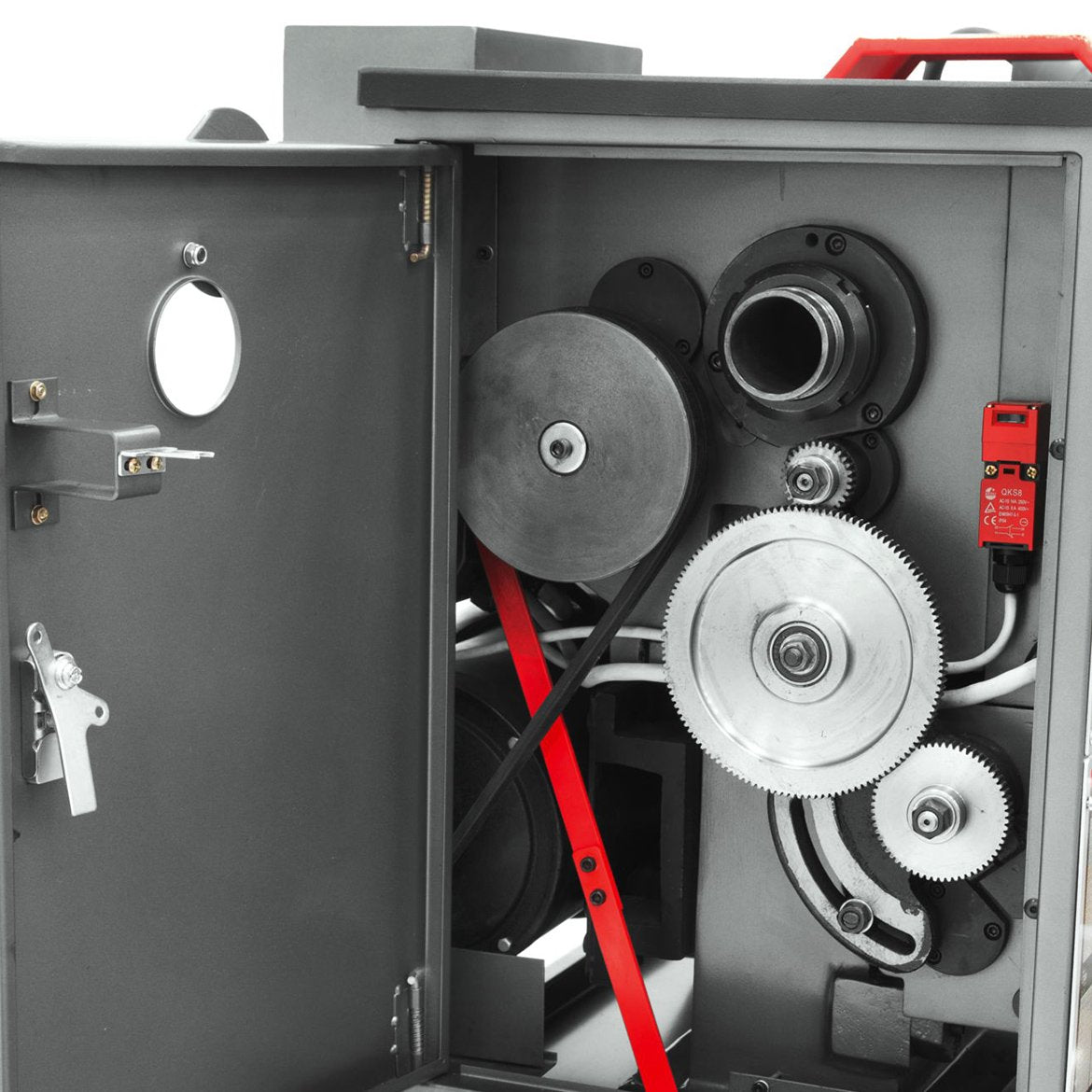

  • Enclosed gearbox design provides smooth, quiet operation
  • Gap bed section provided for larger diameter work
  • Adjustable gibs are incorporated in the carriage and slideways
  • Gearbox gives wide range of inch and metric threading and feed capabilities with few gear changes
  • Compound and cross slide have backlash adjustment
  • Tailstock may be offset for turning tapers and include and inch/metric graduated quill
  • Spindle Spider available for ease of turning Gun barrels
What's in The Box
  • 14-Inch x 37-Inch 1-Phase Geared Head Bench Lathe
  • Stand
  • Owner's Manual
Warranty
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku 331440
Model GH-1440B
Brand Jet
Voltage 230v
Horsepower 2 Hp
Phase 1-Phase
Swing Over Bed 14 in.
Swing Over Cross Slide 8 in.
Swing Through Gap 20 in.
Lenght of Gap 8 in.
Distance Between Centers 36-7/8 in.
Spindle Bore 2 in.
Spindle Mount D1-5
Spindle Taper w/ Sleeve MT6
Number of Spindle Speeds 8
Range of Spindle Speeds 70 Rpm - 1,900 Rpm
Number of Longitudinal
and Cross Feed Rates
32/32
Range of Longitudinal Feeds 0.002 Ipr - 0.0548 Ipr
Range of Cross Feeds 0.007 Ipr - 0.00187 Ipr
Number of Metric Threads 26
Range of Metric Threads 26
Range of Metric Threads 0.4 - 7
Max Tool Size 4/5 in. x 4/5 in.
Compound Slide Travel 3-1/2 in.
Cross Slide Travel 7 in.
Carriage Travel 37-2/5 in.
Tailstock Spindle travel 4 in.
Taper in Tailstock Spindle MT4
Follow Rest Capacity 0.31 in. - 2.16 in.
Steady Rest Capacity 0.31 in. - 2.95 in.
Width of Bed 7.32 in.
Length 76-13/32 in.
Width 29-29/32 in.
Height 59-13/16 in.
Product Weight 1,753 lbs.
