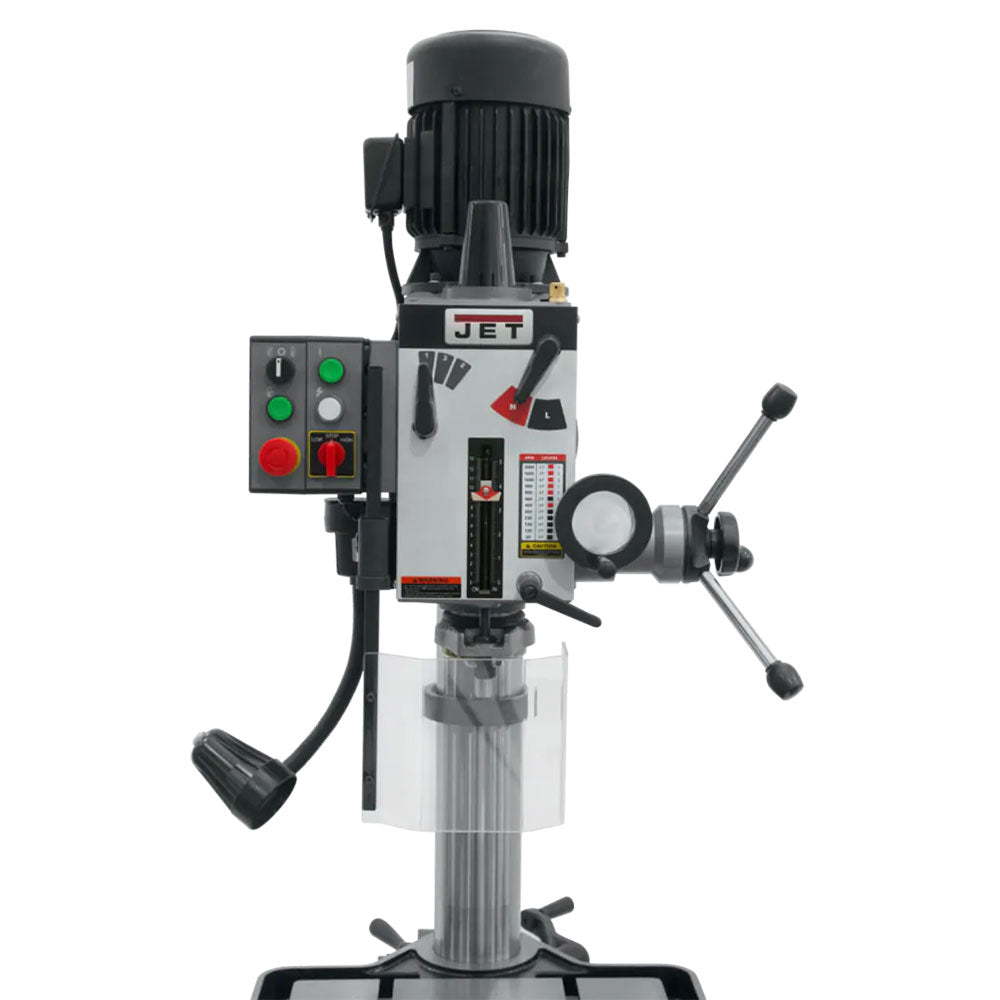

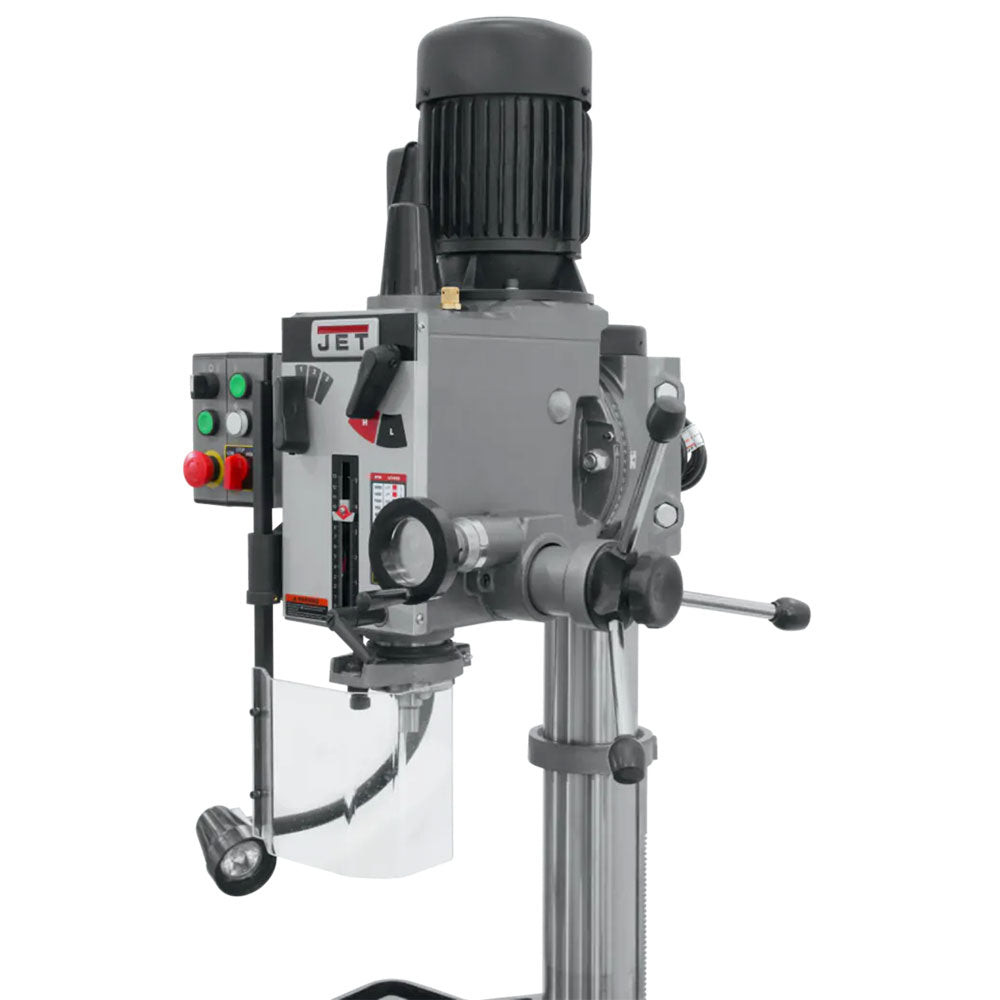

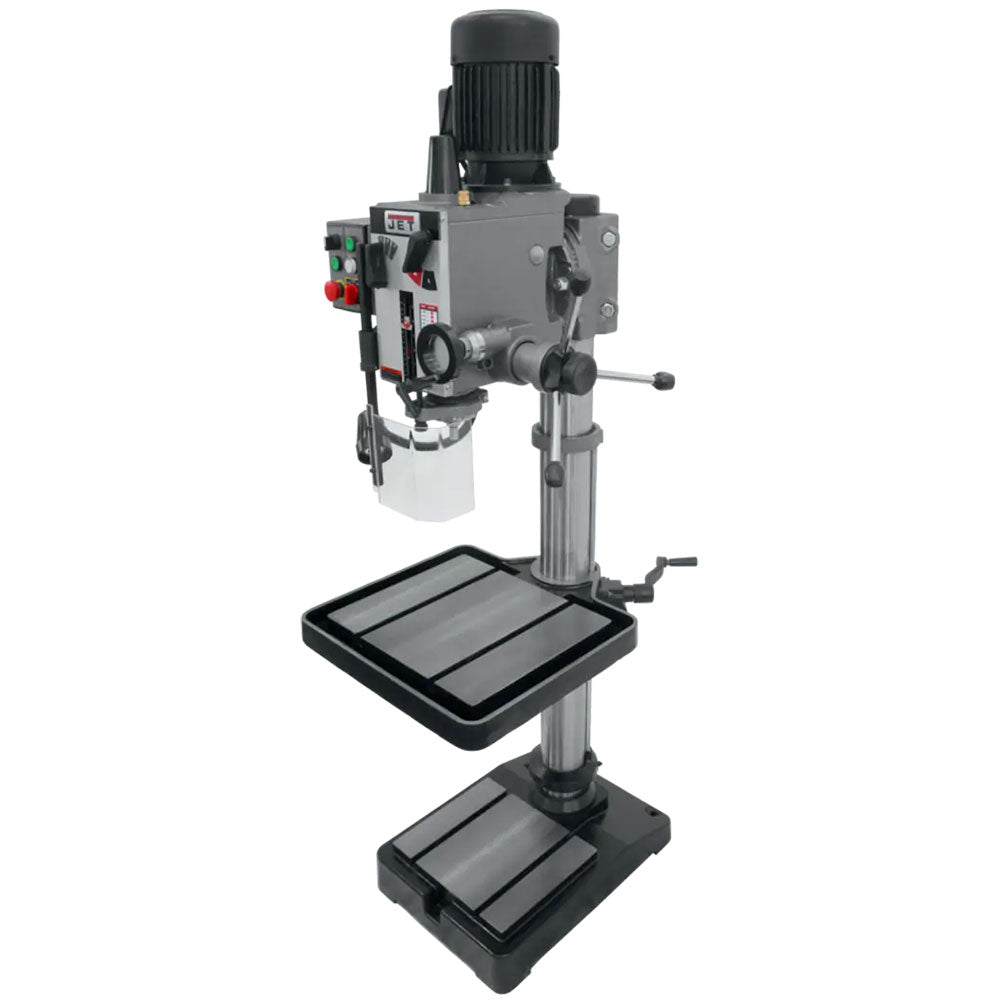

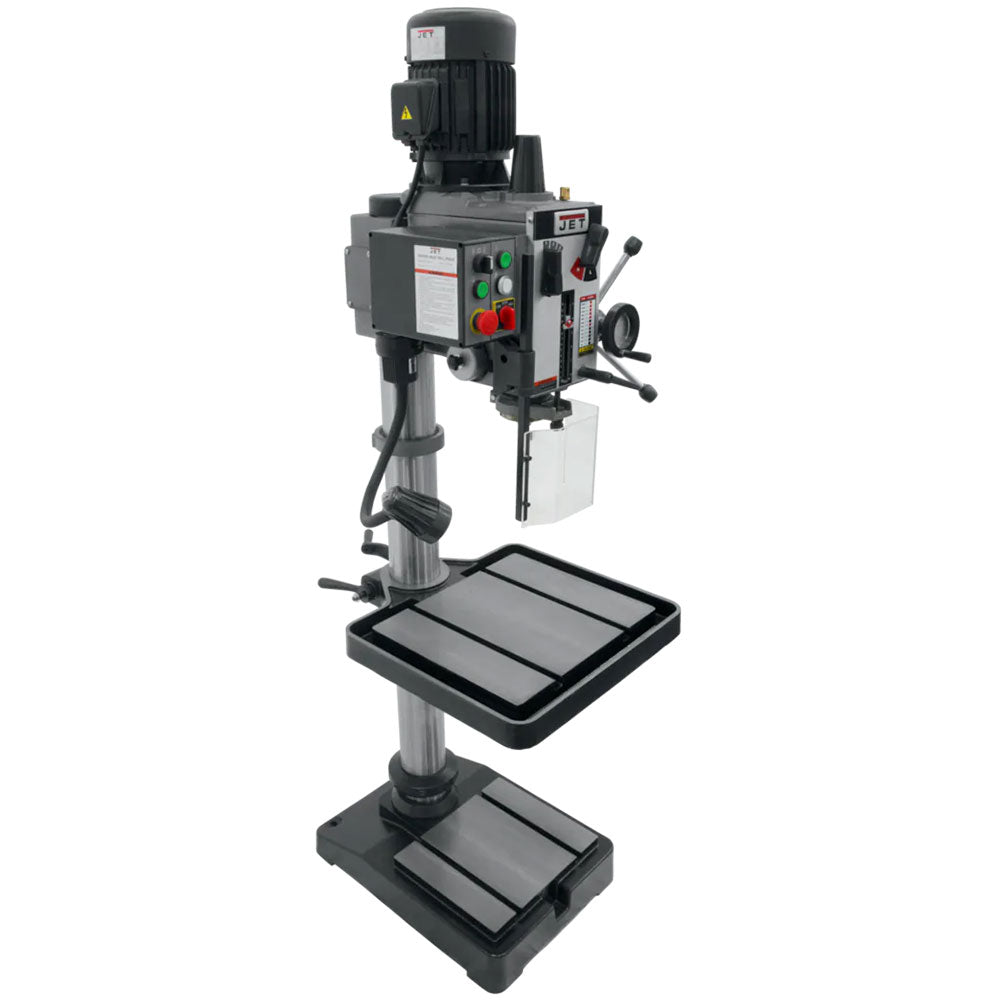

JET 354022 GHD-20T 230V 3 Phase 20" Gear Head Tapping Drill Press

by Jet

$5,889.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: JET-354022

Features
  • Heavy-duty design allows a variety of precision drilling and tapping applications
  • Integrated tapping and reversing controls
  • Large production table and T-slotted base
  • Easy-to-read internal depth gauge
  • Calibrated fine down feed built-in
  • TEFC motor
  • Built-in spindle lock
  • Head tilts left or right
  • Easily accessible table raiser
  • Drill chuck arbor
  • Drawbar
What's in The Box
  • Gear Head Tapping Drill Press
  • Owner's Manual
Warranty
  • 2 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU 354022
Brand Jet
Volts 230
Horsepower 2
Phase 3
Style Geared Head
Drills to Center of Circle 20 in
Drilling Capacity Cast iron 1-1/2 in
Drilling Capacity Mild Steel 1-1/4 in
Tapping Capacity Cast Iron 15/16 in
Tapping Capacity Mild Steel 15/16 in
Column Diameter 4-1/2 in
Distance Column to Spindle 10 in
Range of Spindle Speeds (RPM) 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
Spindle Taper (in x TPI) MT-3
Spindle Travel 5 in
Spindle Distance to Base 44-5/16 in
Spindle Distance to Table (Max) 30-1/2 in
Quill Diameter 3 in
Quill Feed Manual
Table Travel 25-1/2 in
T-Slots Number and Size 2 and 5/8 in
T-Slot Center 9 in
Work Table Weight Capacity 275 lbs
Table Size (L x W) 21-3/4 x 19-1/2 in
Base Work Table 15-1/4 x 13 in
Base Slots Number and Size 2 and 5/8 in
Dimensions (L x W x H) 32 x 24 x 71
Weight 700 lbs
