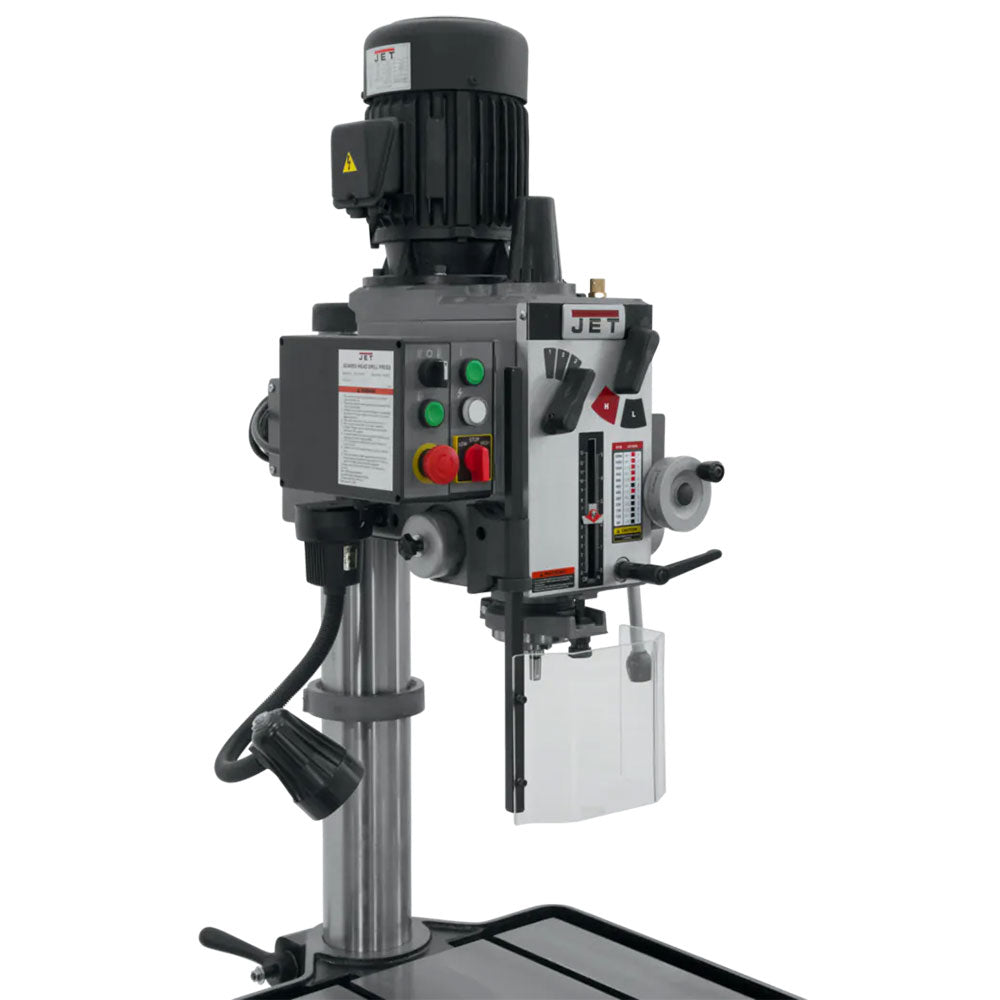

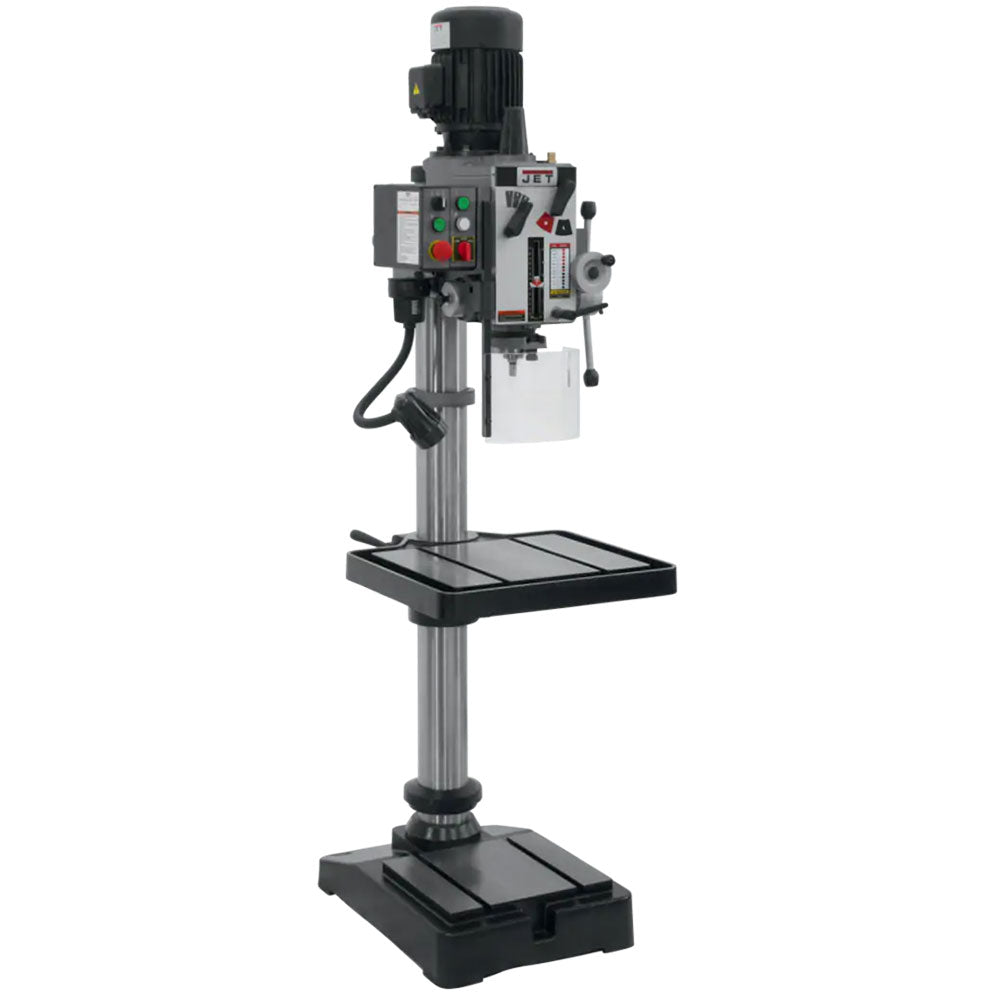

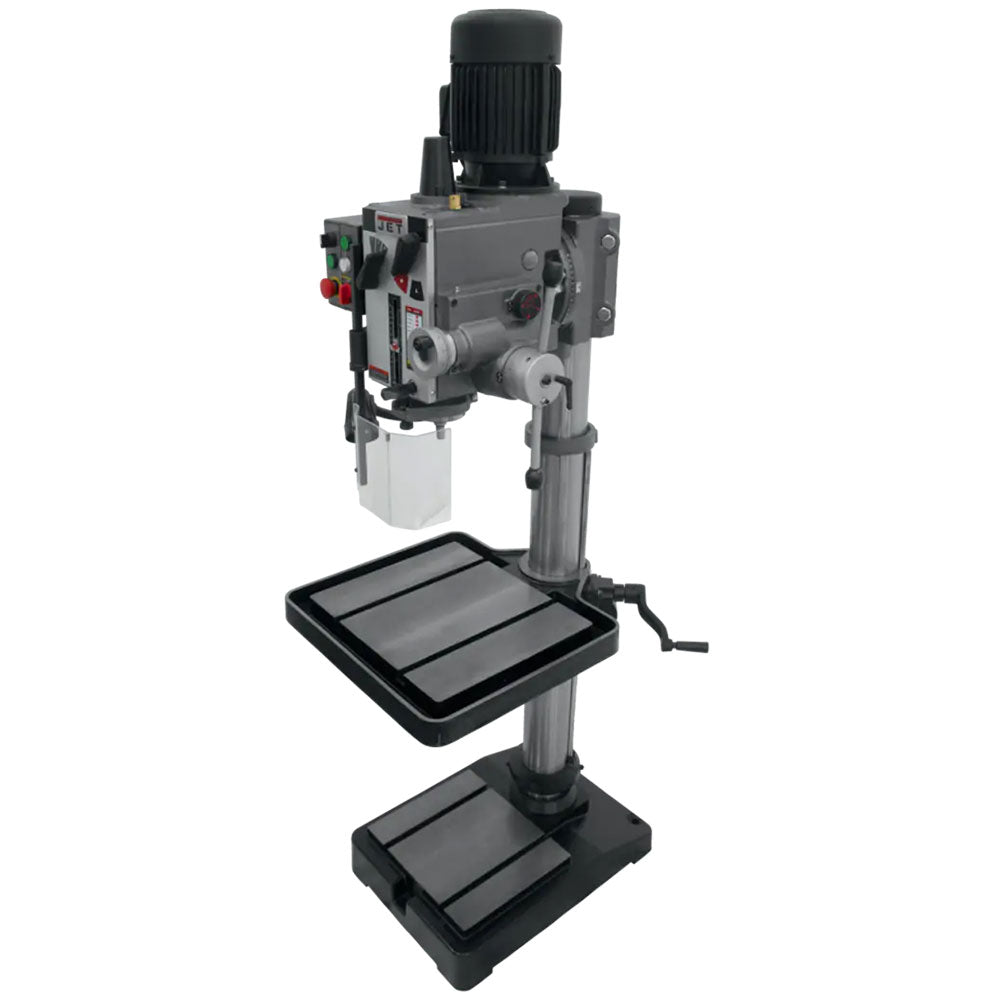

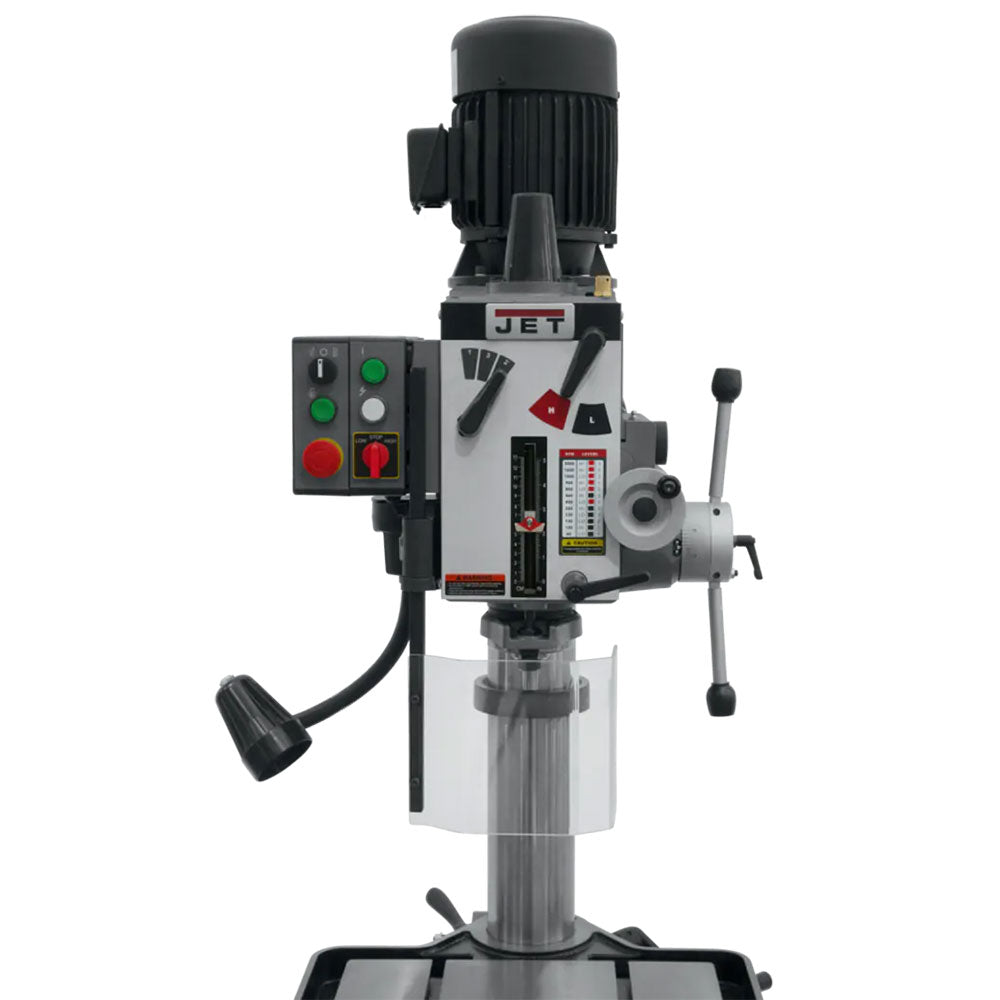

JET 354026 GHD-20PFT 230V 3 Phase 20" Gear Head Tapping Drill Press w/ Powerfeed

See all Jet


×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.

Condition: New

SKU: JET-354026

This item ships via Freight. Appointment is required for delivery. Click for details.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $99 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $99 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $99, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Heavy-duty design allows a variety of precision drilling and tapping applications
  • Integrated tapping and reversing controls
  • Large production table and T-slotted base
  • Easy-to-read internal depth gauge
  • Power down feed speed selector
  • Calibrated fine down feed built-in
  • TEFC motor
  • Built-in spindle lock
  • Head tilts left or right
  • Easily accessible table raiser
  • Drill chuck arbor
  • Drawbar
What's in The Box
  • Gear Head Tapping Drill Press
  • Owner's Manual
Warranty
  • 2 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU 354026
Brand Jet
Volts 230
Horsepower 2
Phase 3
Style Geared Head
Drills to Center of Circle 20 in
Drilling Capacity Cast iron 1-1/2 in
Drilling Capacity Mild Steel 1-1/4 in
Tapping Capacity Cast Iron 15/16 in
Tapping Capacity Mild Steel 15/16 in
Column Diameter 4-1/2 in
Distance Column to Spindle 10 in
Range of Spindle Speeds (RPM) 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
Spindle Taper (in x TPI) MT-3
Spindle Travel 4-1/2 in
Spindle Distance to Base 44-5/16 in
Spindle Distance to Table (Max) 30-1/2 in
Quill Diameter 3 in
Quill Feed Manual
Table Travel 25-1/2 in
T-Slots Number and Size 2 and 5/8 in
T-Slot Center 9 in
Work Table Weight Capacity 275 lbs
Table Size (L x W) 21-3/4 x 19-1/2 in
Base Work Table 15-1/4 x 13 in
Base Slots Number and Size 2 and 5/8 in
Dimensions (L x W x H) 32 x 24 x 71
Weight 708 lbs
