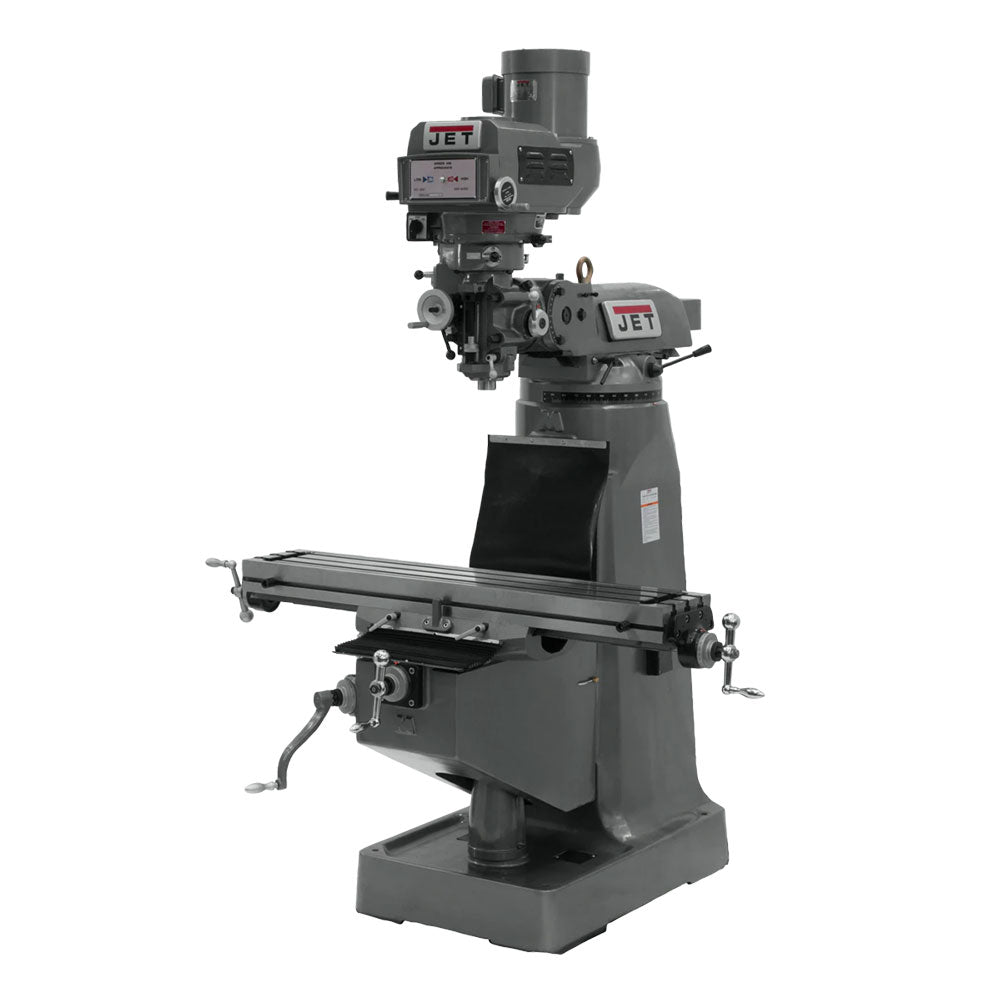

JET 690202 JTM-4VS 230/460V Heavy Duty Variable Speed Mill w/ ACU-RITE 203 DRO

See all Jet

Notify me when this product is available:


Condition: New

SKU: JET-690202

This item ships via Freight. Appointment is required for delivery. Click for details.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Certified Meehanite Castings
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Chrome-plated motor shaft with lower bearing support
  • The spindle head is internally cooled
  • Heavy-duty splined motor drive
  • One-piece quill pinion and shaft
  • Three-stage power down feed with automatic stop
  • Heavy-duty spindle brake
  • Locks on all movable surfaces
  • Precision hardened and ground ways and table
  • Adjustable gibs throughout
  • Internal coolant tank built into casting base for use with a coolant system (coolant pump not included)
  • Tolerance test sheet included
  • One-shot lubrication system
  • Way covers
  • Drawbar
  • Toolbox with tools
What's in The Box
  • Mill With ACU-RITE 203 DRO
  • Owner's Manual
Warranty
  • 2 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU 690202
Brand Jet
Volts 230/460
Horsepower 3
Phase 3
Style Variable Speed R8
Digital Readout ACU-RITE 203
Number of Axis 2
Spindle Taper (in x TPI) R-8
Table Size (L x W) 9 x 49 in
Quill Diameter 3-3/8 in
Number of Spindle Speed (RPM) Variable
Range of Spindle Speed (RPM) 60 - 4,200
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Spindle Travel 5 in
Head Movement 90 R & L, 45 F & B degree
Max Distance Spindle to Table 17-1/2 in
Distance Spindle to Column (Max) 19 in
Distance Spindle to Column 4-1/2 in
Collet Capacity 1/8 - 7/8
Table Longitudinal Travel 34 in
Table Longitudinal Travel w/ Powerfeed 28-3/4 in
Table Cross Travel 12 in
T-Slots Number and Size 3 and 5/8 in
T-Slot Centers 2-1/2 in
Work Table Weight Capacity 660 lbs
Travel of Knee 14-1/2 in
Travel of Ram 13-3/8 in
Dimensions 66 x 63 x 85 in
Weight 2420
