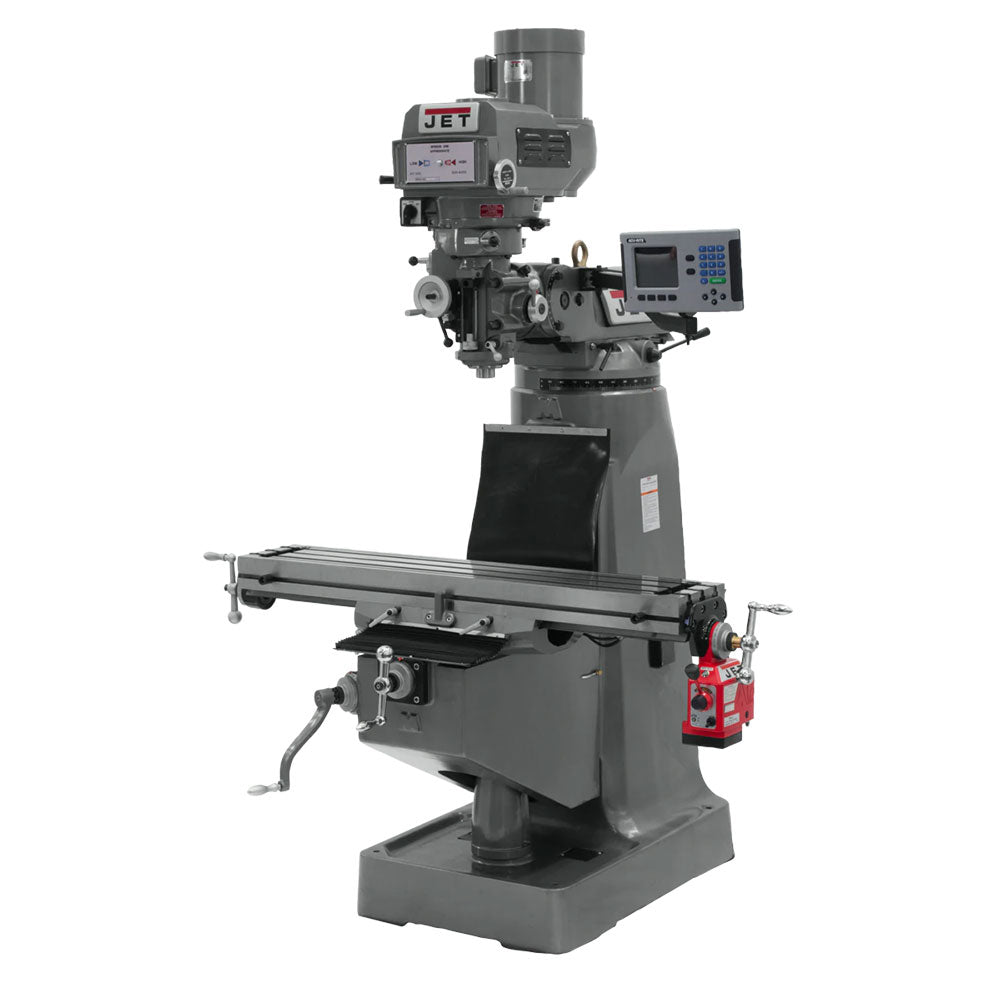

JET 690408 JTM-4VS 230/460V Mill w/ 3-Axis ACU-RITE 203 DRO w/ X-Axis Powerfeed

Name: JET 690408 JTM-4VS 230/460V Mill w/ 3-Axis ACU-RITE 203 DRO w/ X-Axis Powerfeed
Brand: Jet
Price: 17369.0 USD
Availability: OutOfStock

See all Jet

Sold Out Free

Condition: New

SKU: JET-690408

Product Details
Customer Reviews
Shipping & Return Policies

Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
Frequently Viewed Together
Similar Products

Features

Certified Meehanite Castings
Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearings
Chrome-plated motor shaft with lower bearing support
The spindle head is internally cooled
Heavy-duty splined motor drive
One-piece quill pinion and shaft
Three-stage power down feed with automatic stop
Heavy-duty spindle brake
Locks on all movable surfaces
Precision hardened and ground ways and table
Adjustable gibs throughout
Internal coolant tank built into casting base for use with a coolant system (coolant pump not included)
Tolerance test sheet included
One-shot lubrication system
Way covers
Drawbar
Toolbox with tools

What's in The Box

Mill With 3-Axis ACU-RITE 203 DRO
Owner's Manual

Warranty

2 Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

SKU	690408
Brand	Jet
Volts	230/460
Horsepower	3
Phase	3
Style	Variable Speed R8
Digital Readout	ACU-RITE 203
Number of Axis	3
Spindle Taper (in x TPI)	R-8
Table Size (L x W)	9 x 49 in
Quill Diameter	3-3/8 in
Number of Spindle Speed (RPM)	Variable
Range of Spindle Speed (RPM)	60 - 4,200
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Spindle Travel	5 in
Head Movement	90 R & L, 45 F & B degree
Max Distance Spindle to Table	17-1/2 in
Distance Spindle to Column (Max)	19 in
Distance Spindle to Column	4-1/2 in
Collet Capacity	1/8 - 7/8
Table Longitudinal Travel	34 in
Table Longitudinal Travel w/ Powerfeed	28-3/4 in
Table Cross Travel	12 in
T-Slots Number and Size	3 and 5/8 in
T-Slot Centers	2-1/2 in
Work Table Weight Capacity	660 lbs
Travel of Knee	14-1/2 in
Travel of Ram	13-3/8 in
Dimensions	66 x 63 x 85 in
Weight	2420
