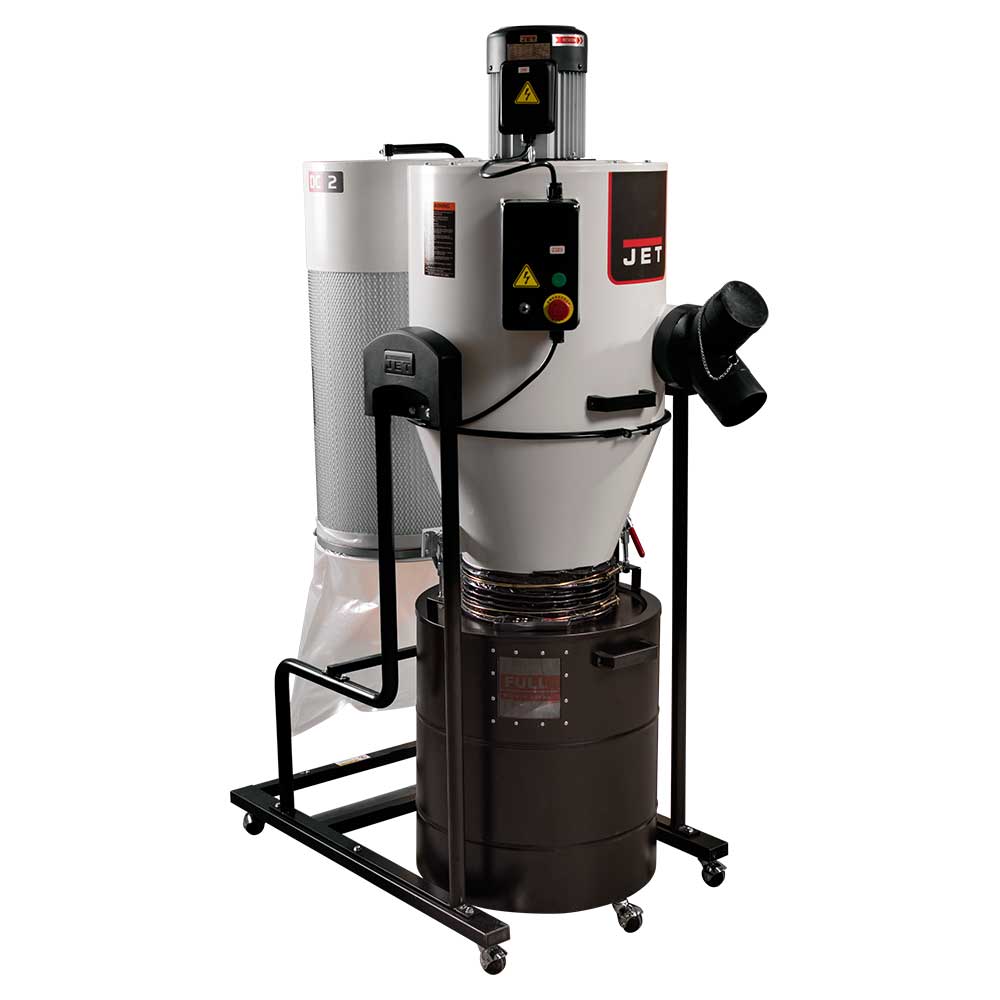

JET 717520 JCDC-2 230V 2-HP Cyclone Dust Collector

by Jet

$2,099.99 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: JET-717520

Features
  • Cyclones two stage separation provides more working CFM than comparable horsepower single stage units
  • Heavy Debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
  • Direct mounted filter eliminates inefficiencies from ridged flex hosing bends
  • Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below

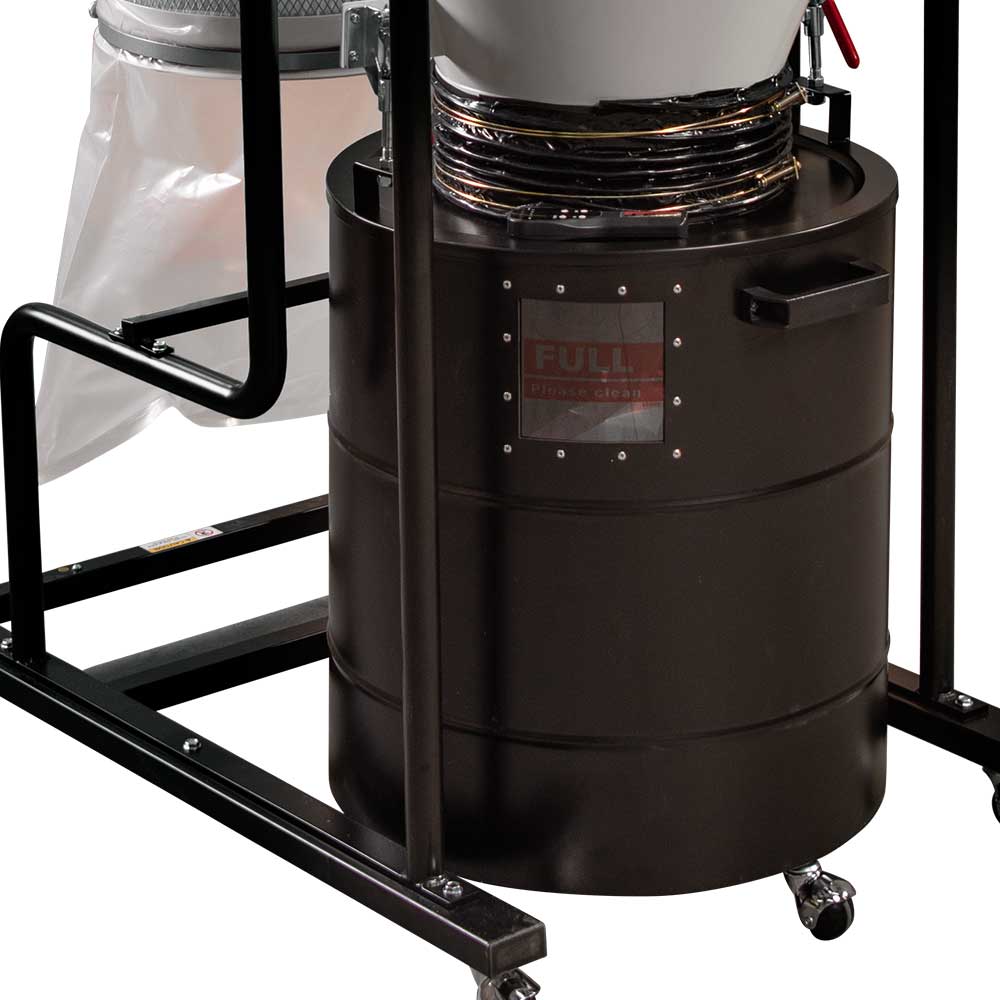

  • Heavy debris is captured in a 30 gallon drum with quick release levers and independent casters for quick emptying
  • Included radio frequency remote control works from up to 50 feet away
  • Remote timer settings allows system to run 2, 4, 6, or 8 hours before automatic shutoff
  • Double paddle manual cleaning system quickly cleans the pleated filter
  • Swivel casters make it easy to move the unit around the shop
What's in The Box
  • Jet JCDC-2 230V 2-HP Cyclone Dust Collector - 717520
  • Owner's Manual
Warranty
  • 5 Years Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU 717520
Brand JET
Number of Air Inlets 1 at 6 in, 2 at 4 in
Air Flow ay 6 in CFM 938
Air Velocity at 6 in FPM 4763
Static Pressure Loss 2.520
Max Static Pressure 10
MERV Value 13
Filter Efficiency Microns 99 percent of 2-micron particles
Canister Filter Length 22-5/8 in
Canister Filter Diameter 14-9/16 in
Collection Drum Capacity 30 gallon
Impeller Material Steel
Impeller Diameter 14-1/2 in
Impeller Fins radial
Sound Rating 76 dB
Motor Speed 3450 RPM
Motor Power 2 HP
Motor Voltage 230V
Motor Amps 9
Footprint 50-5/8 in X 25-7/8 in
Length 25-7/8 in
Width 50-5/8 in
Height 72-1/4 in
Weight 235 lbs
