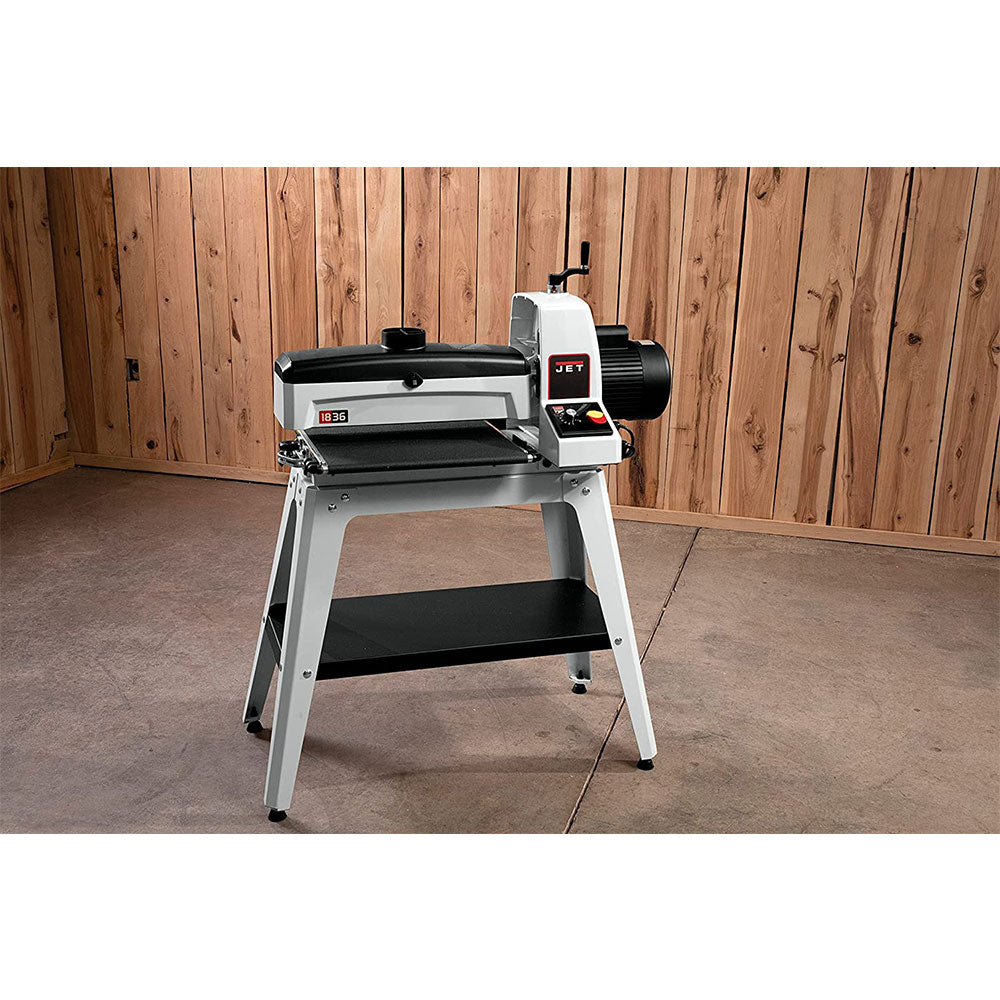

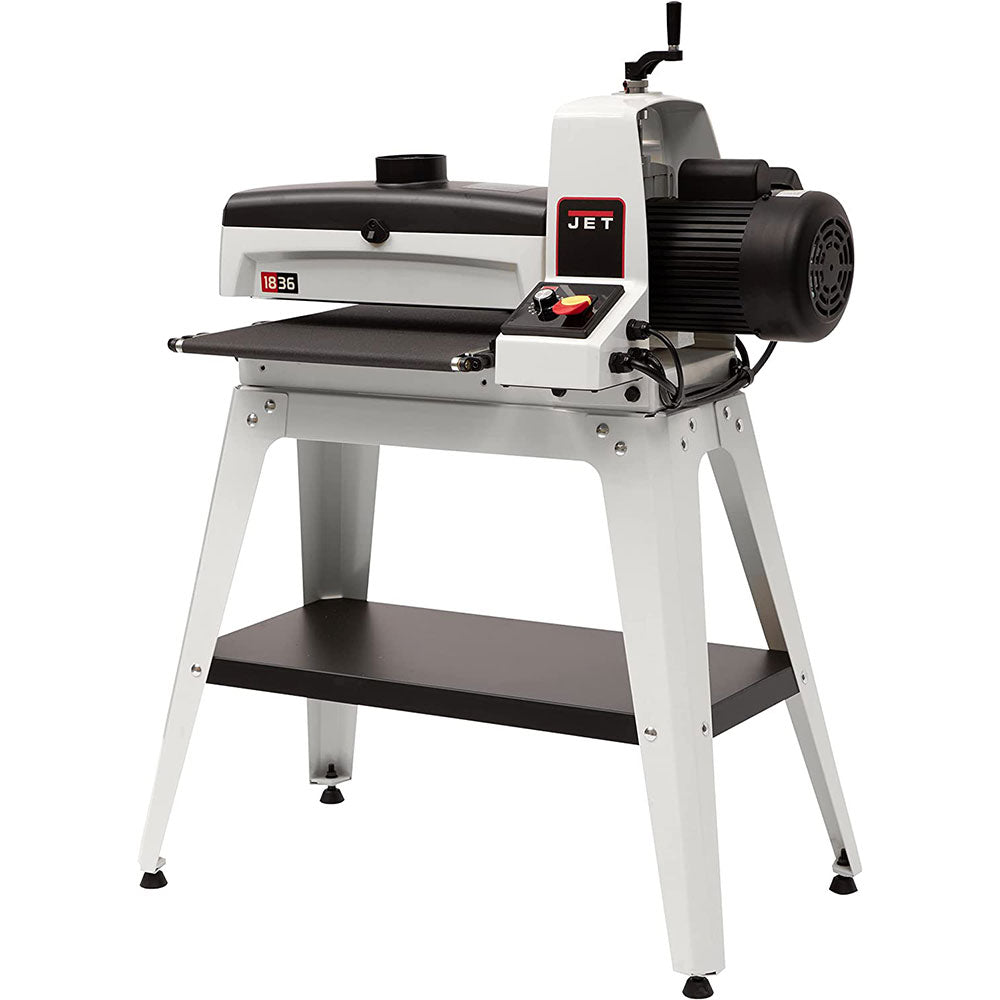

JET 723530K JWDS-1836 Smart Control Drum Sander w/ Stand

by Jet

$1,699.99 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: JET-JWDS-1836

Features

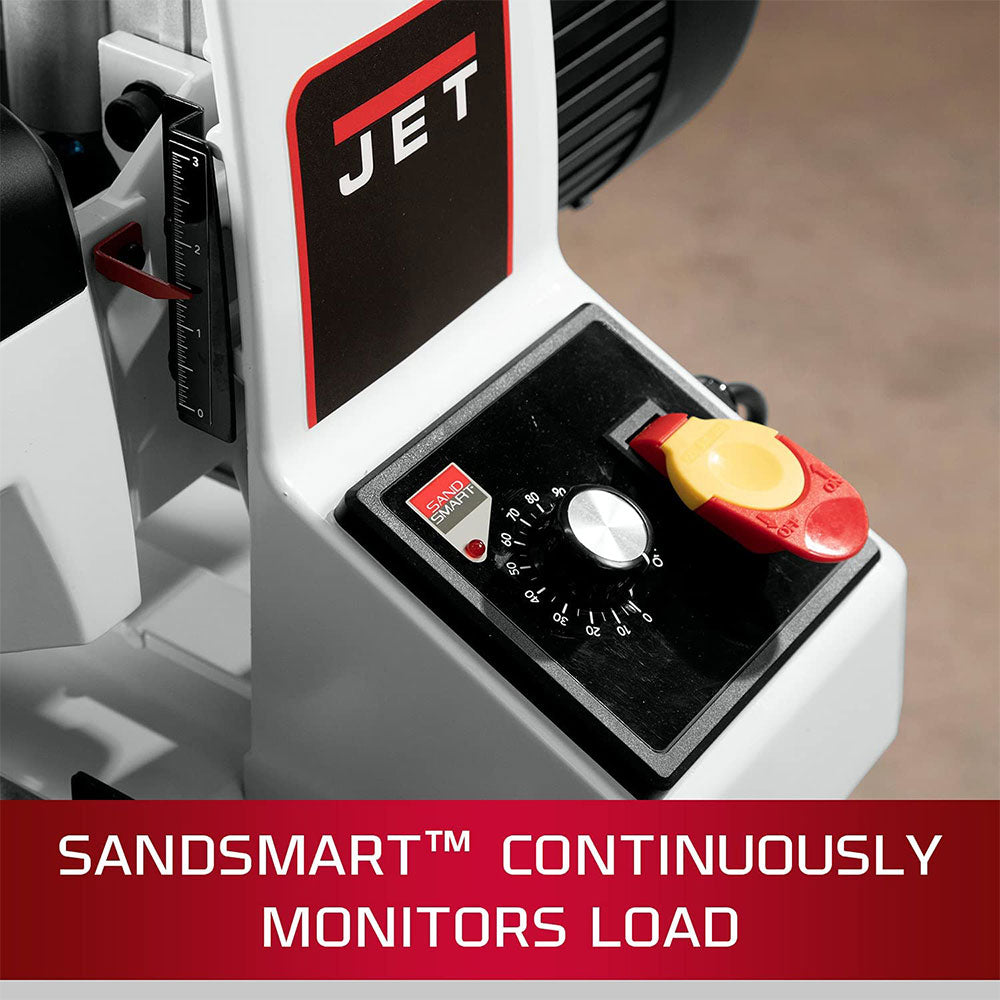

  • Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload

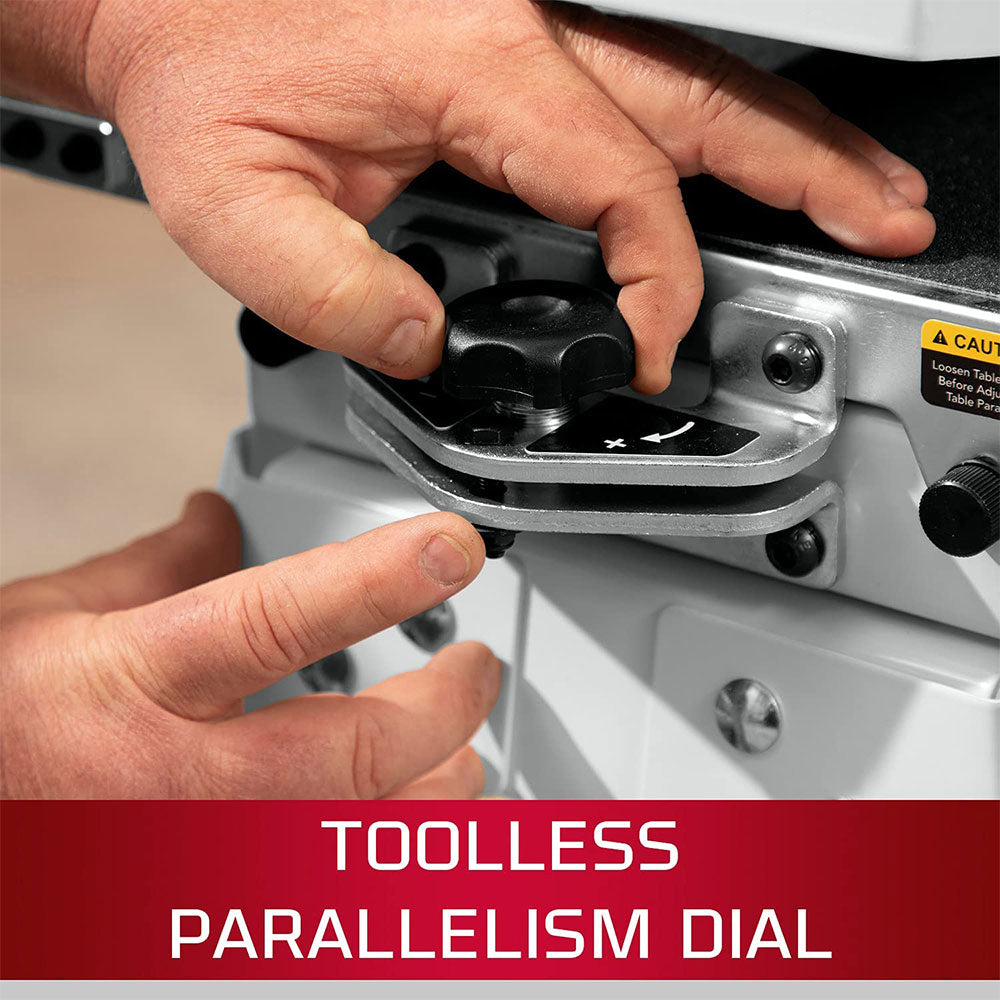

  • Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed no tools require
  • Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position

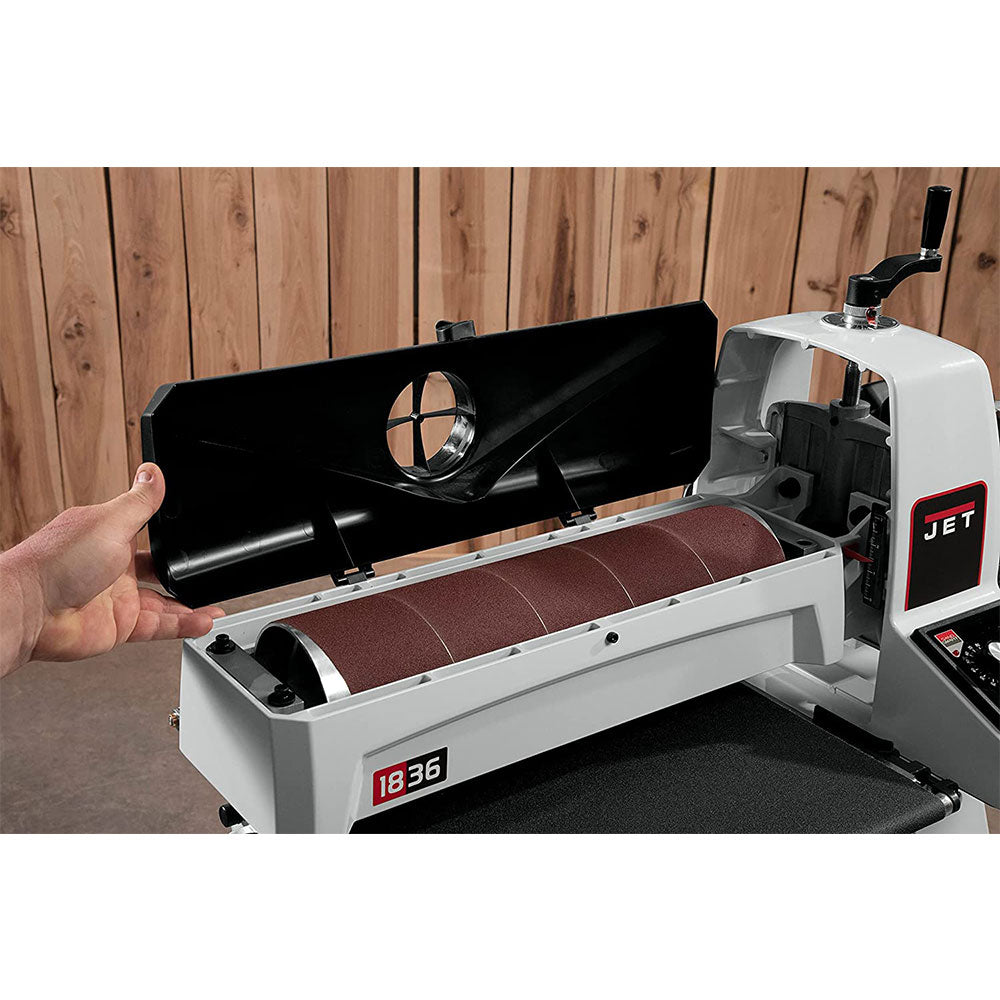

  • Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 inch collection port

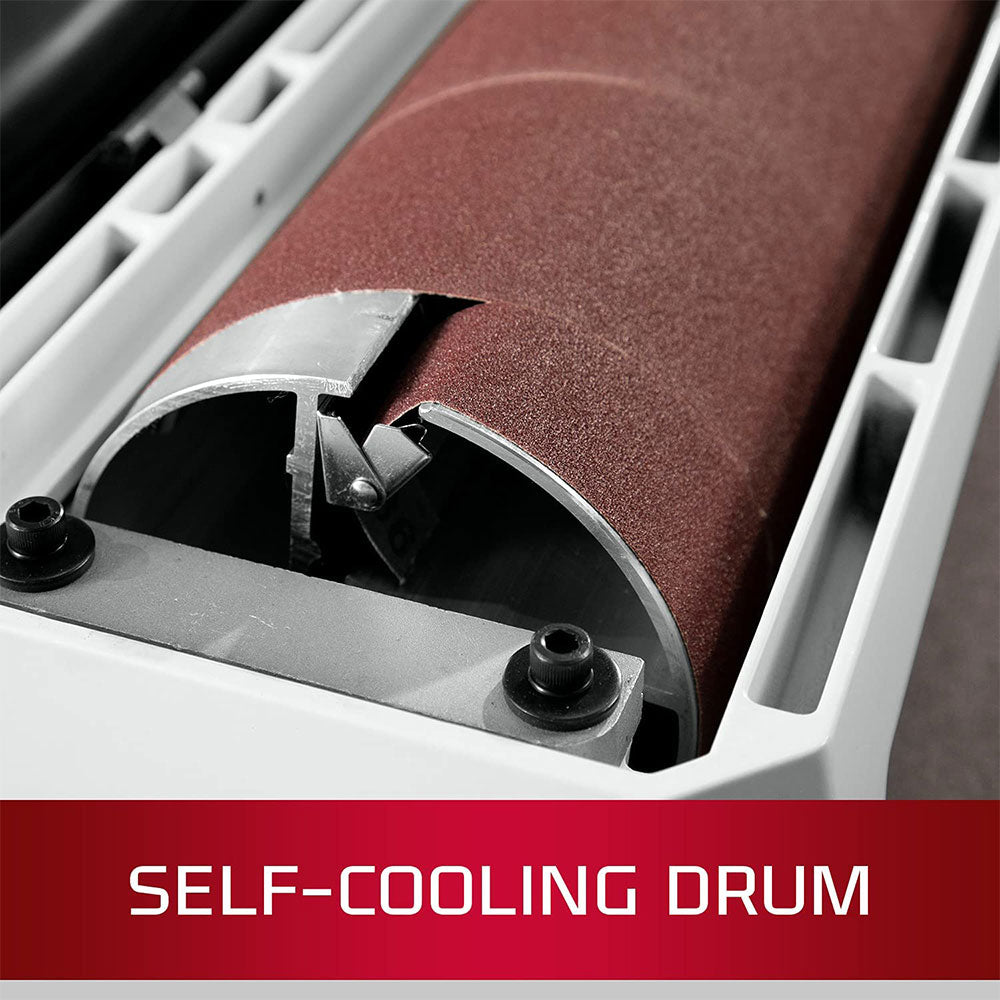

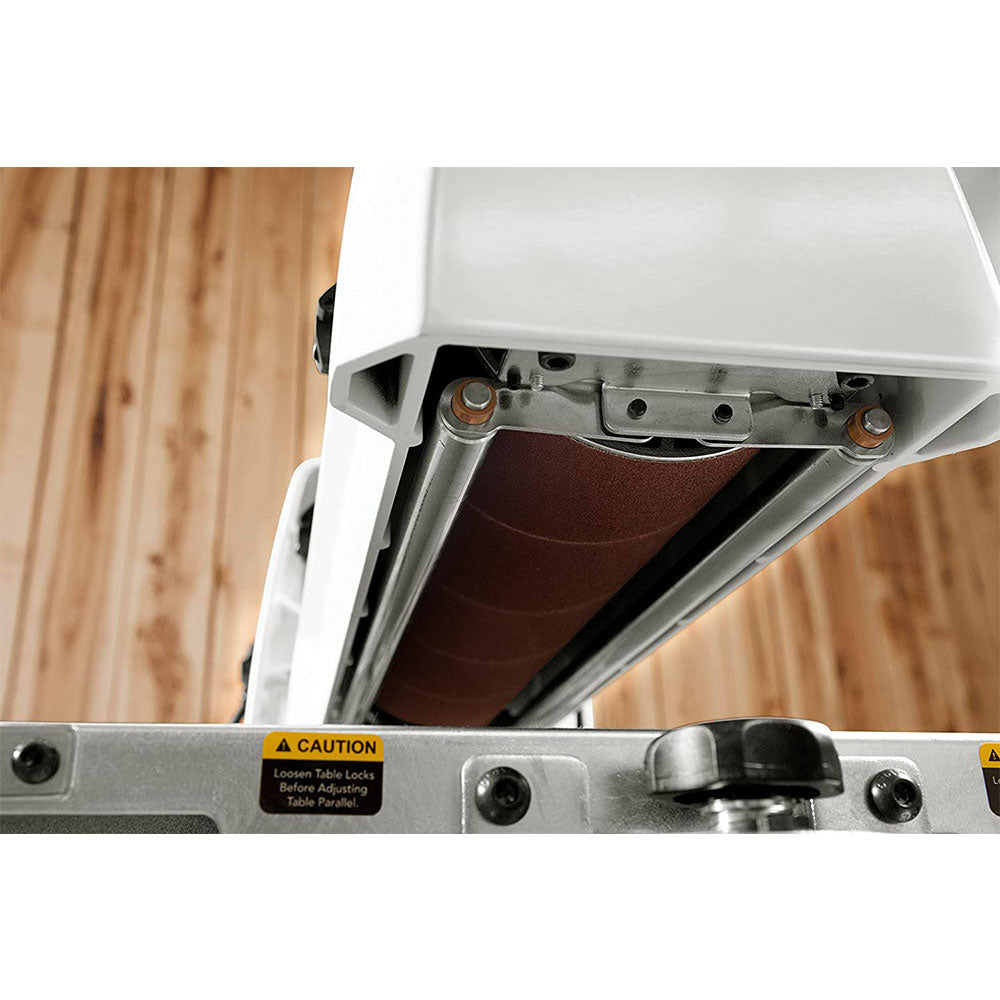

  • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
  • Precision-flattened reinforced steel conveyor bed
  • Redesigned conveyor system pulls the workpiece through the sander instead of pushing

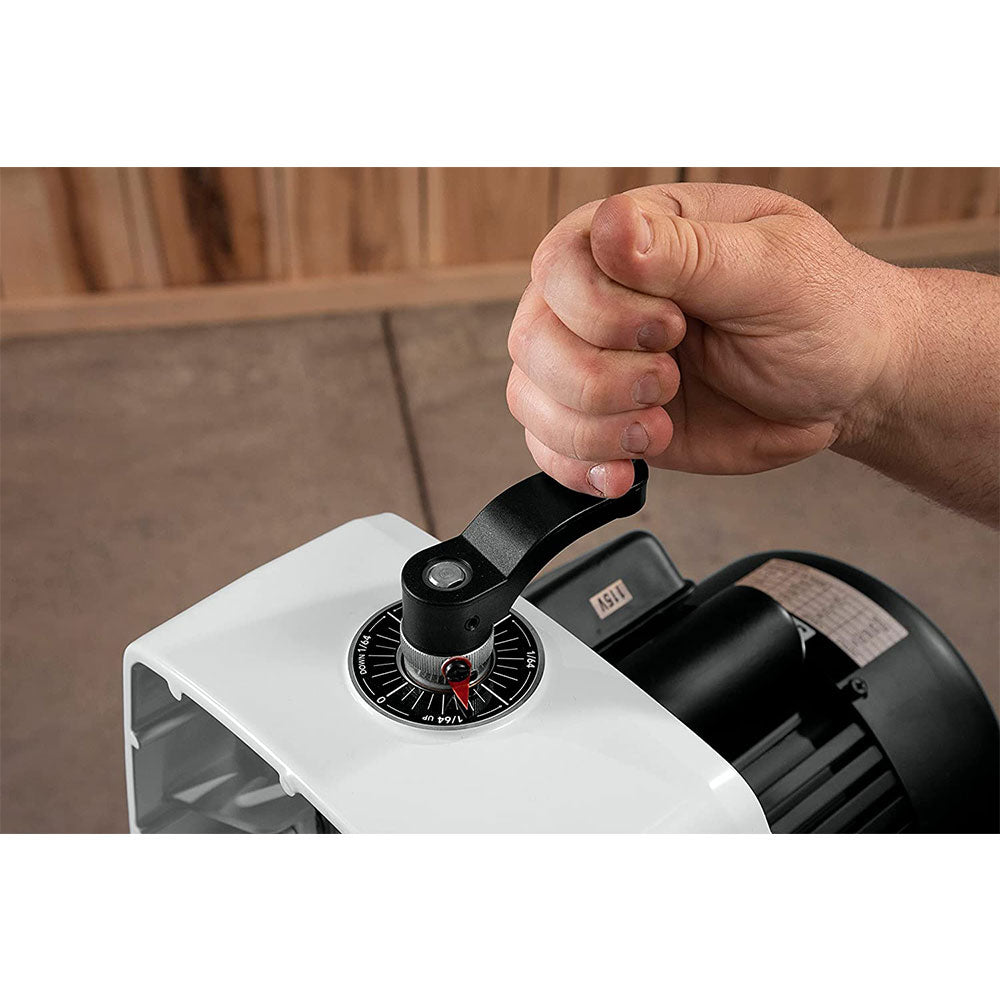

  • One rotation of the top-position handwheel adjusts the drum height by 1/16 inch
  • The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
  • Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
  • Toolless abrasive take-up clips make changing abrasives quick and easy
  • Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
  • Separate feed and drum motors provide independent control, optimizing the performance of the sander
  • Conveyor belt Trackers reduce the need for manual belt adjustments
  • Integrated on/off switch and variable speed control knob are conveniently located

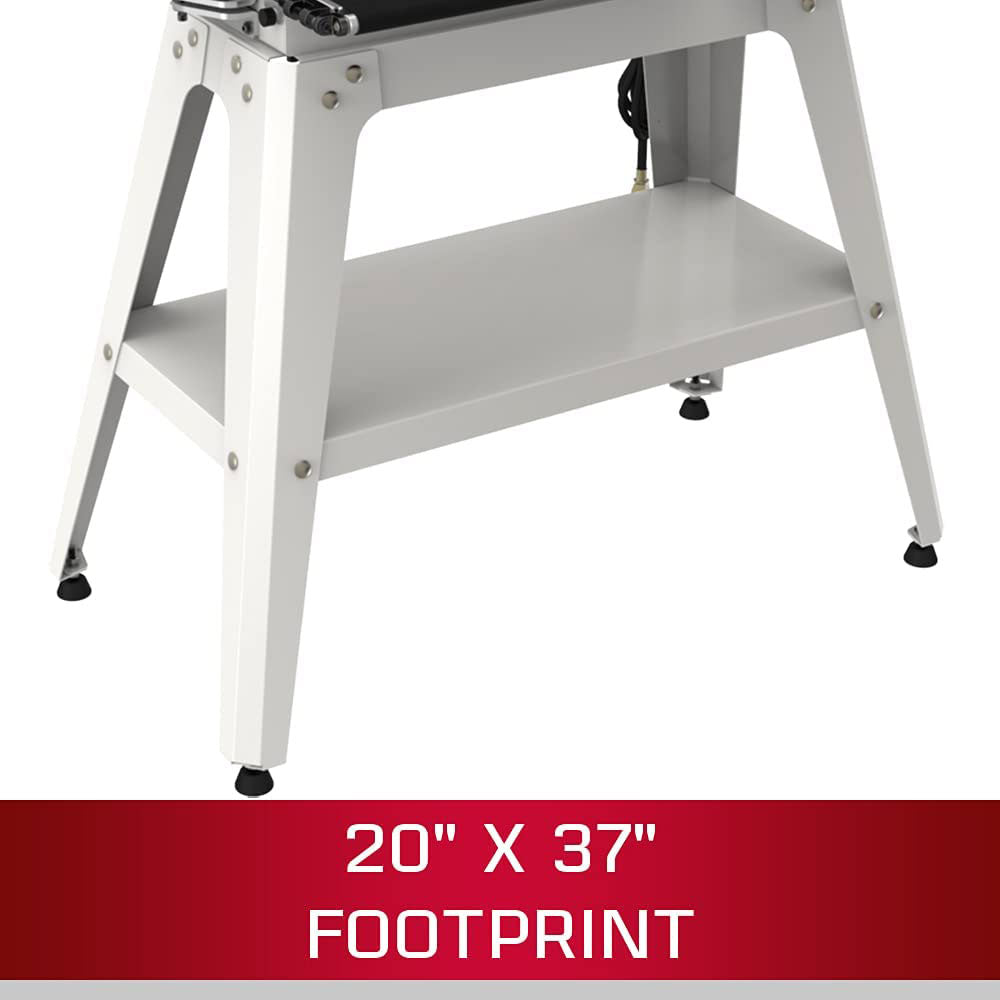

  • Stand features a 20 inch x 37 inch footprint to increase stability and has a storage shelf and pre-drilled holes for casters
  • Drum is easily removable
  • Drum utilizes sealed and permanently lubricated ball bearings for longer life
What's in The Box
  • Drum Sander with Stand - 723530K
  • Owner's Manual
Warranty
  • 5 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU 723530K
Brand Jet
Horsepower 1.75 HP
Motor Phase 1 Ph
Motor Voltage 115V
Motor Amps 15 Amps
Recommended Circuit Size 20 Amps
Drum Length 18 in.
Number of Sanding Drums 1
Drum Speed 1720 RPM
Drum Diameter 5in.
Drum Bearing Diameter 1in.
Conveyor Motor 43 inch-lbs. torque, direct drive, dc
Conveyor Speed 10 FPM
Maximum Board Thickness 3 in.
Maximum Board Width 36 in. (two passes)
Minimum Board Length 2-3/8 in.
Minimum Board Thickness 1/32 in.
Dust Collection Minimum CFM Required 500 CFM
Dust Port Outside Diameter 4 in.
Weight 164 lbs.
