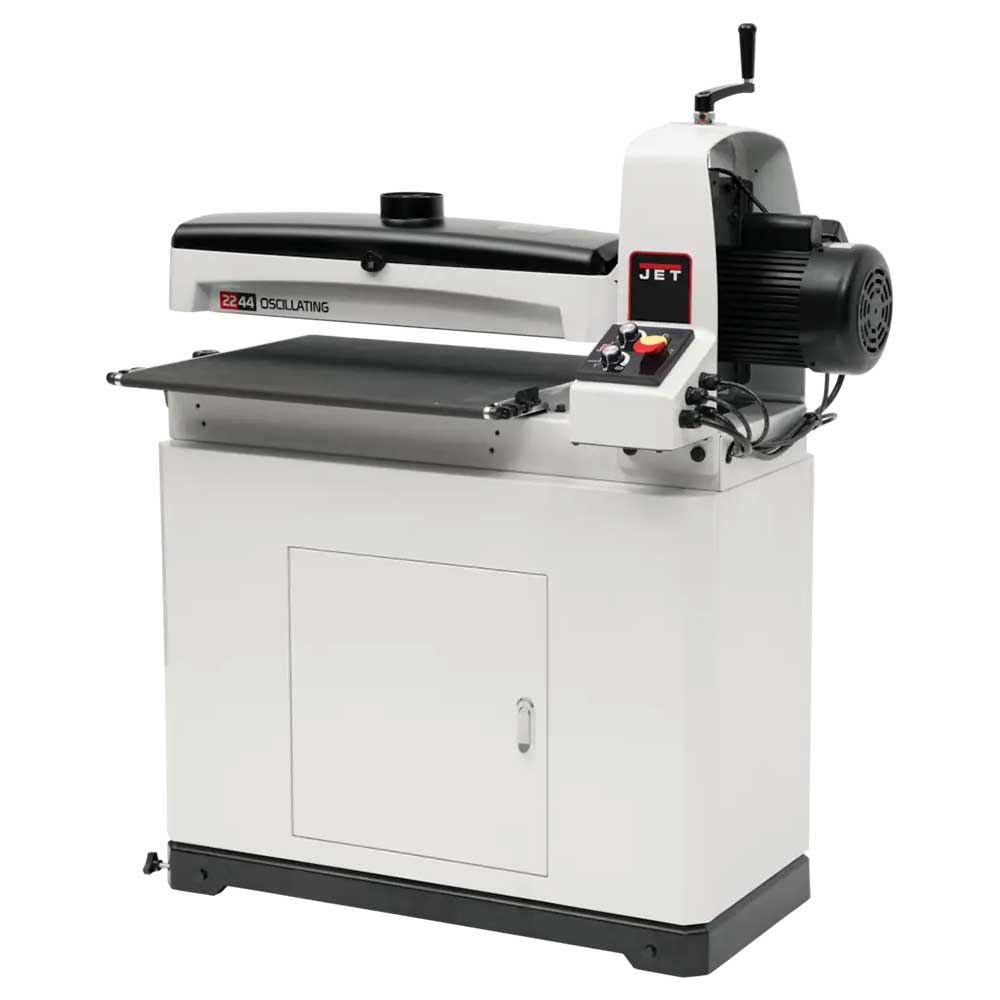

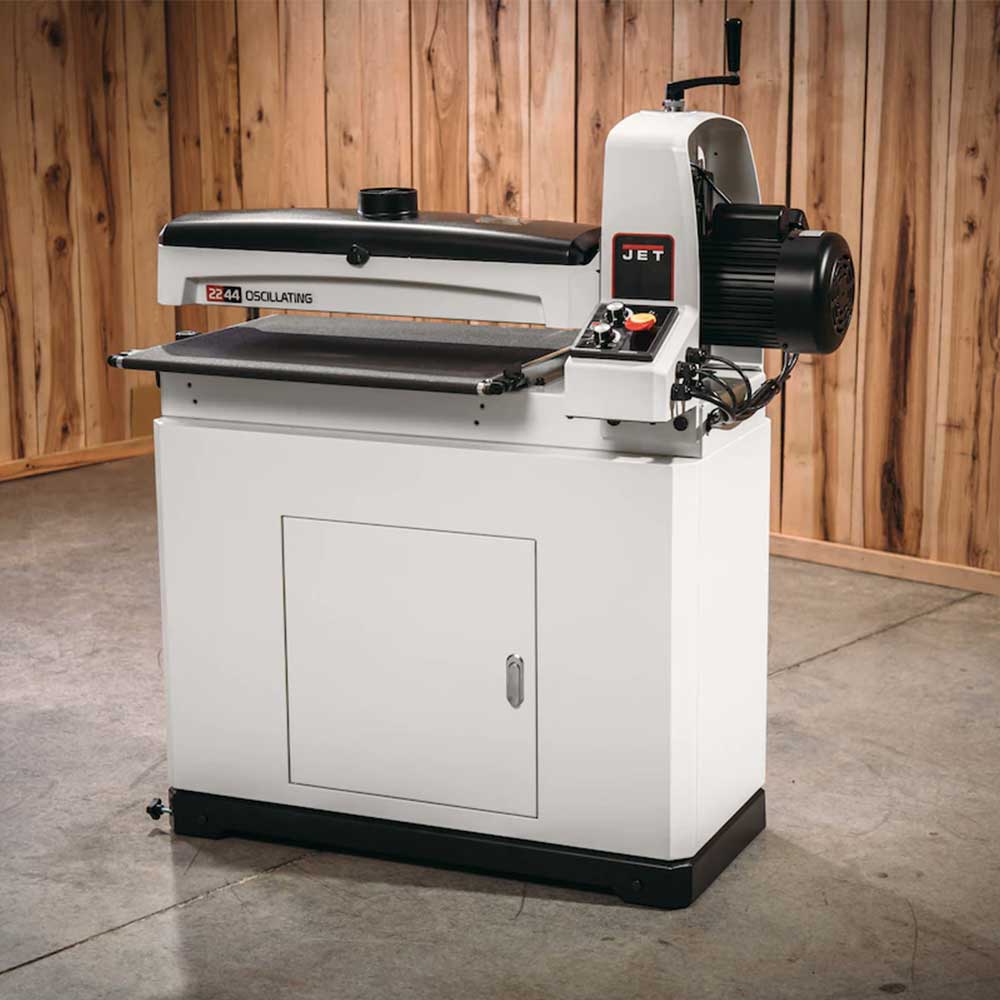

Jet 723544OSCK 23 Inch x 5 Inch 15 Amp Electric Oscillating Drum Sander

Jet


×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.
Express checkout with and plus more available at checkout.

Condition: New

SKU: JET-723544OSCK

This item ships via Freight. Appointment is required for delivery. Click for details.


Features

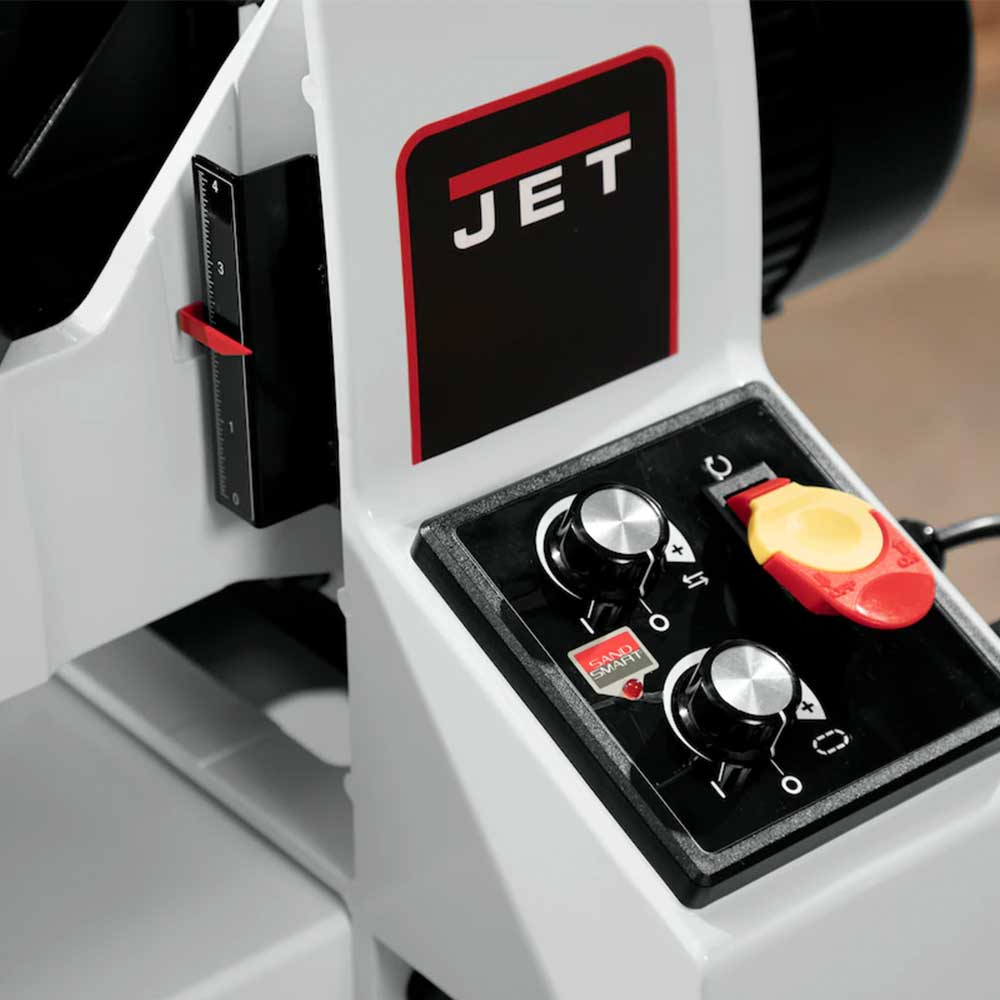

  • Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload

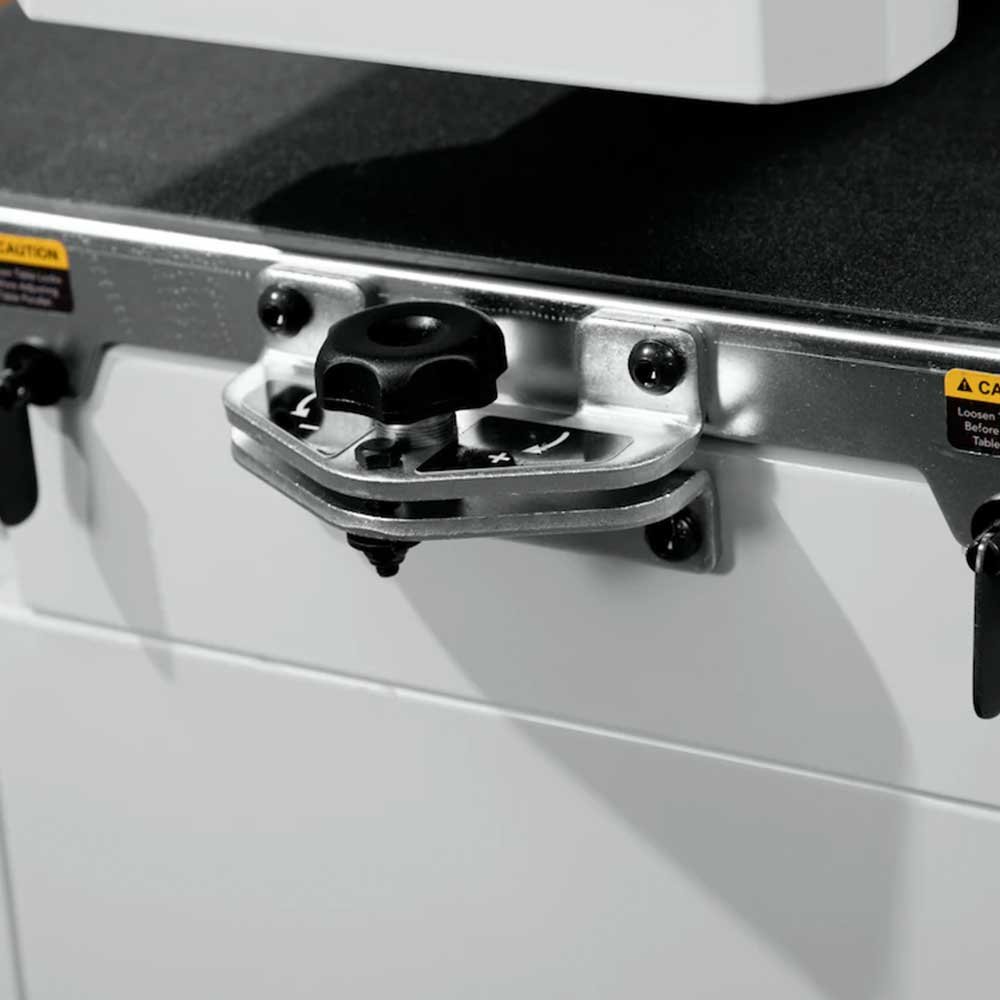

  • Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
  • Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position

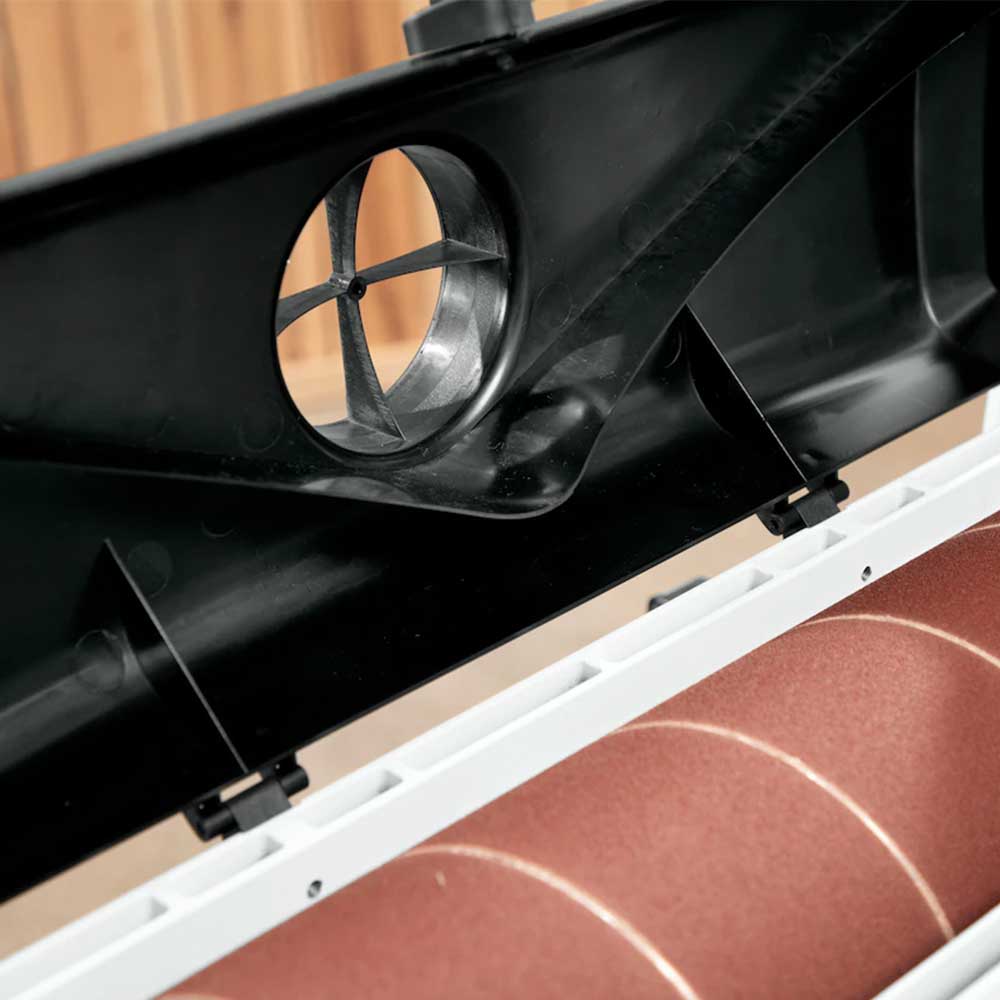

  • Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 collection port

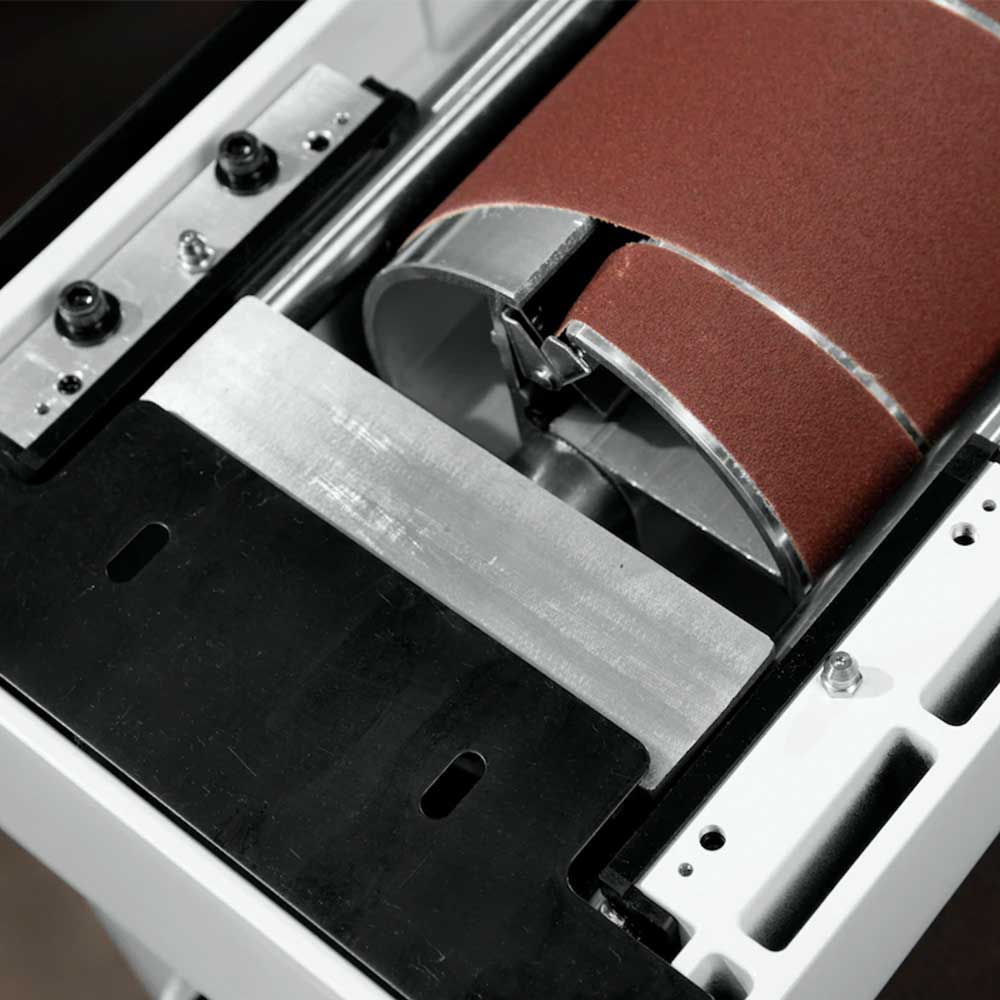

  • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
  • Die cast drum carriage design is optimized for rigidity to provide years of consistent quality
  • Precision-flattened reinforced steel conveyor bed
  • Redesigned conveyor system pulls the workpiece through the sander instead of pushing

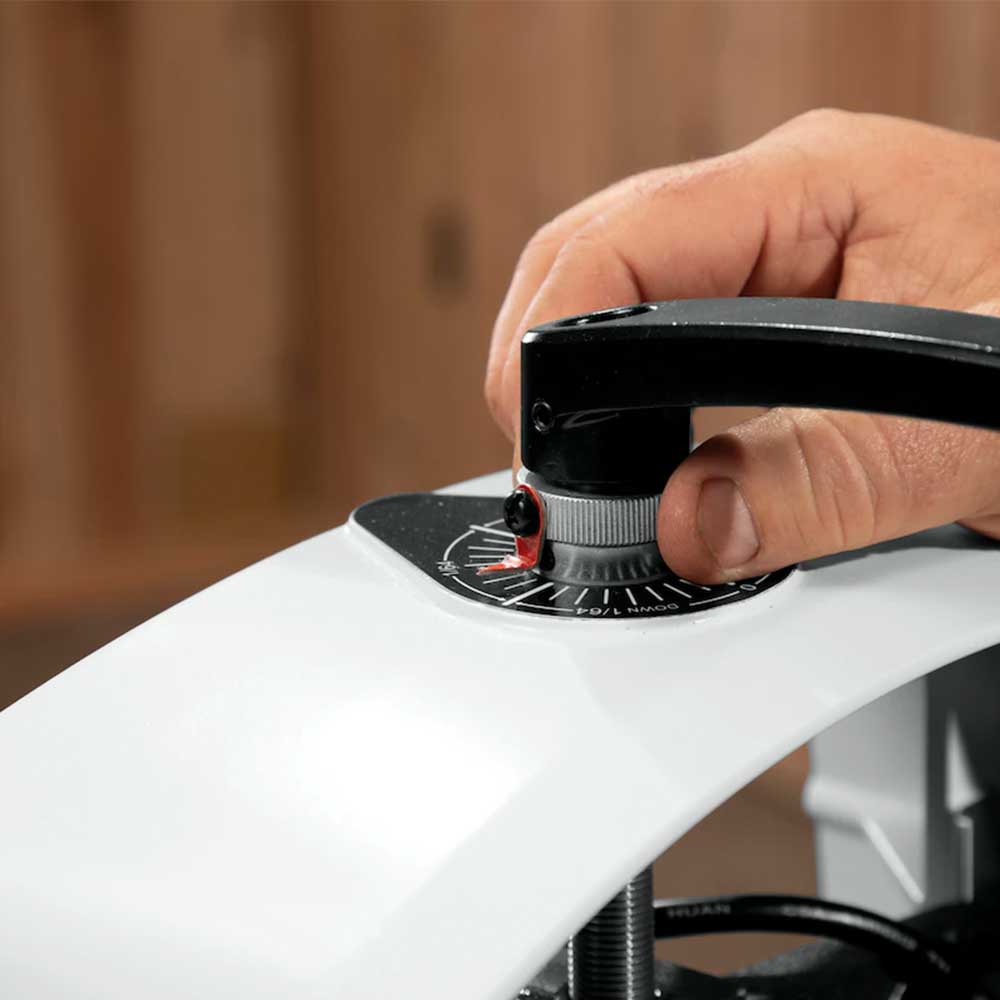

  • One rotation of the top-position handwheel adjusts the drum height by 1/16

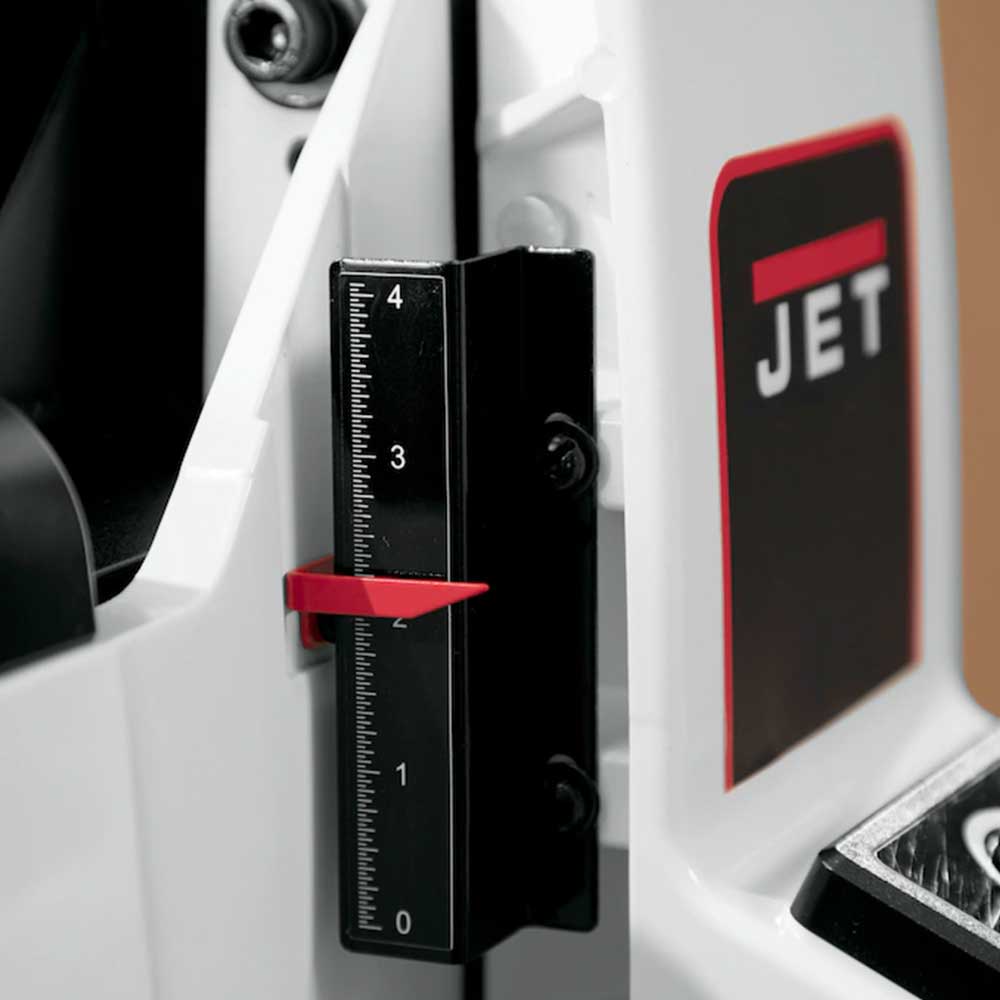

  • The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
What's in The Box
  • Oscillating Drum Sander w/ Closed Stand
  • Owner's Manual
Warranty
  • 2 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku 723544OSCK
Brand Jet
Voltage 115V
Amperage 15A
Drum Diameter 5 in.
Drum Length 23 in.
Motor Phase Single
Horsepower 1-3/4 Hp
Min. Board Thickness 1/32 in.
Max. Board Thickness 4 in.
Min. Board Length 2-3/8 in.
Max. Board Width 44 in. (Two Passes)
Conveyor Speed 0 - 10 Fpm
Drum Speed 1,725 Rpm
Product Weight 216 lbs.
