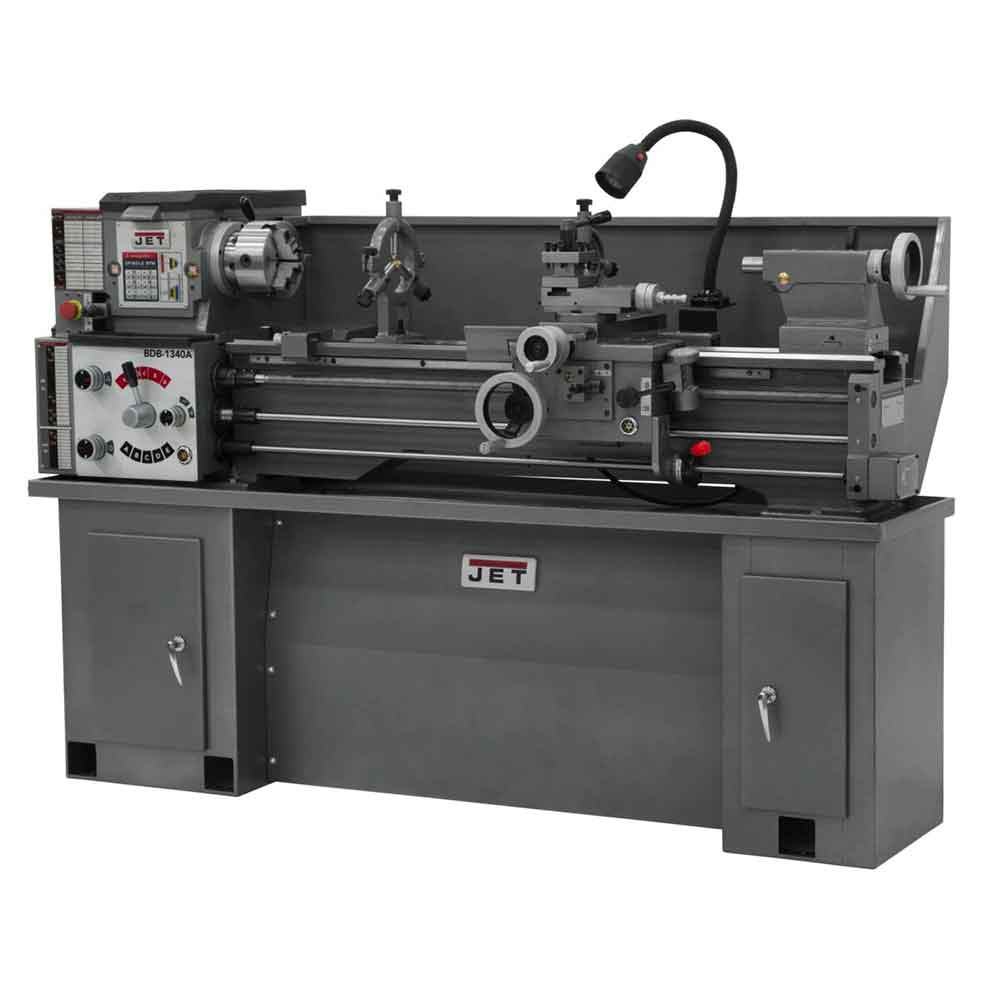

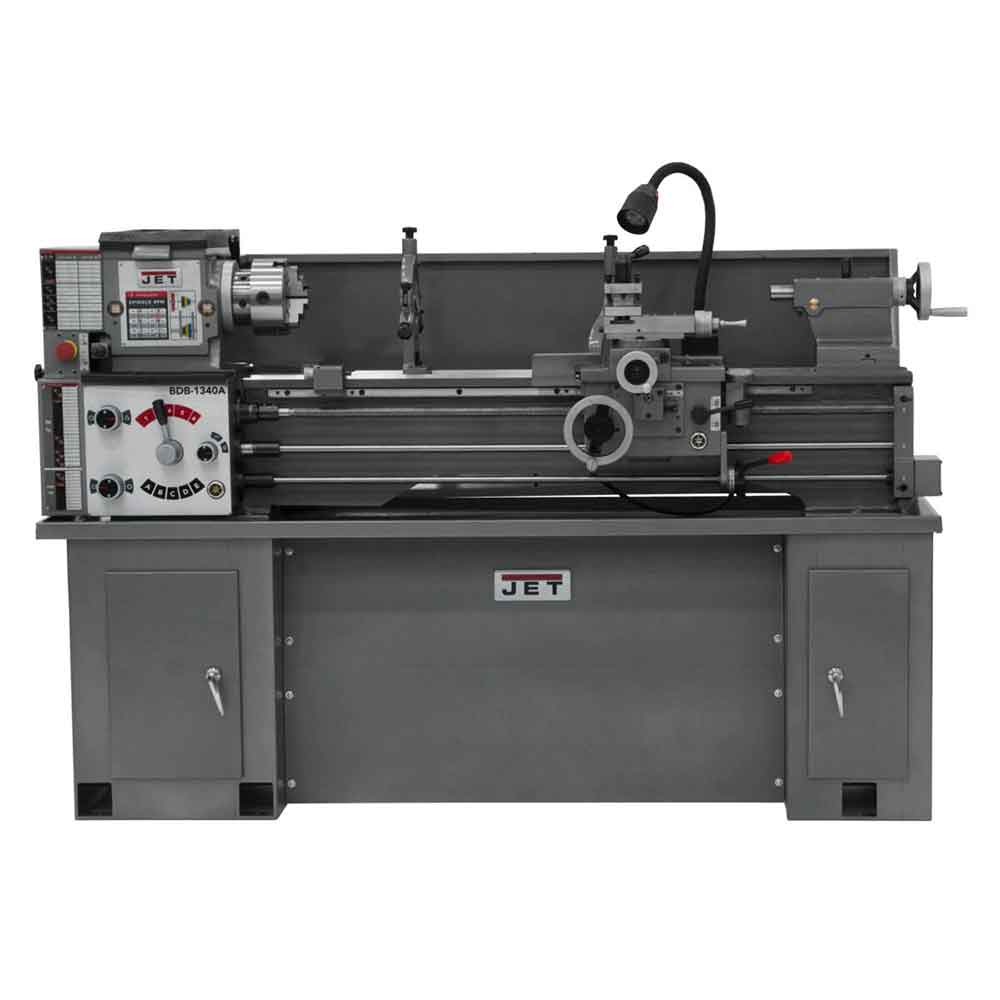

JET BDB-1340A 2-Hp 230V Quiet Operation Belt Drive Bench Lathe - 321360A

See all Jet


×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.

Condition: New

SKU: JET-321360A

This item ships via Freight. Appointment is required for delivery. Click for details.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $99 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $99 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $99, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
  • Enclosed gearbox design provides smooth, quiet operation
  • Fast, easy speed changes
  • Low voltage motor controls
  • Helical cut headstock gears reudce noise
  • Change gears allow metric threading
  • Spindle is supported by precision tapered roller bearings
  • V-way bed is induction hardened and ground
  • Gap bed section provided for large diameter work
  • Independent leadscrew and feed rod
  • T-slotted compound slide with four-way tool post
  • Carriage mounted spindle control lever
  • Automatic feeding and threading are fully interlocked
  • Feed selectors travel in grooved ways
  • Tailstock may be offset for turning tapers and includes and inch/metric graduated quill
  • Oil pan included
  • Tolerance test certificate included
  • 6" 3-jaw direct mount scroll chuck with top reversing jaws
  • 8" 4-jaw independent chuck
  • 12" faceplate
  • Four-way tool post
  • Steady and follow rest
  • Metric change gear
  • Centers and headstock center sleeves
  • Threading dial
  • Tool box with tools
What's in The Box
  • BDB-1340A, Belt Drive Bench Lathe 321360A
  • Owner's Manual
Warranty
  • JET Red Assurance 2-Year Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Size 13 x 40
Swing Over Bed (In.) 13
Swing Over Cross Slide (In.) 7-25/32
Swing Through Gap (In.) 18-3/4
Length of Gap (In.) 8
Distance Between Centers (In.) 40
Spindle Bore (In.) 1-3/8
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5 (MT-3)
Number of Spindle Speeds 12
Range of Spindle Speeds (RPM) 60 - 1,240
Number of Longitudinal and Cross Feed Rates 38
Range of Longitudinal Feeds (IPR) 0.0018-0.0374
Range of Cross Feeds (IPR) 0.0006-0.013
Number of Inch Threads 38
Range of Inch Threads (TPI) 3-1/2 - 80
Number of Metric Threads 23
Range of Metric Threads 0.45-10
Max Tool Size (In.) 5/8 x 5/8
Compound Slide Travel (In.) 2-11/16
Cross Slide Travel (In.) 6-5/16
Carriage Travel (In.) 35
Tailstock Spindle Travel (In.) 3-3/4
Taper in Tailstock Spindle MT-3
Follow Rest Capacity (In.) 2-3/4
Steady Rest Capacity (In.) 2-5/8
Width of Bed (In.) 7-3/8
Motor (HP) 2 HP, 230V, 1Ph
Prewired (V.) 230
Weight (Lbs.) 1,175
Overall Dimensions (L x W x H) (In.) 71 x 32 x 45
Drive Belt
Style (Type) Bench
