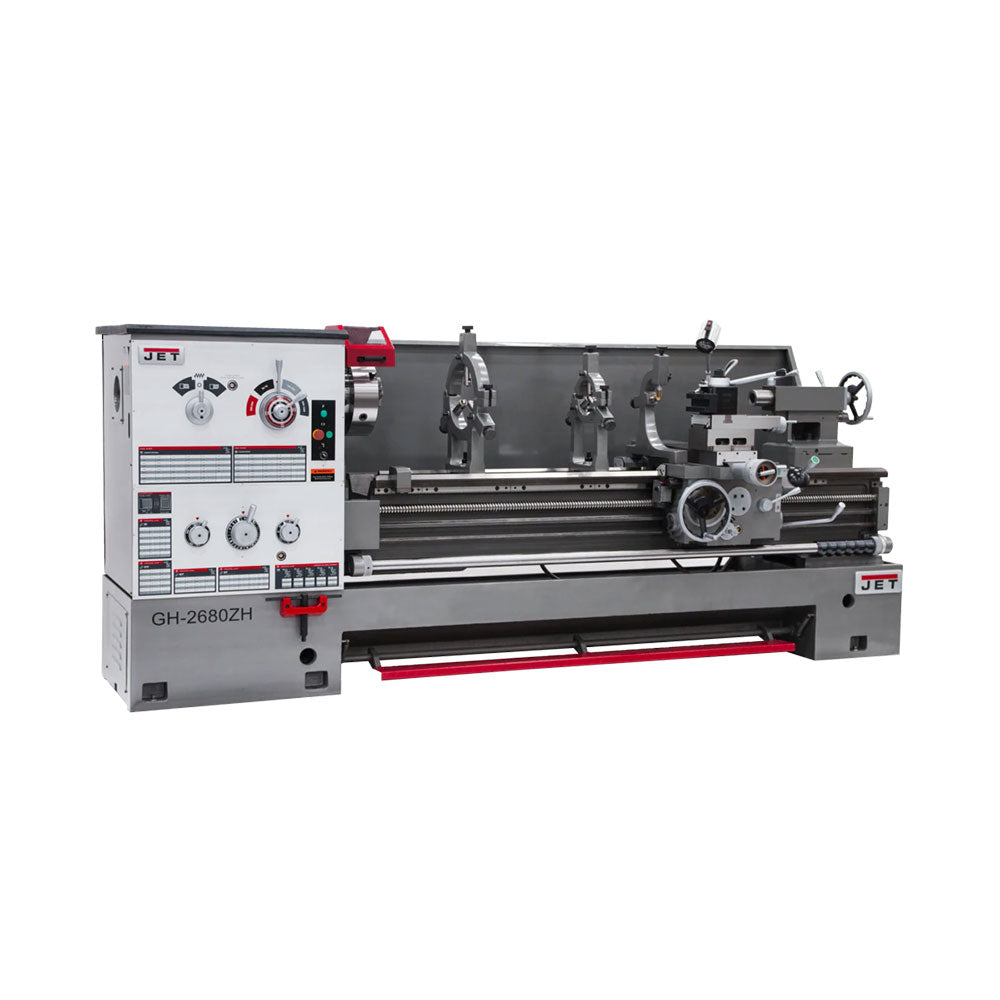

JET GH-2680ZH 230/460V 4-1/8" Spindle Bore Geared Head Lathe w/ Newall DP700 DRO

by Jet
$49,789.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325
Condition: New

SKU: JET-321863

Features
  • 4-1/8" Spindle Bore
  • Clutch operated headstock with all headstock gears hardened and ground
  • Universal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required
  • Meehanite Castings are used for added durability.
  • Bed ways are induction hardened and ground for durability.
  • Full-Length Splash Guard
  • Heavy-duty tailstock and quill
  • Rapid power traverse to cross slide and carriage
  • Siemens Electrics
  • Standard Equipment:
  • Drive Plate
  • 12" 3-Jaw scroll chuck with top reversing jaws
  • Face Plate
  • 2 Steady Rests with Roller Bearings
  • Follow Rest
  • Large capacity steady rest with ball bearing tips
  • 5pc. Quick change tool post set
  • Micro-carriage bed stop
  • Fully Integrated Coolant System
  • LED work lamp
  • Electronic Chuck Key Holder
  • Fitted top mats to hold tooling
  • E-Stop on Carriage for added safety
  • Large easy to use foot brake
What's in The Box
  • Spindle Bore Lathe
  • Owner's Manual
Warranty
  • 2 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU GH-2680ZH
Brand Jet
Volts 230/460
Horsepower 10
Phase 3
Size 26 x 80
Digital Readout Newall DP700
Swing Over Bed 26 in
Swing Over Cross Slide 16-1/2 in
Swing Through Gap 34 in
Length of Gap 8 in
Distance Between Centers 80 in
Spindle Bore 4-1/8 in
Spindle Mount D1-8
Number of Spindle Speeds 12
Range of Spindle Speeds 36 - 1600 RPM
Spindle Taper with Sleeve MT-5
Number of Longitudinal and Cross Feed Rates 65
Range of Longitudinal Feeds (IPR) .0023 - .0937
Range of Cross Feeds (IPR) .010 - .0404
Number of Inch Threads 48
Range of Inch Threads (TPI) 2-30
Number of Metric Threads 22
Range of Metric Threads 1-14
Max Tool Size 1-1/4 x 1-1/4 in
Compound Slide Travel 5-1/2 in
Cross Slide Travel 12-3/32 in
Carriage Travel 72-1/2 in
Tailstock Spindle Travel 6 in
Taper in Tailstock Spindle MT-5
Follow Rest of Capacity 25/32 - 3-15/16 in
Steady Rest Capacity Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16 in
Width of Bed 16 in
Drive Geared Head
Style Engine - Large Spindle Bore
Dimensions (L x W x H) 138 x 43 x 57 in
Weight 8514
