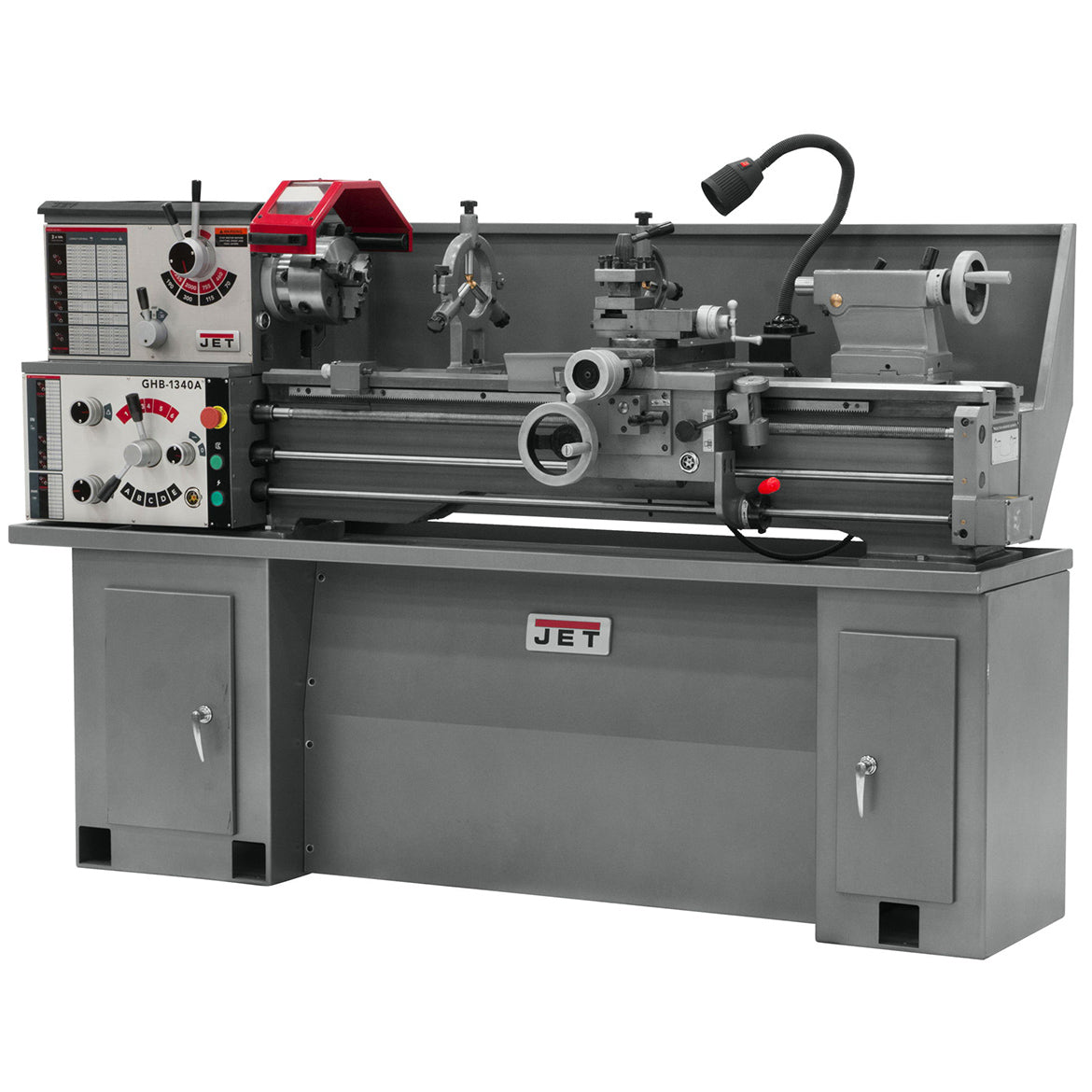

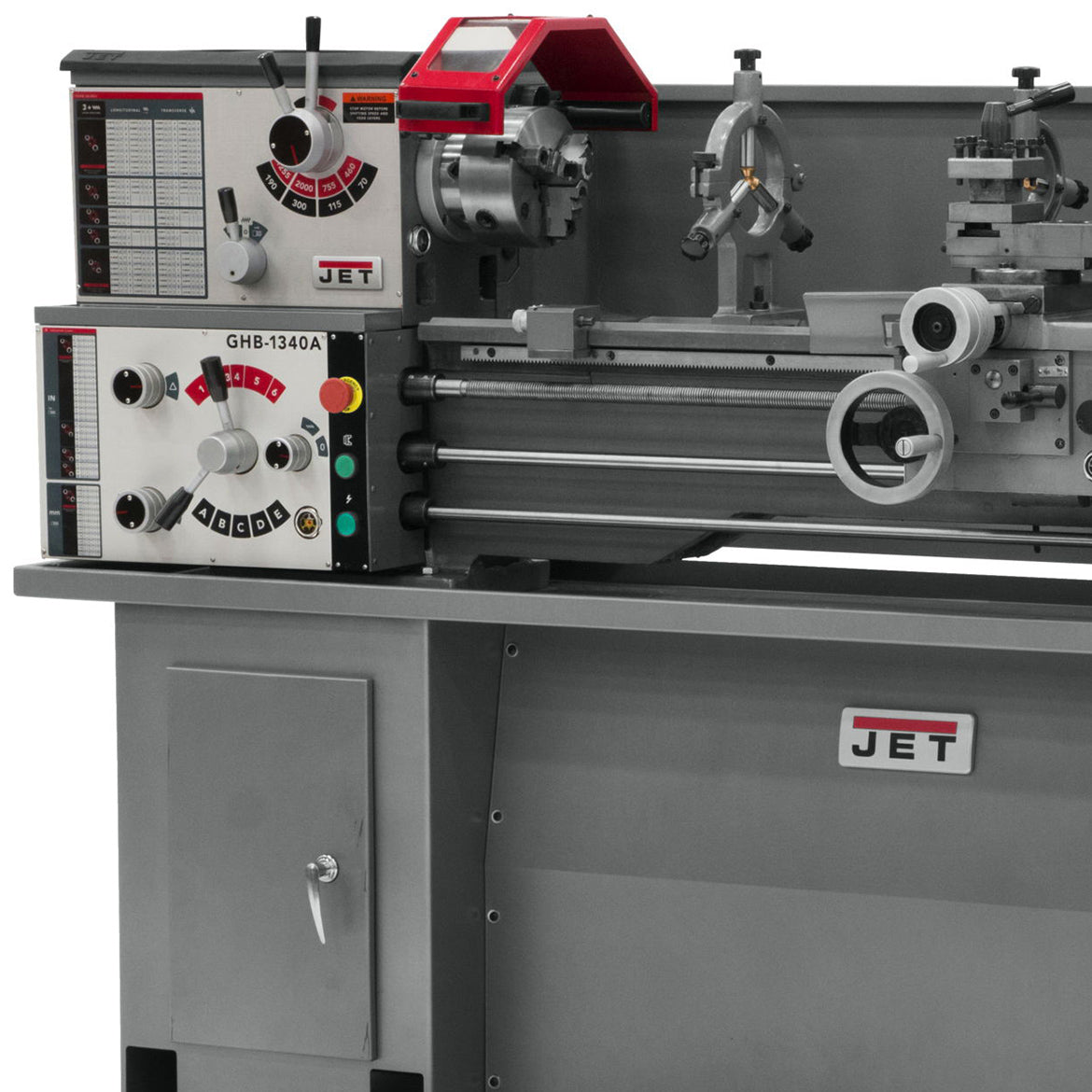

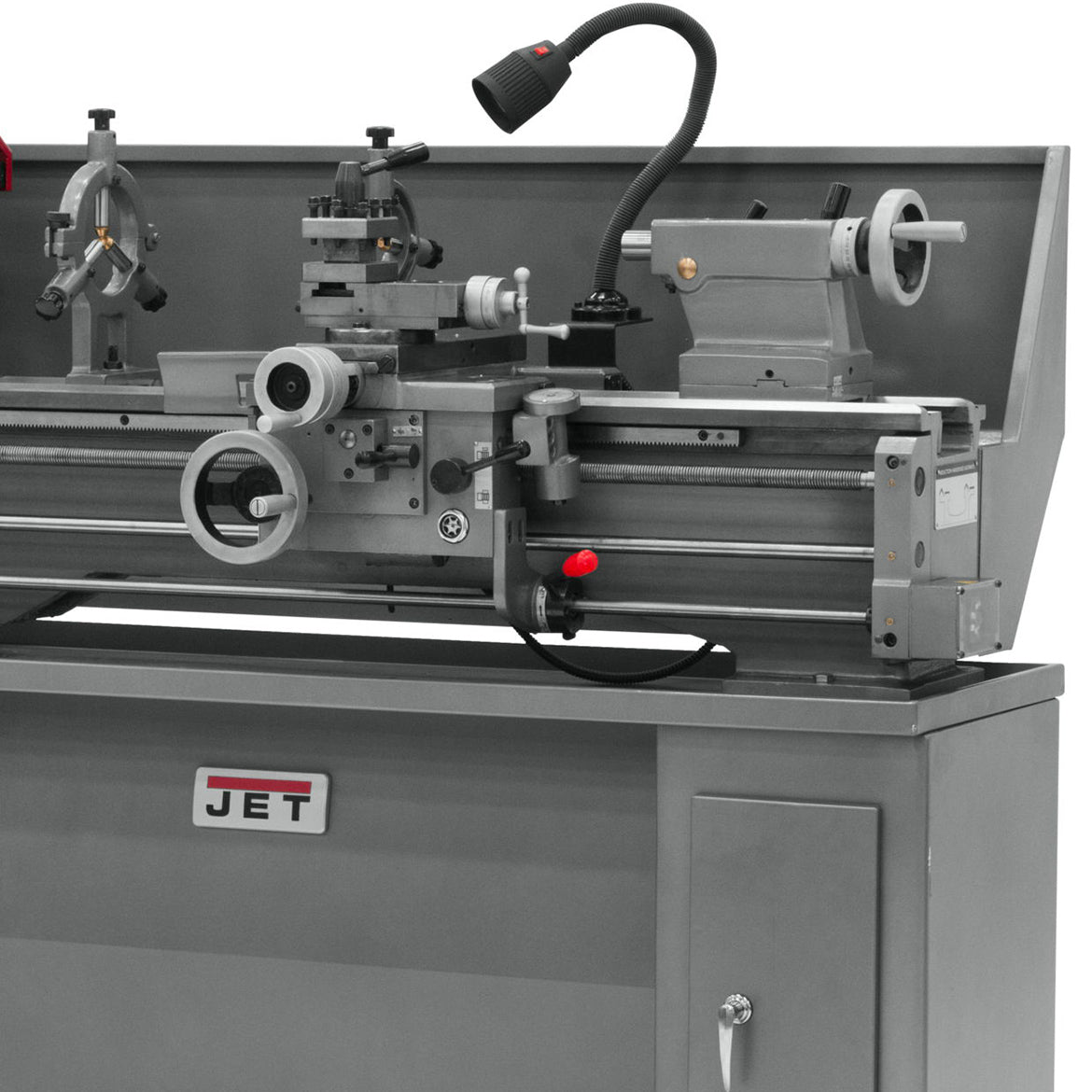

JET GHB-1340A 2-Hp 230V Quiet Operation Geared Head Bench Lathe - 321357A

by Jet

$9,299.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: JET-321357A

Features
  • One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
  • Enclosed gearbox design provides smooth, quiet operation
  • Fast, easy speed changes
  • Hardened and ground gears are featured in the headstock and gearbox
  • D1-4 spindle is precision ground for accuracy and supperted by high quality tapered roller bearings
  • Headstock is constantly oiled during operation
  • Gear box gives wide inch threading and feed capabilities with no gear changes
  • V-way bed is induction hardened and ground
  • Gap bed section provided for large diameter work
  • Independent leadscrew and feed rod
  • Spindle actuation control is apron mounted
  • Compound and cross slide have backlash elimination
  • Adjustable gibs are incorporated in the carriage and slideways
  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
  • Oil pan included
  • Tolerance test certificate included
  • 6" 3-jaw direct mount chuck with top reversing jaws
  • 8" 4-jaw chuck
  • 12" face plate
  • Steady and follow rest
  • Four-way tool post
  • Metric change gear
  • Splash guard
  • Centers and headstock center sleeve
  • Threading dial
  • Tool box with tools
What's in The Box
  • GHB-1340A, Gear Head Bench Lathe 321357A
  • Owner's Manual
Warranty
  • JET Red Assurance 2-Year Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Size 13 x 40
Swing Over Bed (In.) 13
Swing Over Cross Slide (In.) 7-25/32
Swing Through Gap (In.) 18-3/4
Length of Gap (In.) 8
Distance Between Centers (In.) 43
Spindle Bore (In.) 1-3/8
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5 (MT-3)
Number of Spindle Speeds 8
Range of Spindle Speeds (RPM) 70 - 2,000
Number of Longitudinal and Cross Feed Rates 40
Range of Longitudinal Feeds (IPR) .0018 - .0374
Range of Cross Feeds (IPR) .0006 - .0130
Number of Inch Threads 38
Range of Inch Threads (TPI) 3-1/2 - 80
Number of Metric Threads 23
Range of Metric Threads .45 - 10
Max Tool Size (In.) 5/8 x 5/8
Compound Slide Travel (In.) 2-11/16
Cross Slide Travel (In.) 6-5/16
Carriage Travel (In.) 35
Tailstock Spindle Travel (In.) 3-3/4
Taper in Tailstock Spindle MT-3
Follow Rest Capacity (In.) 2-3/8
Steady Rest Capacity (In.) 2-3/4
Width of Bed (In.) 7-3/8
Motor (HP) 2 HP, 230V, 1Ph
Prewired (V.) 230
Weight (Lbs.) 1,154
Overall Dimensions (L x W x H) (In.) 79 x 28-1/2 x 30
Drive Geared Head
Style (Type) Bench - Geared Head
