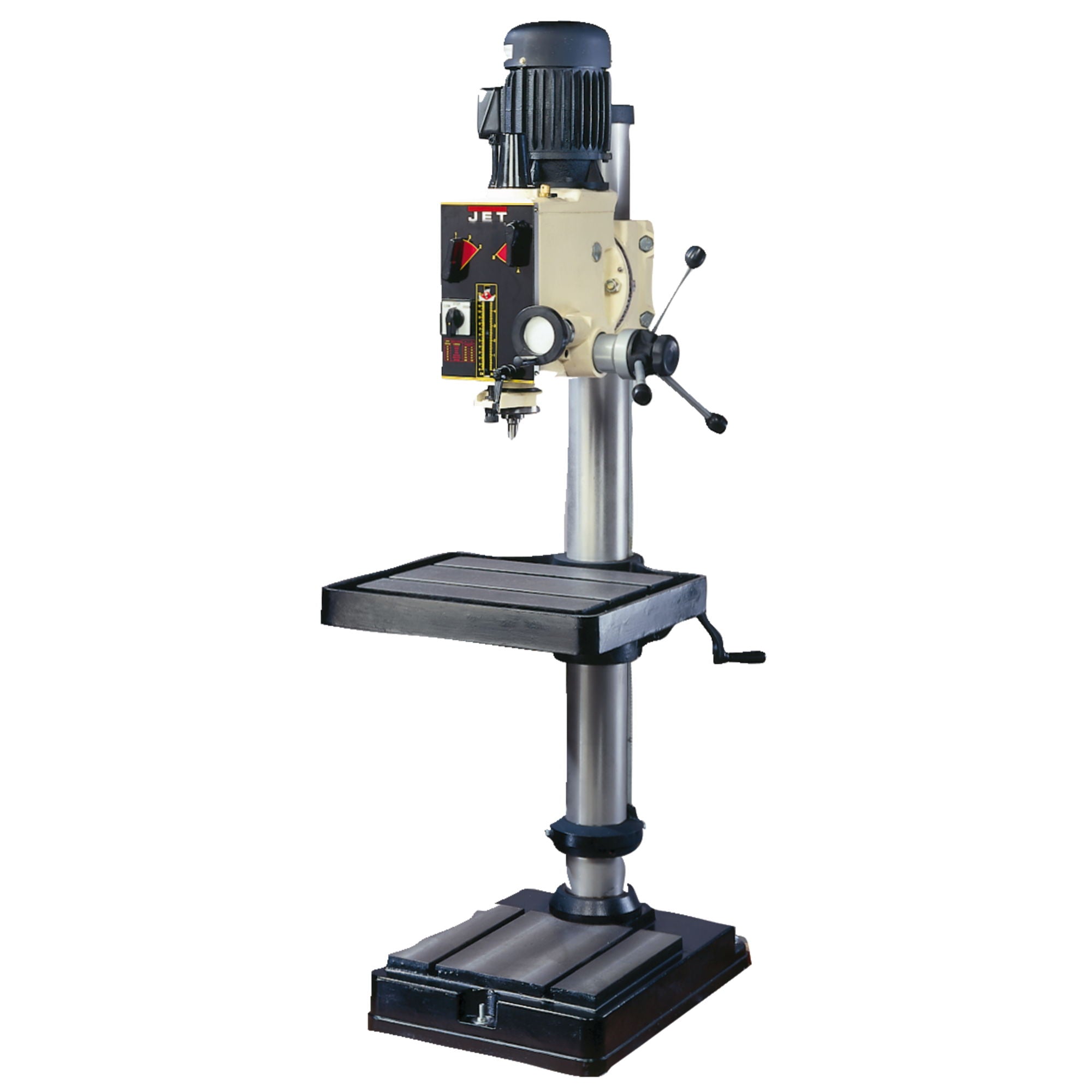

JET GHD-20 2-Hp 230V 20" Smooth Quiet Geared Head Drill Press w/ Metric Gauge

See all Jet

Notify me when this product is available:


Condition: New

SKU: JET-354020

This item ships via Freight. Appointment is required for delivery. Click for details.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $99 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $99 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $99, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Heavy-duty design allows a variety of precision drilling applications
  • Large production table and T-slotted base
  • Easy-to-read internal depth gauge
  • Three power downfeed rates
  • Calibrated fine downfeed built in
  • TEFC motor
  • Built-in spindle lock
  • Head tilts left or right
  • Easily accessible table raiser
  • Drill chuck arbor
  • Draw bar
What's in The Box
  • JET GHD-20, 20" Gear Head Drill Press 230V 3PH
  • Owner's Manual
Warranty
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Model 354020
UPC 662755803840
Style (Type) Geared Head
Drills to Center of Circle (In.) 20
Drilling Capacity Cast Iron (In.) 1-1/2
Drilling Capacity Mild Steel (In.) 1-1/4
Column Diameter (In.) 4-1/2
Distance Column to Spindle (In.) 10
Range of Spindle Speeds (RPM) Low - 60, 130, 230, 450, 800, 1500; High 120, 260, 460, 900, 1600, 3000
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 5
Spindle Distance to Base (In.) 44-15/16
Spindle Distance to Table (Max.) (In.) 30-1/2
Table Size (L x W) (In.) 21-3/4 x 19-1/2
Table Travel (In.) 25-1/2
T-Slots Number and Size (In.) 2 and 5/8
T-Slot Centers (In.) 9
Work Table Weight Capacity (Lbs.) 275
Base Dimensions (In.) 26 x 18
Base Work Table (In.) 15-1/4 x 13
Base Slots Number and Size (In.) 2 and 5/8
Motor (HP) 2 HP (2 Speed) , 230V, 3Ph
Prewired (V.) 230
Overall Dimensions (L x W x H) (In.) 32 x 24 x 71
Weight (Lbs.) 660
