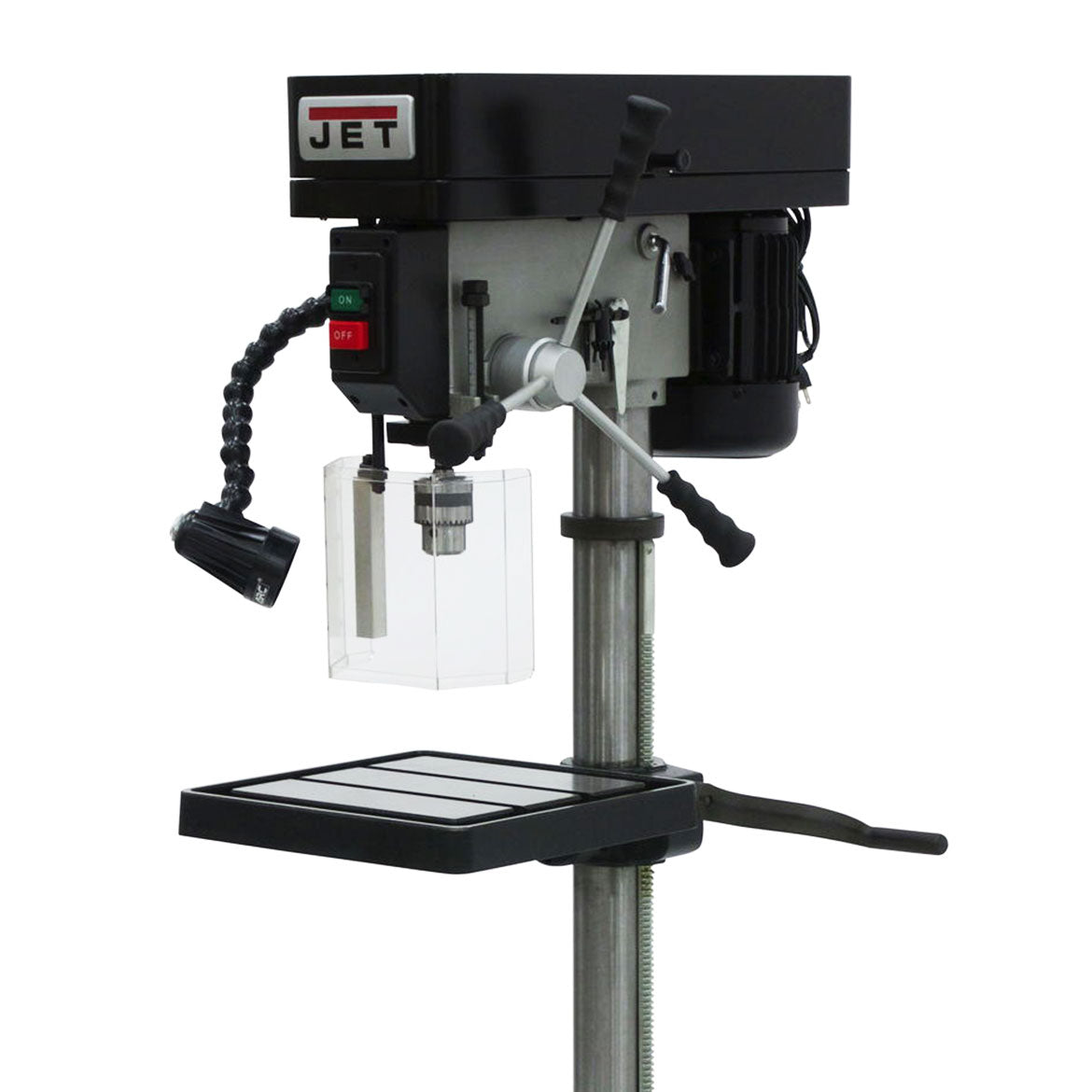

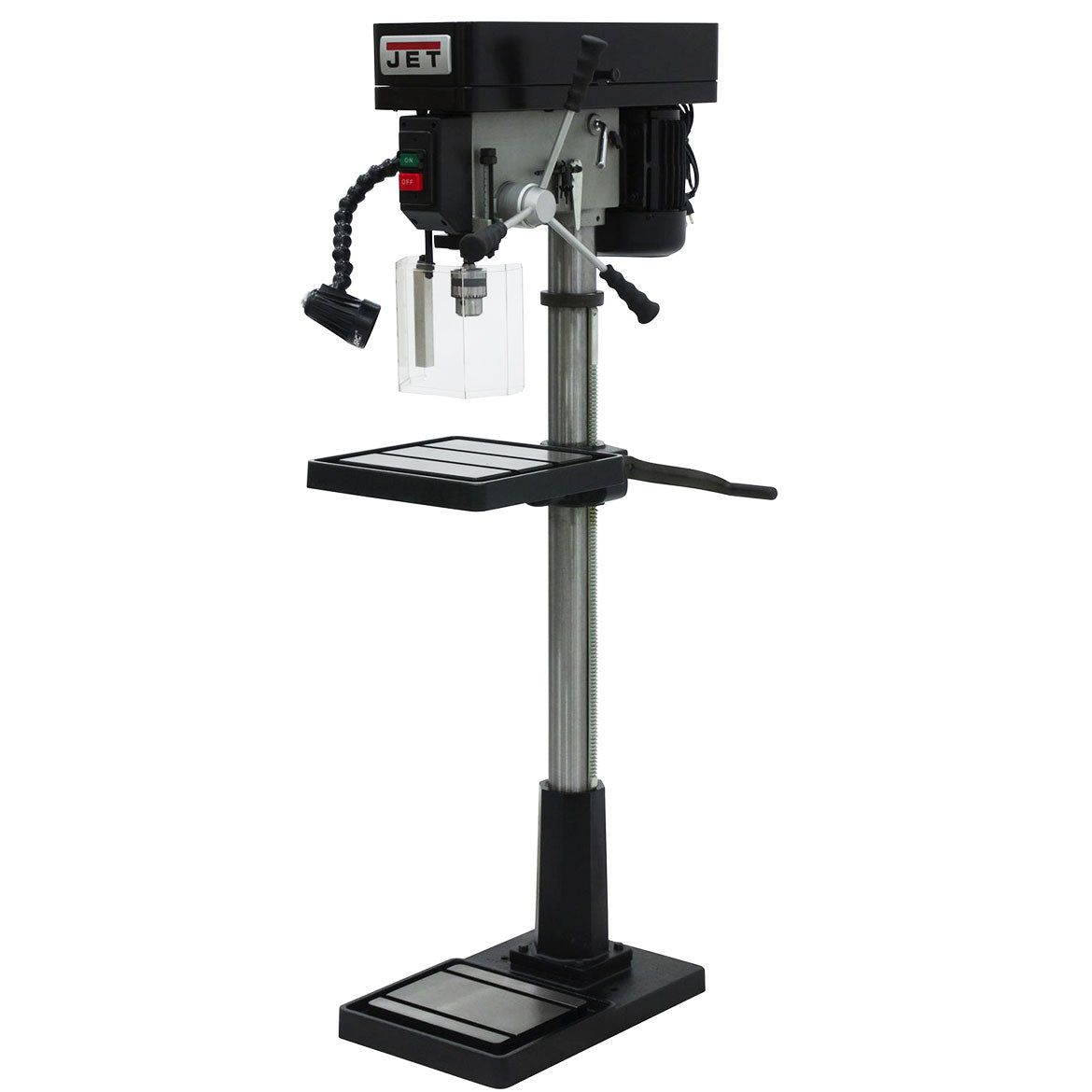

JET IDP-17 1-Hp 115/230V 17" Heavy Duty Industrial Floor Model Drill Press

Name: JET IDP-17 1-Hp 115/230V 17" Heavy Duty Industrial Floor Model Drill Press
Brand: Jet
SKU: JET-354300
Price: 2119.0 USD
Availability: InStock

See all Jet

$2,119.00 + Free Shipping

Ships Factory Direct

Condition: New

SKU: JET-354300

Product Details
Customer Reviews
Shipping & Return Policies

Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
Frequently Viewed Together
Similar Products

Features

For added Safety, the IDP-17, 17" Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
Spindle is supported by high quality ball bearings
Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
Large Hand Grips designed with the users comfort in mind
Rotating, 45-Degree tilting, crank-operated worktable with quick release clamp
A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
Adjustable tension spindle return spring
Drill chuck and key attach to the side of the drill press always within reach of the operator
On/off switch located on front of the drill press head
Heavy Duty construction

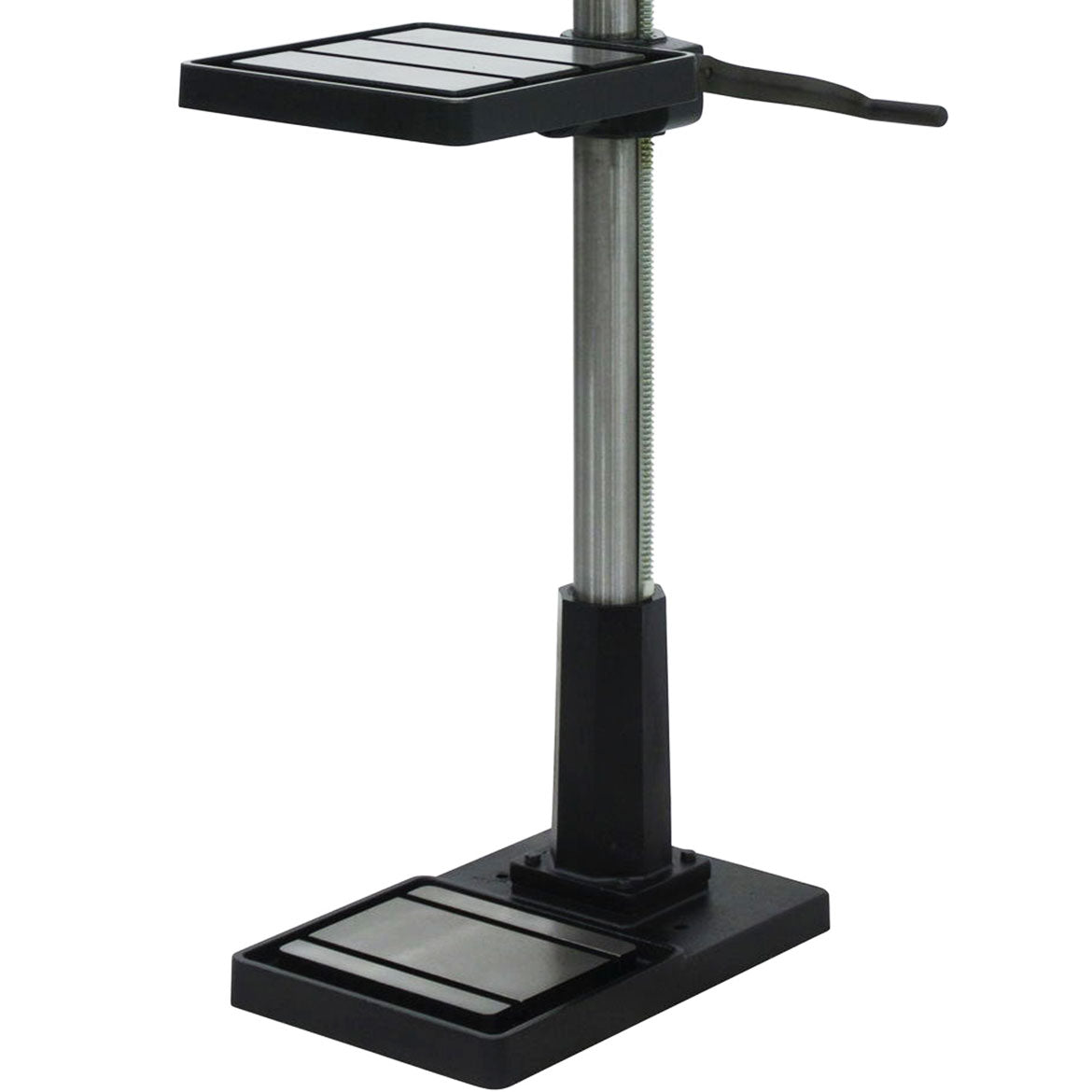

Cast Iron table and base
Table ground for accuracy
STANDARD EQUIPMENT
LED Machine Lamp
Ground Table
Spindle Safety Guard
Drill Chuck and Key

What's in The Box

17-Inch Industrial Floor Drill Press
Owner's Manual

Warranty

2-Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

Model	IDP-17
Sku	354300
Brand	Jet
Style (Type)	Belt Drive
Drills to Center of Circle (in)	17
Drilling Capacity Cast Iron (in.)	3/4
Drilling Capacity Mild Steel (in.)	5/8
Distance Column to Spindle (in.)	8-3/8
Number of Spindle Speeds	12
Range of Spindle Speeds (Rpm)	350 - 2,800
Spindle Taper (in. x tpi)	MT-2
Spindle Travel (in.)	3-5/16
Spindle Distance to Base (in.)	50
Spindle Distance to Table (Max.) (in.)	30-1/2
Table Size (L x W) (in.)	14 x 14
T-Slots Number and Size (in.)	2 and 1/2
T-Slot Centers (in.)	9/16
Base Dimensions (in.)	21-3/4 x 13-3/4
Base Work Table (in.)	16-15/16 x 10-13/16
Base Slots Number and Size (in.)	2 and 1/2
Motor (Hp)	1
Voltage	115/230
Phase	Single
Weight (Lbs.)	276
