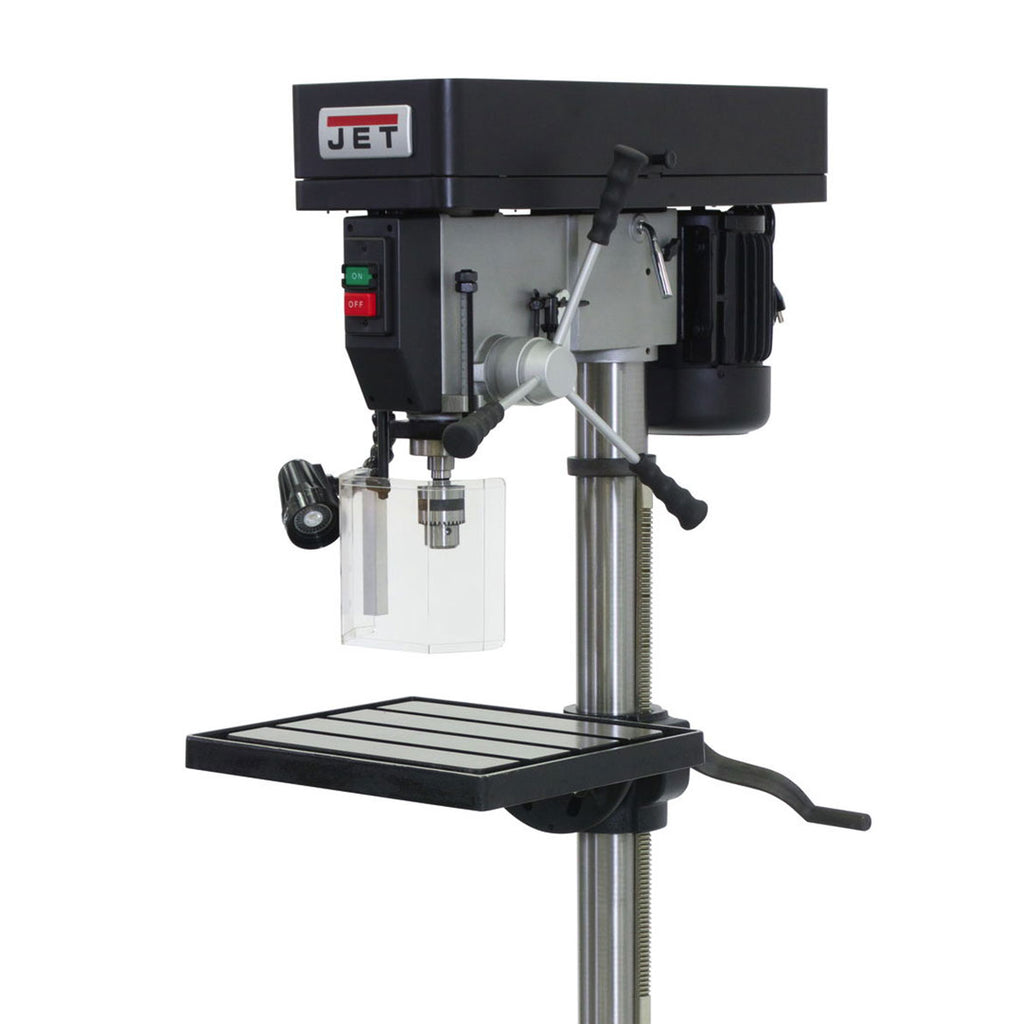

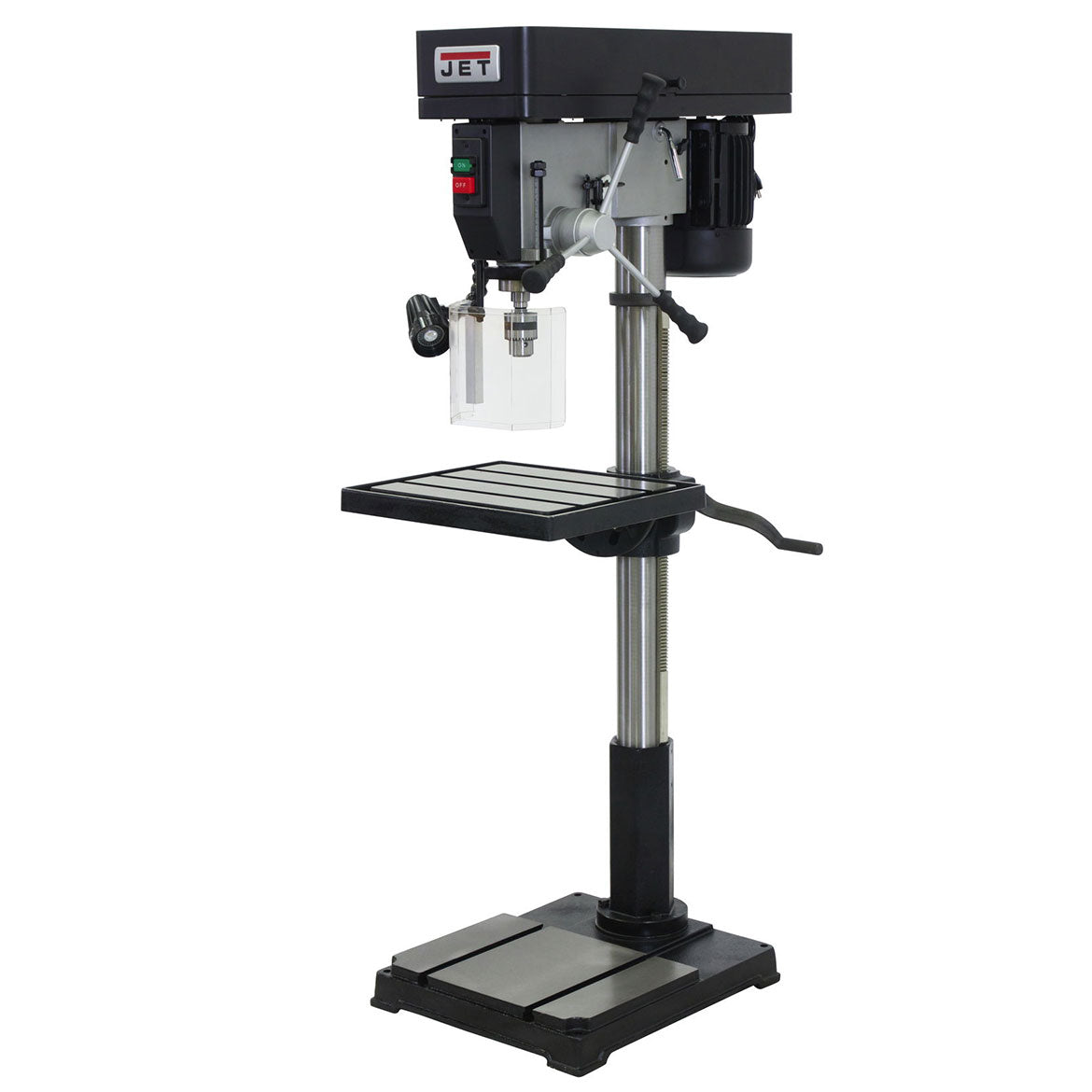

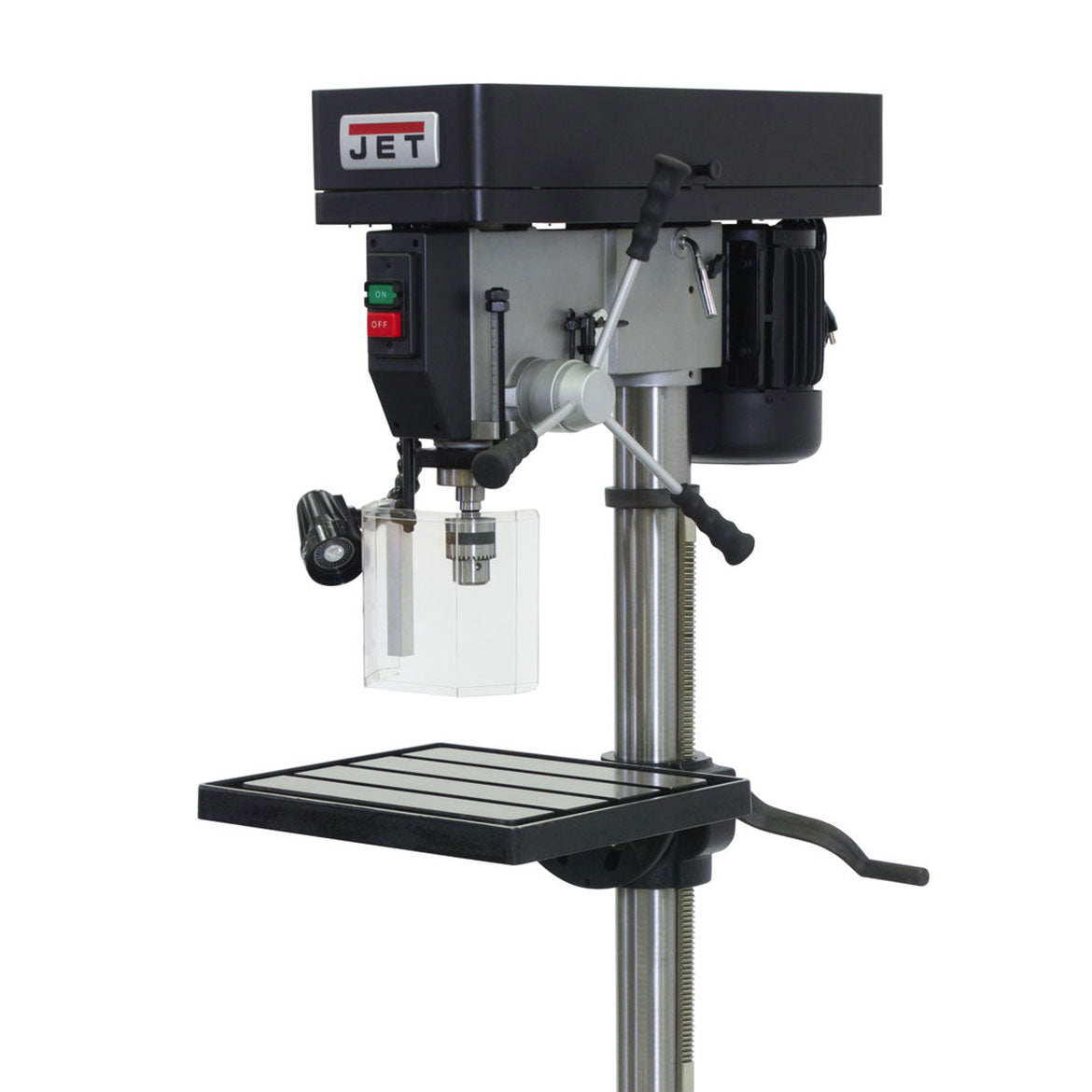

JET IDP-22 1-Hp 115/230V 22" Heavy Duty Industrial Floor Model Drill Press

See all Jet

Notify me when this product is available:


Condition: New

SKU: JET-354301

This item ships via Freight. Appointment is required for delivery. Click for details.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • For added Safety, the IDP-22, 22" Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
  • Spindle is supported by high quality ball bearings
  • Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
  • Large Hand Grips designed with the users comfort in mind
  • Rotating, 45° tilting, crank-operated worktable with quick release clamp
  • A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Drill chuck and key attach to the side of the drill press always within reach of the operator
  • On/off switch located on front of the drill press head
  • Heavy Duty construction

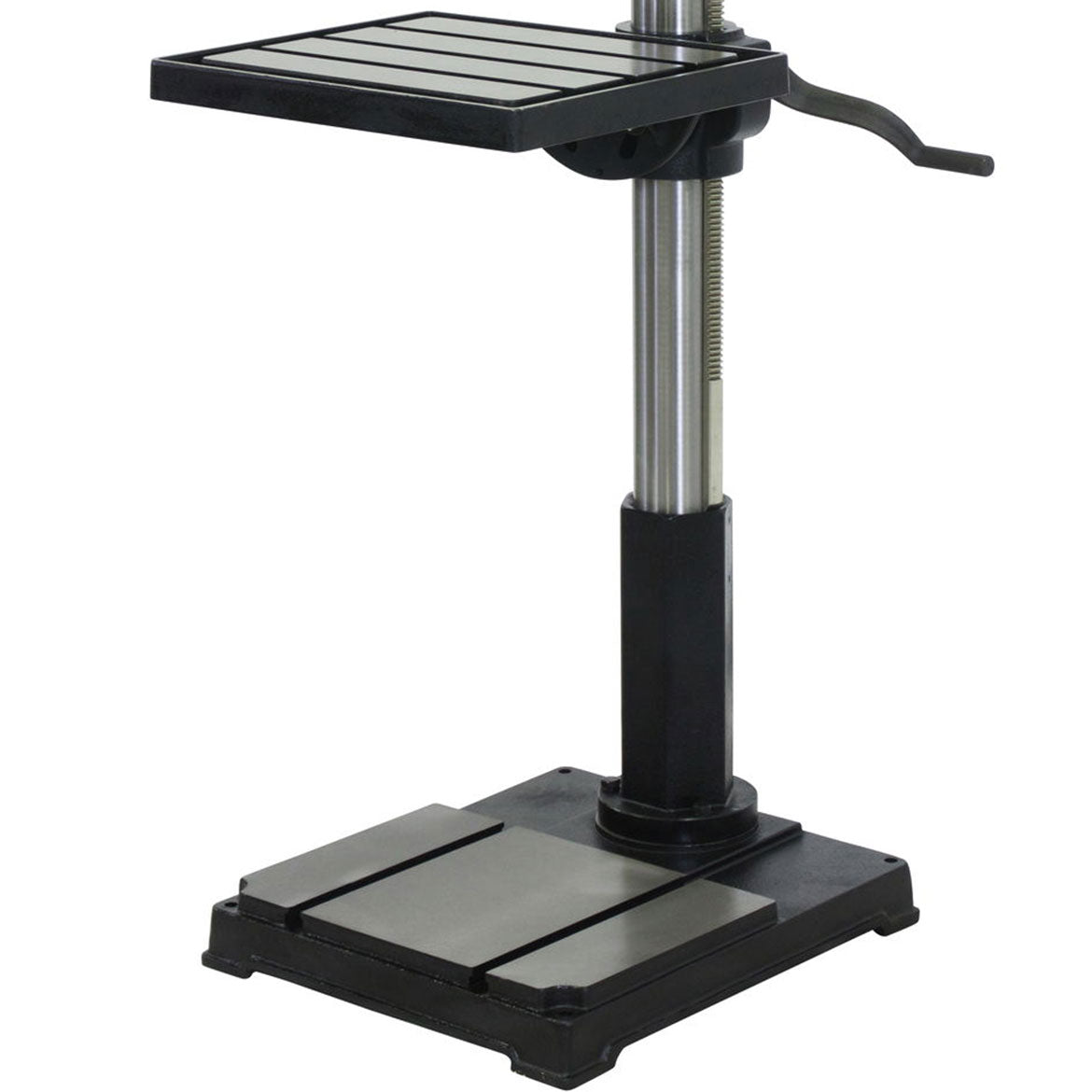

  • Cast Iron table and base
  • Table ground for accuracy
  • STANDARD EQUIPMENT
  • LED Machine Lamp
  • Ground Table
  • Spindle Safety Guard
  • Drill Chuck and Key
What's in The Box
  • 22-Inch Industrial Floor Drill Press
  • Owner's Manual
Warranty
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Model IDP-22
Sku 354301
Brand Jewt
Style (Type) Belt Drive
Drills to Center of Circle (in) 22
Drilling Capacity Cast Iron (in.) 1-1/4
Drilling Capacity Mild Steel (in.) 1
Tapping Capacity Mild Steel (in.) 1
Distance Column to Spindle (in.) 10-7/8
Number of Spindle Speeds 12
Range of Spindle Speeds (Rpm) 175 - 3,050
Column Diameter (in.) 3-5/8
Spindle Taper (in. x Tpi) MT-3
Spindle Travel (in.) 4-13/16
Spindle Distance to Base (in.) 48-1/2
Spindle Distance to Table (Max.) (in.) 28
Table Size (L x W) (in.) 18-5/8 x 16-1/8
T-Slots Number and Size (in.) 2 and 5/8
T-Slot Centers (in.) 3/4
Work Table Weight Capacity (lbs.) 176
Base Dimensions (in.) 22-5/8 x 19-7/16
Base Work Table (in.) 21-1/2 x 18-5/16
Base Slots Number and Size (in.) 2 and 5/8
Motor (Hp) 1-1/2
Voltage 115/230
Phase Single
Weight (lbs.) 364
