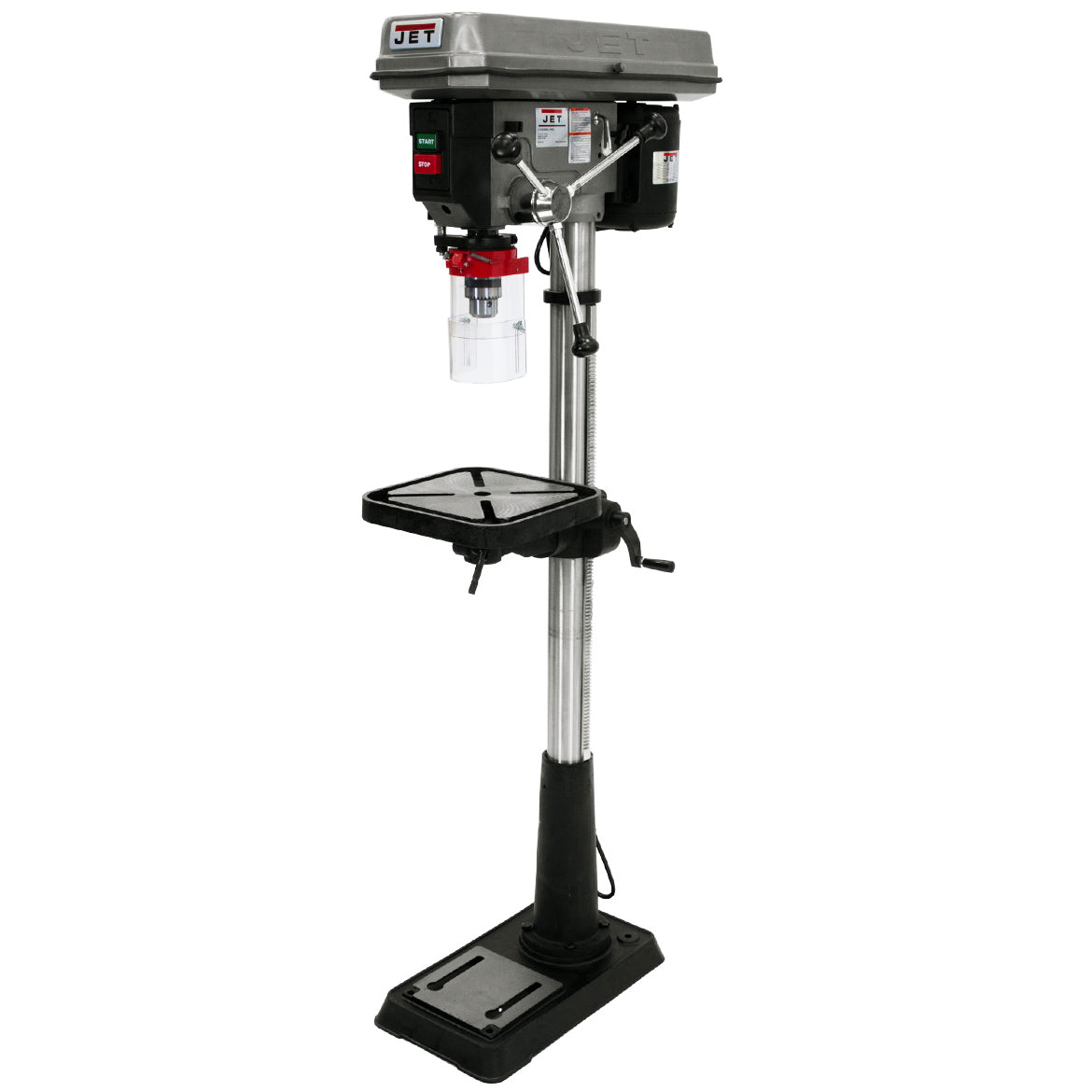

JET J-2500 3/4-Hp 115/230V 15" High Quality Versatile Floor Model Drill Press

See all Jet


×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.

Condition: New

SKU: JET-354400

This item ships via Freight. Appointment is required for delivery. Click for details.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $99 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $99 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $99, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Constructed to provide a solid base for drilling
  • The enclosed spidle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy

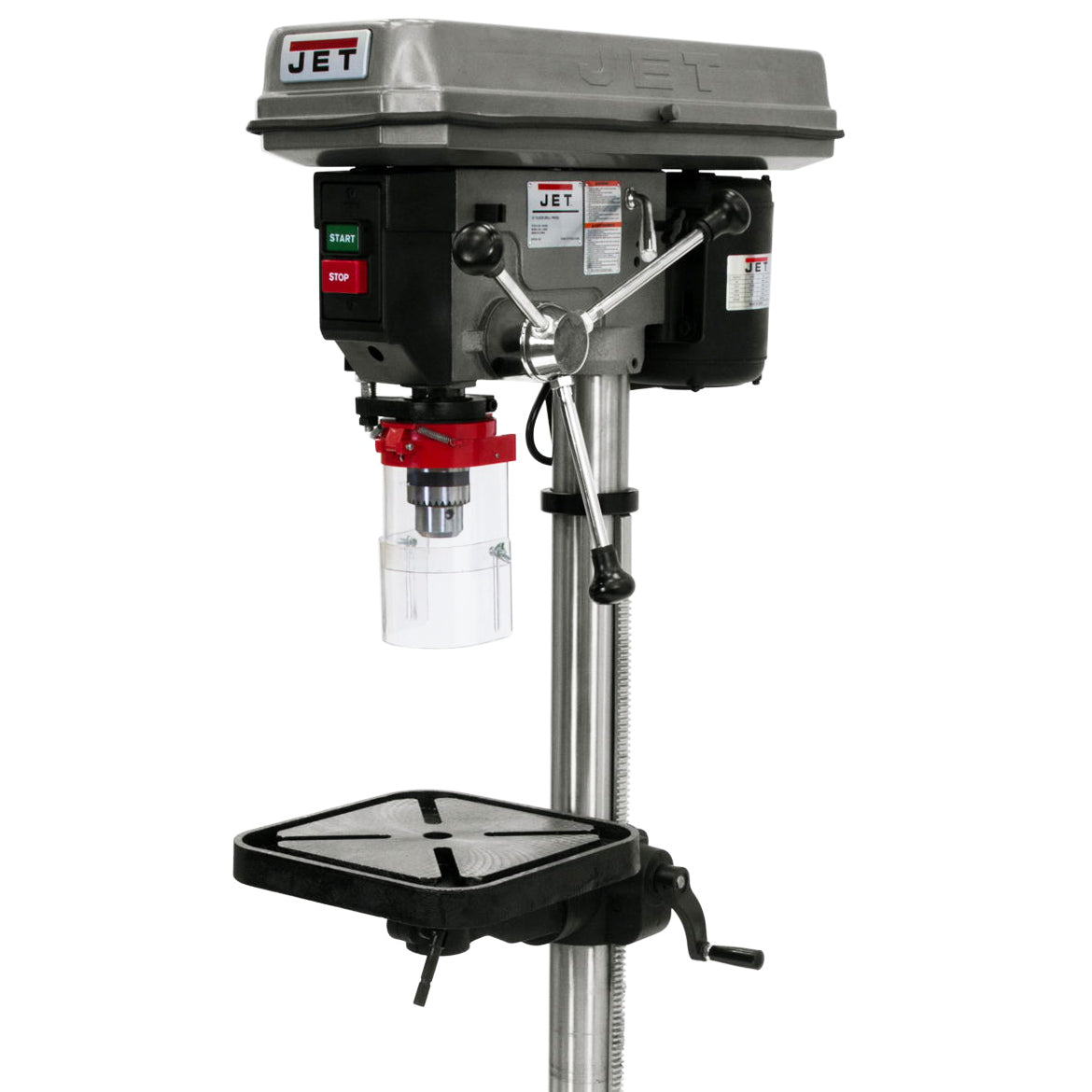

  • Cast Iron head
  • Large ground steel column for maximum head and table support
  • Large quill allows greater accuracy
  • 3-1/8" stroke for deep hole applications
  • Accurate depth stop for precice hole depths

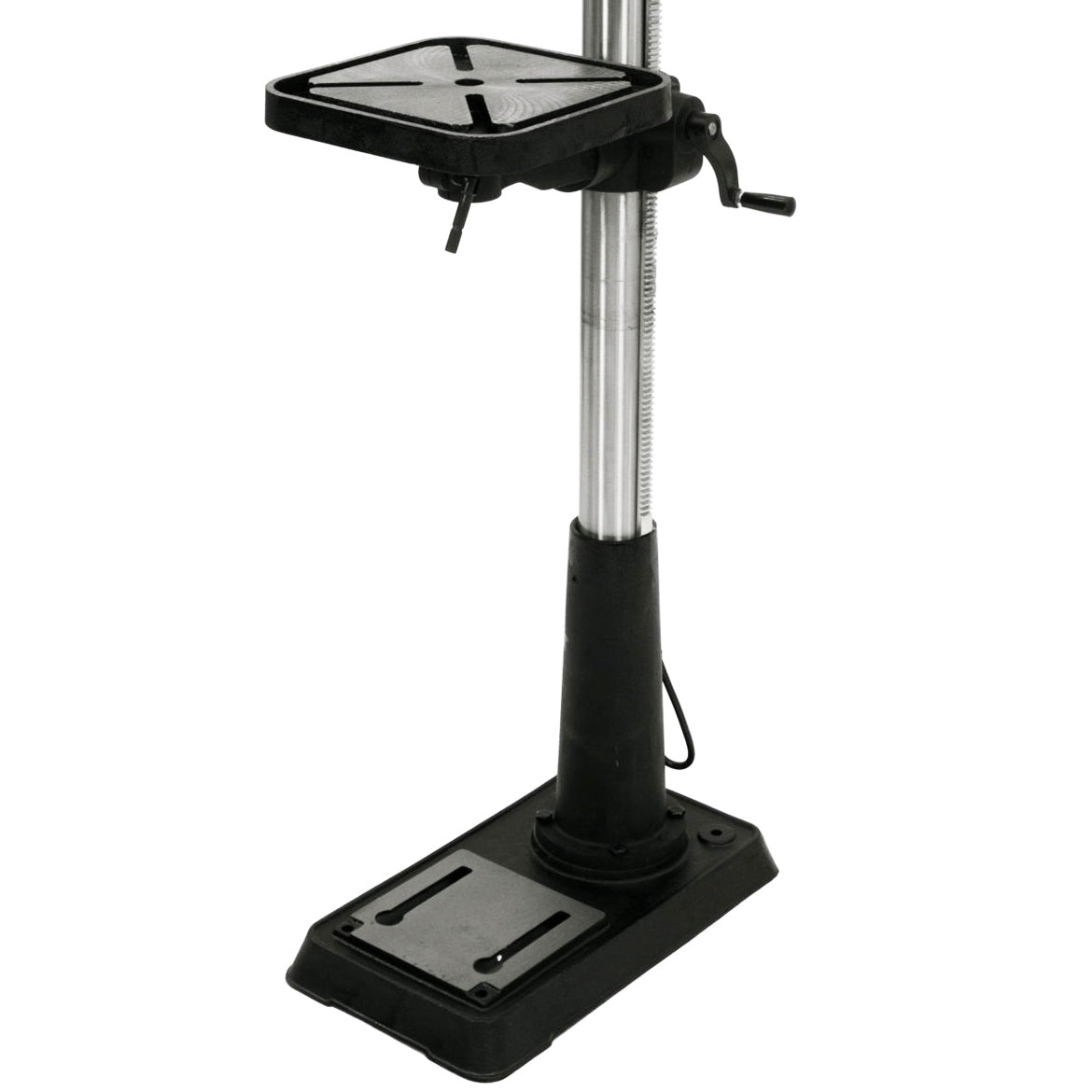

  • Table tilts 45 degree
  • 5/8" drill chuck and arbor
  • Telescoping safety spindle guard
What's in The Box
  • JET J-2500, 15" Floor Model Drill Press 115V 1PH
  • Owner's Manual
Warranty
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Model IDP-22
Sku 354301
Brand Jewt
Style (Type) Belt Drive
Drills to Center of Circle (in) 22
Drilling Capacity Cast Iron (in.) 1-1/4
Drilling Capacity Mild Steel (in.) 1
Tapping Capacity Mild Steel (in.) 1
Distance Column to Spindle (in.) 10-7/8
Number of Spindle Speeds 12
Range of Spindle Speeds (Rpm) 175 - 3,050
Column Diameter (in.) 3-5/8
Spindle Taper (in. x Tpi) MT-3
Spindle Travel (in.) 4-13/16
Spindle Distance to Base (in.) 48-1/2
Spindle Distance to Table (Max.) (in.) 28
Table Size (L x W) (in.) 18-5/8 x 16-1/8
T-Slots Number and Size (in.) 2 and 5/8
T-Slot Centers (in.) 3/4
Work Table Weight Capacity (lbs.) 176
Base Dimensions (in.) 22-5/8 x 19-7/16
Base Work Table (in.) 21-1/2 x 18-5/16
Base Slots Number and Size (in.) 2 and 5/8
Motor (Hp) 1-1/2
Voltage 115/230
Phase Single
Weight (lbs.) 364
