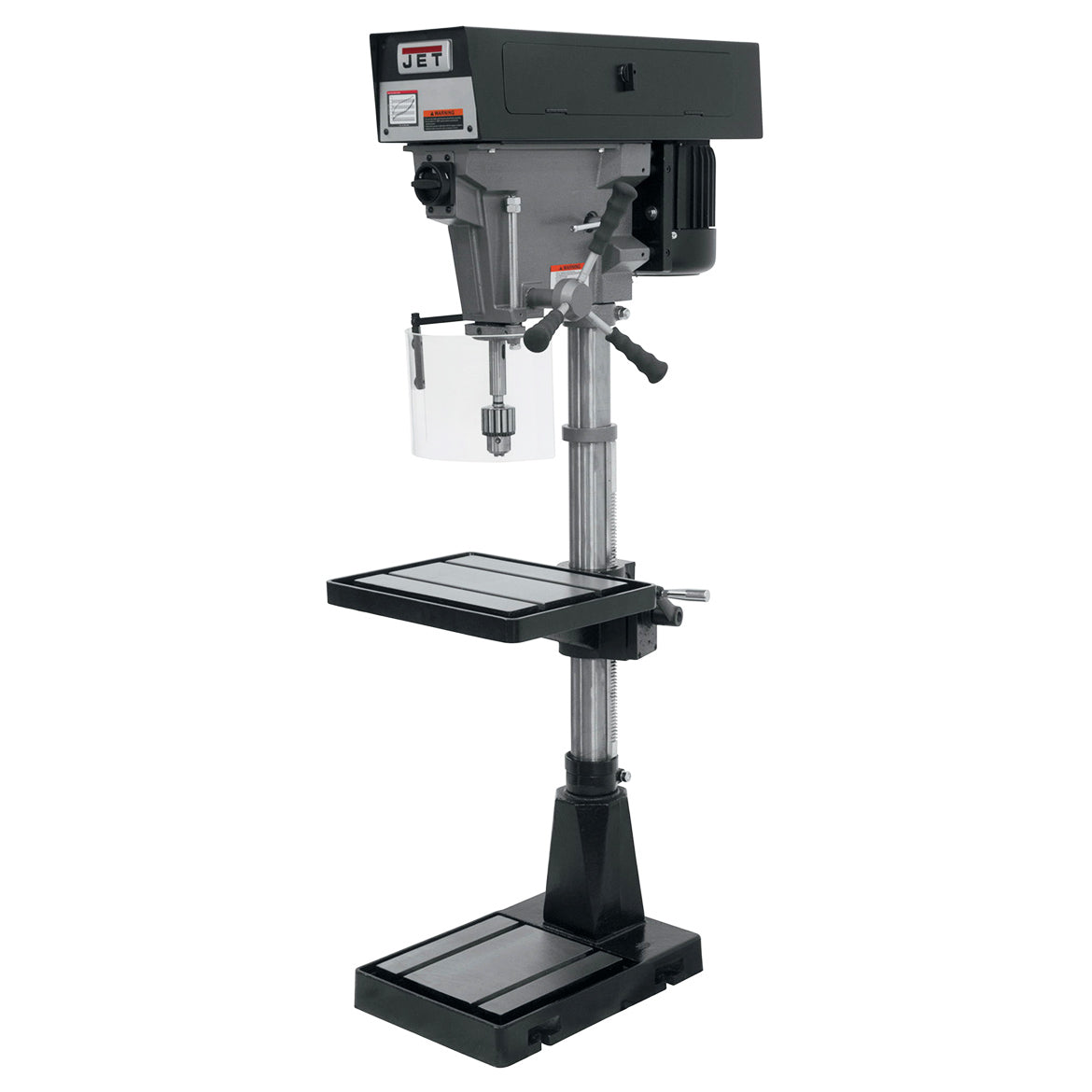

JET J-A3816 1-Hp 115/230V 15" Heavy Duty 6-Speed Floor Model Drill Press

by Jet

$2,369.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: JET-354500

Features
  • Constructed to provide a solid base for drilling
  • 6-Spindle Speeds from 375 to 5,000 RPM
  • Larger quill provides greater accuracy
  • Large production table
  • 3" column for maximum head support
  • 1/2" drill chuck and arbor included
  • Drill chuck guard
What's in The Box
  • JET J-A3816, 15" 6-Speed Floor Model Drill Press 115/230V 1PH
  • Owner's Manual
Warranty
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Model 354500
UPC 662756092670
Style (Type) Variable
Drills to Center of Circle (in) 15
Drilling Capacity Cast Iron (In.) 5/8
Drilling Capacity Mild Steel (In.) 1/2
Distance Column to Spindle (In.) 15
Number of Spindle Speeds 6
Range of Spindle Speeds (RPM) 375, 625, 1,125, 1,950, 3,400, 5,000
Column Diameter (In.) 3
Spindle Taper (In. x TPI) MT-2
Spindle Travel (In.) 6
Spindle Distance to Base (In.) 44-1/2
Spindle Distance to Table (Max.) (In.) 25-3/4
Table Size (L x W) (In.) 15 x 18
Table Travel (In.) 16-3/4
T-Slots Number and Size (In.) 2, 1/2
T-Slot Centers (In.) 5-5/16
Work Table Weight Capacity (Lbs.) 90
Base Dimensions (In.) 20-7/8 x 14-3/16 x 3-1/8
Base Work Table (In.) 12-1/8 x 11-13/16
Base Slots Number and Size (In.) 2, 1/2
Motor (HP) 1 HP, 115/230V, 1 Ph
Overall Dimensions (L x W x H) (In.) 30 x 20 x 71
Weight (Lbs.) 394
