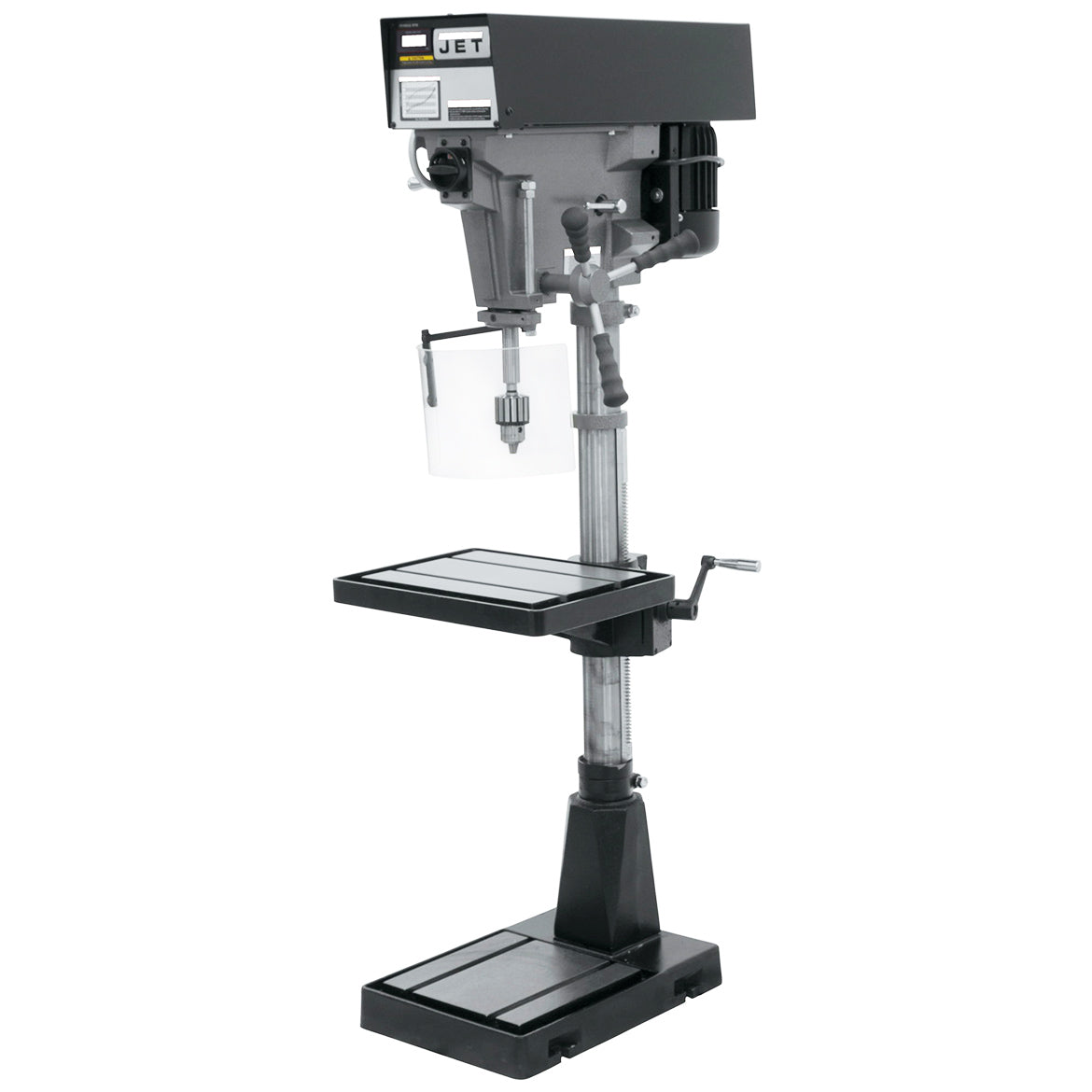

JET J-A5816 1-Hp 115/230V 15" Variable Speed Floor Model Drill Press

See all Jet


×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.

Condition: New

SKU: JET-354550

This item ships via Freight. Appointment is required for delivery. Click for details.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $99 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $99 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $99, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Full bearing support on quill for maximum spindle stiffness
  • Handwheel speed adjustment of 400 to 5,000 RPM
  • Large 2-1/4" quill for greater accuracy
  • 3" column diameter for maximum head support
  • 6" stroke for deep hole application
  • Accurate depth stop for precice hole depths
  • 1/2" drill chuck and arbor included
  • Safety collar
What's in The Box
  • JET J-A5816, 15" Variable Speed Floor Model Drill Press 115/230V 1PH
  • Owner's Manual
Warranty
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Model 354550
UPC 662756092687
Style (Type) Variable
Drills to Center of Circle (in) 15
Drilling Capacity Cast Iron (In.) 5/8
Drilling Capacity Mild Steel (In.) 1/2
Distance Column to Spindle (In.) 7-1/2
Number of Spindle Speeds Variable
Range of Spindle Speeds (RPM) 400 - 5,000
Column Diameter (In.) 3
Spindle Taper (In. x TPI) MT-2
Spindle Travel (In.) 6
Spindle Distance to Base (In.) 44-1/2
Spindle Distance to Table (Max.) (In.) 25-3/4
Table Size (L x W) (In.) 15 x 18
Table Travel (In.) 16-3/4
T-Slots Number and Size (In.) 2 and 1/2
T-Slot Centers (In.) 5-5/16
Work Table Weight Capacity (Lbs.) 90
Base Dimensions (In.) 20-7/16 x 14-3/16
Base Work Table (In.) 12-1/8 x 11-13/16
Base Slots Number and Size (In.) 2 and 1/2
Motor (HP) 1 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.) 30 x 20 x 71
Weight (Lbs.) 426
