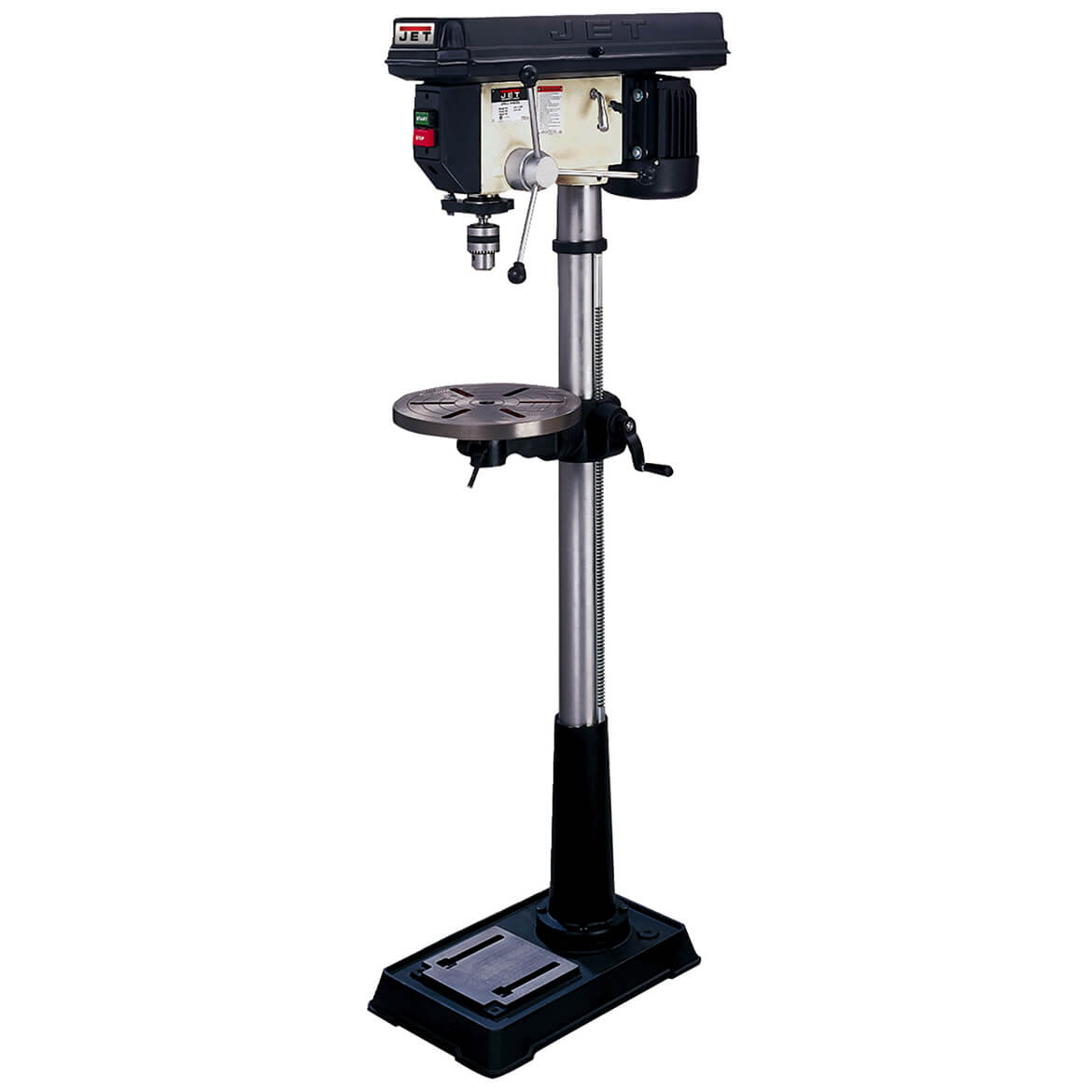

JET JDP-17MF 3/4-Hp 115/230V 16-1/2" Floor Drill Press w/ Quick Release Crank

See all Jet

Notify me when this product is available:


Condition: New

SKU: JET-354169

This item ships via Freight. Appointment is required for delivery. Click for details.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $99 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $99 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $99, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • 16 speeds lets you choose the best speed for the job
  • Quick release crank operated worktable height adjustment rotates + or - 45° for versatility
  • Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
  • "X" pattern mounting grooves in table allow mounting a fence when table is in reverse position
  • Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
  • Spindle has high-quality ball bearing construction for long life
  • Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
  • Built-in worklight (bulb not included) provides additional visibility of your work
What's in The Box
  • JET JDP-17MF, 16-1/2" Floor Mount Drill Press, 3/4HP 1PH 115/230V
  • Owner's Manual
Warranty
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Model 354169
UPC 662755104114
Style (Type) Floorstanding Model
Swing (In.) 16-1/2
Spindle Travel (In.) 4-3/8
Number of Spindle Speeds 16
Spindle Taper MT2
Spindle Speed Range (RPM) 200 - 3630
Spindle Distance to Table (Max.) (In.) 29-1/8
Table Size (L x W) (In.) 13-3/4
Table Tilt (Deg.) 45 R and L
Chuck Size (In.) 5/8
Column Diameter (In.) 3-1/8
Base Size (In.) 11-1/8 x 19-5/8
Motor Power (HP) 3/4
Motor Phase (PH) 1
Motor Amps 9/4.5
Weight (Lbs.) 209
