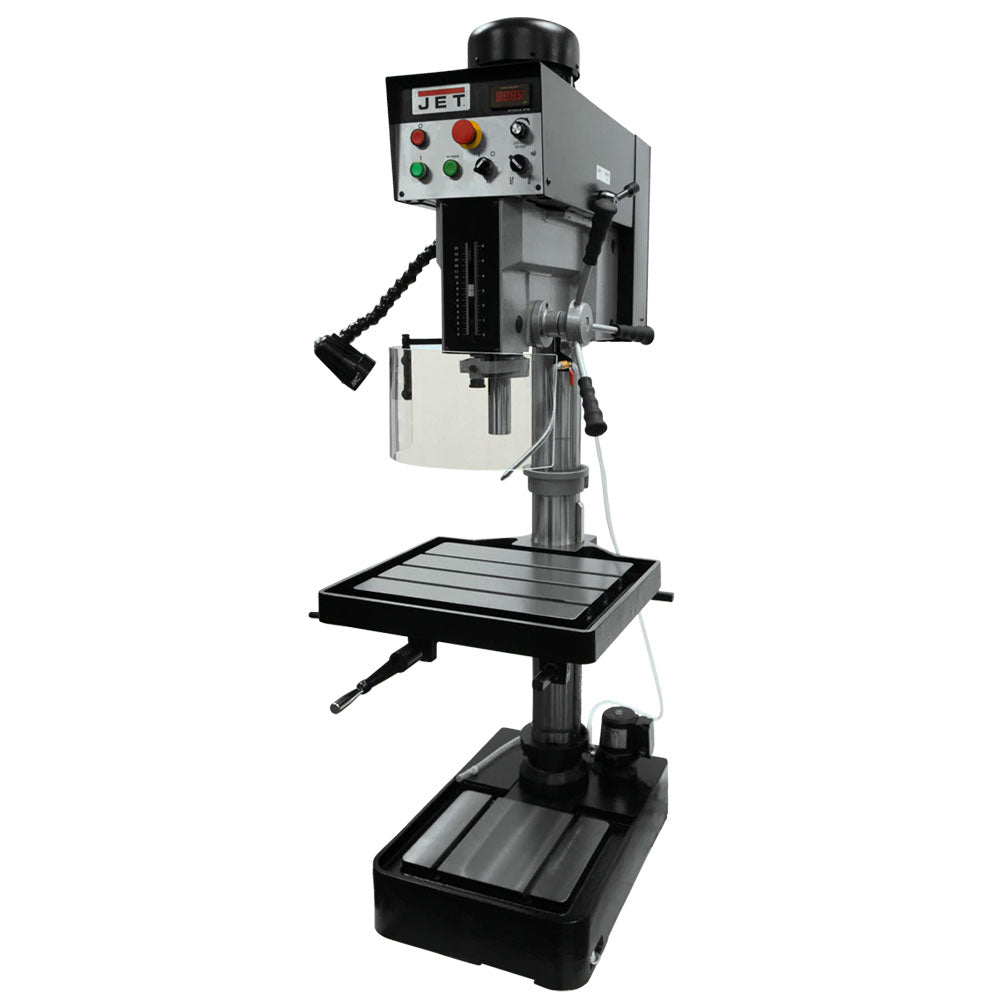

JET JDP-20EVST-460 460V 2 HP 1-1/2" Variable Metalworking Tapping Drill Press

Name: JET JDP-20EVST-460 460V 2 HP 1-1/2" Variable Metalworking Tapping Drill Press
Brand: Jet
Price: 6549.0 USD
Availability: OutOfStock

See all Jet

Sold Out Free

Condition: New

SKU: JET-354226

Product Details
Customer Reviews
Shipping & Return Policies

Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
Frequently Viewed Together
Similar Products

Features

Heavy-duty steel column for increased precision and rigidity
Heavy-Duty cast head for more accuracy and rigidity
Large Precision Ground T-slot Production Table for easy setups
Latest AC Inverter Variable Speed Technology
CSA Coolant System
The spindle is supported by high-quality ball bearings
CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
LED Machine Lamp
Spindle Guard
Emergency Stop
The spindle is supported by high-quality ball bearings
Variable Spindle Speeds from 65 - 2,000 RPM's
High Torque at all speeds both forward and reverse
Continuous Speed Adjustment while in operation
Front Mounted LED Spindle RPM Readout
Forward and Reverse for Tapping
Front Mounted Positive Control Depth Stop
Large Hand Grips designed with the Users comfort in mind

What's in The Box

Tapping Drill Press
Owner's Manual

Warranty

2 Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

SKU	354226
Brand	Jet
Volts	460
Horsepower	2
Phase	3
Style	Variable Speed
Drills to Center of Circle	20 in
Drilling Capacity Cast iron	1-1/2 in
Drilling Capacity Mild Steel	1-3/8 in
Tapping Capacity Cast Iron	7/8 in
Tapping Capacity Mild Steel	3/4 in
Distance Column to Spindle	10-7/16 in
Number of Spindle Speeds	Variable
Range of Spindle Speeds (RPM)	65-540 /245- 2,000
Column Diameter	4-1/2 in
Spindle Taper (in x TPI)	MT-3
Spindle Travel	6 in
Spindle Distance to Base	44-1/2 in
Spindle Distance to Table (Max)	30-1/4 in
Table Travel	20 in
T-Slots Number and Size	3 and 5/8 in
T-Slot Centers	7-7/16 in
Table Size (Lx W)	22 x 18-3/4 in
Work Table Weight Capacity	154 lbs
Base Dimensions	27 x 19 in
Base Slots Number and Size	2 and 5/8 in
Dimensions (L x W x H)	38.18 x 27.16 x 79.52 in
Weight	792 lbs
