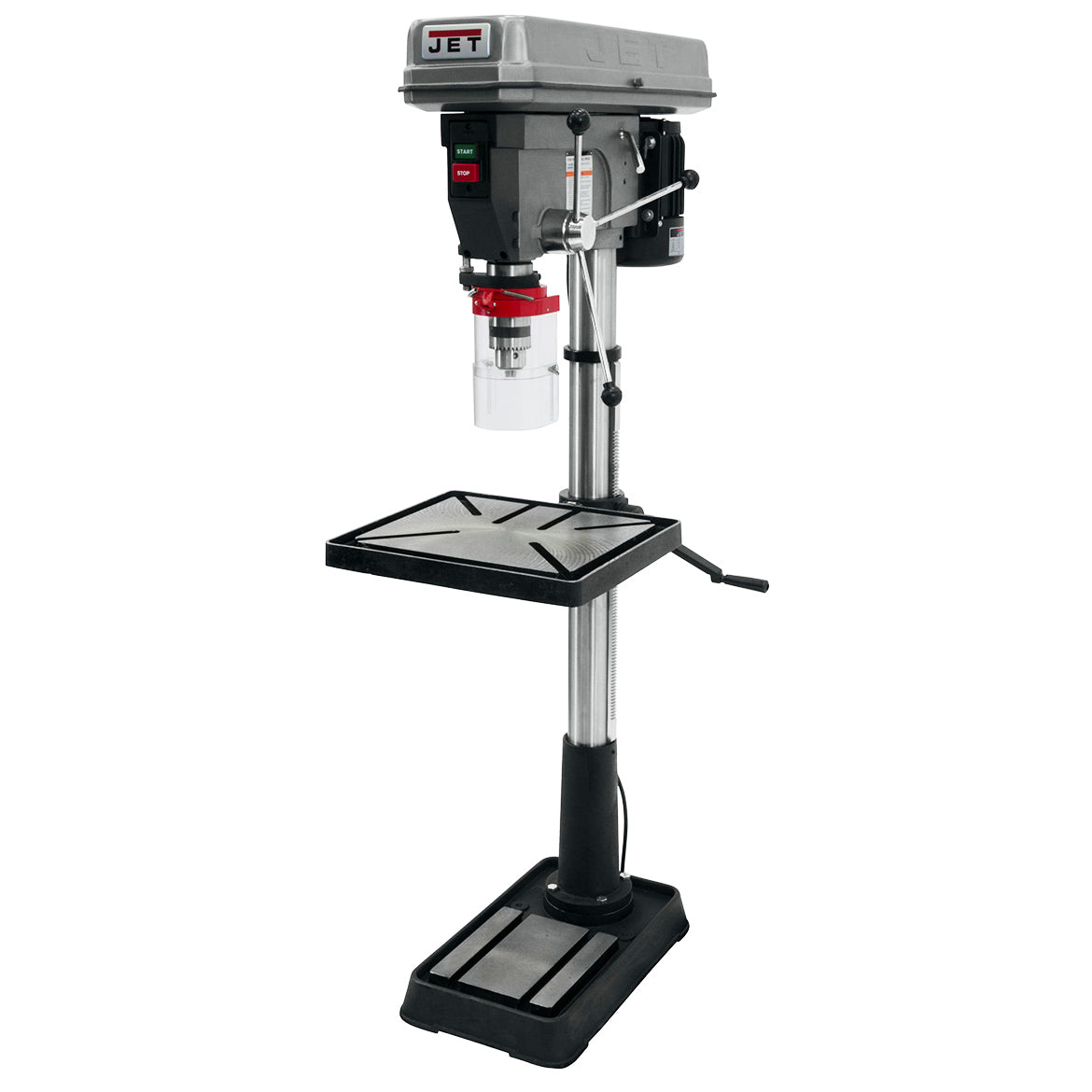

JET JDP-20MF 20" Floor Drill Press 115/230V 1PH - 354170

See all Jet

×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.

Condition: New

SKU: JET-354170


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Hinged metal belt and pulley cover
  • Quick adjustment motor mount for rapid changing of spindle speeds
  • Rotating, 45Degree tilting, crank operated worktable with release clamp
  • On/off switch located on front of drill press head
  • 1/2 diameter external depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Spindle is supported by high quality bearings
  • Drill chuck and key included
  • Telescoping safety spindle guard
What's in The Box
  • JET JDP-20MF, 20 Floor Drill Press, 1PH 115/230V
Warranty
  • JET Red Assurance 2-Year Warranty
  • JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
  • 30 Day Satisfaction Guaranteed
Specifications
.
Model 354170
UPC 662755104121
Style (Type) Variable
Drills to Center of Circle (in) 20
Drilling Capacity Cast Iron (In.) 1
Drilling Capacity Mild Steel (In.) 3/4
Distance Column to Spindle (In.) 10
Number of Spindle Speeds 12
Range of Spindle Speeds (RPM) 150 - 4,200
Column Diameter (In.) 3-3/8
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 4-5/8
Spindle Distance to Base (In.) 46-3/4
Spindle Distance to Table (Max.) (In.) 29-1/8
Table Size (L x W) (In.) 18-1/2 x 16
Table Travel (In.) 21-1/2
T-Slots Number and Size (In.) 6, 1/2
T-Slot Centers (In.) 3-1/2
Work Table Weight Capacity (Lbs.) 80
Base Dimensions (In.) 13-3/4 x 22-3/4
Base Work Table (In.) 13 x 8-1/2
Base Slots Number and Size (In.) 2, 5/8
Motor (HP) 1-1/2 HP, 115/230V, 1 Ph
Overall Dimensions (L x W x H) (In.) 33-1/2 x 18-1/2 x 67
Weight (Lbs.) 282
