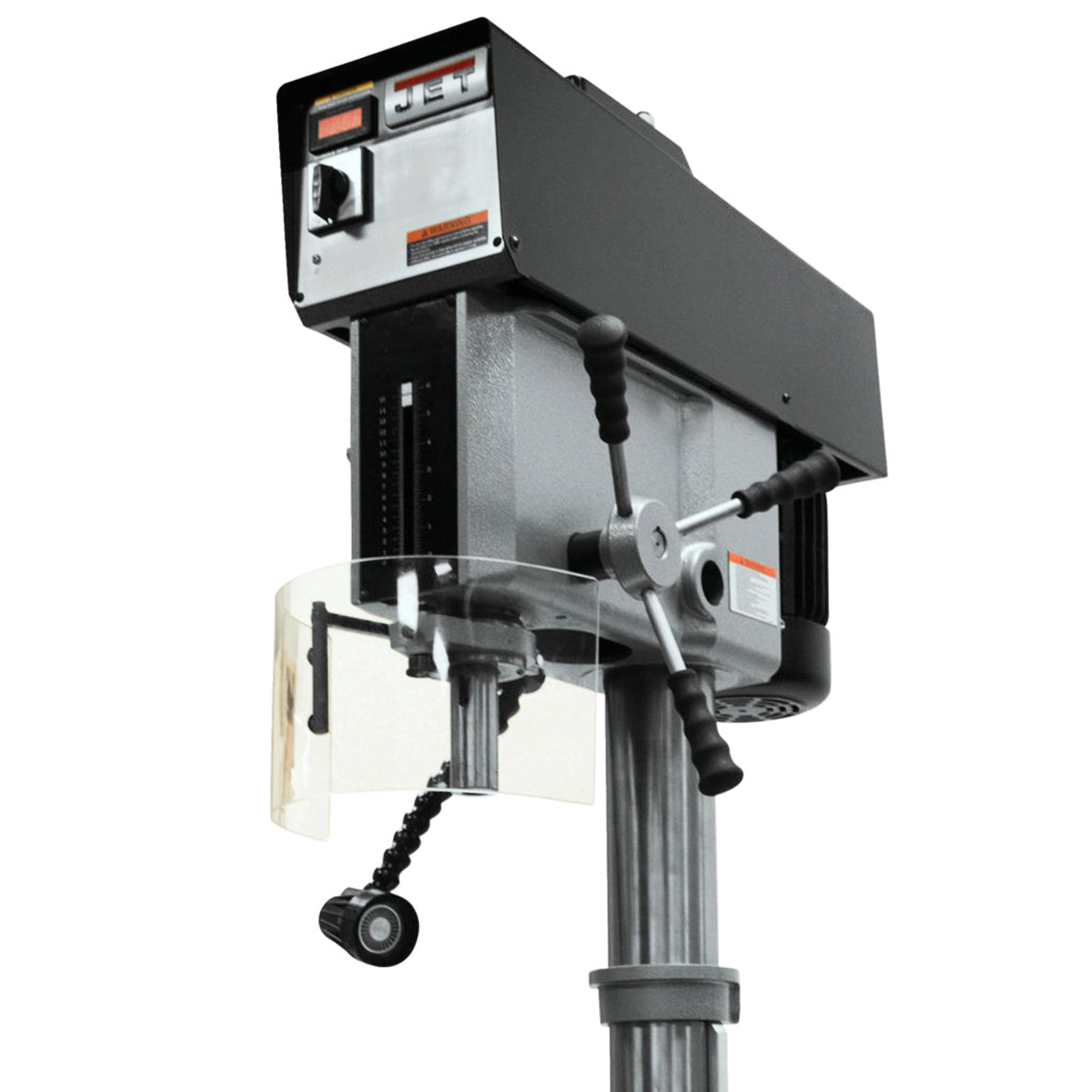

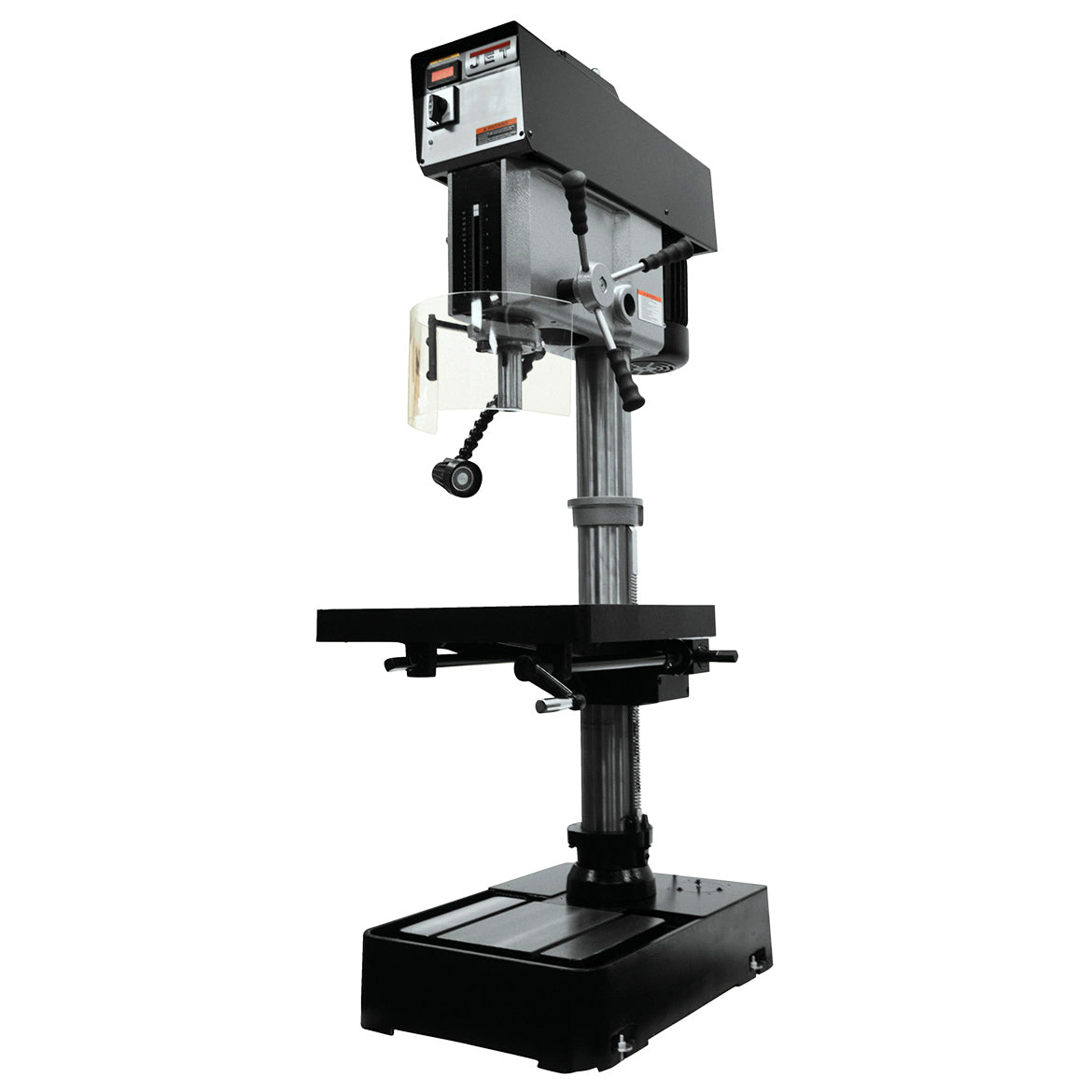

JET JDP-20VS-1 2-Hp 115/230V 20" Heavy Duty Variable Speed Drill Press

See all Jet

Notify me when this product is available:


Condition: New

SKU: JET-354230

This item ships via Freight. Appointment is required for delivery. Click for details.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $99 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $99 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $99, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Steel Column
  • Heavy Duty Casted Iron Design
  • Head is massively constructed for more accuracy and rigidity
  • Large Precision Ground T-slot Production Table for easy set ups
  • Massive 3-Inch Quill Diameter
  • Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
  • LED Machine Lamp
  • Spindle Guard
  • Variable Spindle Speeds from 300 - 2,000 RPM's
  • Front Mounted LED Spindle RPM Readout
  • Front Mounted Postitive Control Depth Stop

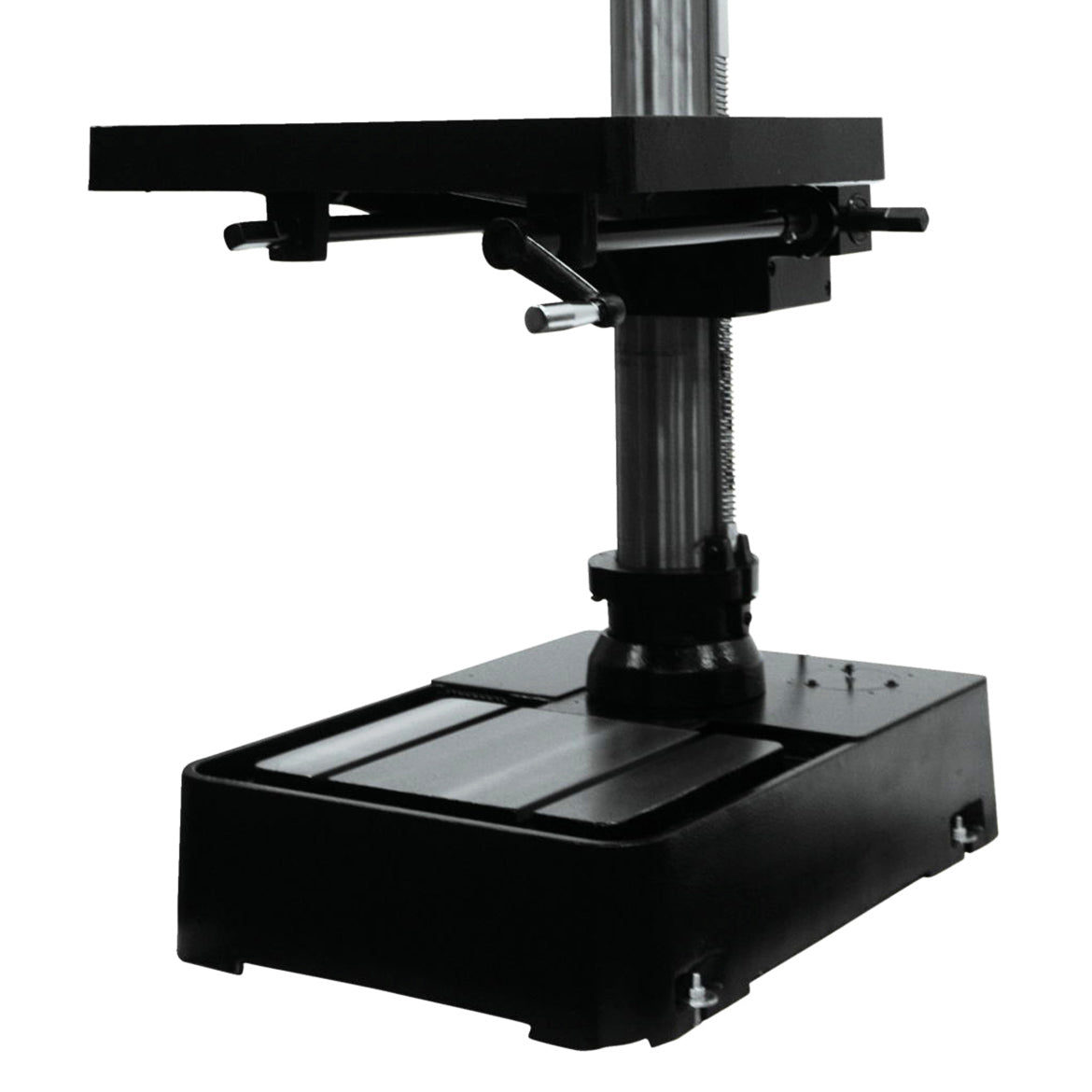

  • Table rotates 360 Degree around the column
  • Machine T-Slotted base
  • Large Hand Grips designed with the Users comfort in mind
  • Spindle Safety Guard
  • LED Machine Lamp
What's in The Box
  • 20-Inch 2 HP 1-Phase Steel Variable Speed Drill Press - 354230
  • Owner's Manual
Warranty
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku 354230
Model JCT-20VS-1
Brand Jet
Voltage 115/230V
Motor (HP) 2
Phase 4
Style (Type) Variable Speed
Drills to Center of Circle (in) 20
Drilling Capacity Cast Iron (In.) 1-1/4
Drilling Capacity Mild Steel (In.) 1
Distance Column to Spindle (In.) 10 7/16
Number of Spindle Speeds Variable
Range of Spindle Speeds (RPM) 300 - 2,000
Column Diameter (In.) 4-1/2
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 6
Spindle Distance to Base (In.) 44-1/2
Spindle Distance to Table (Max.) (In.) 30-1/4
Table Size (L x W) (In.) 22x18-3/4
Table Travel (In.) 20
T-Slots Number and Size (In.) 3 and 5/8
T-Slot Centers (In.) 7-7/16
Work Table Weight Capacity (Lbs.) 154
Base Dimensions (In.) 27 x 19
Base Slots Number and Size (In.) 2 and 5/8
Weight (Lbs.) 780
Dimensions (L x W x H) (In.) 38.18 x27.16 x79.52
