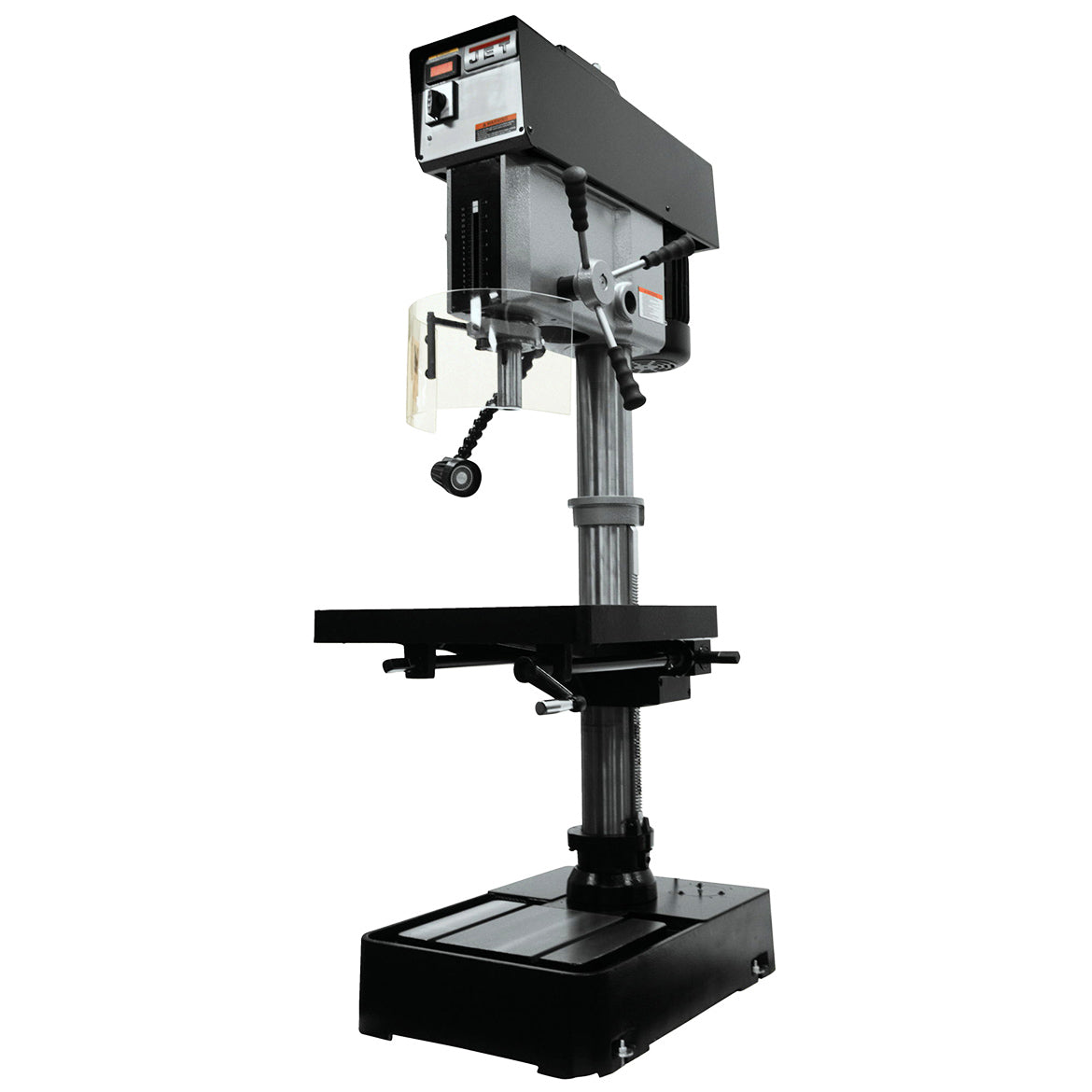

JET JDP-20VS-3 2-Hp 230/460V 20" Heavy Duty Variable Speed Drill Press

by Jet

$5,299.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: JET-354231

Features
  • Steel Column
  • Heavy Duty Casted Iron Design

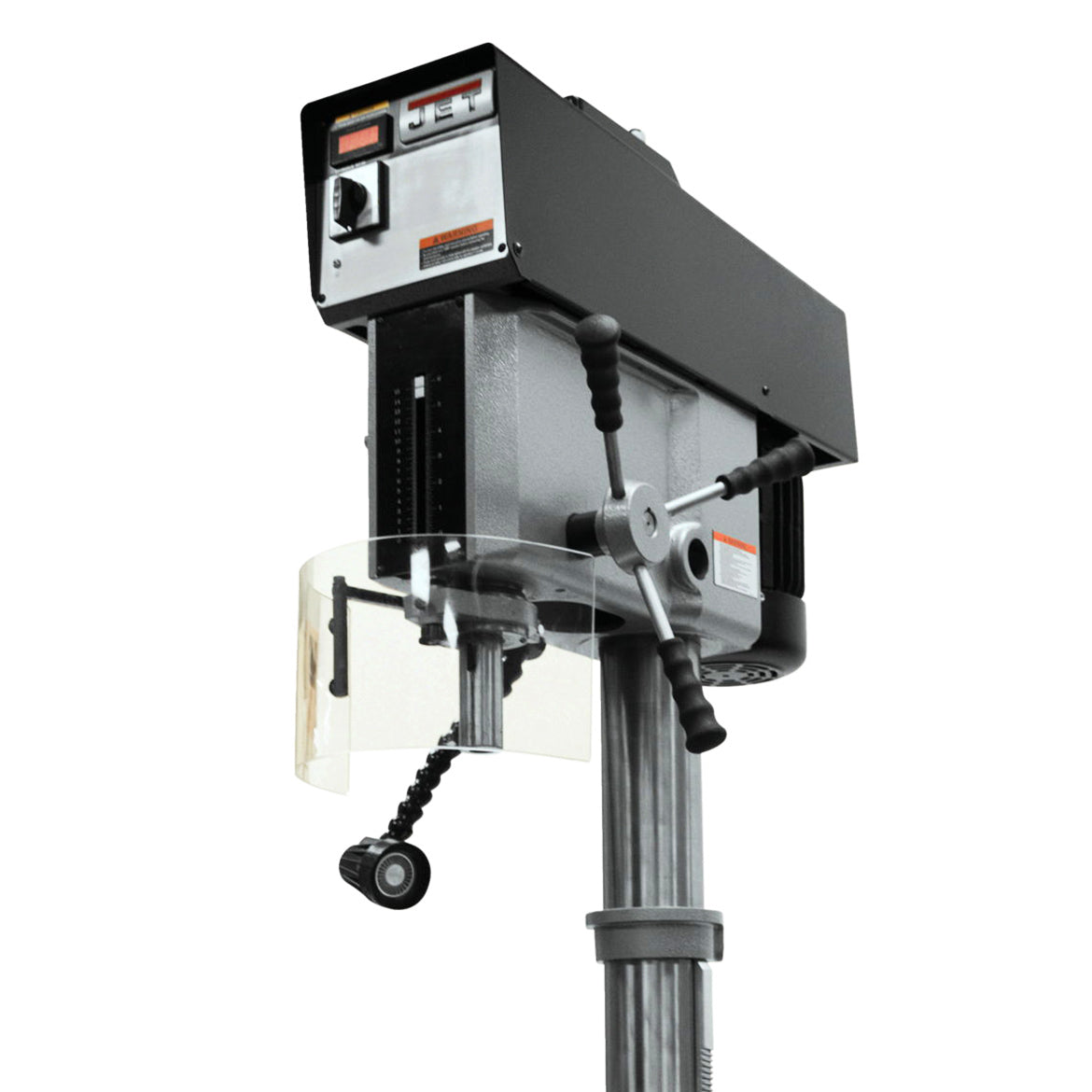

  • Head is massively constructed for more accuracy and rigidity
  • Large Precision Ground T-slot Production Table for easy set ups
  • Massive 3-Inch Quill Diameter
  • Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
  • LED Machine Lamp
  • Spindle Guard
  • Variable Spindle Speeds from 65 - 2,000 RPM's
  • Front Mounted LED Spindle RPM Readout
  • Front Mounted Postitive Control Depth Stop

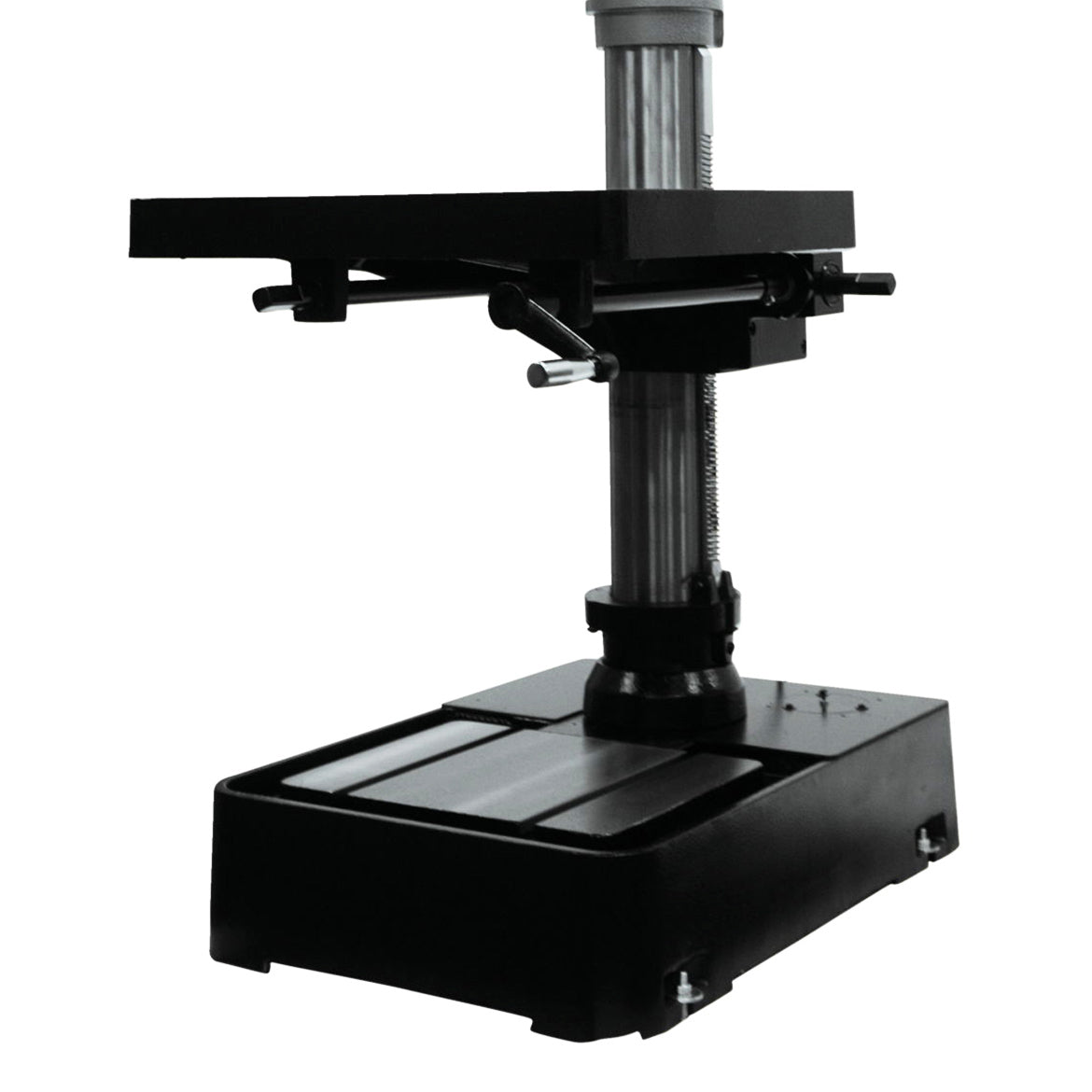

  • Table rotates 360 Degree around the column
  • Machine T-Slotted base
  • Large Hand Grips designed with the Users comfort in mind
  • Spindle Safety Guard
  • LED Machine Lamp
What's in The Box
  • 20-Inch 2 HP 3-Phase Steel Variable Speed Drill Press - 354231
  • Owner's Manual
Warranty
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku 354231
Model JDP-20VS-3
Brand Jet
Voltage 230/460V
Motor (HP) 2
Phase 3
Style (Type) Variable Speed
Drills to Center of Circle (in) 20
Drilling Capacity Cast Iron (In.) 1-1/2
Drilling Capacity Mild Steel (In.) 1-3/8
Distance Column to Spindle (In.) 10 7/16
Number of Spindle Speeds Variable
Range of Spindle Speeds (RPM) 300 - 2,000
Column Diameter (In.) 4-1/2
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 6
Spindle Distance to Base (In.) 44-1/2
Spindle Distance to Table (Max.) (In.) 30-1/4
Table Size (L x W) (In.) 22 x 18-3/4
Table Travel (In.) 20
T-Slots Number and Size (In.) 3 and 5/8
T-Slot Centers (In.) 7-7/16
Work Table Weight Capacity (Lbs.) 154
Base Dimensions (In.) 27 x 19
Base Slots Number and Size (In.) 2 and 5/8
Weight (Lbs.) 780
Overall Dimensions (L x W x H) (In.) 38.18 x 27.16 x 79.52
