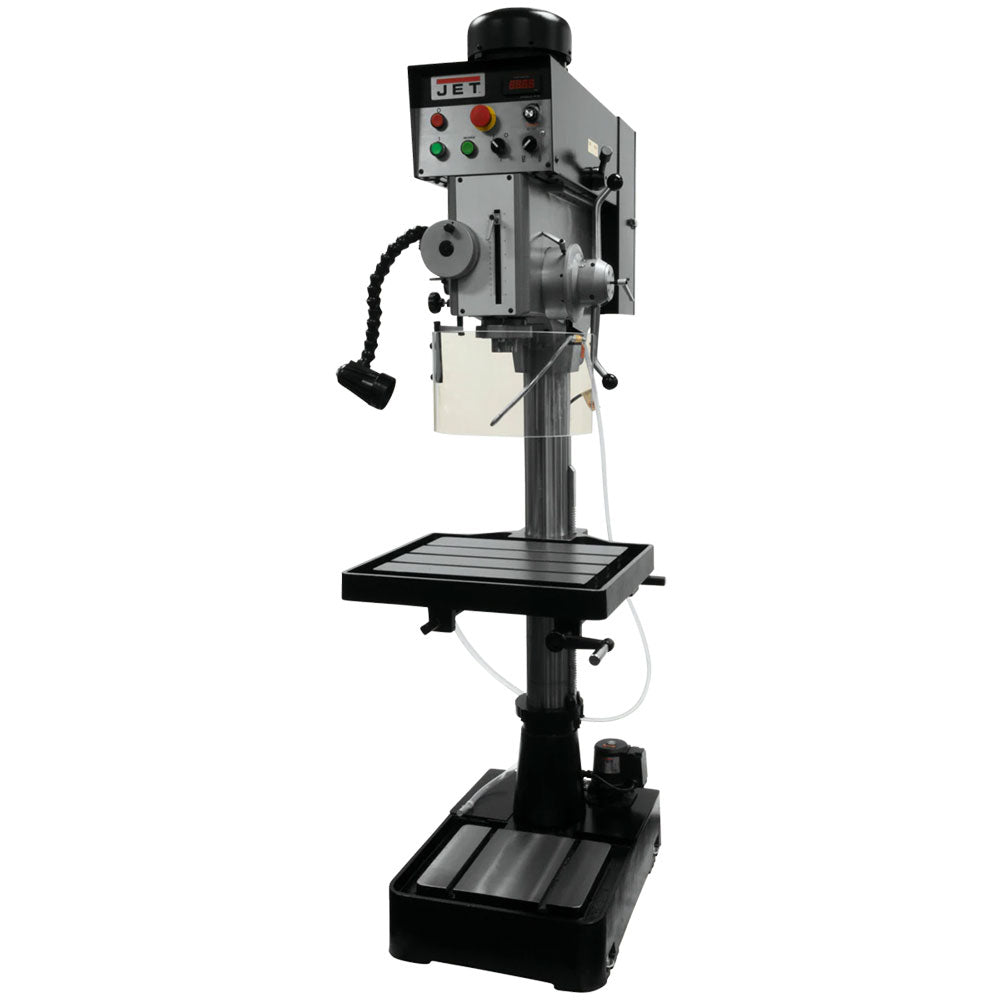

JET JDP20EVST-230-PDF 230V 2 HP 3 Phase Variable Drill Press w/ Powerfeed

See all Jet

Sold Out Free

Condition: New

SKU: JET-354245

This item ships via Freight. Appointment is required for delivery. Click for details.

Product Details
Customer Reviews
Shipping & Return Policies

Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
Frequently Viewed Together
Similar Products

Heavy-duty steel column for increased precision and rigidity
Heavy-Duty cast head for more accuracy and rigidity
Large Precision Ground T-slot Production Table for easy setups
Latest AC Inverter Variable Speed Technology
CSA Coolant System
CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
LED Machine Lamp
Spindle Safety Guard
The spindle is supported by high-quality ball bearings
Variable Spindle Speeds from 65 - 2,000 RPM's
High Torque at all speeds both forward and reverse
Continuous Speed Adjustment while in operation
Front Mounted LED Spindle RPM Readout
Forward and Reverse for Tapping
Front Mounted Positive Control Depth Stop
Large Hand Grips designed with the Users comfort in mind
STANDARD EQUIPMENT
Coolant System
Spindle Safety Guard
LED Machine Lamp

SKU	354245
Brand	Jet
Volts	230
Horsepower	2
Phase	3
Style	Variable Speed
Drills to Center of Circle	20 in
Drilling Capacity Cast iron	2 5/32 in
Drilling Capacity Mild Steel	2 in
Tapping Capacity Cast Iron	1 in
Tapping Capacity Mild Steel	1 in
Distance Column to Spindle	10-7/16 in
Number of Spindle Speeds	Variable
Range of Spindle Speeds (RPM)	60 - 2,000(60-540/225-2000)
Column Diameter	4-1/2 in
Spindle Taper (in x TPI)	MT-4
Spindle Travel	6 in
Spindle Distance to Base	44.68 in
Spindle Distance to Table (Max)	25.5 in
Table Travel	20 in
T-Slots Number and Size	3 and 5/8 in
T-Slot Centers	7-7/16 in
Table Size (Lx W)	22 x 18-3/4 in
Work Table Weight Capacity	154 lbs
Base Dimensions	27 x 19 in
Base Slots Number and Size	2 and 5/8 in
Dimensions (L x W x H)	42.5 x 27.16 x 78.74 in
Weight	847 lbs
