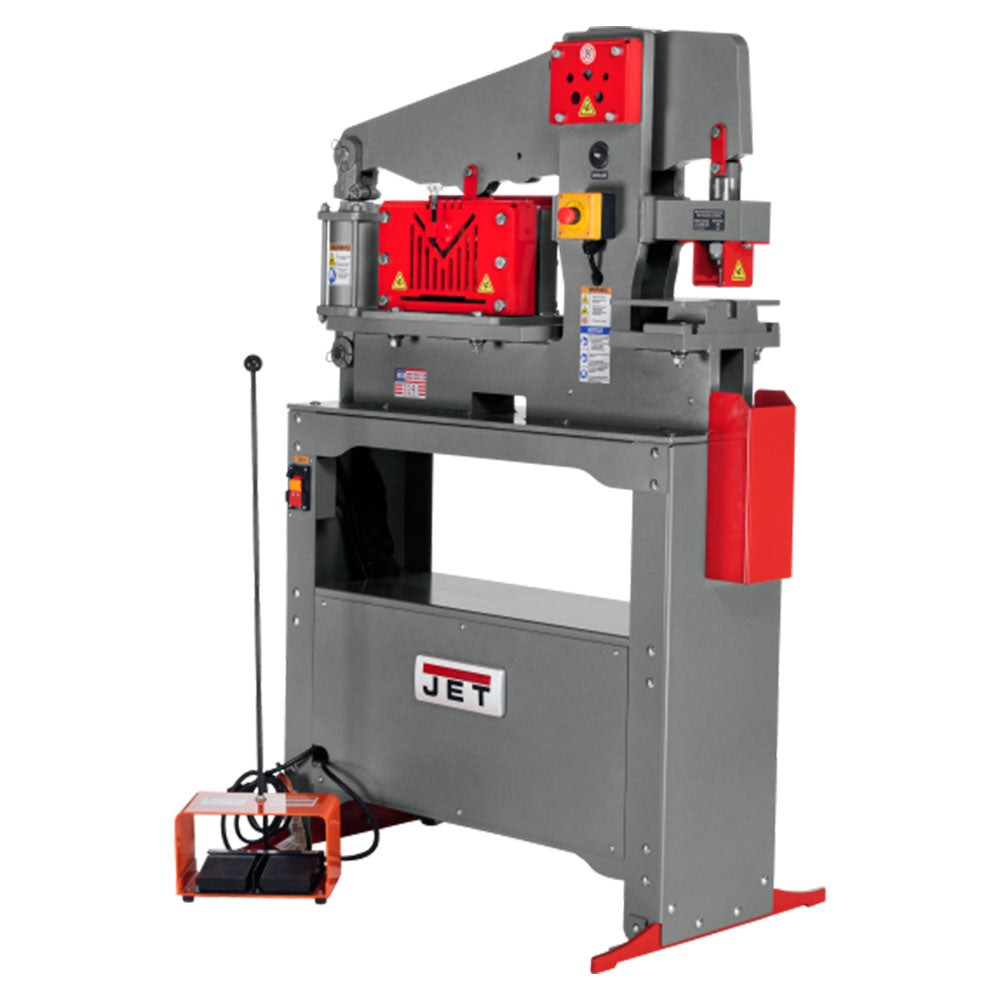

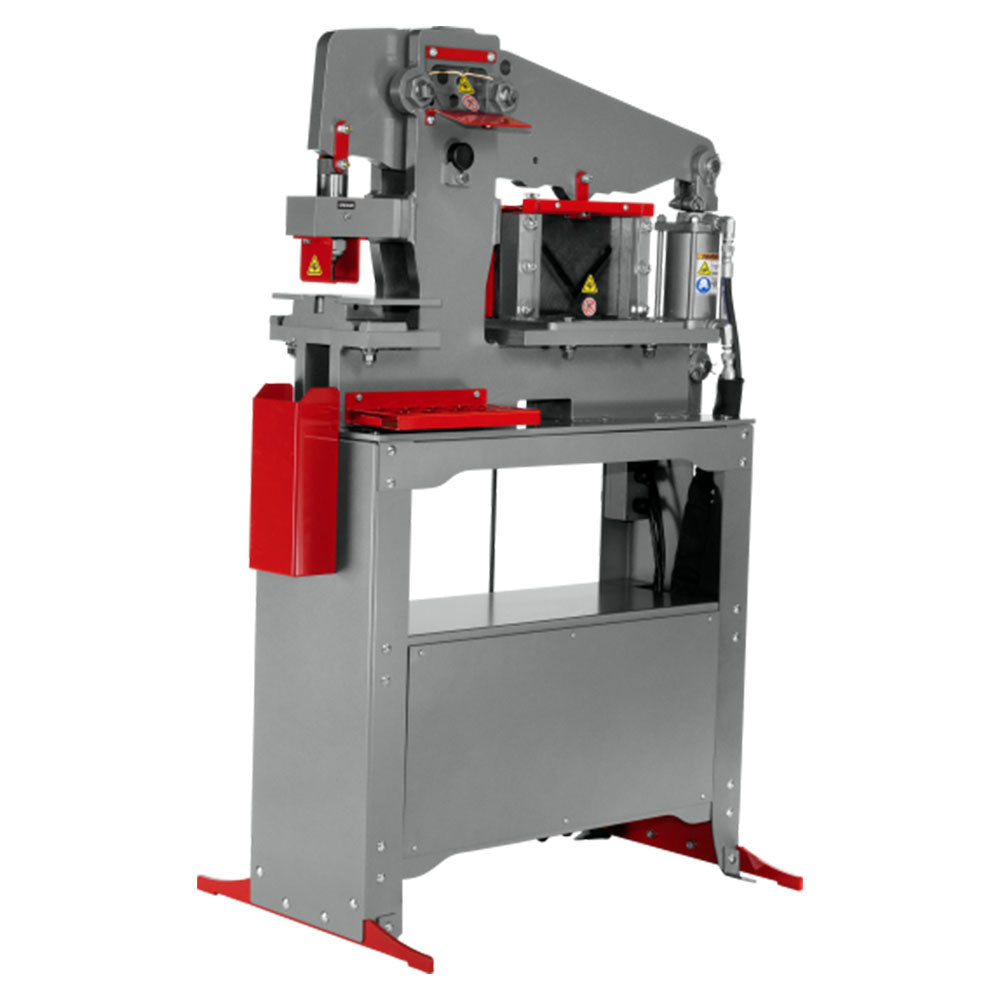

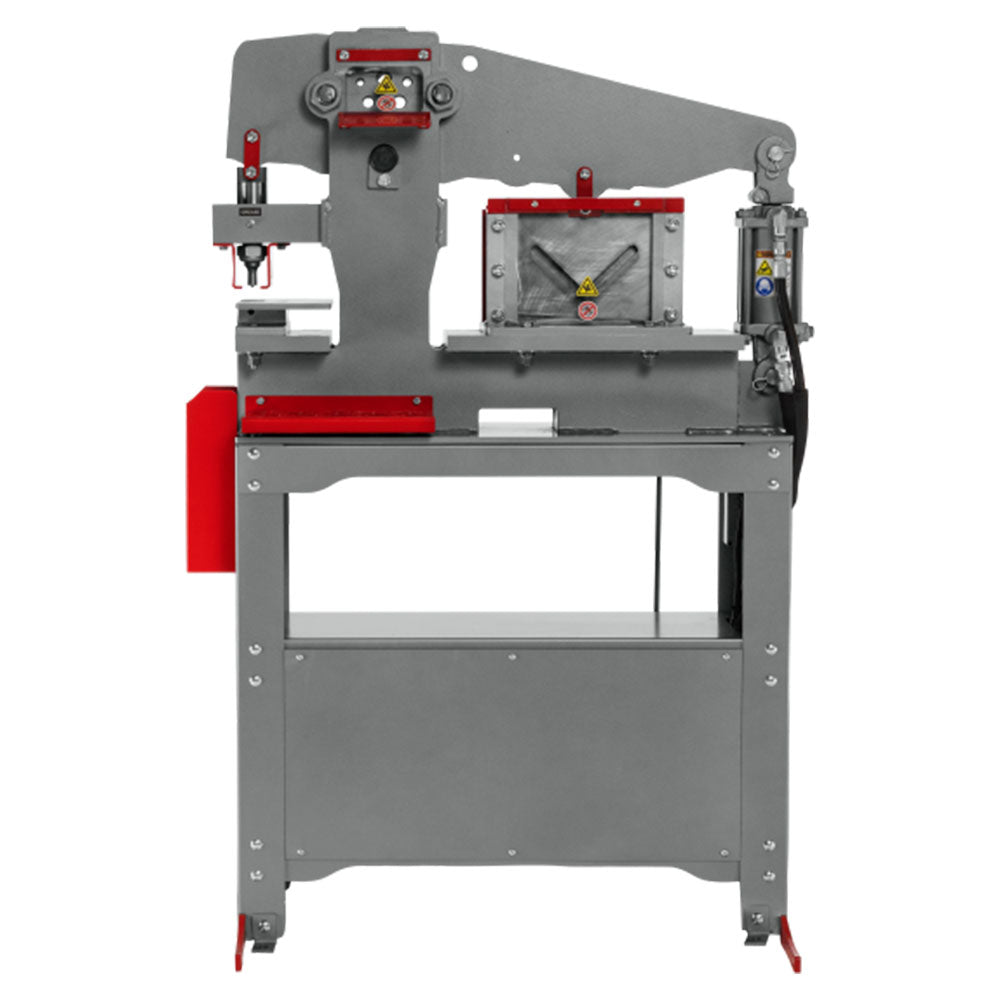

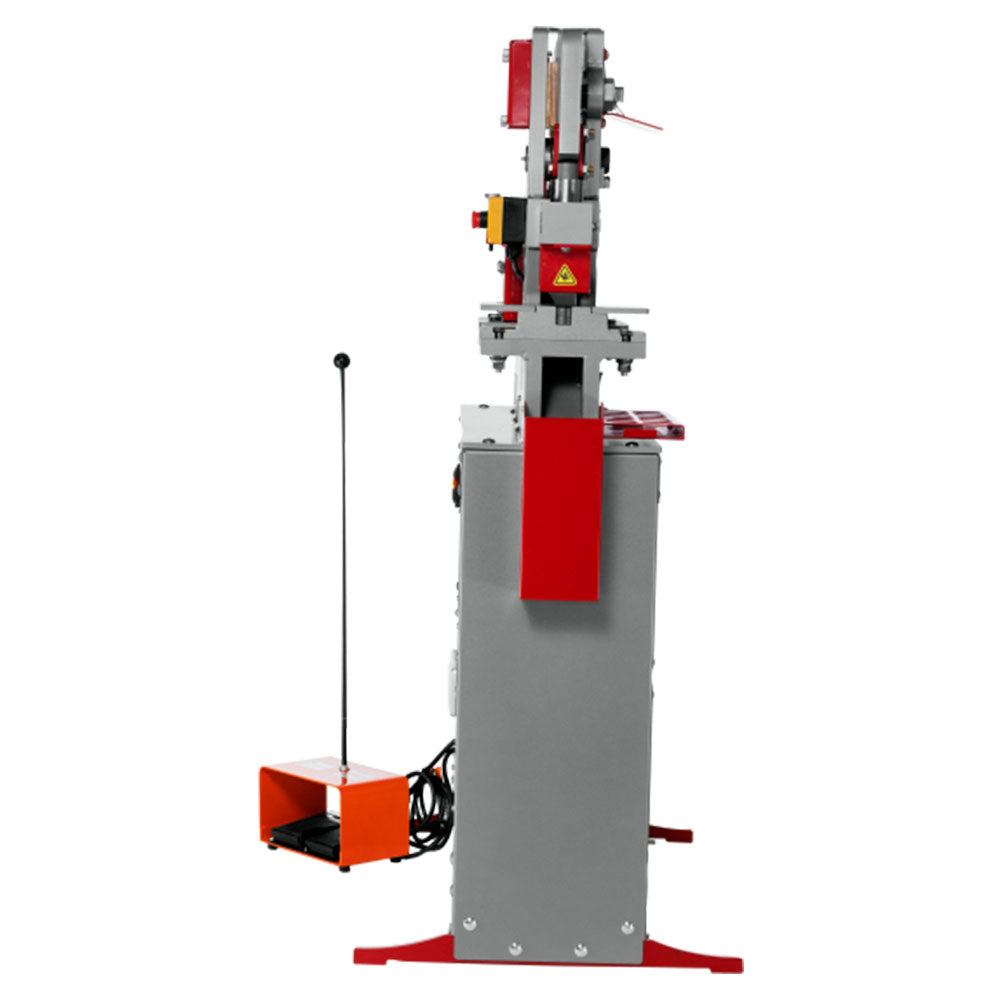

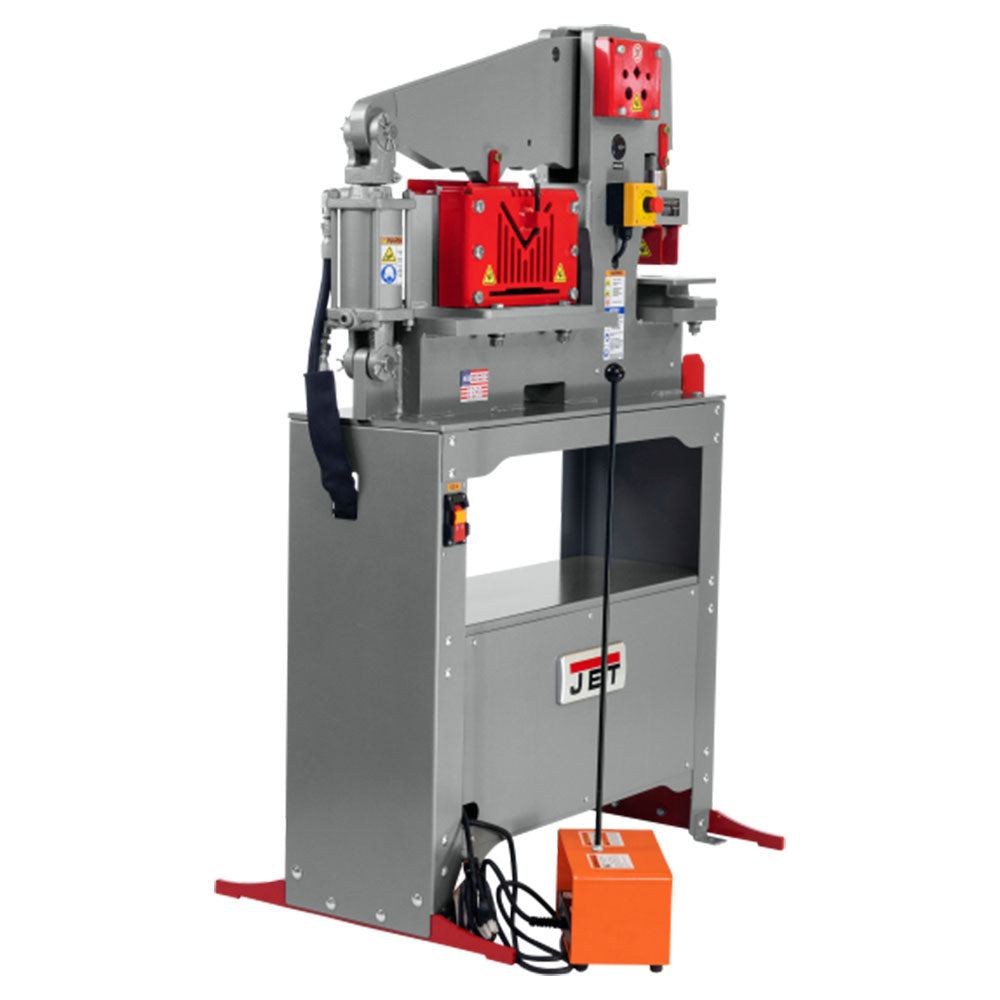

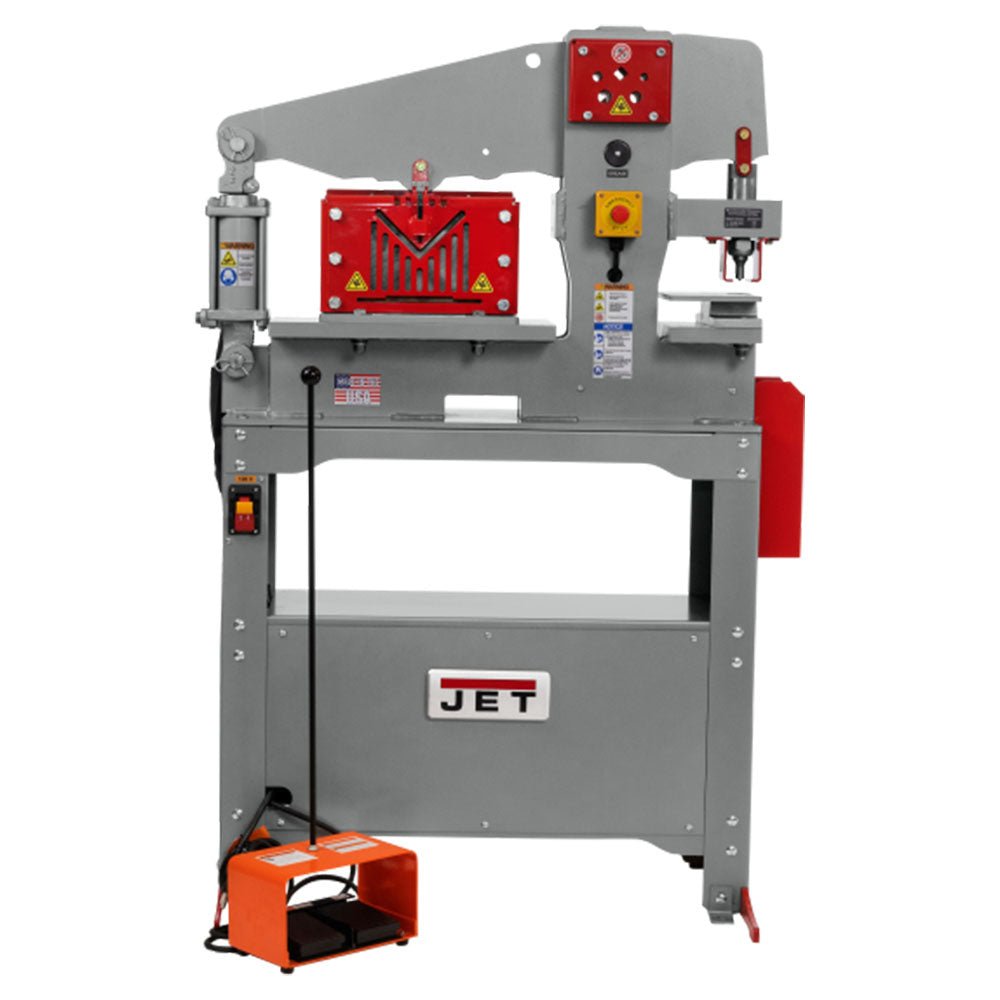

Jet JIW-45T 115V 45 Ton 1 Phase Ironworker w/ 4 Workstations

by Jet

$6,699.00 + Free Shipping
Ships Factory Direct
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: JET-JT9-756100

  • Four Workstations: Punch, Flat Bar Shear, Angle Shear & Rod Shear
  • Operates on 115V power allowing use almost anywhere
  • ANSI Compliant Guarding on the Angle & Rod Shears
  • E-stop with UL Listed compliant controls providing additional operator safety
  • Includes a Punch & Die Storage Tray able to hold up to 10 Punch & Die Sets
  • Convenient foot control with handle is easy to move between workstations
  • Optimized workstation heights reduce user fatigue
  • Slug receptacle collects all punch slugs keeping work area clear
  • Blades for the Flat Bar, Angle and Rod Shear are made of precision machined, high-quality tool steel with 2 cutting edges for extended life
  • Compatible with most Edwards Punch & Die Sets including round, square, oblong, hex, and metric
What's in The Box
  • Welding Cart
  • Owner's Manual
  • 2 Year Limited Factory Warranty
  • 30-Day Satisfaction Guaranteed
SKU JT9-756100
Brand Jet
Angle Shear Max Capacity 1/4" 3 x 3
Angle Shear Max Capacity (In.) 3 x 3 x 1/4
Cylinder (In) 3-1/2" Ram
Flat Bar Shear Max Capacity (In.) 1/4 x 8, 3/8 x 6
Flat Bar Shear Rating (Tons) 45
Flat Bar Shear Work Height (In.) 40
Gross Weight (Lbs) 802
Motor Amps 14
Motor (HP) 1-1/2 HP, 115V, 1Ph
Motor Speed (RPM) 3500
Overall Dimensions (L x W x H) (In.) 40 x 24 x 58
Overall Height (In.) 58
Prop 65 Cancer and Reproductive Harm
Punch Max Capacity (In.) 1 diam. In. 1/2 mild steel
Punch Rating (Tons) 45
Punch Stroke (In.) 1-1/2
Punch Work Height (In.) 41
Rating (Tons) 45
Rod Shear Max Round (In) 3/4
Rod Shear Max Square (In) 5/8"
Rod Shear Work Height (In) 54
Shipping Dimensions (L x W x H) (In.) 51 x 45 x 64
Valve Pressure (PSI) 2800
Throat Depth (In.) 5-3/4
Weight (Lbs.) 698
