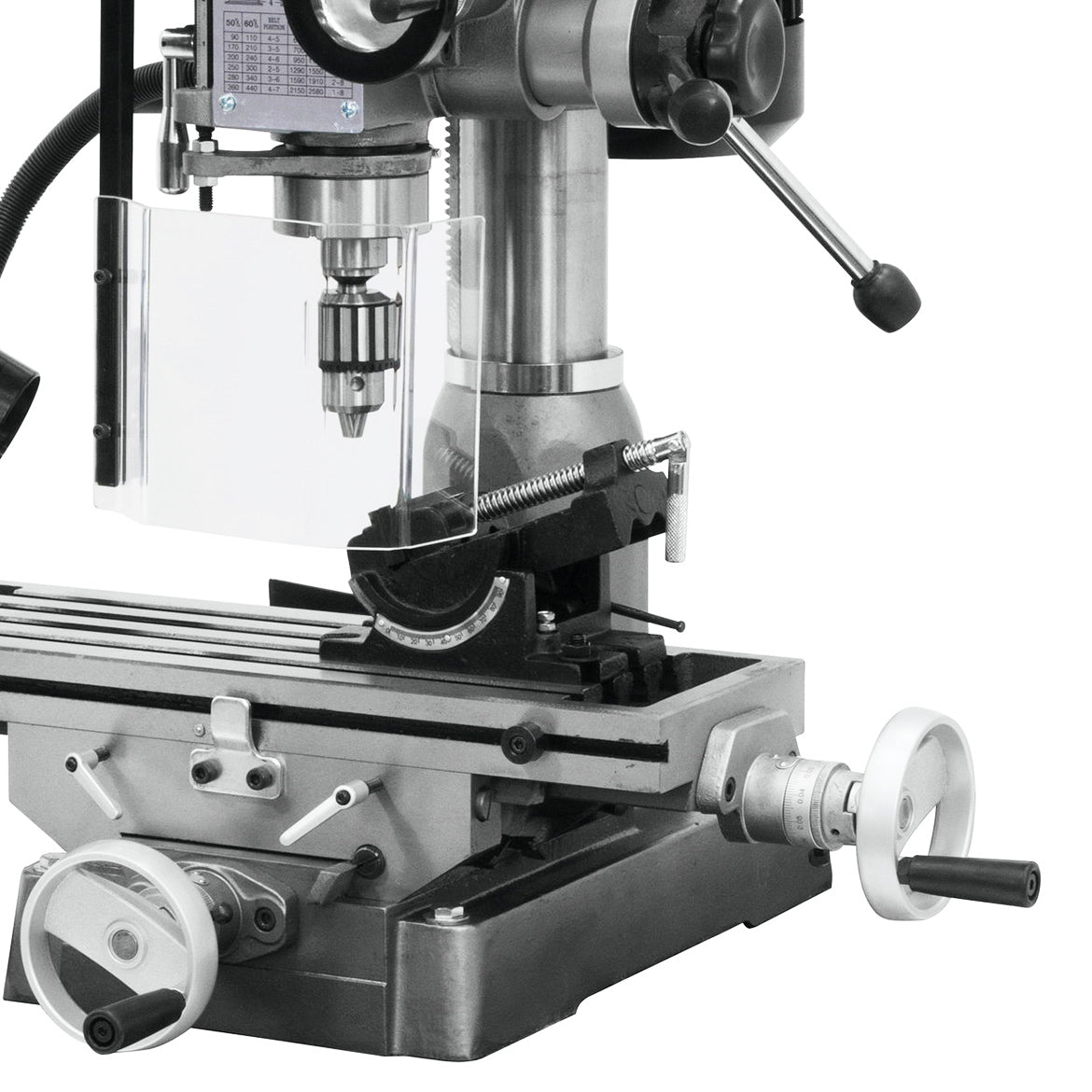

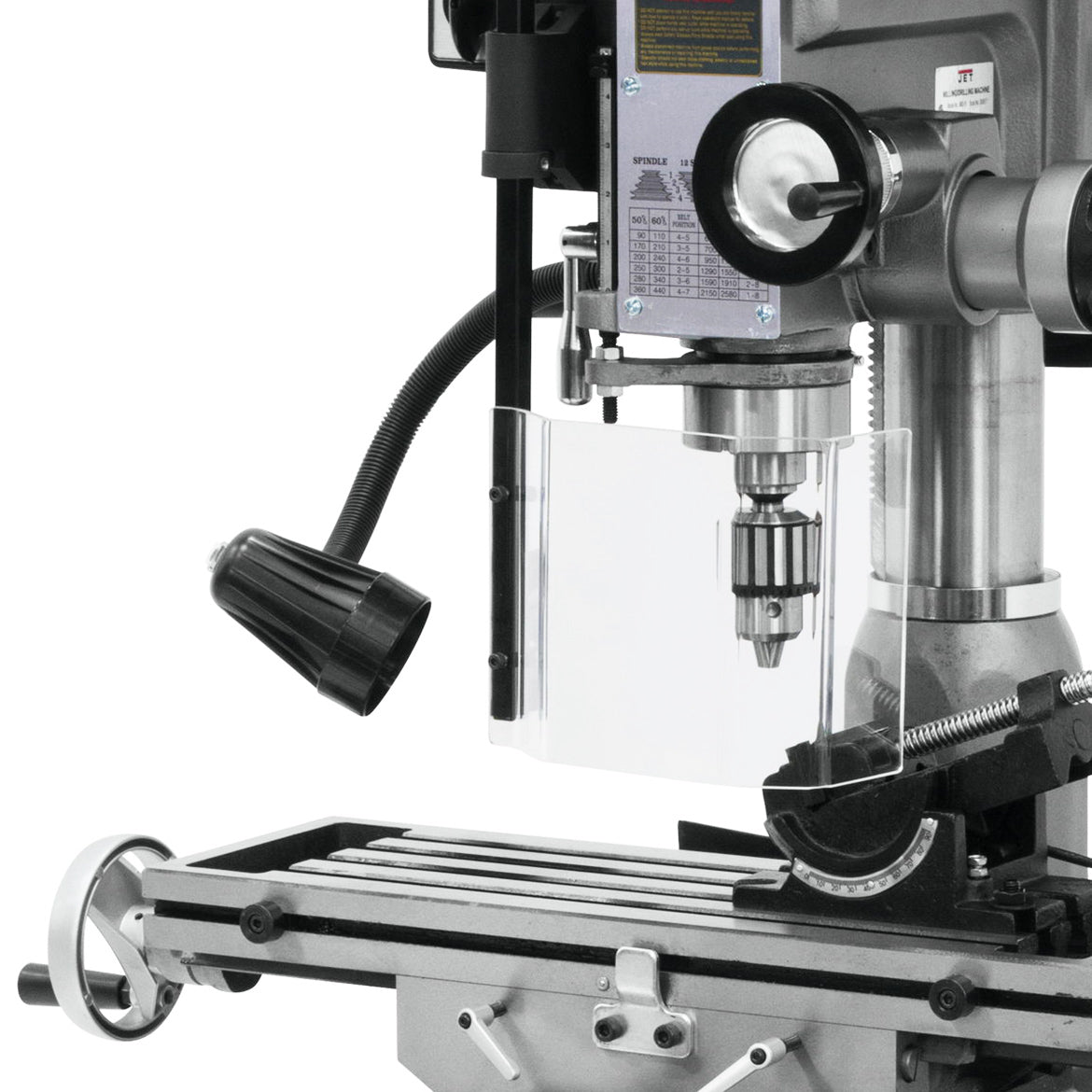

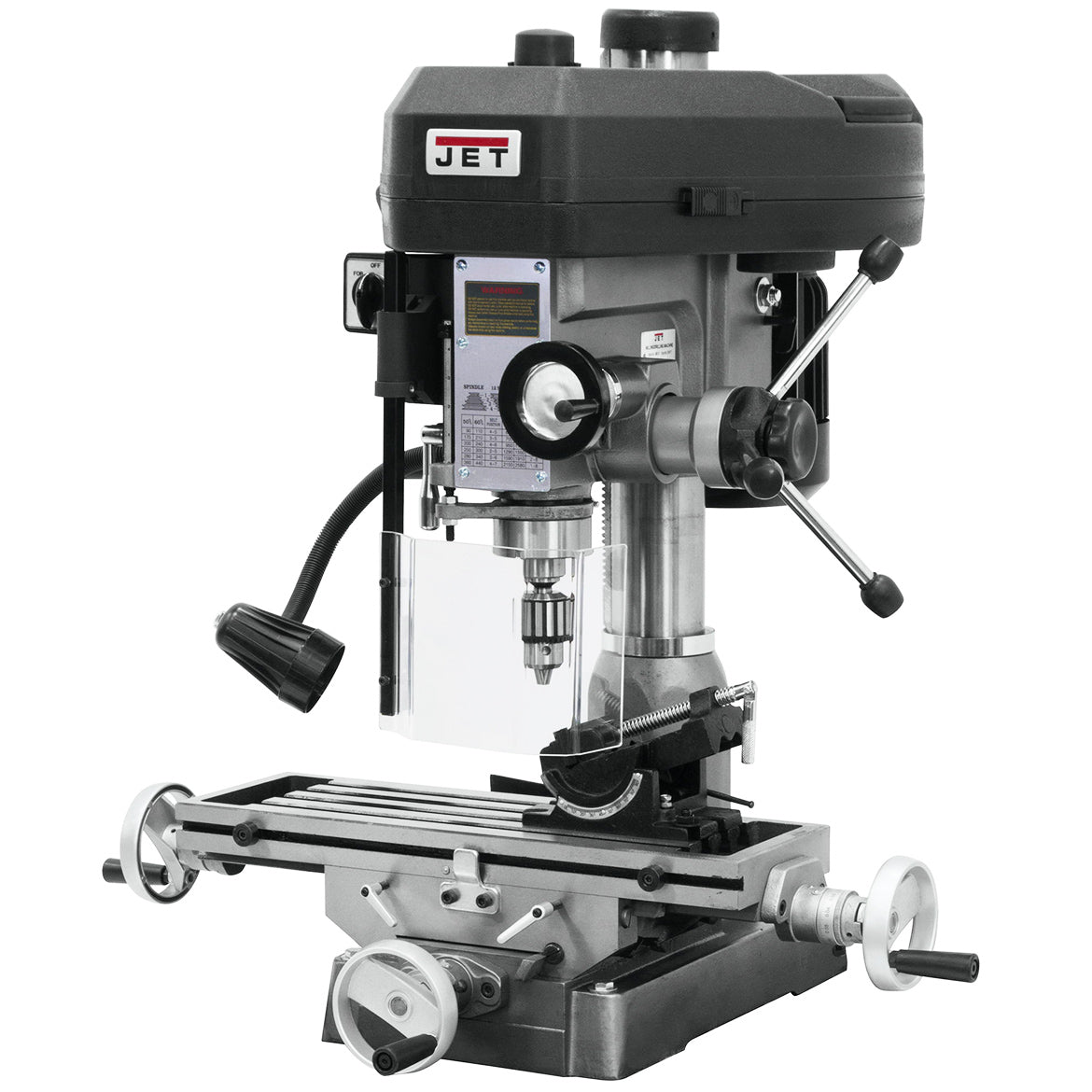

JET JMD-15 115/230V 1PH 1HP Mill/Drill w/ R-8 Taper - 350017

Name: JET JMD-15 115/230V 1PH 1HP Mill/Drill w/ R-8 Taper - 350017
Brand: Jet
SKU: JET-350017
Price: 2675.0 USD
Availability: InStock

See all Jet

$2,675.00 + Free Shipping

Ships Factory Direct

Condition: New

SKU: JET-350017

Product Details
Customer Reviews
Shipping & Return Policies

Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
Frequently Viewed Together
Similar Products

Features

One-piece cast iron column for added support
Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
Base taper allows for easier clean up
Larger hand wheel knobs
Drill Press angle vise
UL Listed motor
Extra large worktable
Heavy-duty tapered roller bearings support the spindle, resulting in greater tolerance and more accurate drilling depth
360 degree head swivel
Work lamp
Heavy-duty power downfeed with manual fine feed (JMD-18PFN)
1/2 drill chuck, chuck arbor
Draw bar
Drill Chuck Guard
Adjustable Carbide facemill

What's in The Box

JET JMD-15 Mill/Drill w/ R-8 Taper 115/230V 1PH

Warranty

JET Red Assurance 2-Year Warranty
JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
30 Day Satisfaction Guaranteed

Specifications

Model:	350017
UPC:	662755103896
Drilling Capacity (In.)	1
Face Mill Capacity (In.)	2-1/2
End Mill Capacity (In.)	1/2
Swing (In.)	14-1/2
Max Distance Spindle to Table (In.)	15
Spindle Taper (In. x TPI)	R-8
Spindle Travel (In.)	3-1/2
Quill Diameter (In.)	2-7/16
Column Diameter (In.)	3-5/8
Number of Spindle Speeds	12
Range of Spindle Speeds (RPM)	110 - 2,580
Table Size (L x W) (In.)	7-1/2 x 23
Table Longitudinal Travel (In.)	14
Work Table Weight Capacity (Lbs.)	350
T-Slots Number and Size (In.)	4, 9/16
T-Slot Centers (In.)	1-13/16
Base Dimensions (In.)	12-1/2 x 19-3/4
Motor (HP)	1 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.)	38 x 37-1/2 x 42
Weight (Lbs.)	440
