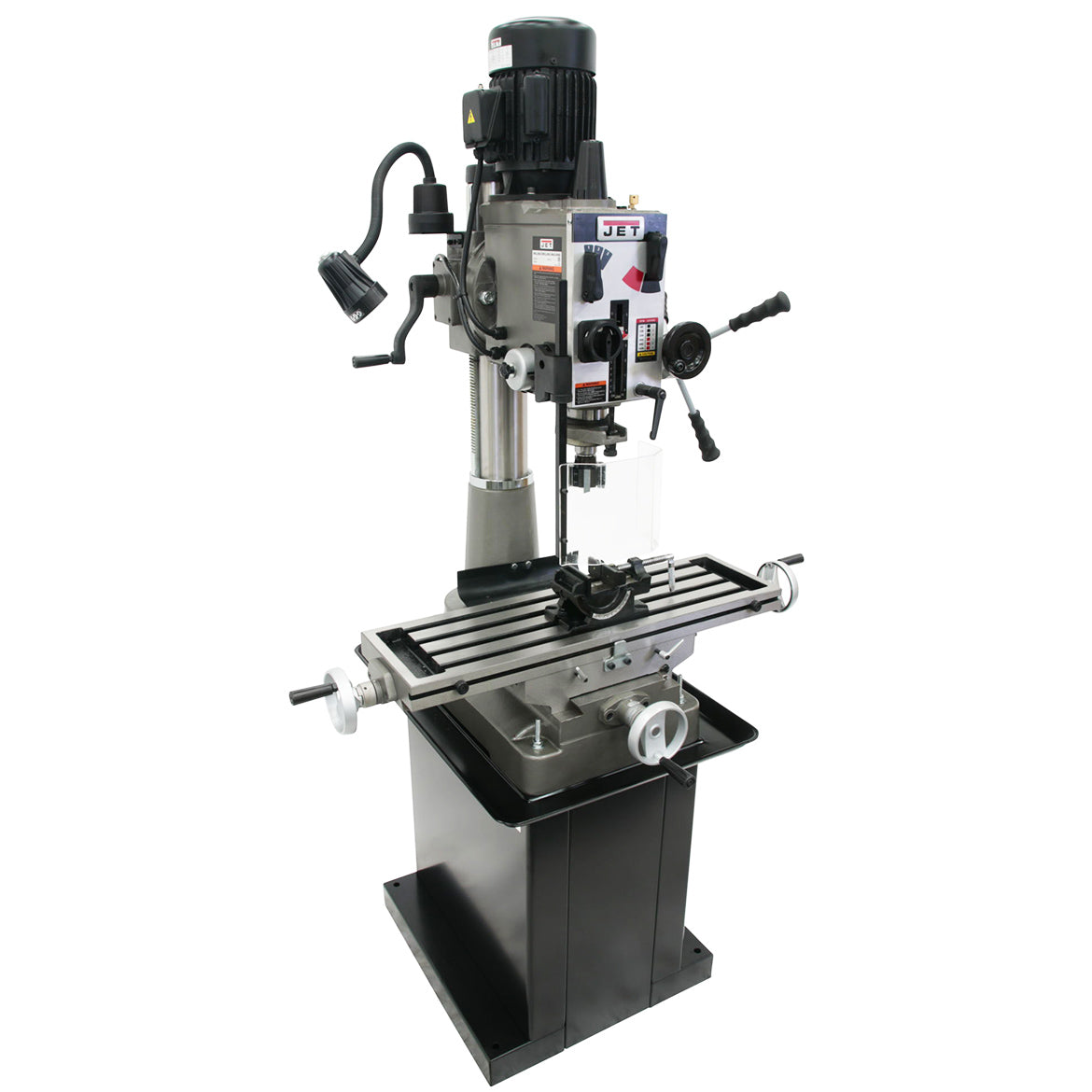

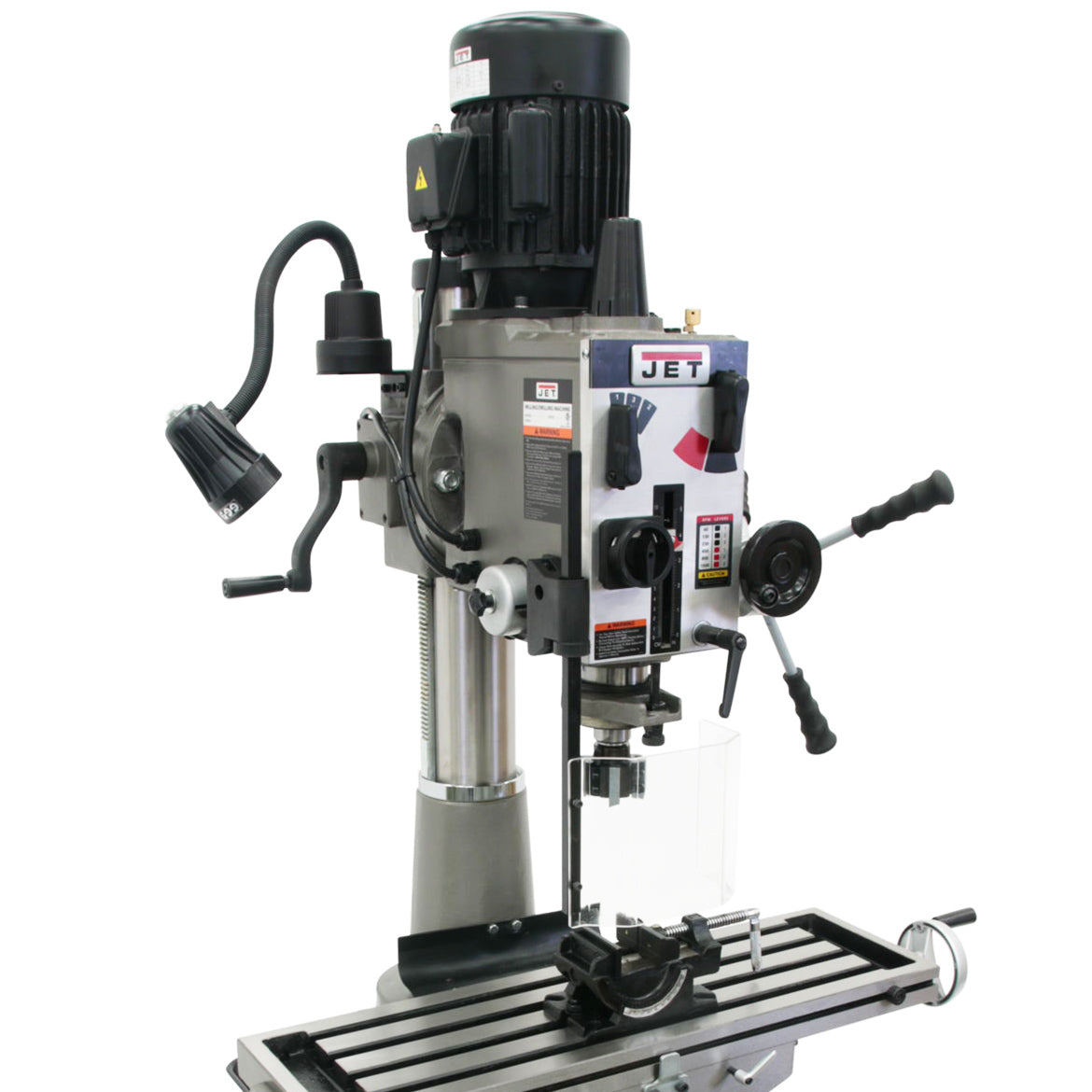

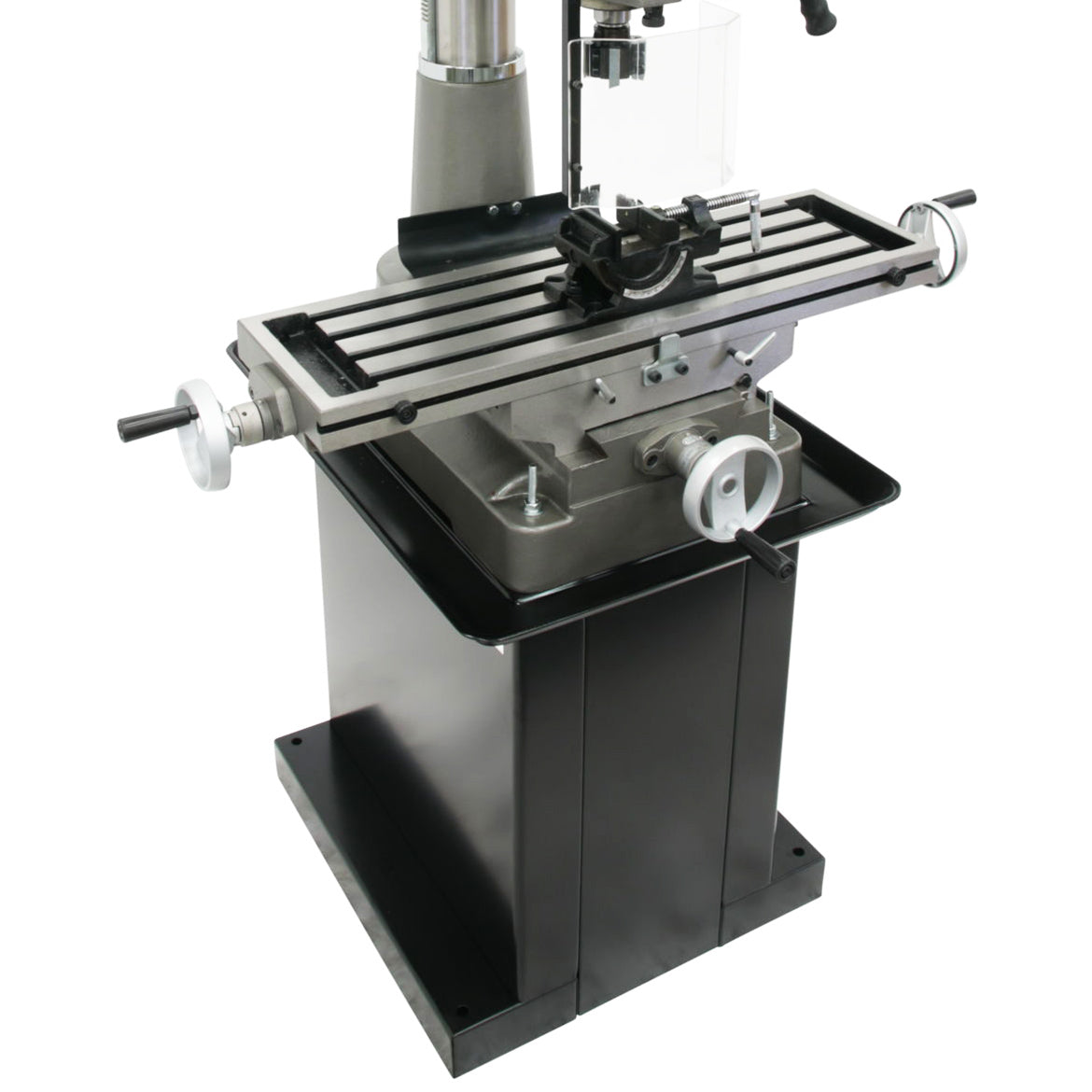

JET JMD-40GH 1-1/2-Hp 115/230V Round Column Geared Head Mill Drill

See all Jet

Notify me when this product is available:


Condition: New

SKU: JET-351040

This item ships via Freight. Appointment is required for delivery. Click for details.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Heavy-duty design allows for a variety of precision drilling applications
  • Full power to the cutting tools through 6 speed geared head
  • CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
  • Spindle guard
  • Work Lamp
  • Calibrated fine down feed built in
  • Easy to read internal depth gauge
  • Head tilts left and right 90-Degrees
  • Rapid spindle speed changes through quick-select gear shift levers
  • Forward/reverse switch
  • Milling table allows for movement
  • R8 spindle allows use of all mill tooling
What's in The Box
  • 1-1/2-Inch Geared Head Mill/Drill
  • Owner's Manual
Warranty
  • JET Red Assurance 2-Year Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku 351040
Brand Jet
Voltage 115/230v
Horsepower 1-1/2 Hp
Phase 1-Phase
Drilling Capacity 1-1/2 in. Mild Steel
Face Mill Capacity 4 in.
End Mill Capacity 3/4 in.
Swing 21 in.
Max. Distance Spindle to Table 15-3/4 in.
Spindle Taper R-8 in. x tpi
Spindle Travel 5 in.
Quill Diameter 4-1/2 in.
Number of Spindle Speeds 6
Range of Spindle Speed 65, 130, 220, 480, 925, and 1,550 Rpm
Table Size (L x W) 32-1/4 in. x 9-1/2 in.
Table Longitudinal Travel 20-1/2 in.
T-Slots Number and Size 4 and 5 in. x 1 in.
Base Dimensions 24-1/4 in. x 15-15/16
Length 28 in.
Width 39-1/4 in.
Height 42-1/2 in.
Product Weight 628 lbs.
Shipping Weight 628 lbs.
