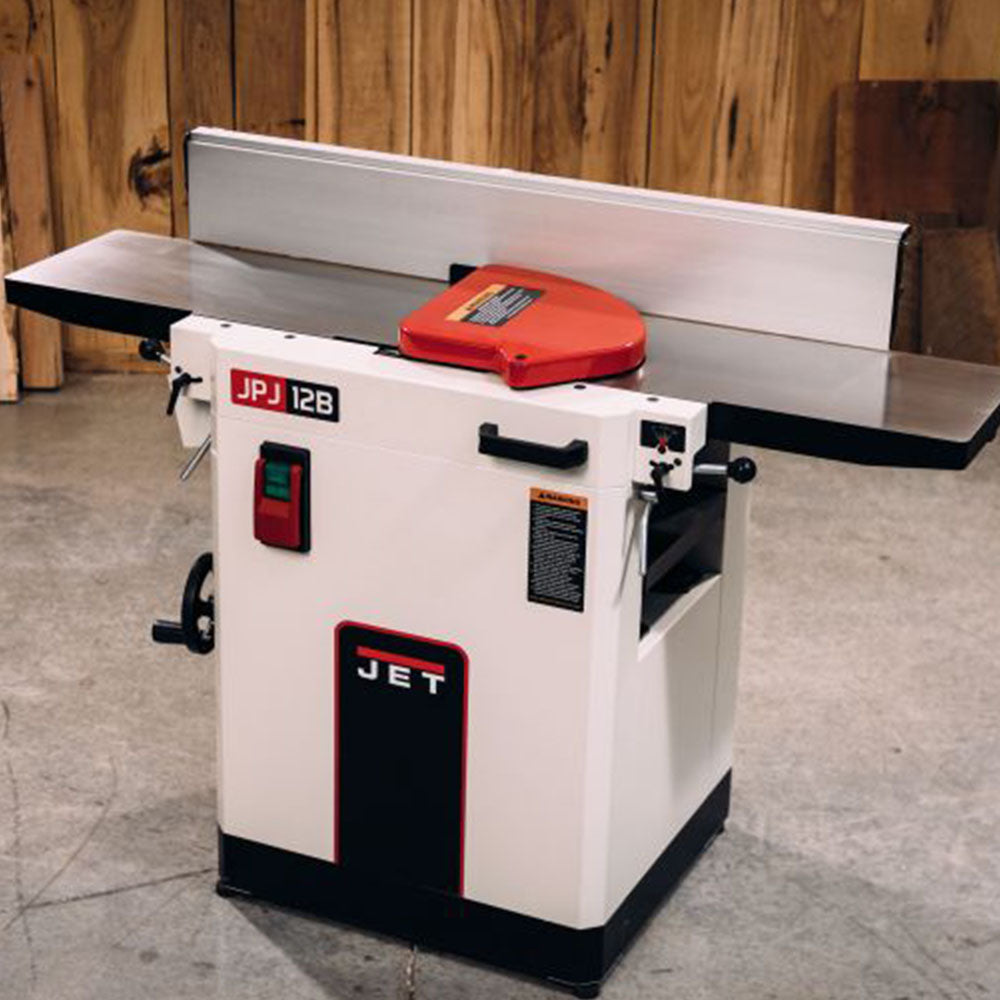

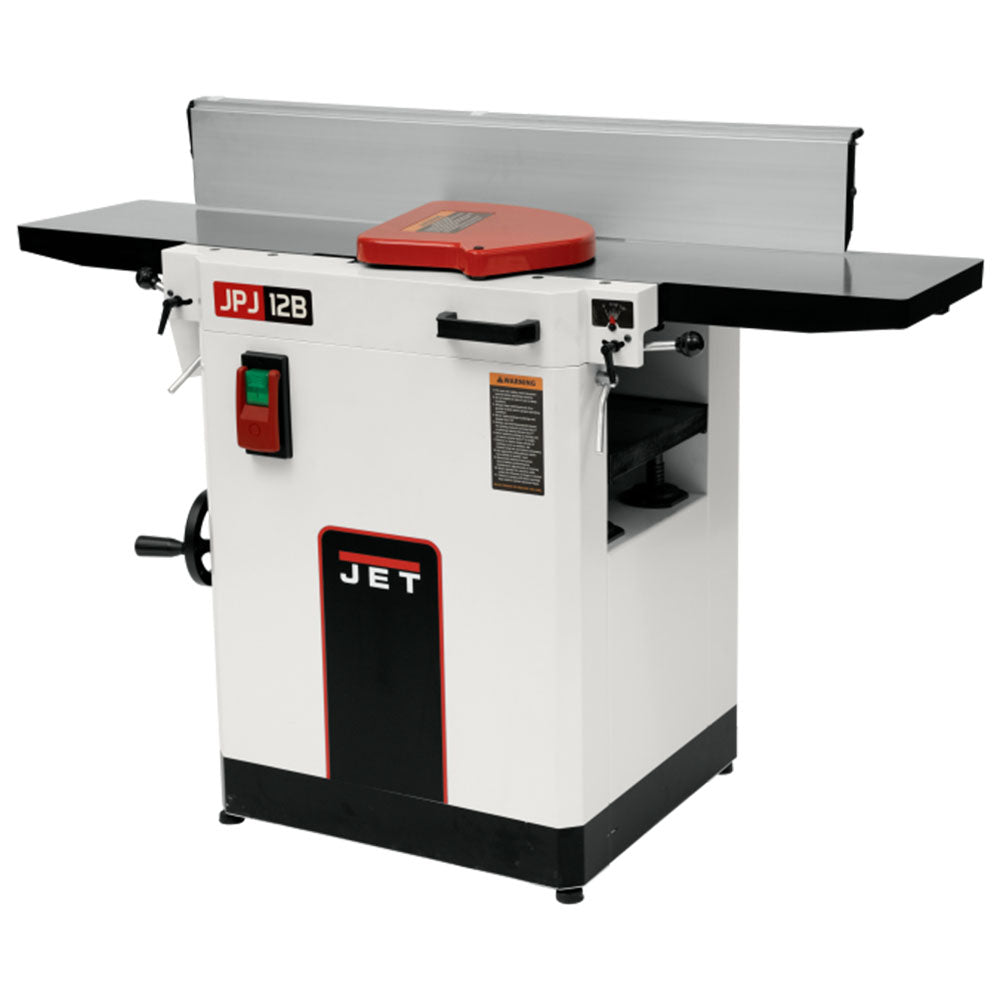

Jet JPJ-12BHH 230V 12" 3 HP Planer / Jointer Helical Cutterhead

by Jet
$5,599.99 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: JET-JT9-715155

Features

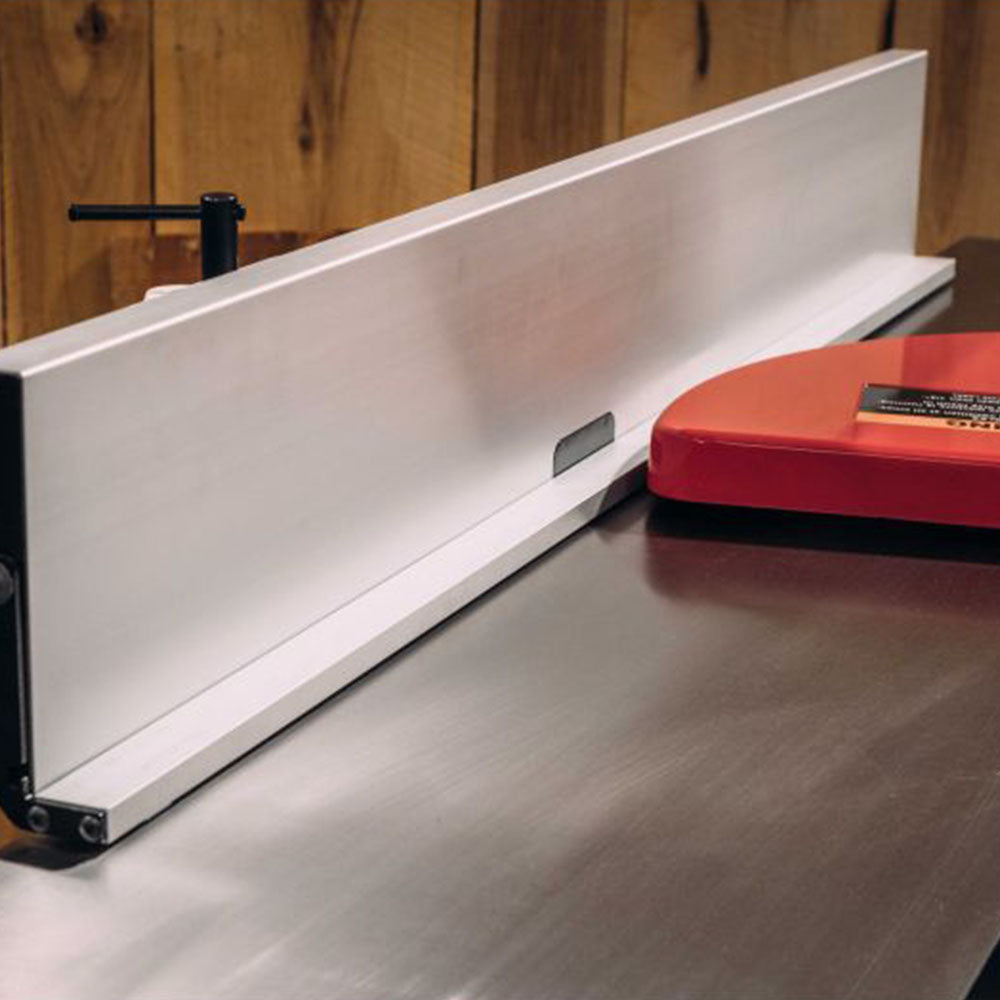

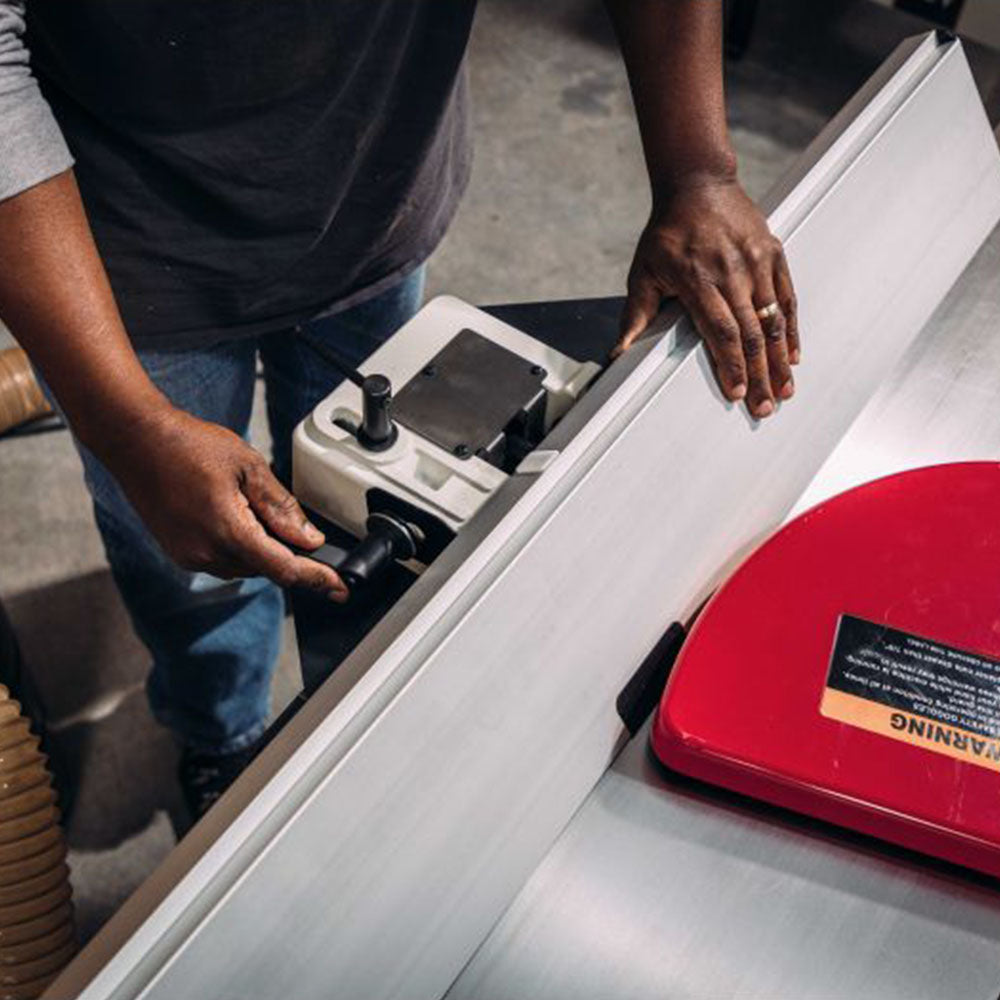

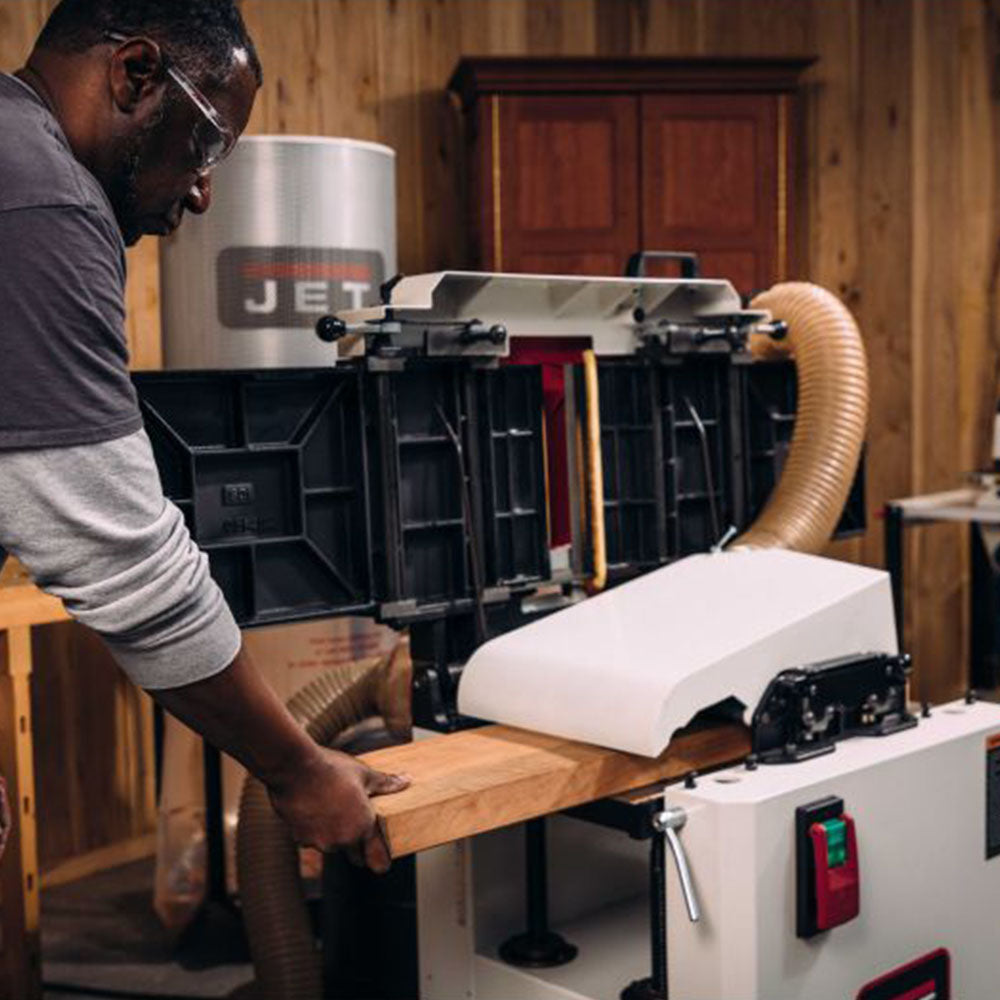

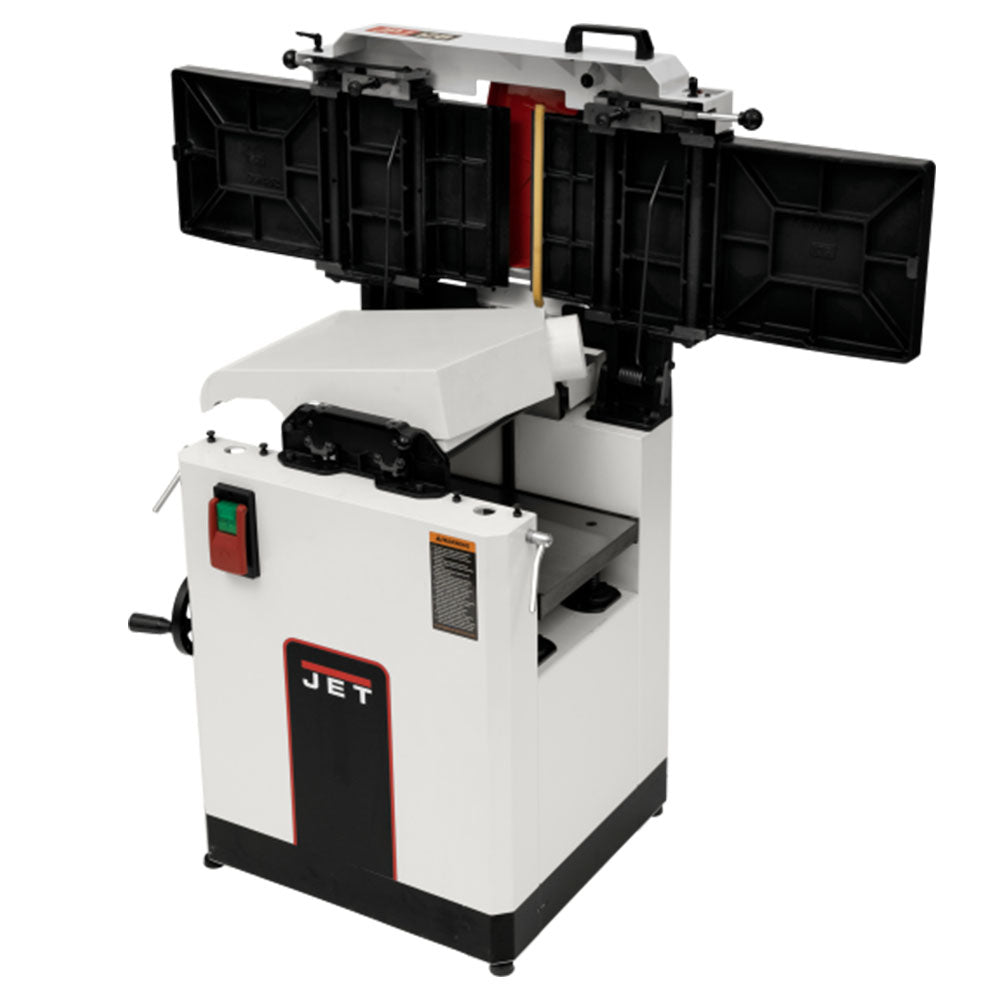

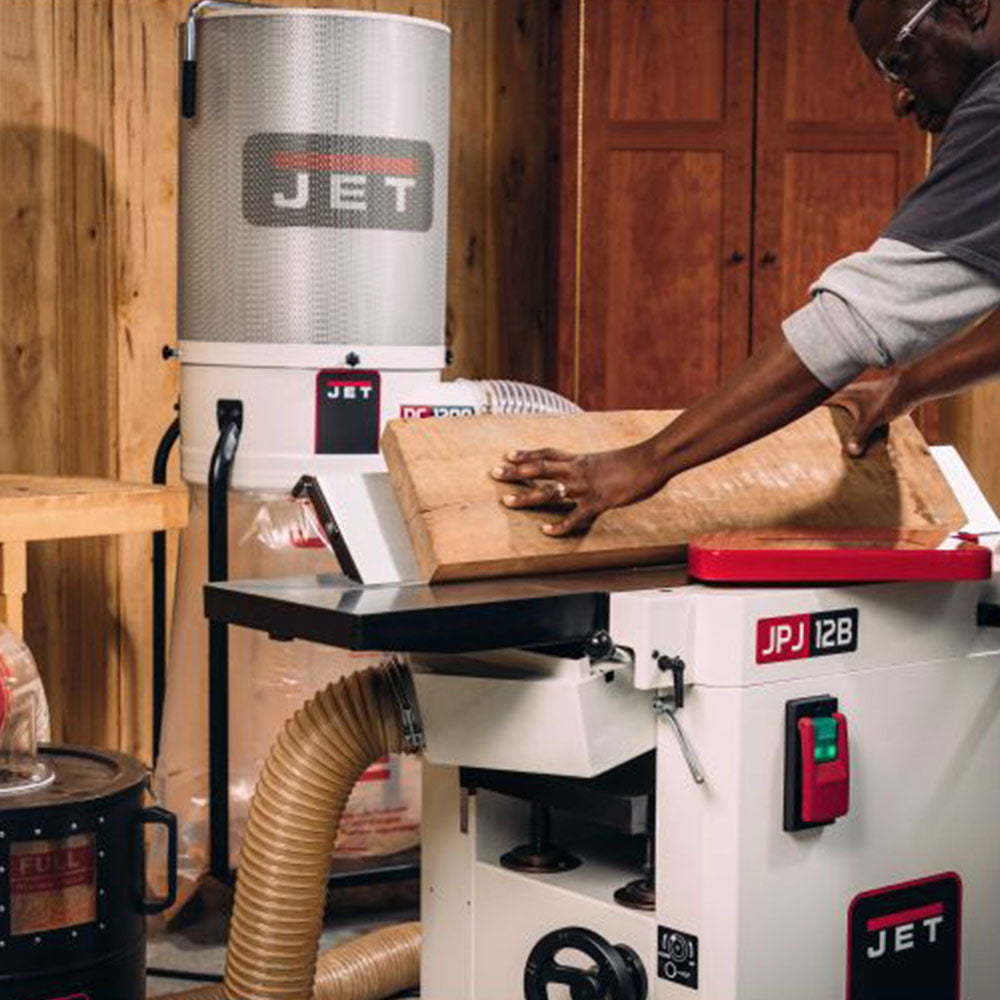

  • Extremely quick changeover between jointing and planing functions. Fence does not need to be removed

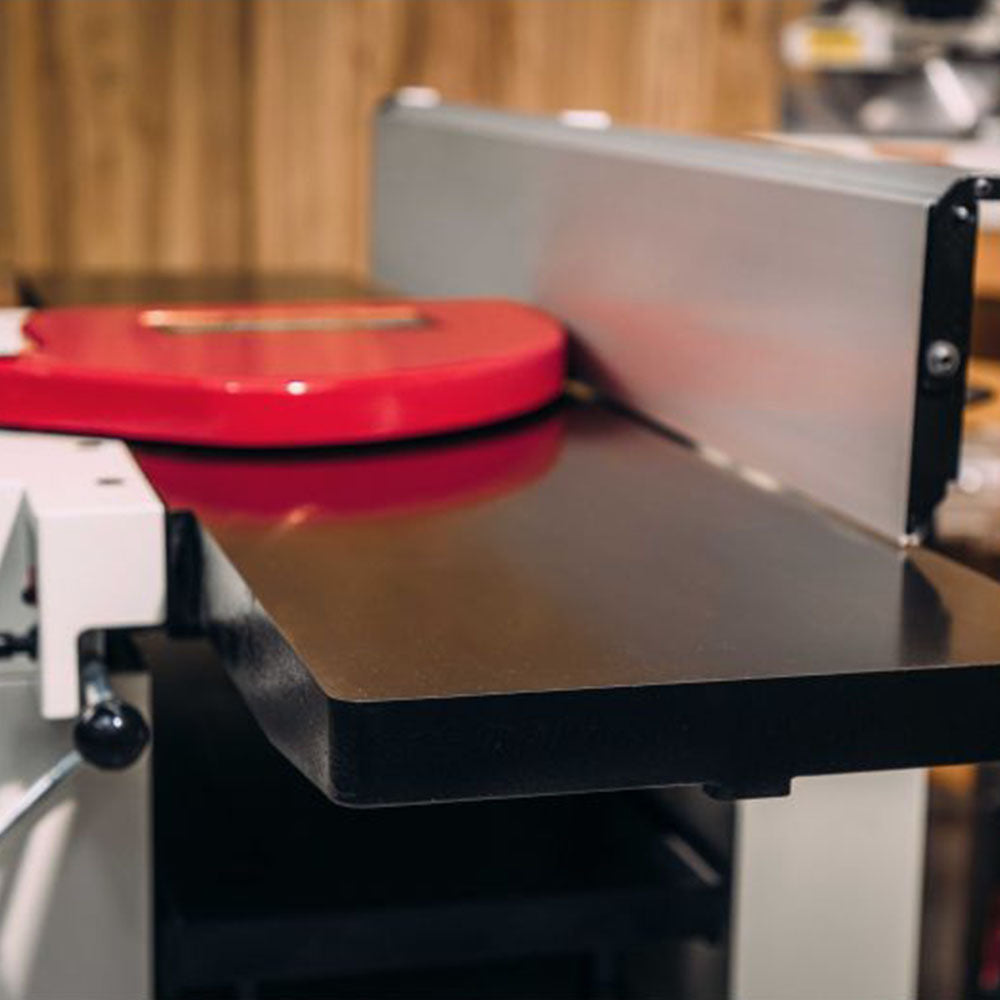

  • Heavy-duty cast iron tables with a ground finish to ensure accuracy and flatness
  • Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
  • Large handwheel for quick and precise adjustments of planer table
  • Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments

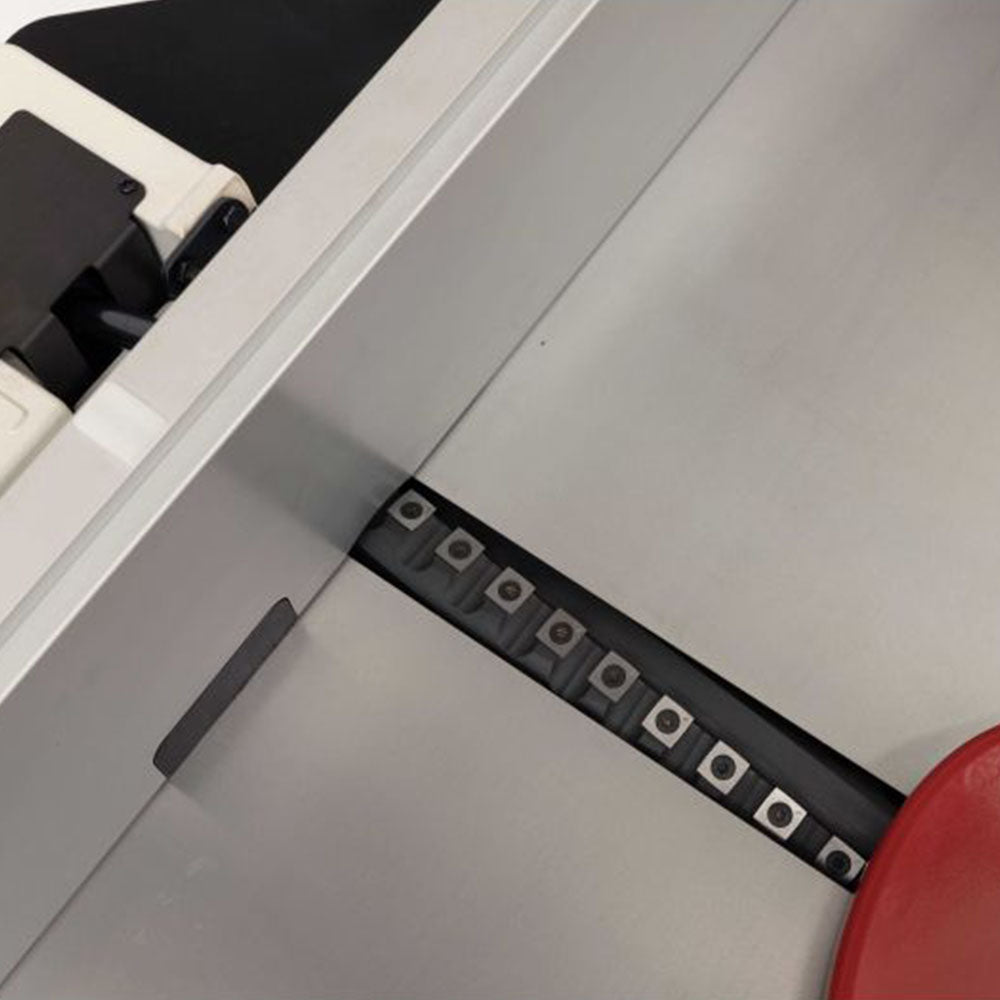

  • Forty Two 4-sided Carbide Insert cutterhead provides rapid cutting and a superior finish
What's in The Box
  • Jet 12" Planer/Jointer Helical Cutterhead
  • Owner's Manual
Warranty
  • 2 Year Limited Factory Warranty
  • 30-Day Satisfaction Guaranteed
Specifications
SKU JT9-715155
Brand Jet
Cuts Per Minute Not Applicable
Cutterhead Diameter (In.) 2-3/4
Cutterhead Speed (RPM) 5300
Dust Collection Minimum CFM Required (CFM) 550
Dust Port Outside Diameter (In.) 4
Feed Rate - Planing (FPM) 2 speed 16 to 26 FPM
Fence Positive Stops (Deg.) 90 and 45 R
Fence Size (L x H) (In.) 43-1/4 x 5-7/8
Fence Tilt (Deg.) 90 to 45 R
Helical Knife Size (L x W x T) (In.) 0.59 x 0.59 x 0.10

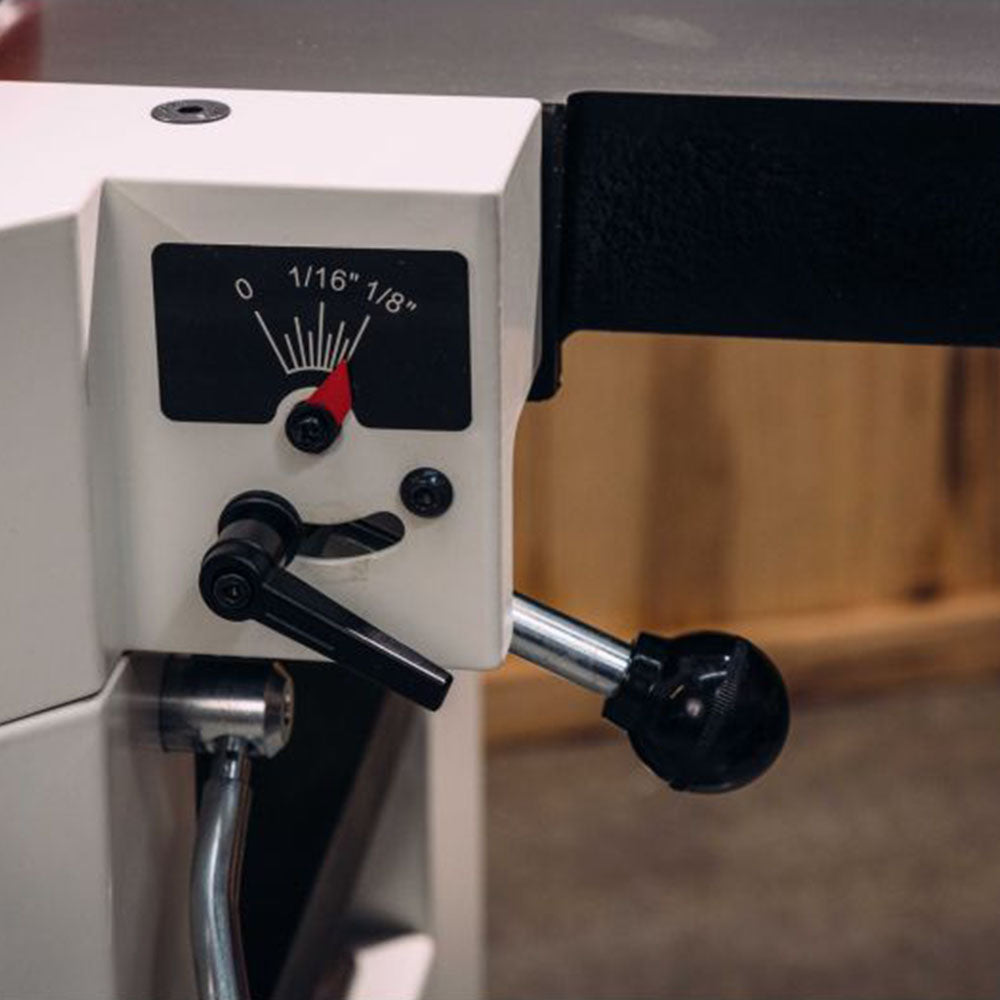

Jointer Cutting Capacity (W x D) (In.) 12 x 1/8
Jointer Table Size (L x W) (In.) 55x12-1/32
Maximum Depth of Cut - Planing (In.) 5/32
Maximum Planing Thickness (In.) 8-3/4
Maximum Planing Width (In.) 12
Minimum Planing Length (In.) 10
Motor Power (HP) 3
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Number of Knives 42 four-sided inserts
Overall Dimensions (L x W x H) (In.) 55-7/16 x 28-15/16 x 40
Overall Height (In.) 40
Planer Cutting Capacity (W x D) (In.) 12 x 8-3/4
Planer Table Size (L x W) (In.) 25 X 12-1/32
Prop 65 Cancer and Reproductive Harm
Recommended Circuit Size (Amps.) 30
Type of Cutterhead Helical Head
Full Load Amps 15
Running Amps 4.5
Weight (Lbs.) 453
