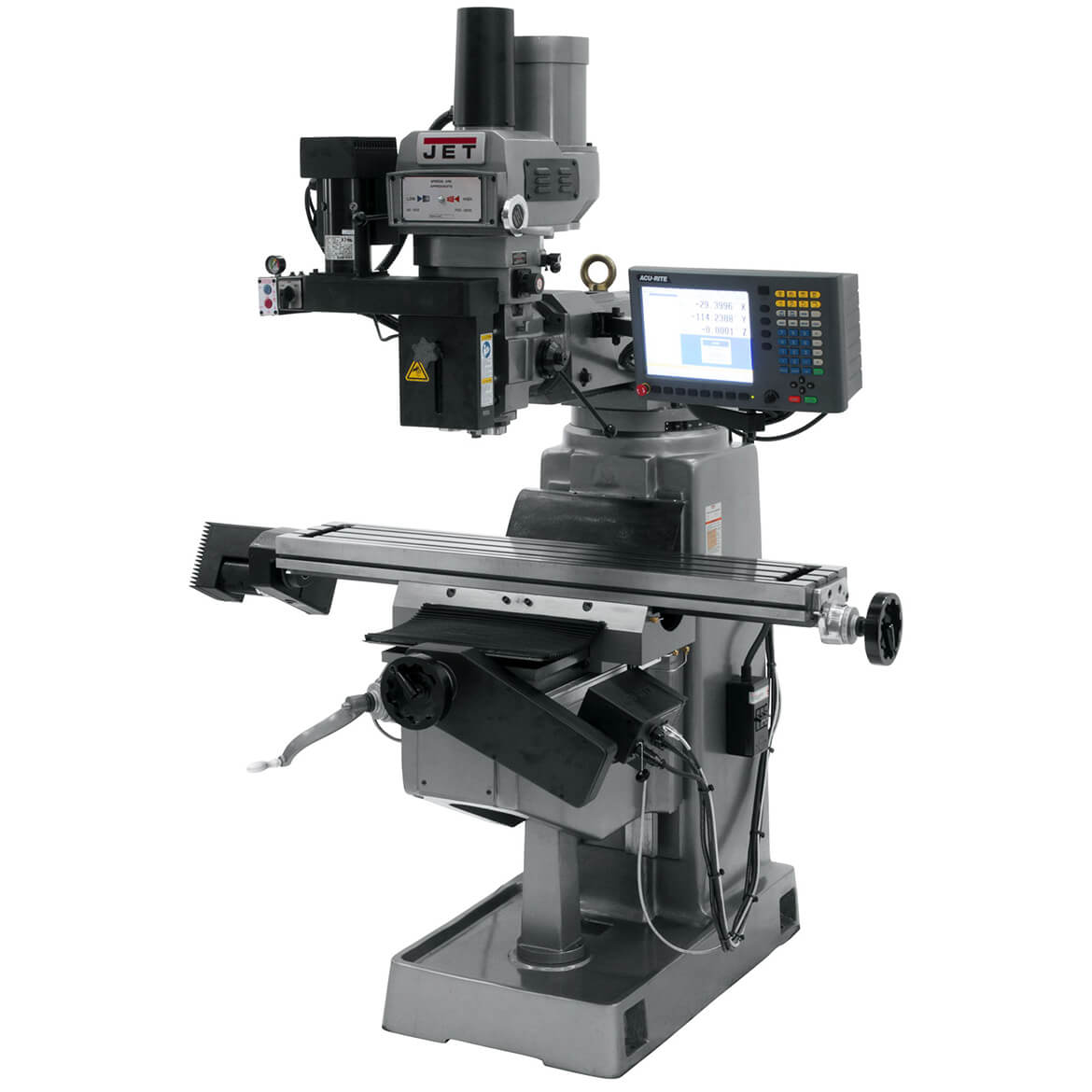

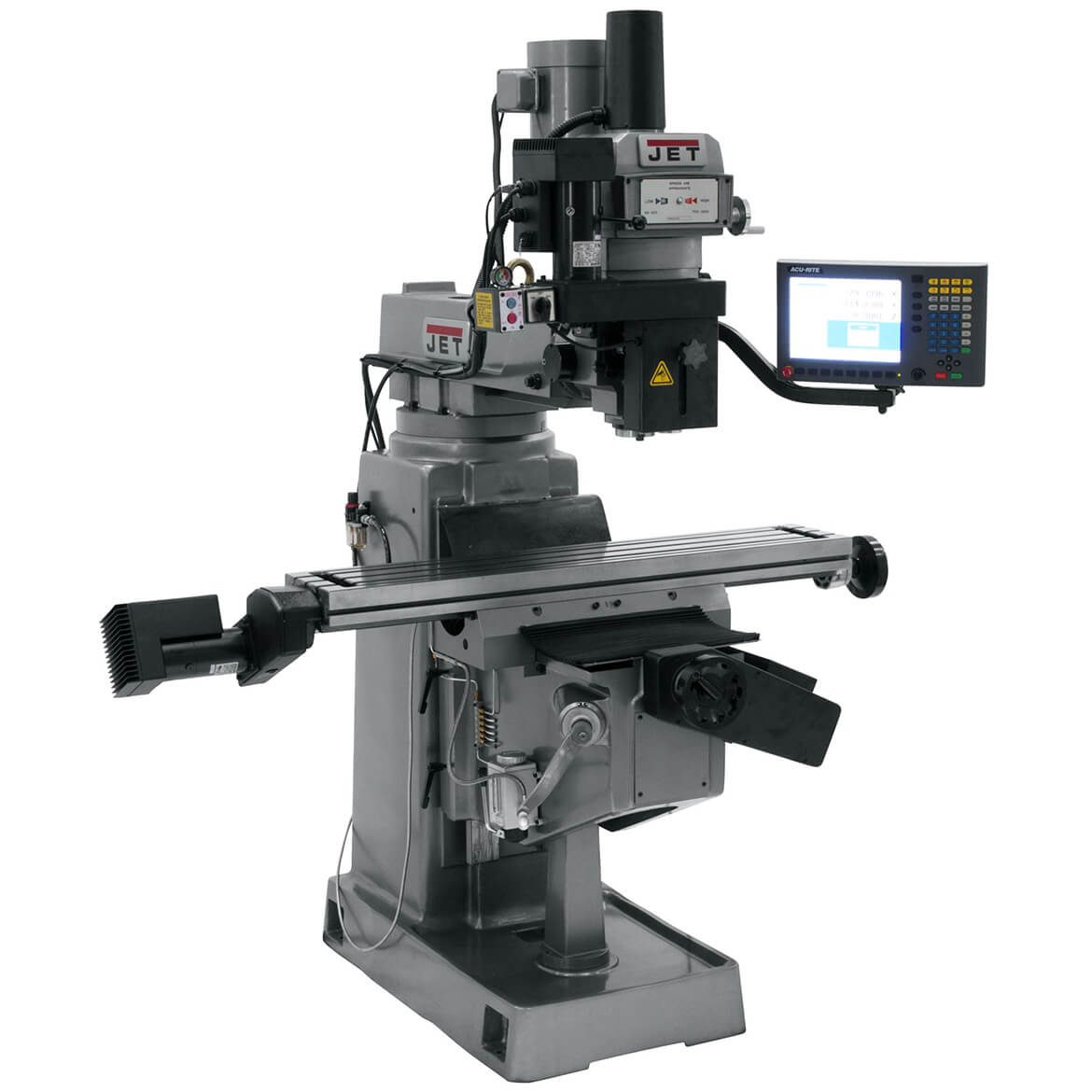

JET JTM-1050EVS2/230 230V Mill w/ 2-Axis Acu-Rite MilPwr G2 CNC Controller

See all Jet

Notify me when this product is available:


Condition: New

SKU: JET-690675

This item ships via Freight. Appointment is required for delivery. Click for details.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $99 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $99 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $99, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features

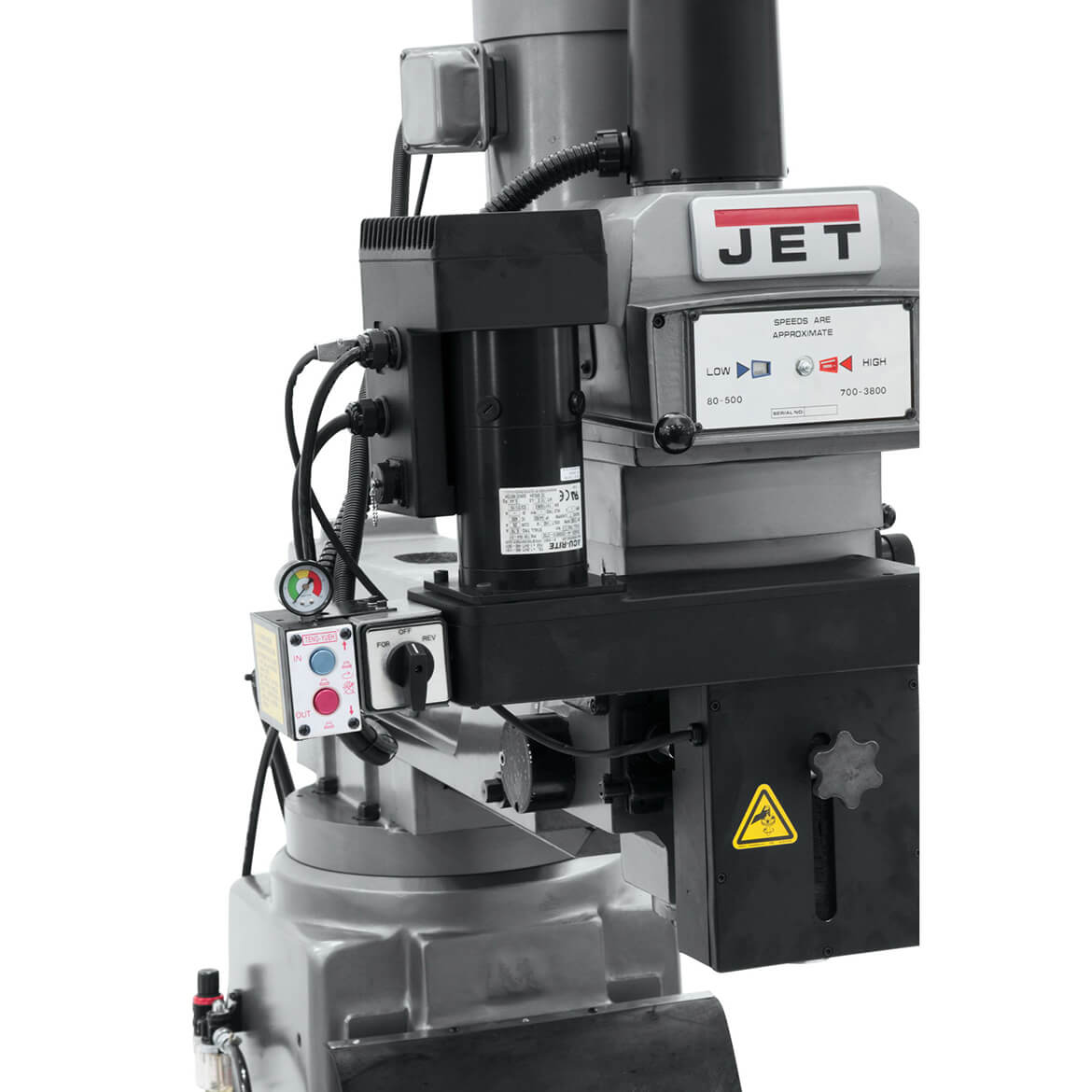

  • CNC Electronic Variable Speed Vertical Milling Machine Package JTM-1050EVS
  • Precision Ground Ball Screws eliminate backlash for precice lateral movements
  • Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution

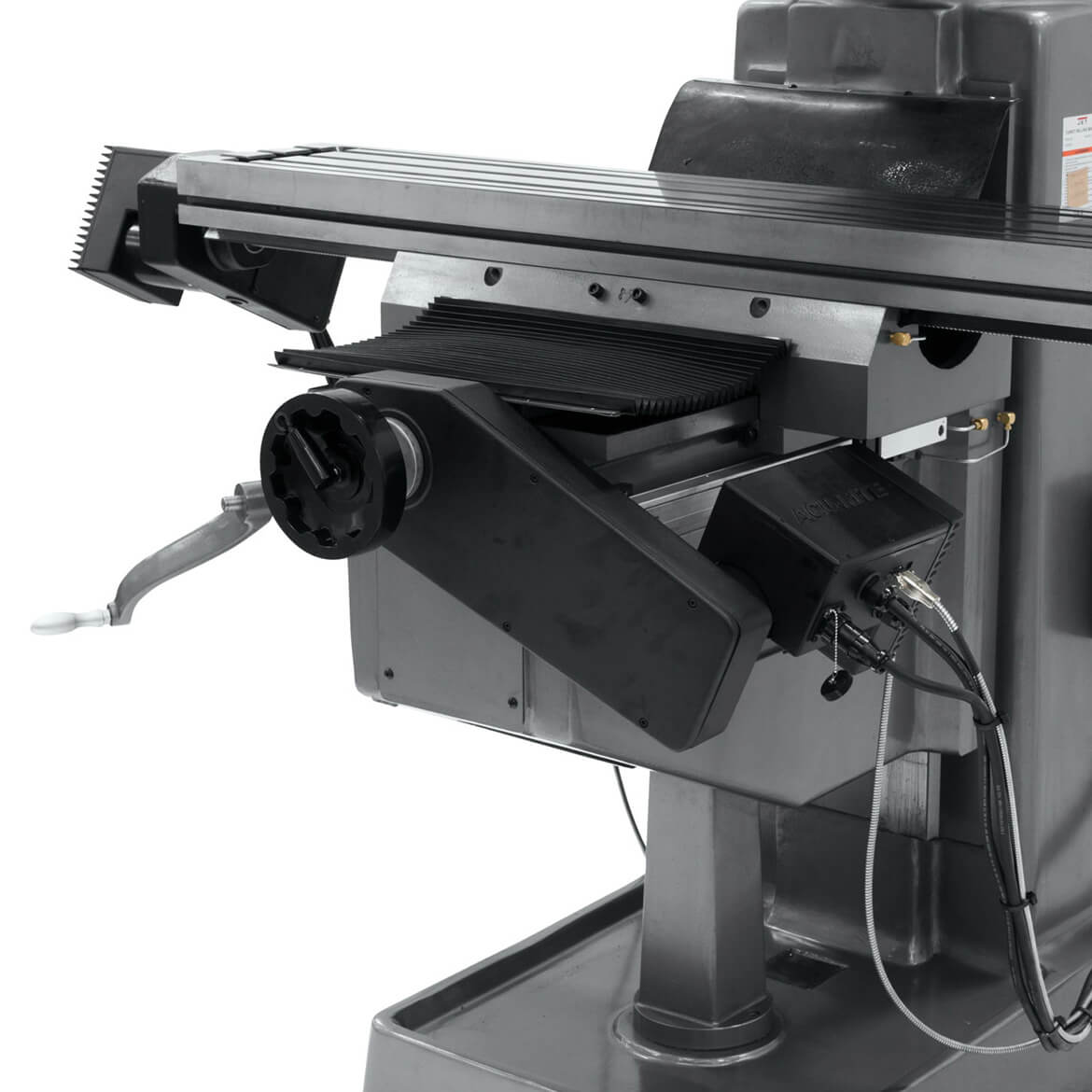

  • Powerful DC Servo motor assemblies that include mounting castings and hardware
  • Handwheels are included for manual operation
  • USB and Ethernet compatible
  • Simplified navigation that eliminates multiple menu screens

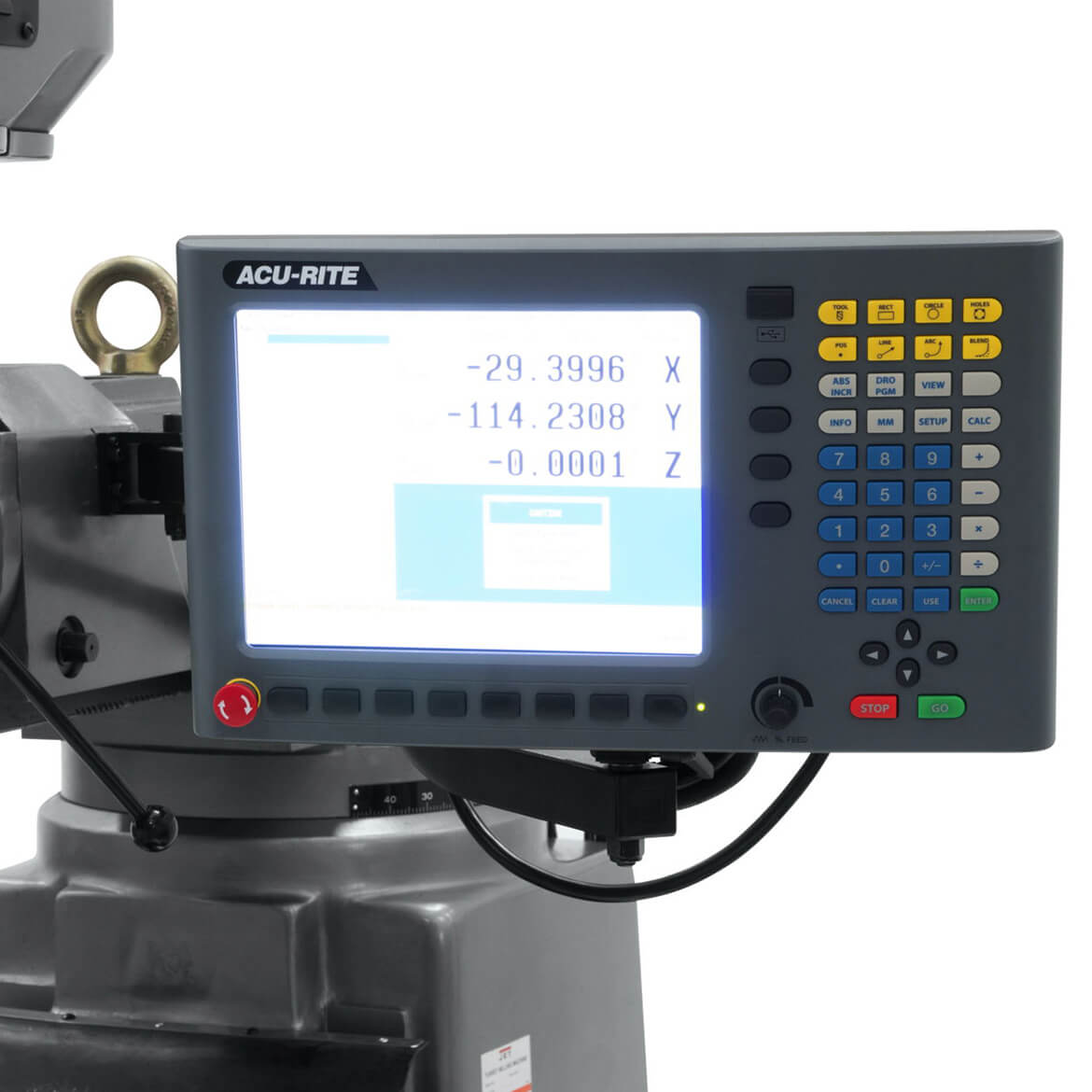

  • 12.1" High resolution display (1024 x 768) with 3D graphics
  • 1 GHz Celeron M processor
  • Expanded tool library and Datum offsets
  • Program preview provides a graphical representation prior to operation
  • Progam size limit increased by 90% to 9,999 steps
  • Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
  • 3-D Contouring, ability to import and run G-code files from CAD/CAM programs
  • Mirror/Repeat/Rotate/Explode/Merge, easily manipulate, explode and merge part programs to save time and reduce program steps
  • Menu-prompted Conversational programming, easily create part programs, edit, reverse, change, delete and copy/move steps - follow the menu prompts and let MILLPWR G2 do the rest
  • Built-in Calculator, perform standard, trig and geometry calculations and transfer them directly into part programs
  • Custom Pockets and Islands utilize the new optimized path and ramp feed features
  • Circles including the Pocket, Frame, Ring and Helix incorporate the new ramp feed feature
  • May be used automatically or manually for ultimate shop versatility
  • Available offline software
  • Estimated runtime feature
What's in The Box
  • 230-Volt 3-Hp 3-Phase R-8 Mill
  • Acu-Rite Milpower G2 CNC Controller
  • Owner's Manual
Warranty
  • JET Red Assurance 2-Year Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku 690675
Brand Jet
Model JTM-1050EVS2/230
Voltage 230V
Horsepower 3 Hp
Phase 3
Digital Readout Newall DP700
Powerfeed X-Axis
Spindle Taper (in. x tpi) R-8
Table size (L X W) 10 in. x 50 tpi
Quill Diameter 3-3/8 in.
Number of Spindle Speeds 60 - 4,500 Rpm
Quill Down Feed Rates .0015 - .003 - .006 ipr
Spindle Travel 5 in.
Head Movement 90-Degrees R and L 45-Degrees F and B
Max. Distance Spindle to Table 20-3/4 in.
Max. Distance Spindle to Column 26-3/4 in.
Min. Distance Spindle to Column 4-3/4 in.
Collet Capacity 1/8 in. - 7/8 in.
Table Longitudinal Travel 35-1/2 in.
Table Longitudinal Travel
w/ Powerfeed
29-7/8 in.
Table Cross Travel 14-3/4 in.
T-Slots Number and Size 3 in. and 5/8 in.
T-Slot Centers 2-1/2 in.
Work Table Weight Capacity 840 lbs.
Travel of Knee 16-1/8 in.
Travel of Ram 15-7/8 in.
Saddle Width 11-1/2 in.
Column Width 20 in.
Inverter Typ Delta, B
Length 66 in.
Width 63 in.
Height 87 in.
Product Weight 2,860 lbs.
