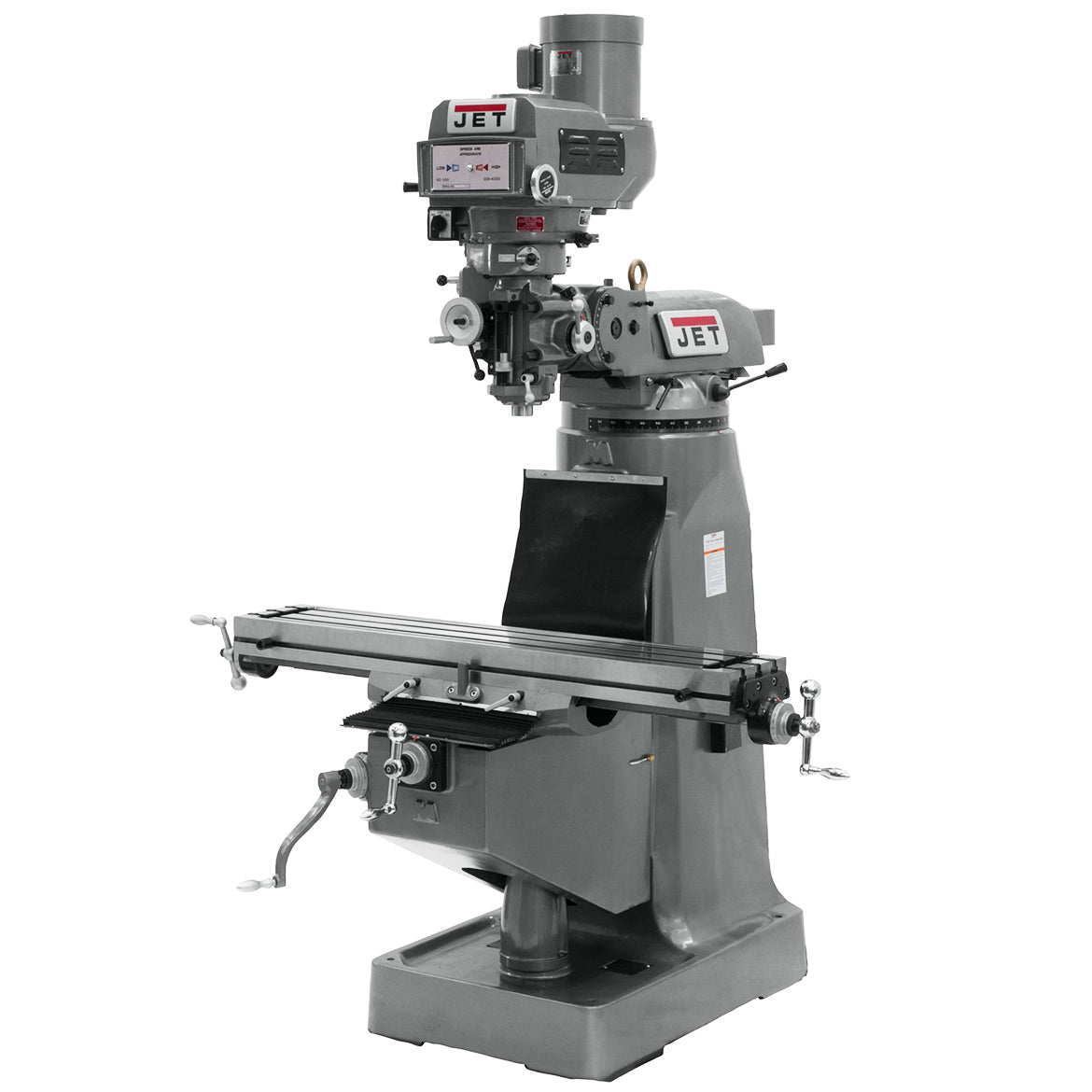

JET JTM-4VS 3-Hp 230/460V Heavy Duty Variable Speed Vertical Milling Machine

See all Jet

Notify me when this product is available:


Condition: New

SKU: JET-690182

This item ships via Freight. Appointment is required for delivery. Click for details.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Meehanite Castings
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Chrome plated motor shaft with lower bearing support
  • Spindle head is internally cooled
  • Heavy duty splined motor drive
  • One piece quill pinion and shaft
  • Three stage power downfeed with automatic stop
  • Heavy duty spindle brake
  • Locks on all movable surfaces
  • Precision hardened and ground ways and table
  • Adjustable gibs throughout
  • Internal coolant tank built into casting base for use with coolant system (coolant pump not included)
  • Tolerance test sheet included
  • One shot lubrication system
  • Way covers
  • Draw bar
  • Tool box with tools
What's in The Box
  • JTM-4VS Variable Speed Vertical Milling Machine 230/460V 3Ph 690182
  • Owner's Manual
Warranty
  • JET Red Assurance 2-Year Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Spindle Taper (In. x TPI) R-8
Table Size (L x W) (In.) 9 x 42
Quill Diameter (In.) 3-3/8
Number of Spindle Speeds 8
Range of Spindle Speeds (RPM) 80 - 2,720
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Spindle Travel (In.) 5
Head Movement (Deg.) 90 R and L, 45 F and B
Max Distance Spindle to Table (In.) 17-1/2
Distance Spindle to Column (Max.) (In.) 19
Distance Spindle to Column (Min.) (In.) 4-1/2
Collet Capacity 1/8 - 7/8
Table Longitudinal Travel (In.) 23-7/8
Table Cross Travel (In.) 12-1/2
T-Slots Number and Size (In.) 3 - 5/8
T-Slot Centers (In.) 2-1/2
Work Table Weight Capacity (Lbs.) 550
Travel of Knee (In.) 14-1/2
Travel of Ram (In.) 13-3/8
Motor (HP) 2 HP, 115/230V, 1Ph
Prewired (V.) 230
Overall Dimensions (L x W x H) (In.) 57 x 64 x 82
Weight (Lbs.) 2,200
