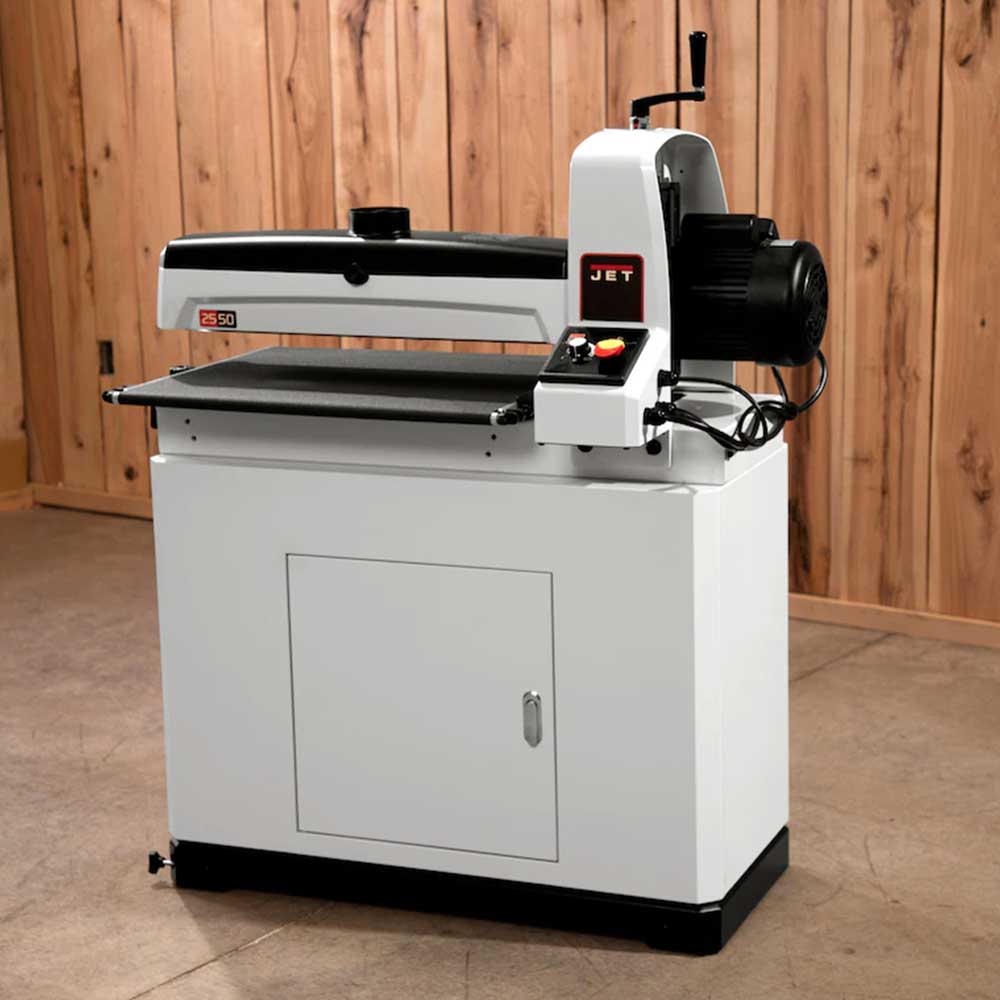

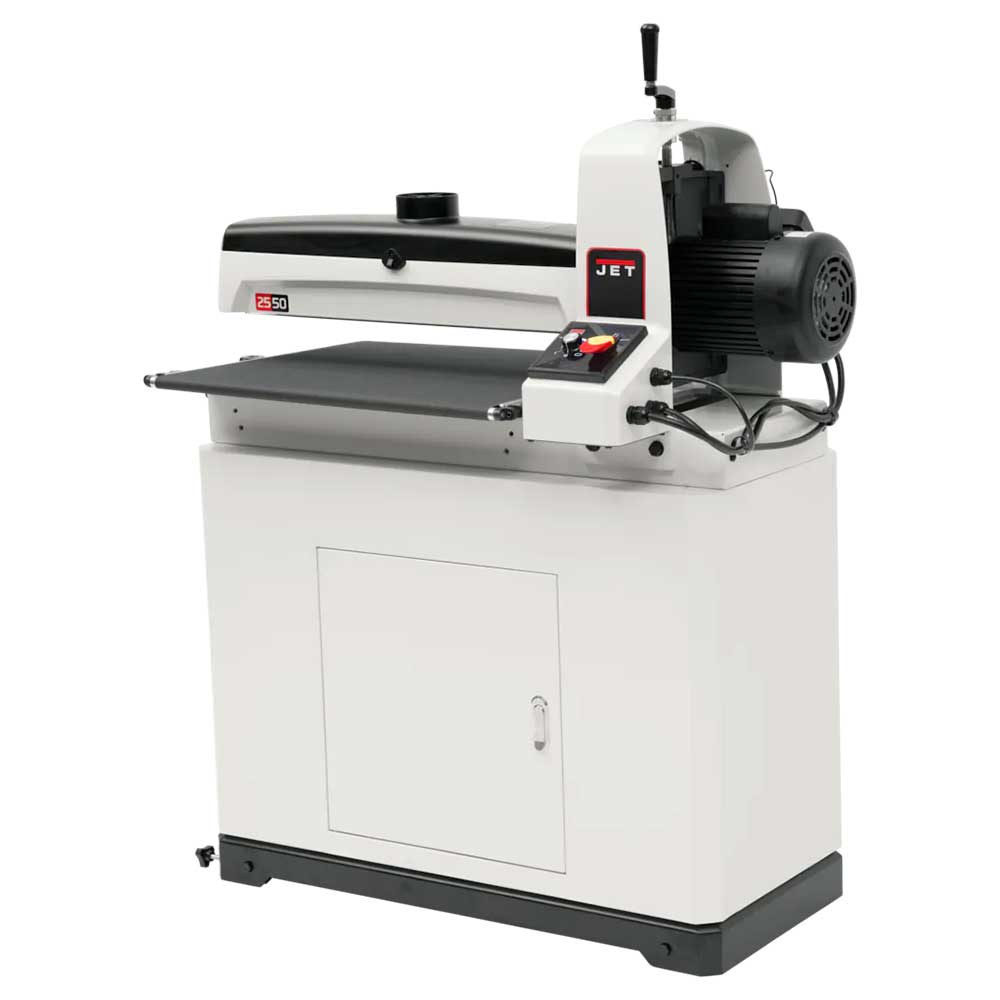

Jet JWDS-2550 115-Volt 5-Inch x 25-Inch Drum Sander w/ Closed Stand - 723544CSK

Jet


×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.
Express checkout with and plus more available at checkout.

Condition: New

SKU: JET-723544CSK

This item ships via Freight. Appointment is required for delivery. Click for details.


Features
  • Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload

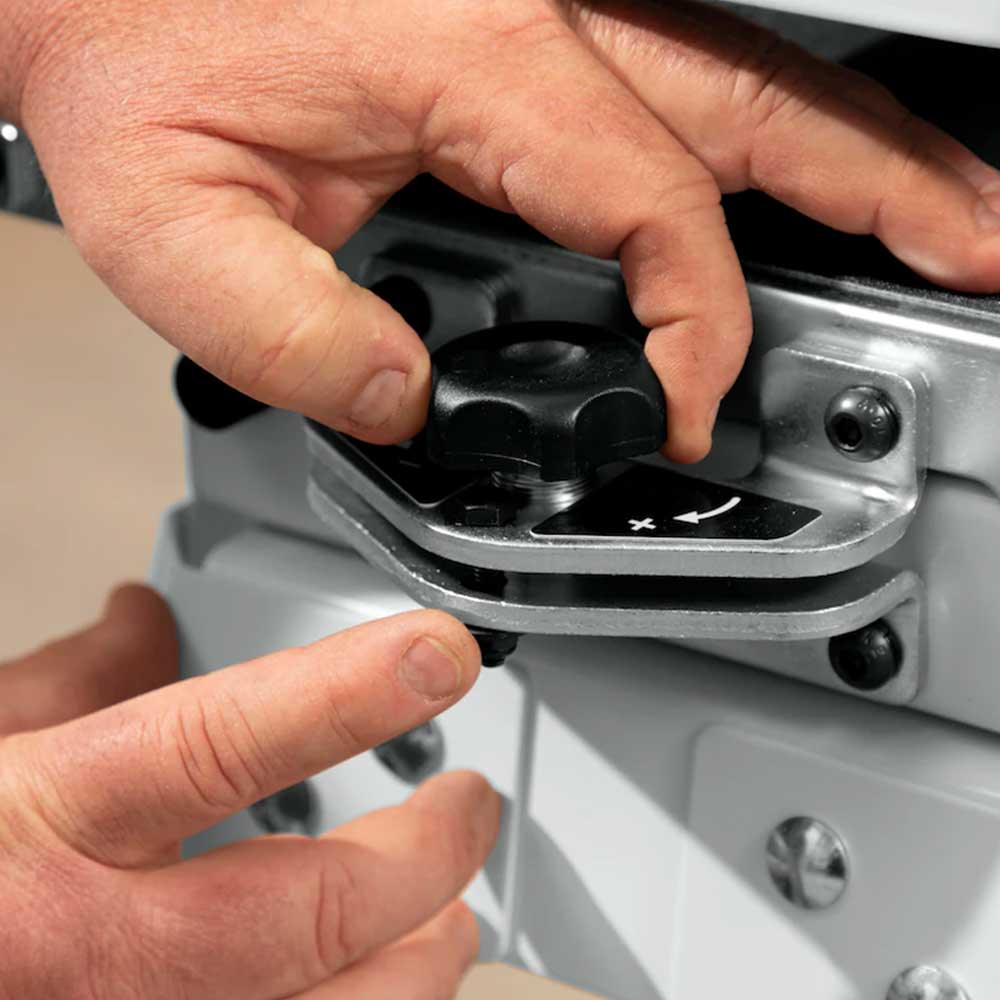

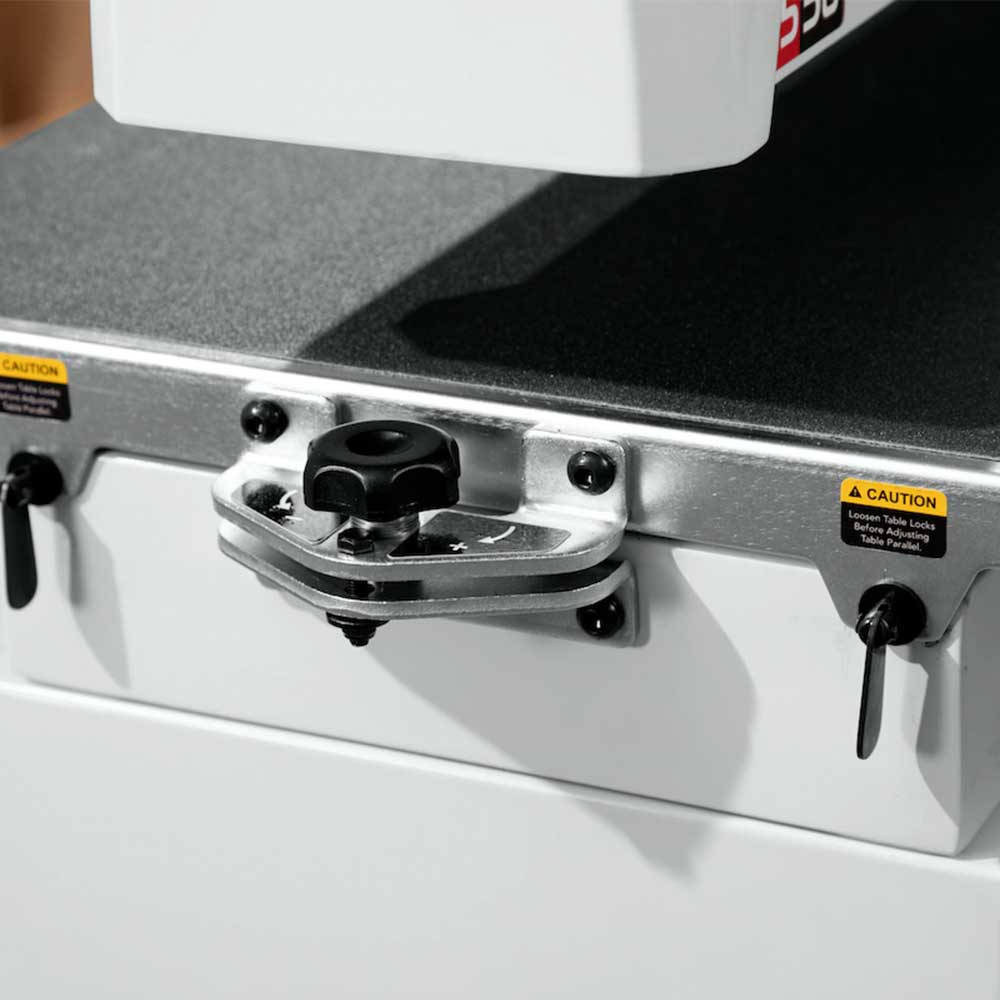

  • Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
  • Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position

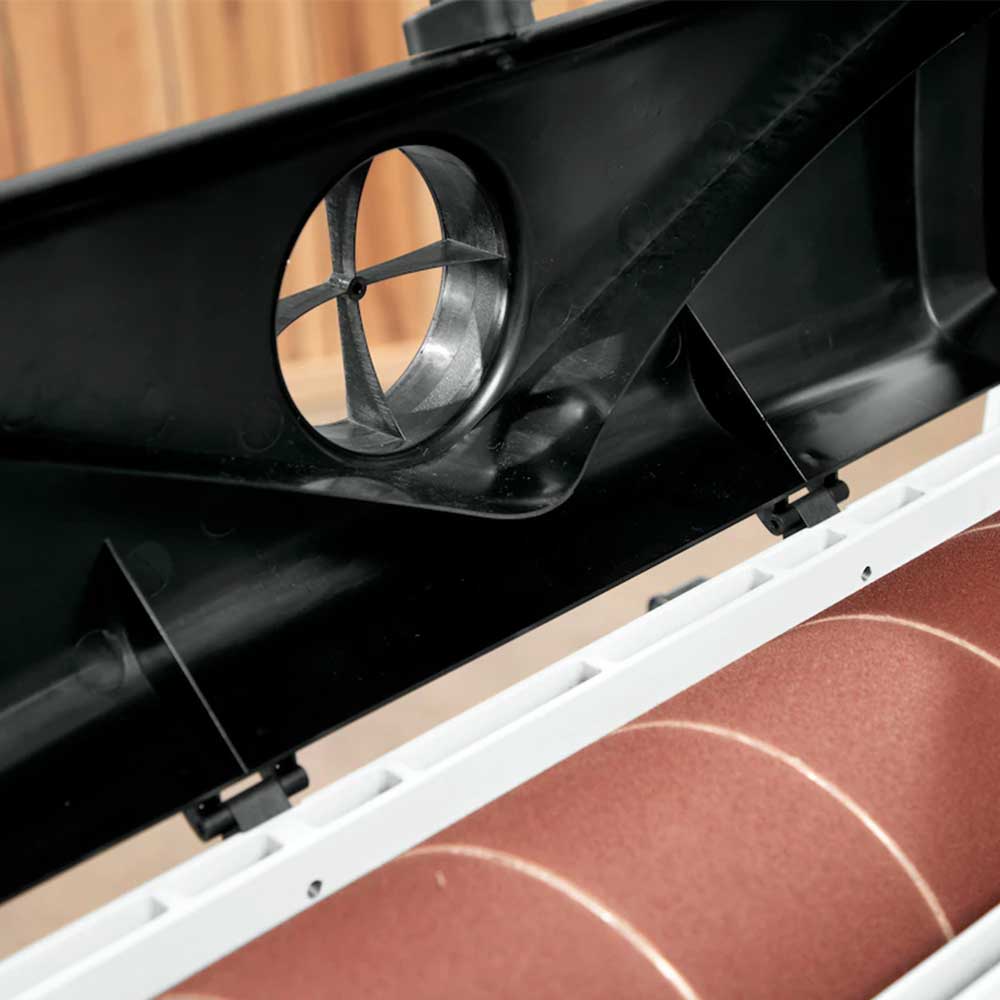

  • Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 collection port
  • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
  • Precision-flattened reinforced steel conveyor bed
  • Redesigned conveyor system pulls the workpiece through the sander instead of pushing

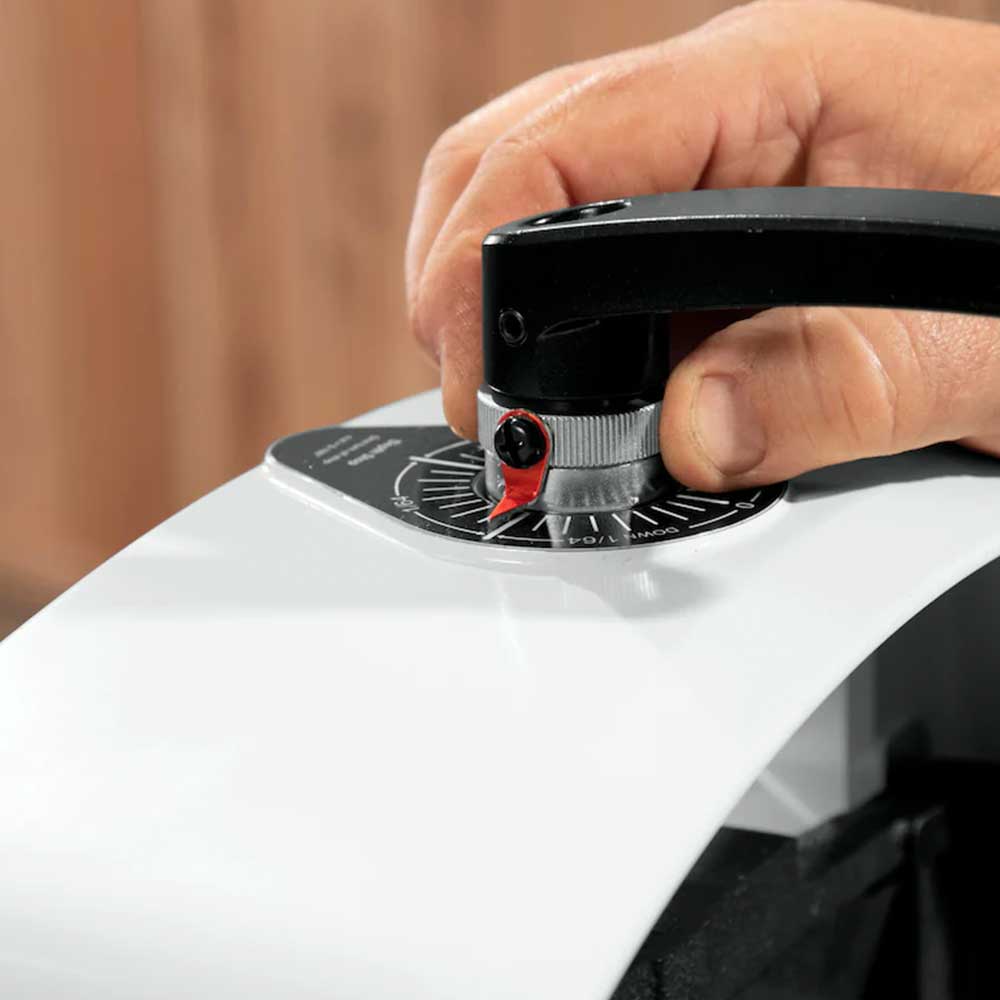

  • One rotation of the top-position handwheel adjusts the drum height by 1/16
  • The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
  • Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
  • Toolless abrasive take-up clips make changing abrasives quick and easy
  • Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
  • Separate feed and drum motors provide independent control, optimizing the performance of the sander
  • Conveyor belt TRACKERS reduce the need for manual belt adjustments

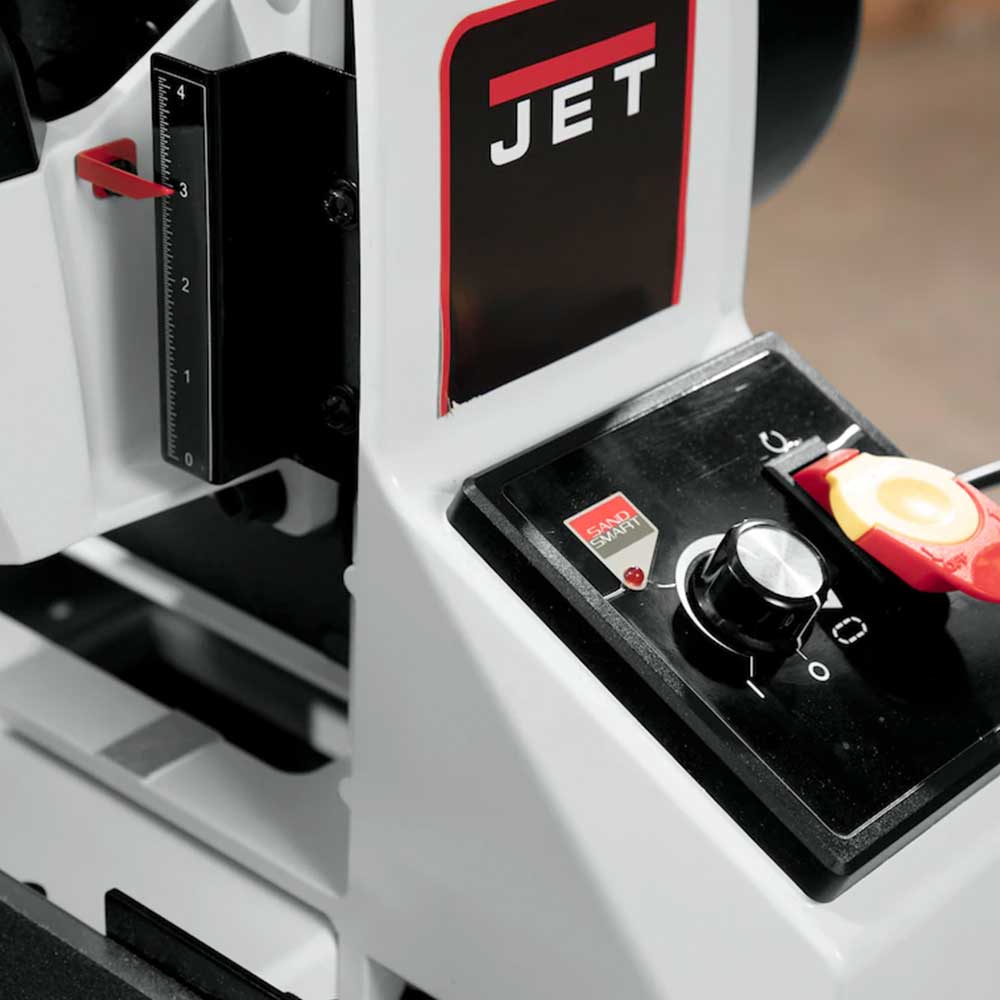

  • Integrated on/off switch and variable speed control knob are conveniently located
  • Closed Stand features a 17-1/2 x 38-1/2 footprint to increase stability and has a solid door for access to closed storage and has integrated wheels for mobility
  • Drum is easily removable
  • Drum utilizes sealed and permanently lubricated ball bearings for longer life
  • Dust hose hanger for added ease of use
What's in The Box
  • 5-Inch x 25-Inch Stationary Drum Sander w/ Closed Stand
  • Owner's Manual
Warranty
  • 5-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku 723544CSK
Model JWDS-2550
Brand Jet
Voltage 115V
Horsepower 1-3/4 Hp
Phase Single
Amperage 15A
Drum Diameter 5 in.
Drum Length 25 in.
No Load Speed 1,720 Rpm
Conveyor Motor 43 in-lbs. Torque Direct-Drive
Conveyor Speed 0 - 10 Fpm
Min. Board Length 2-3/8 in.
Min. Board Thickness 1/32 in.
Max. Board Thickness 4 in.
Max. Board Width 50 in. (Two Passes)
Dust Port Outside Diameter 4 in.
Length 51.81 in.
Width 27 in.
Height 54.31 in.
Product Weight 302 lbs.
