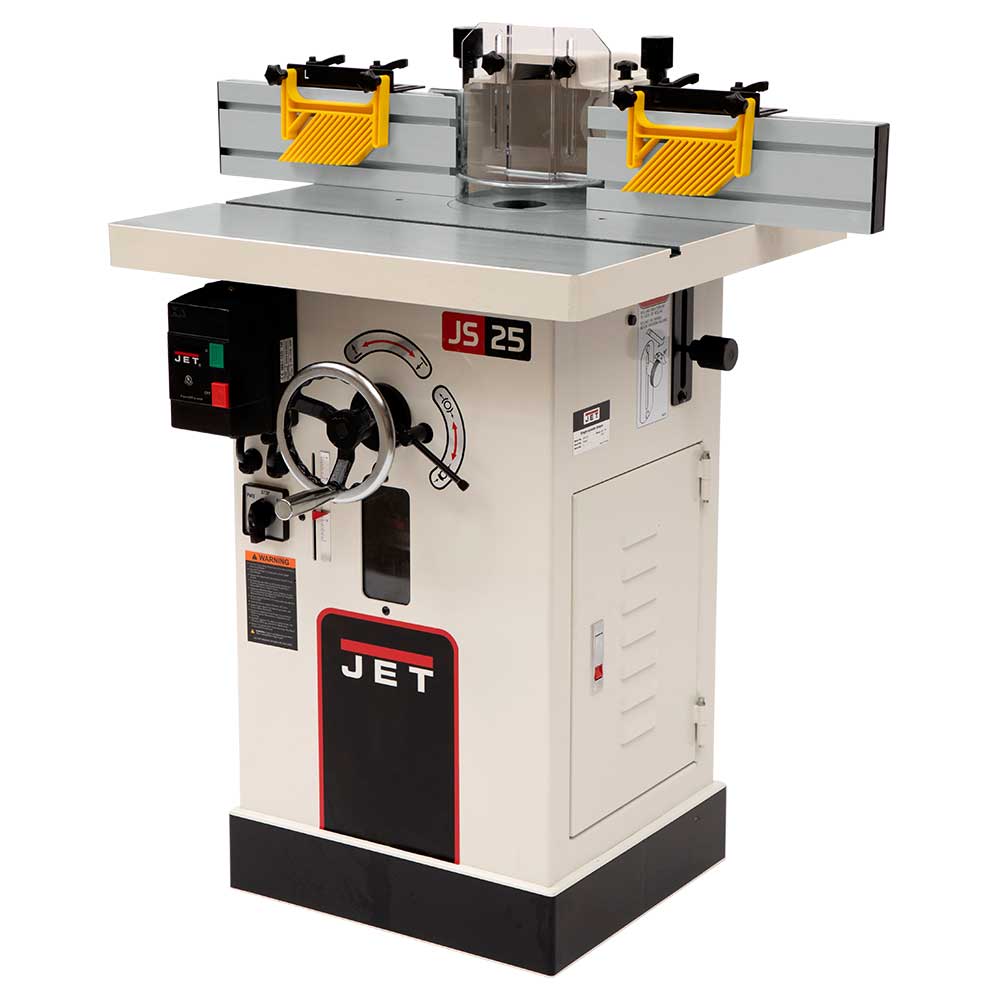

JET JWS-25X 3-Hp 230V 1-Ph Heavy Duty Cast Iron JET Shaper

See all Jet

Sold Out Free

Condition: New

SKU: JET-708309

This item ships via Freight. Appointment is required for delivery. Click for details.

Product Details
Customer Reviews
Shipping & Return Policies

Spend $99 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $99 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $99, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
Frequently Viewed Together
Similar Products

Two-speeds let you select the best speed and torque for different cutter diameters

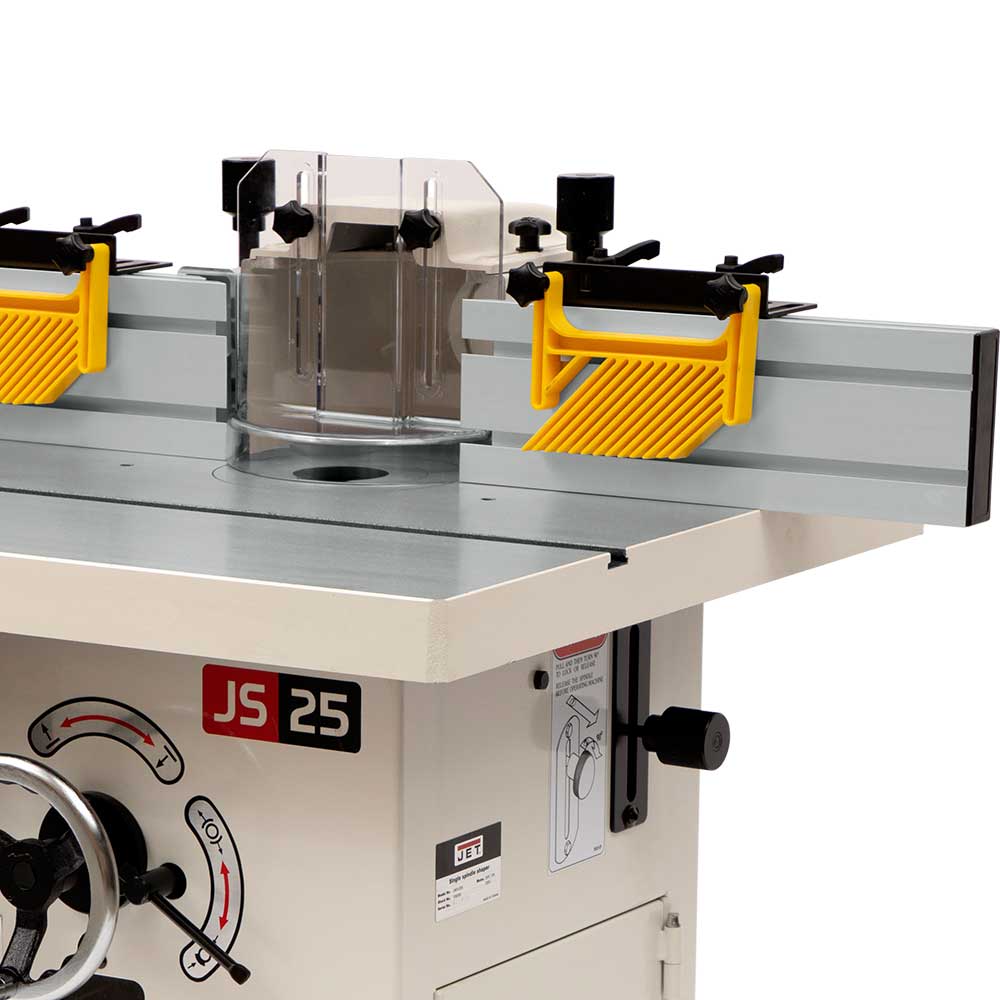

Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
Large 25” X 25-1/2” precision ground cast iron table provides a durable work area
V-belt transfers maximum power to the spindle

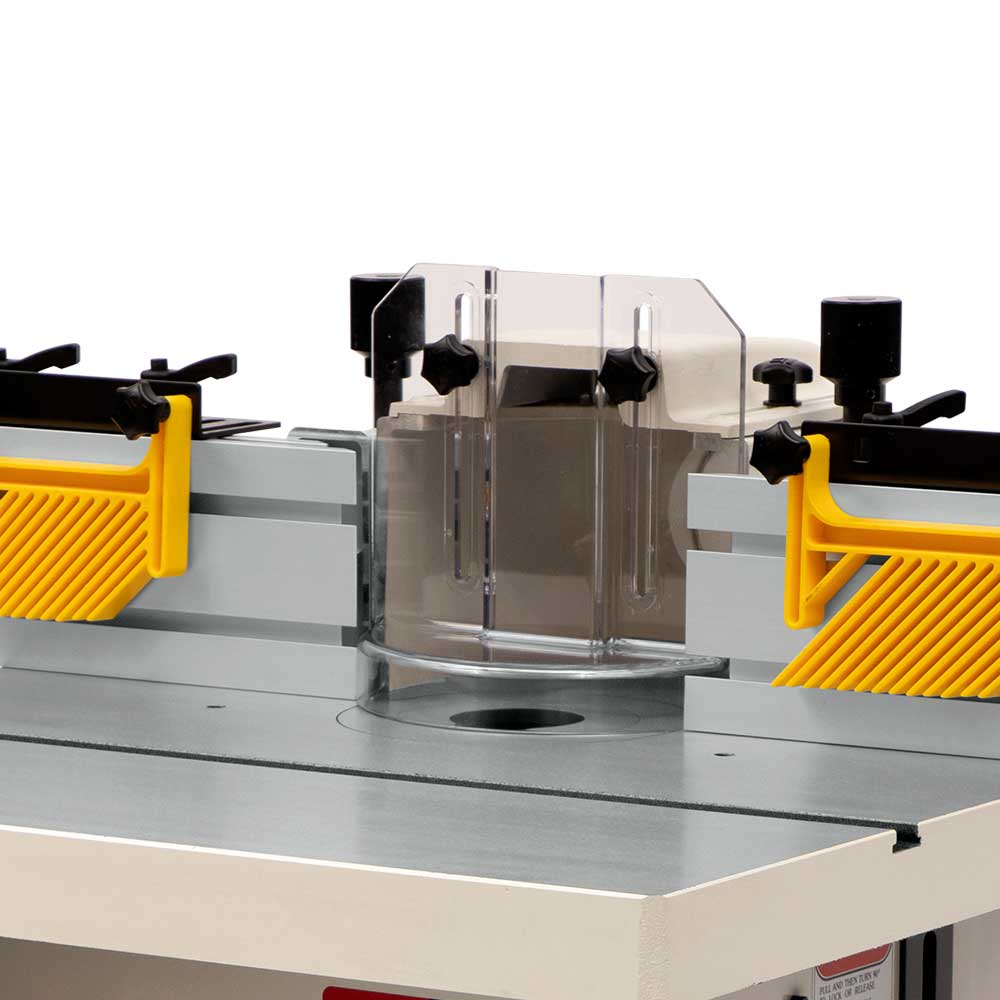

Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
Reversible spindle speeds for diverse shaping jobs
Powerful 3HP, 1Ph motor with magnetic controls
Starting pins for irregular shaping

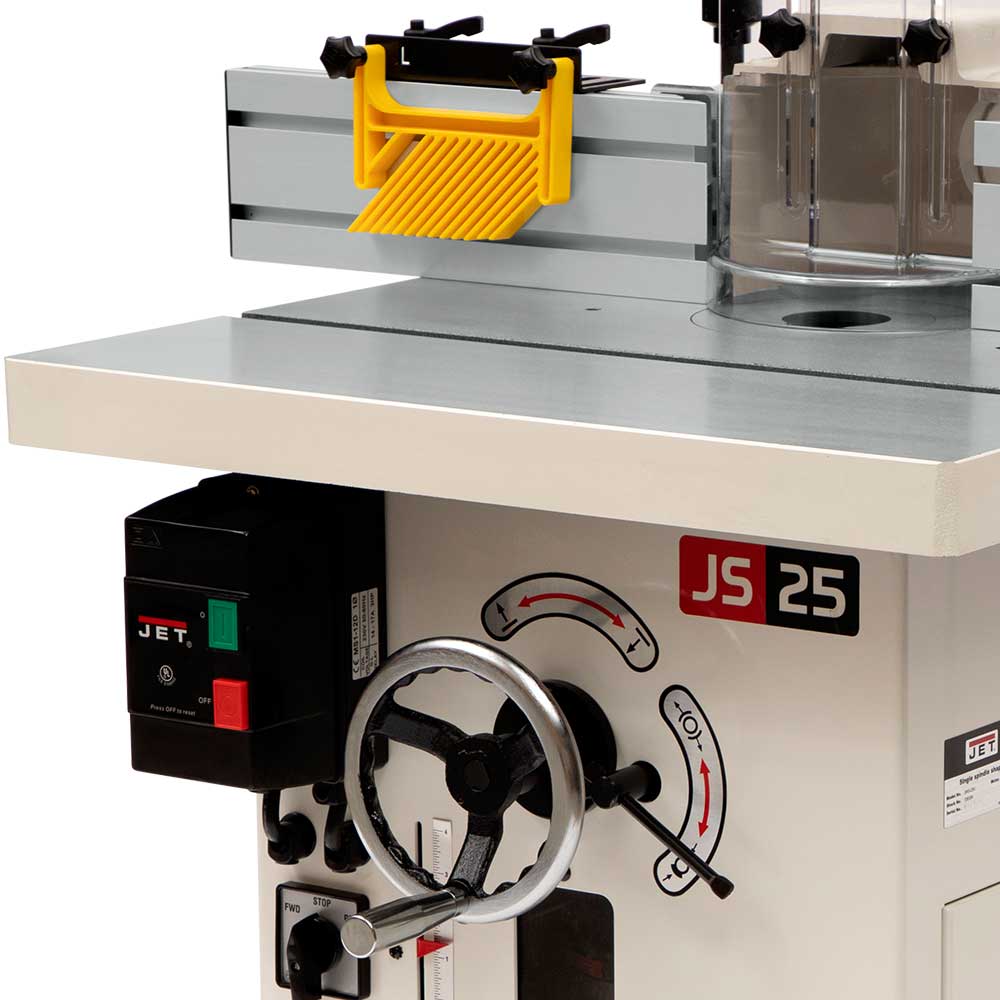

Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
4” Dust port built into fence for convenient hookup to any dust collection system
Spindle lock for safe and easy cutter set up
Spindle height scale

Spindle Speed (RPM)	7500/10000
Maximum Spindle Diameter (In.)	1/2, 3/4
Spindles Included	No
Spindle Size Under Nut (In.)	2-13/64, 3-3/16
Spindle Travel (In.)	3-1/2
Reversible	Yes
Maximum Diameter Cutter Above Table (In.)	7
Maximum Diameter Cutter Below Table (In.)	6
Table Opening Diameter (In.)	6-9/32
Table Inserts (In.)	2
Table Insert Opening Diameter (In.)	2-9/16, 4-21/64
Table Size (L x W) (In.)	25-1/2 x 25
Table T-Slot (In.)	3/4 x 3/8
Table Height from Floor (In.)	33
Fence Size (L x H) (In.)	14-1/2 x 4-3/4
Fence Travel (Major and Minor) (In.)	4-1/4, 15/16
Dust Port Outside Diameter (In.)	4
Dust Collection Minimum CFM Required (CFM)	600
Electrical Controls	Yes
Motor Power (HP)	3
Motor Phase (PH)	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Motor Amps	16
