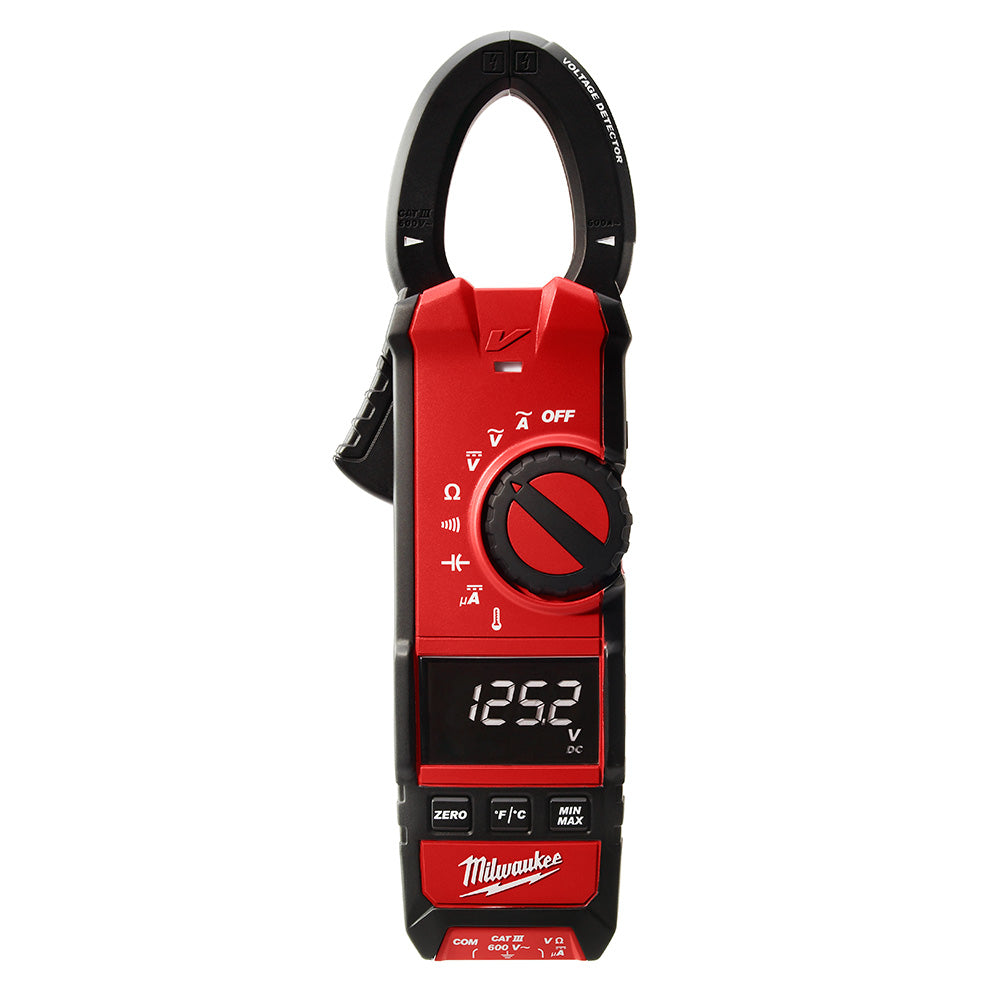

Milwaukee 2236-20 600A HVAC/R Cordless Clamp Meter w/ 1.30" Jaw Opening

by Milwaukee
$259.99 + Free Shipping
Estimate Only, Carrier Delays May Occur
Shipping to
|
Change
Ship To

Condition: New

SKU: MWE-2236-20

Features
  • Measures up to 600 amps AC, Large 1.30” jaw opening
  • Thin Jaw Profile for easier wire measurement in panels or in bundles
  • Wide Voltage range to 600 AC/DC volts
  • True-RMS for accurate measurement in all applications
  • Built-In Voltage Detector and LED Work Light
  • Thermocouple (dual banana) input for contact temperature measurement
  • 600 uA DC for Flame Rectification
  • High Contrast, White on Black Display with Backlight for easy reading
  • Rugged over-molding increases durability and user grip
What's in The Box
  • Clamp Meter for HVAC/R(2236-20)
  • Dual Banana Thermocouple
  • Electrical Test Lead Set
  • (2)AA Batteries
  • Owner's Manual
Warranty
  • 5 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU 2236-20
Brand Milwaukee
Power Cordless
Battery Type Alkaline (AA)
Display Type High Contrast White on Black
Switch Type Dial
TRMS Yes
Jaw Size 1.3"
Safety Rating CAT III 600V
Current AC 600A
Microamps DC 600?A
Voltage AC DC 600V
Resistance 6 k?
Continuity Yes
Capacitance Yes
Contact Temperature -40° F to 752° F (-40° C to 400° C)
Hold Yes
Display Backlight Yes
Non Contact Voltage Yes
LED Work Light Yes
Rugged Over molding Yes
Temp Yes
Dual Banana Thermocouple Input Yes
Indication Visual (for NCVD)
Length 10 in.
Width 6.7 in.
Height 3.4 in.
Product Weight 1.56 lbs.
