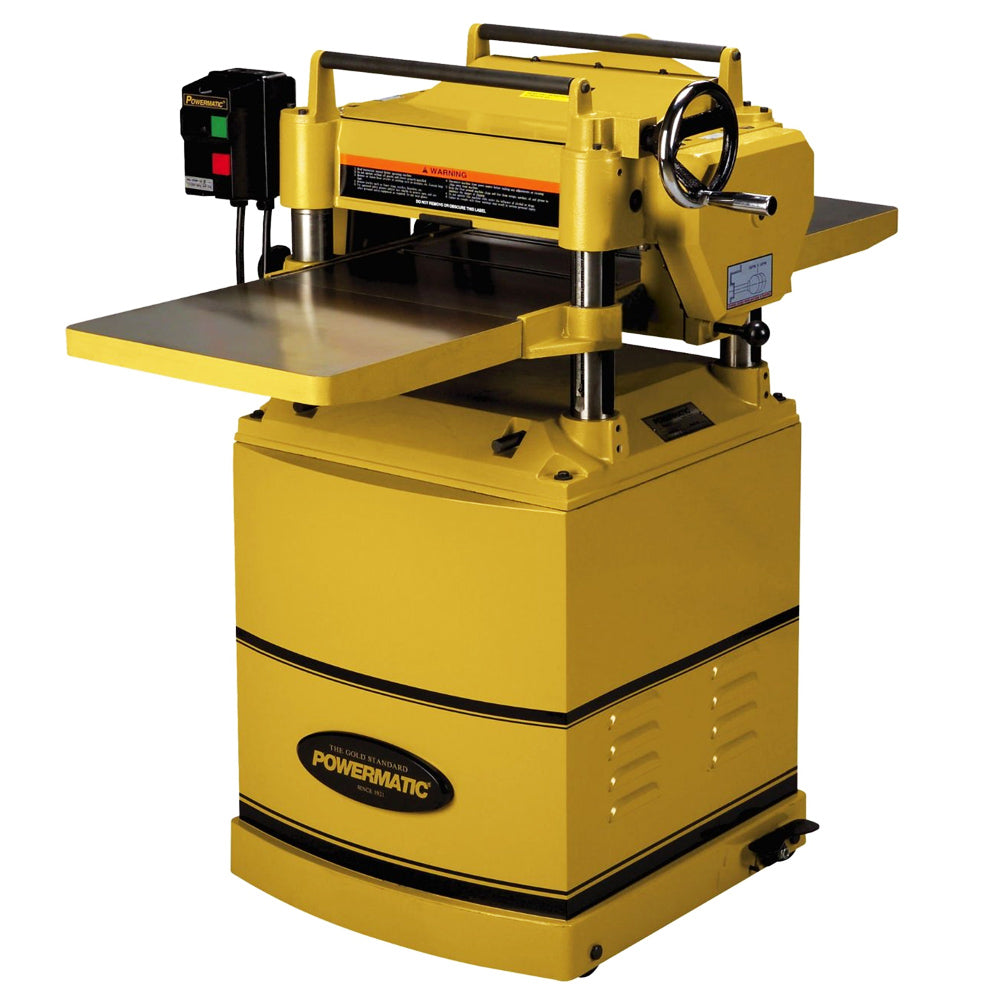

Powermatic 15HH 15" Planer Byrd Shelix Cutterhead 3HP 1PH 230V No DRO - 1791213

by Powermatic
$4,299.99 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: PWC-1791213

Features
  • The Byrd helical cutterhead with 74 four-sided knife inserts provides smoother, quieter cutting and finer finish than conventional systems

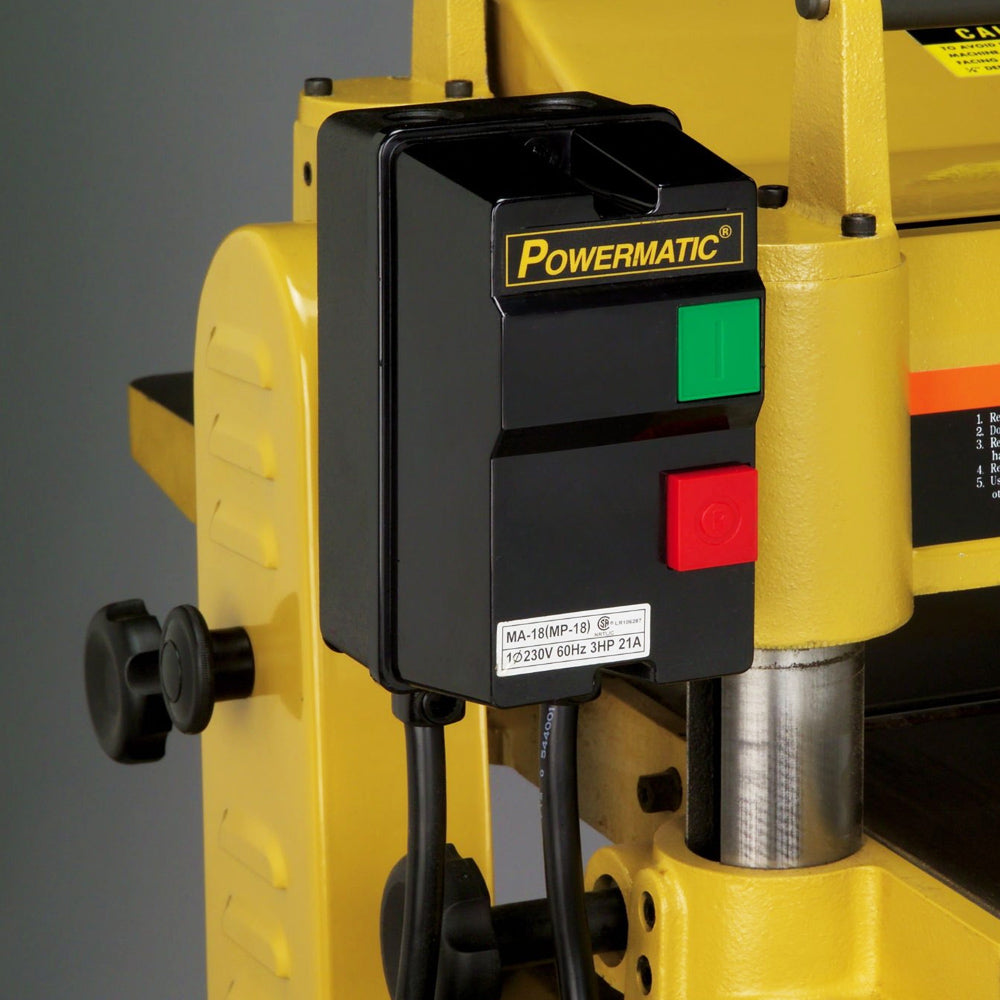

  • Powerful 3HP TEFC motor controlled with a magnetic switch for safety

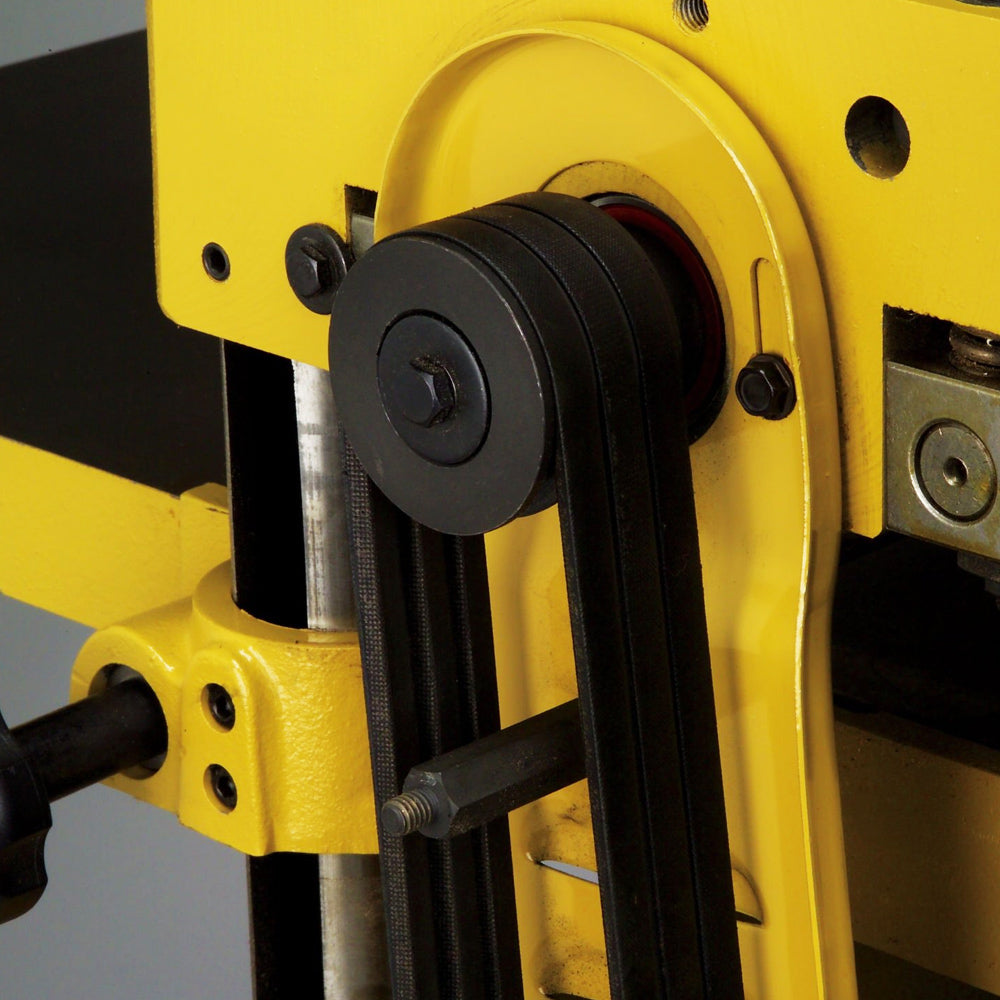

  • Three V-belts transfer maximum power to the cutterhead
  • Serrated steel infeed roller and smooth steel outfeed roller allow for 1/8" maximum depth of cut and trouble free operation

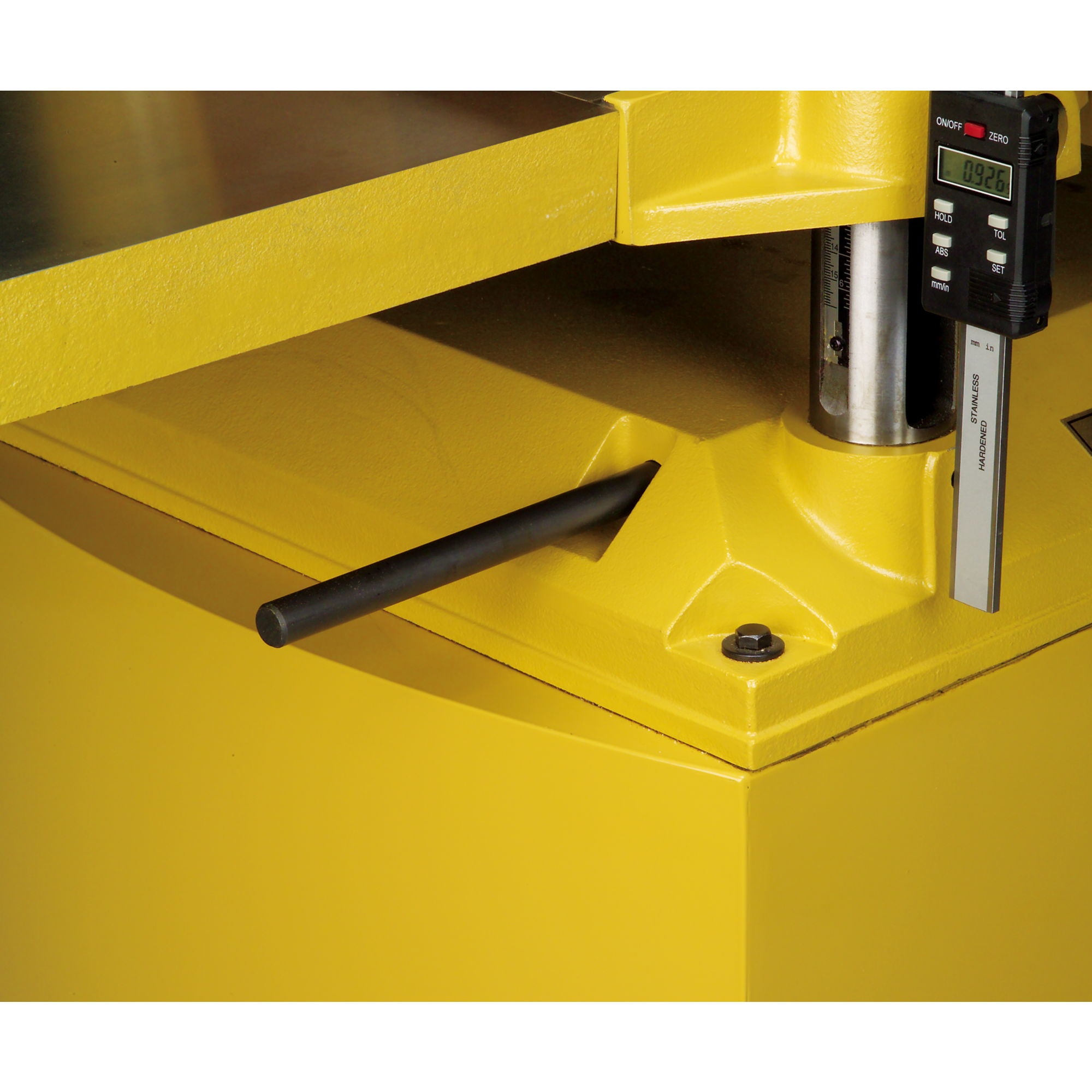

  • Large cast iron handwheel positions table quickly and easily
  • Large, precision ground cast iron table and extensions provide maximum workpiece support
  • Two speed gearbox features automatic chain tensioner

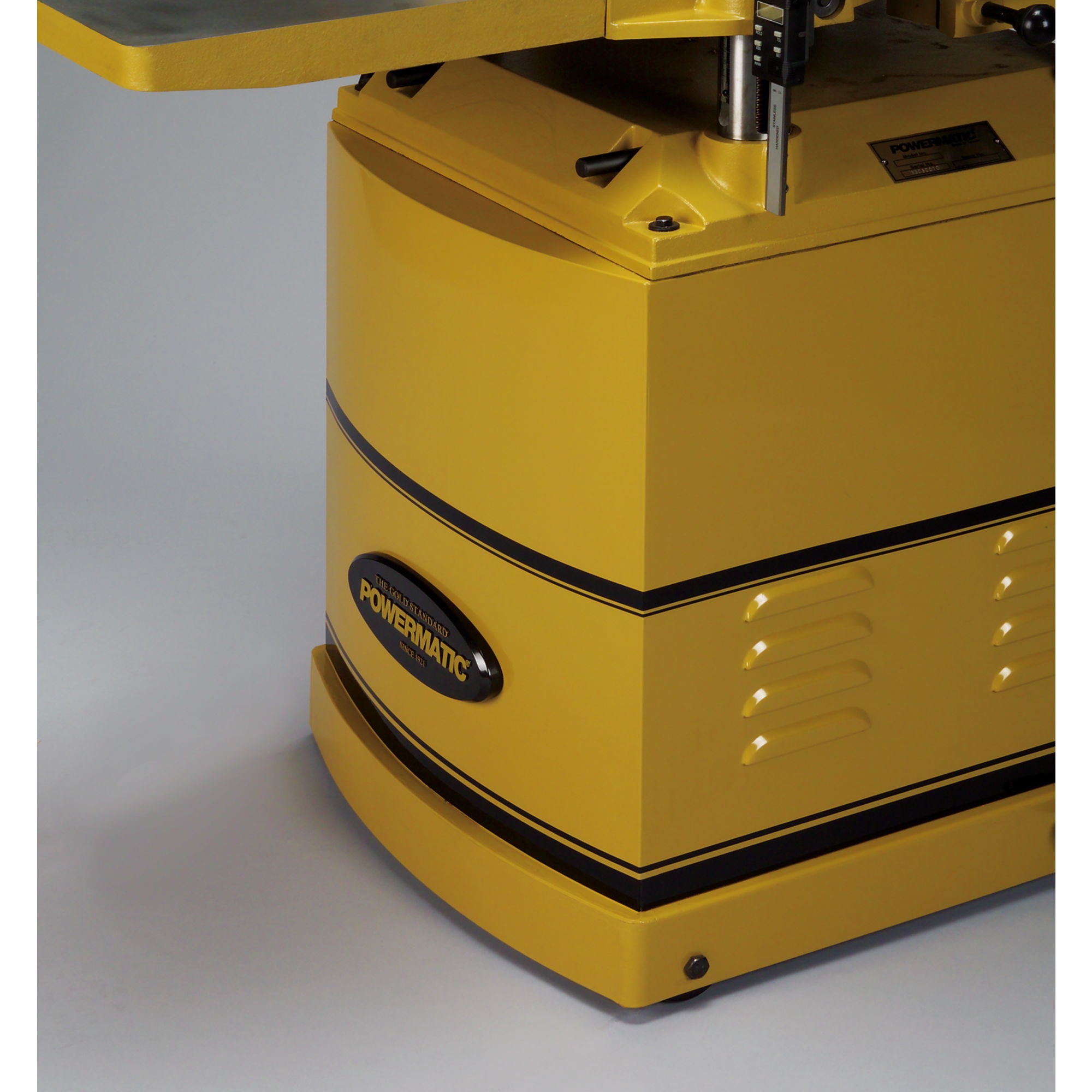

  • One-piece welded steel stand has built-in lockable casters
  • Steel top-mounted return rollers speed repetitive cuts
  • Angled dust chute with 4" port positions collection hose away from the work area while providing efficient chip and dust collection
  • Table locks firmly in place, preventing movement during cutting
  • Closed stand with built-in casters
  • 3HP TEFC motor with magnetic controls
What's in The Box
  • Powermatic 15HH Planner, 3HP 1PH 230V Byrd Shelix Head, No Dro
  • Byrdr helical cutterhead with inserts
  • Cast iron extension tables
  • Owner's Manual
Warranty
  • Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
  • 1 Year - Motors, Machine Accessories.
  • 5 Year - Woodworking Machinery
  • 30 Day Satisfaction Guaranteed
Specifications
Model 1791213
UPC 662755915413
Style (Type) Planer
Cutterhead Speed (RPM) 4,500
Cutterhead Diameter (In.) 2-7/8
Number of Knives 74 Four-Sided Inserts
Maximum Depth of Cut (In.) 1/4
Maximum Full Width Depth of Cut (In.) 1/8
Maximum Planing Width (In.) 14-7/8
Maximum Planing Thickness (In.) 6
Minimum Planing Length (In.) 8
Infeed Roller Diameter (In.) 2.07
Segmented Infeed Roller Diameter (In.) 2.07
Outfeed Roller Diameter (In.) 2.07
Bed Rollers Adjustable from Front N.A.
Table Size with Extensions (L x W) (In.) 15 x 48
Table Support 4 Column
Column Diameter (In.) 2-3/16
Digital Readout Inch / Metric
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 3
Motor Phase 1
Motor Voltage (V.) 230
