- Designed for a range of materials and applications

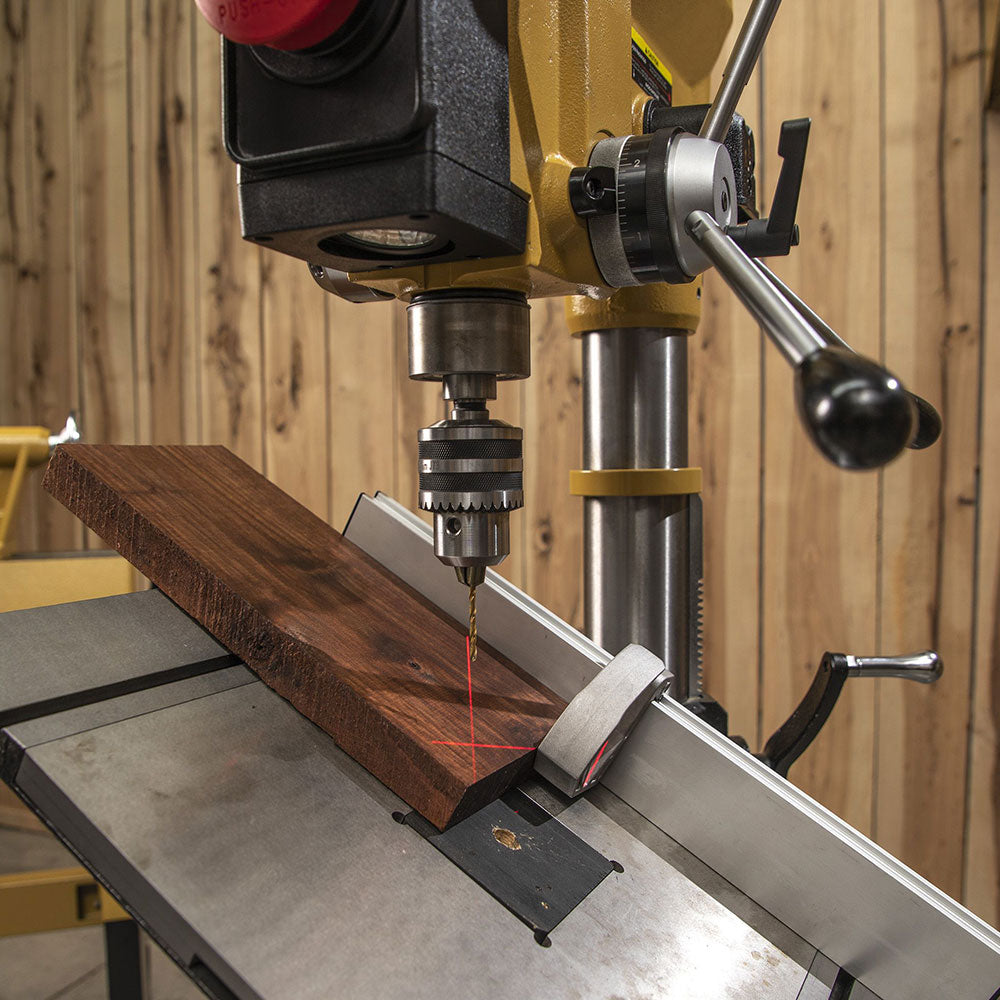

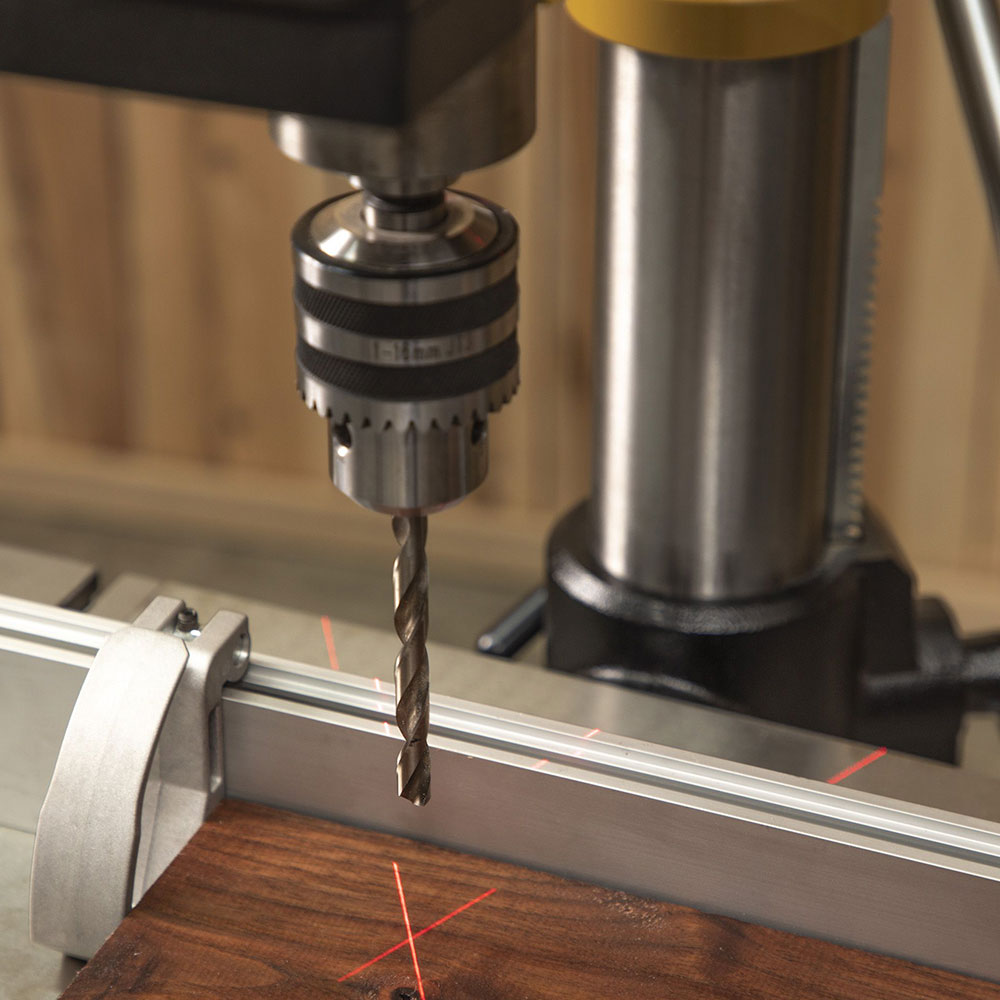

- For unbeatable accuracy, the laser cross hairs provide precise tool point indication.

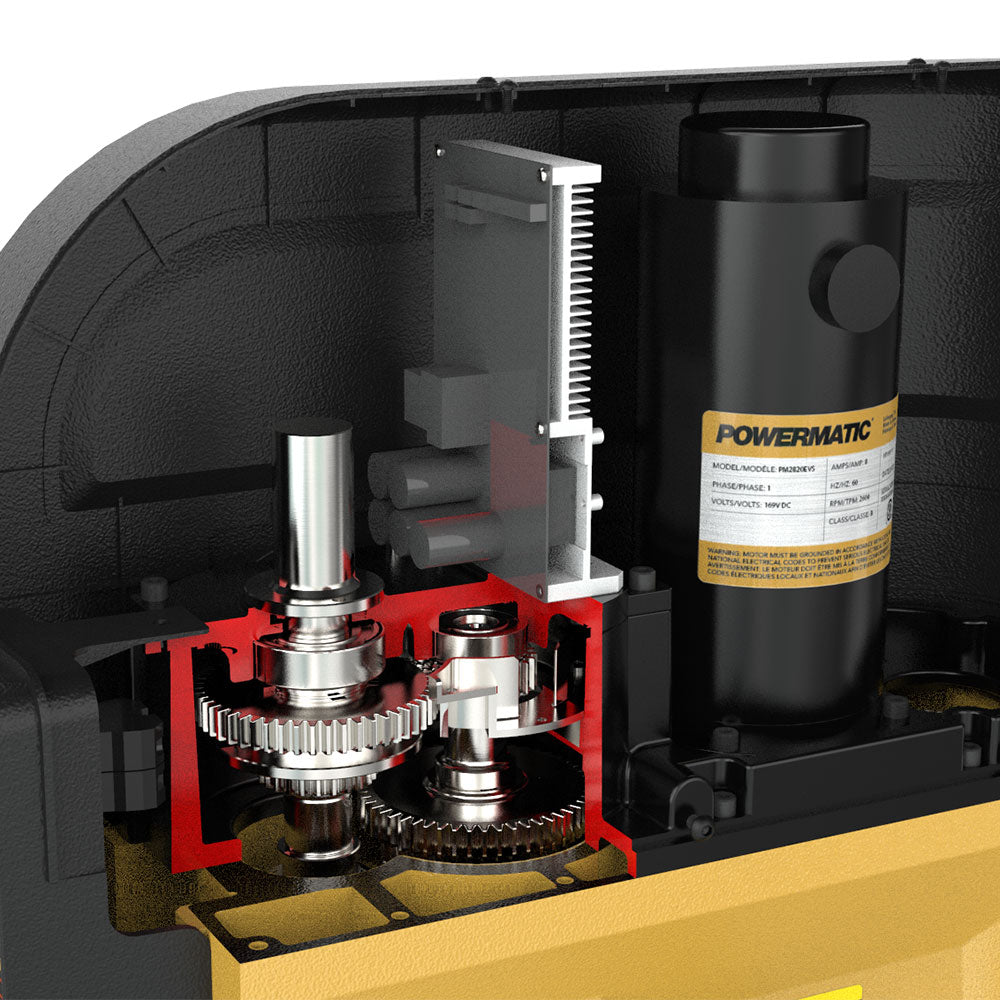

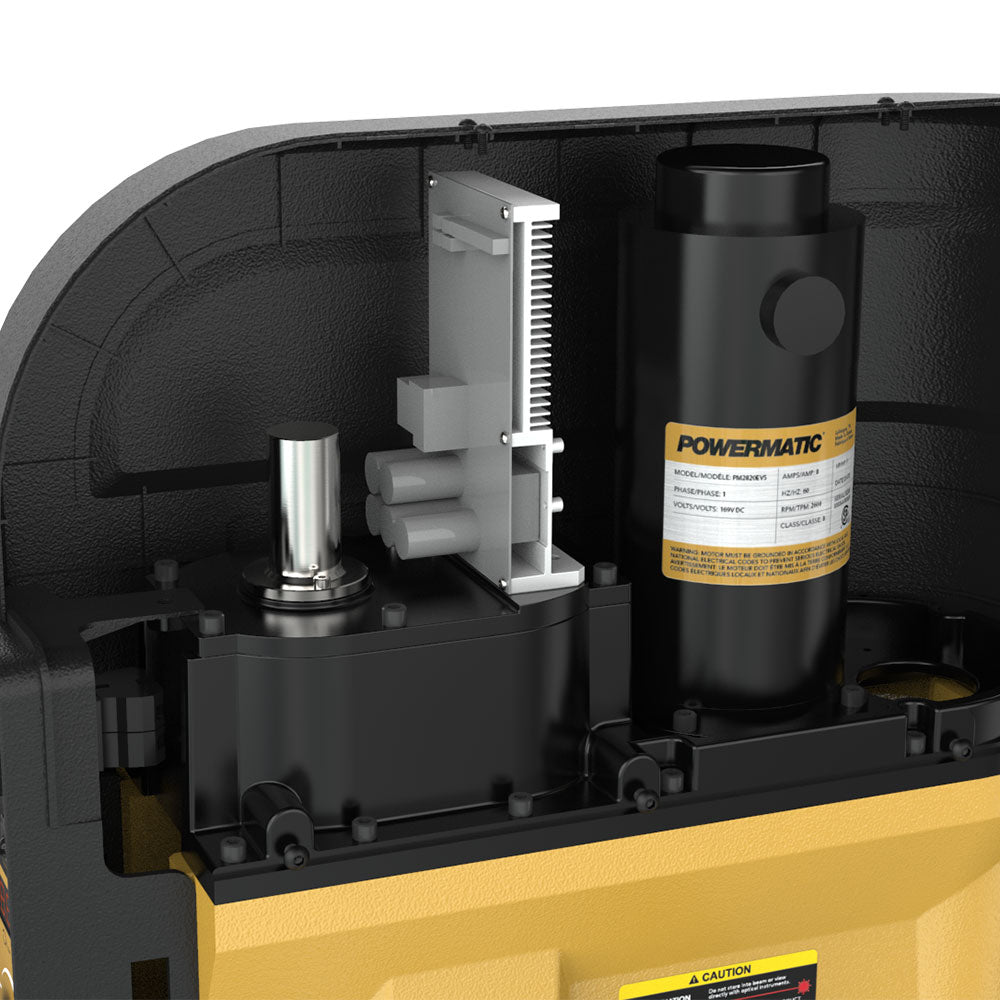

- Gear driven power transfers torque consistently and efficiently for a wide range of materials.
- Handles can be reversed for left or right sided operation.

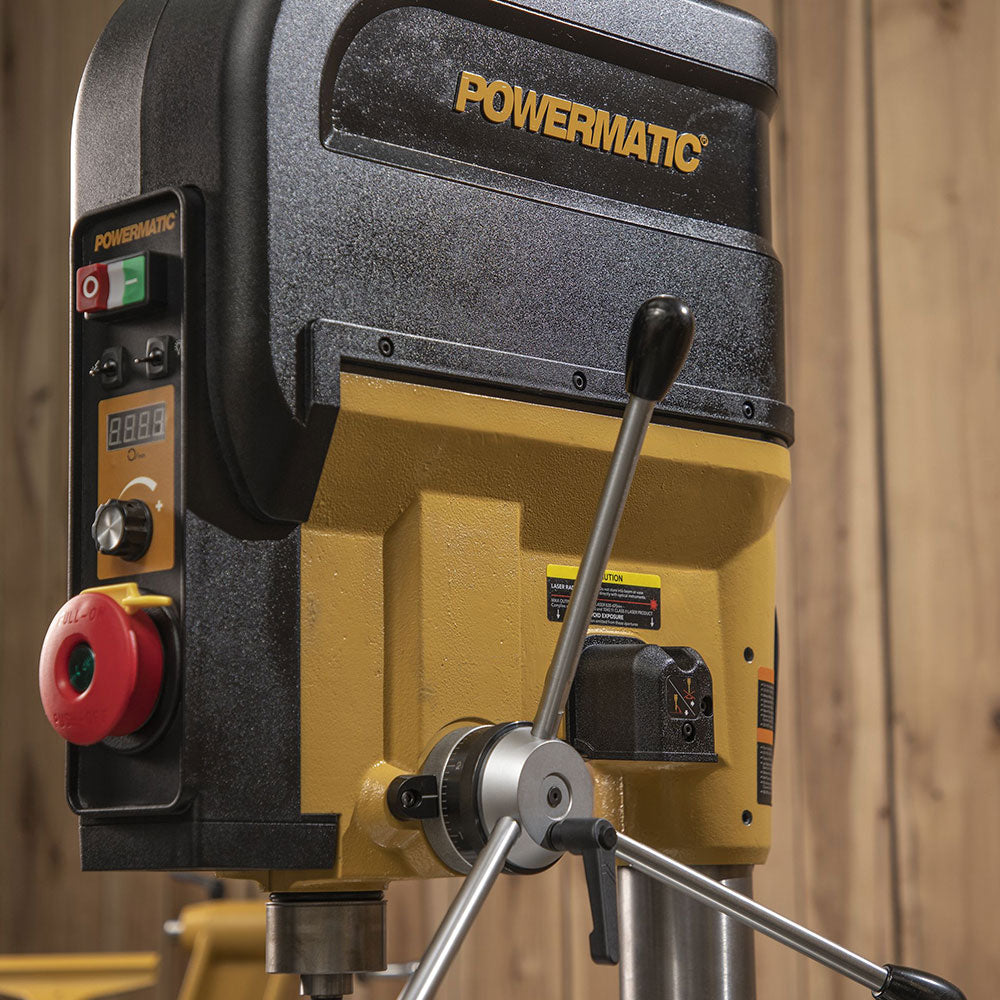

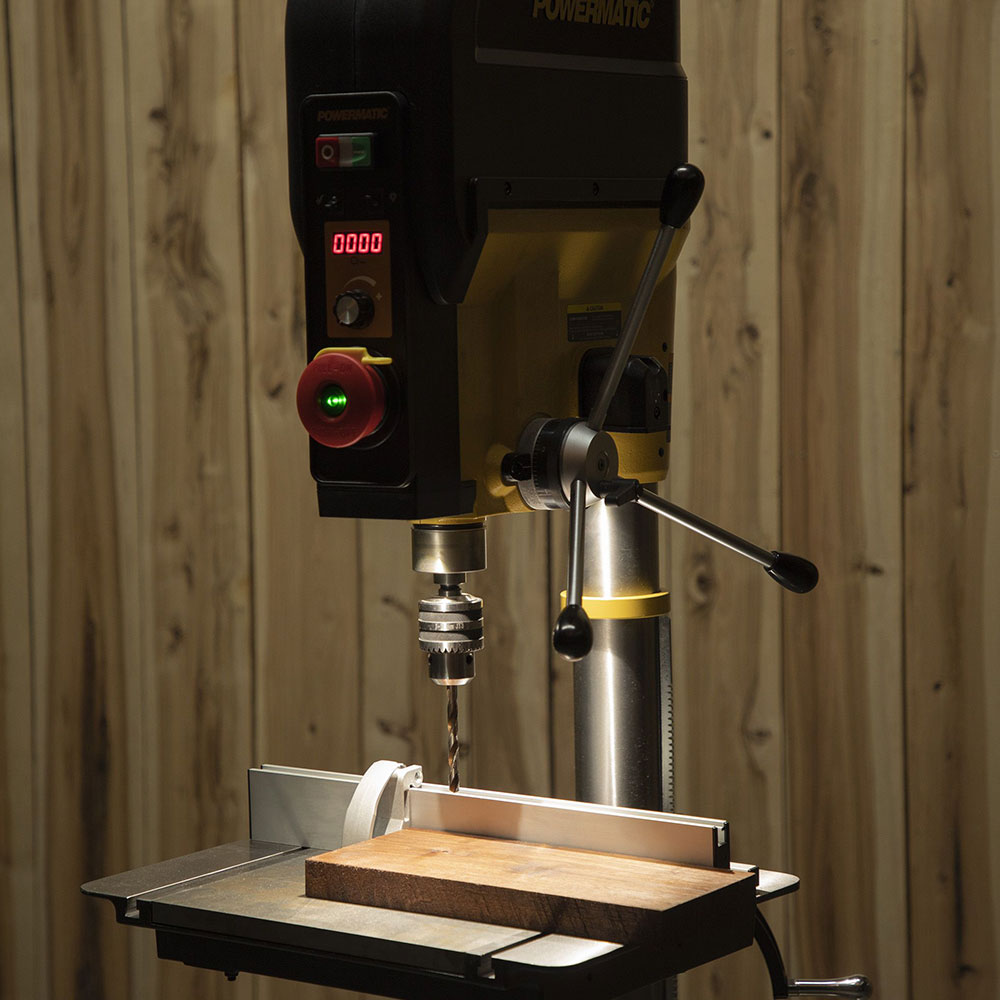

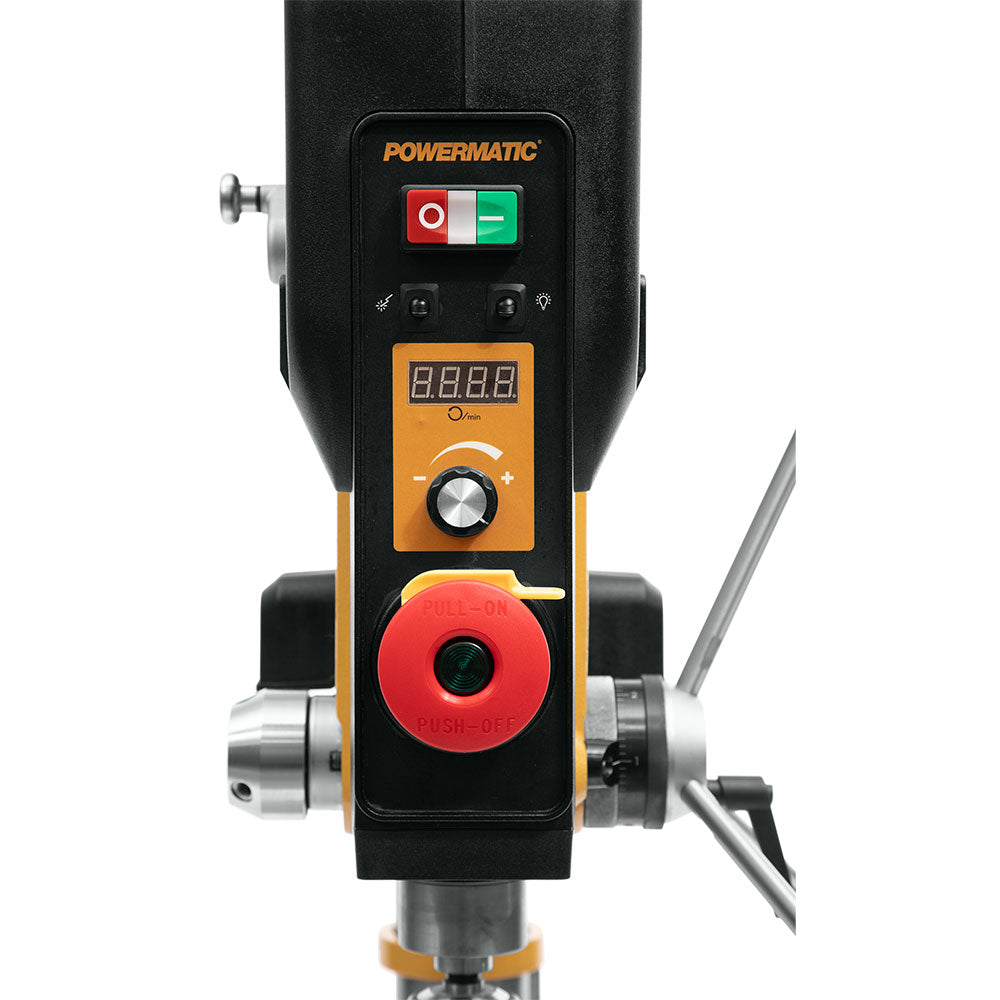

- Highly visible digital readout gives users control.

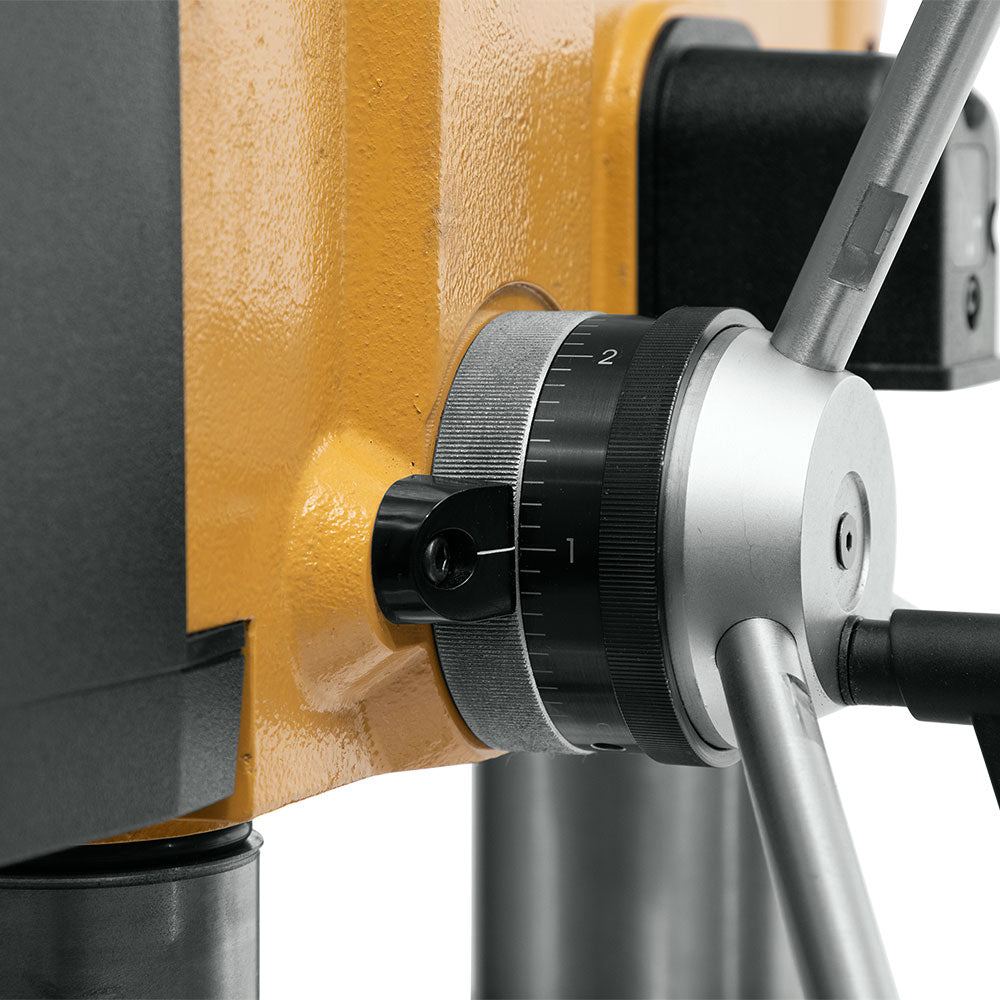

- Includes Powermatic’s patented integrated depth stop for efficient drilling
- Includes the most versatile table in the drill press market. Allows insert to be removed for better access to oversized pieces.

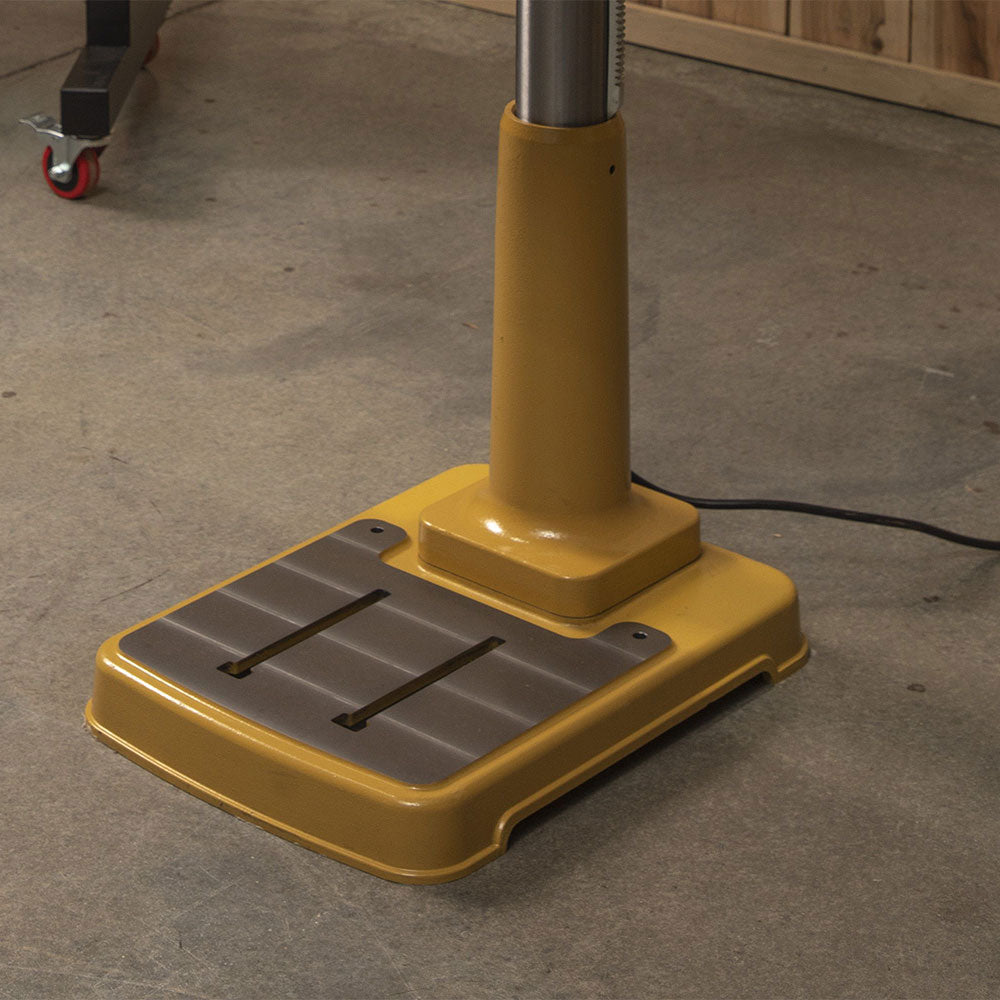

- Standing on an oversized cast base for outstanding stability for the 20 inch swing.
- The electronic variable speed means torque is not lost using either the higher or low speed settings. Low speed setting ranges 150 – 870 RPM and the high speed setting ranges 600 – 3600 RPM.
- The large cast table adjusts to a range of positions and tilts to a full ninety degree position.
What's in The Box
- PM2820EVS 1HP 1PH 120V Drill Press
- Owner's Manual
- 3 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Motor Power (HP)||1|
|Motor Voltage (V.)||120|
|Prewired Voltage (V.)||115|
|Base Dimensions (In.)||22.7 x 16.33 x 2.75|
|Base Size (In.)||22-3/4 x 16-3/8 x 2-3/4|
|Base Work Table (In.)||11.81 x 12.05|
|Chuck Distance to Base (In.)||41-1/4|
|Chuck Distance to Table (In.)||19-1/4|
|Chuck Size (In.)||5/8|
|Column Diameter (In.)||3-3/8|
|Fence Size (L x H) (In.)||19-3/4 x 2-5/8|
|Gross Weight (Lbs)||413.6|
|Net Weight (Lbs.)||336.6|
|Number of Spindle Speeds||2 Variable|
|Overall Dimensions (L x W x H) (In.)||24.5 x 20.5 x 71.85|
|Prop 65||Cancer and Reproductive Harm|
|Quill Diameter (In.)||2.6|
|Spindle Distance to Base (In.)||45|
|Spindle Distance to Table (Max.) (In.)||23|
|Spindle Speed (RPM)||150 - 3600|
|Spindle Travel (In.)||6|
|Table Size Fully Extended (L x W) (In.)||20-1/2 x 15-1/2|
|Table Size (L x W) (In.)||20-1/2 x 15-1/2|
|Table Tilt (Deg.)||90 L/R|
