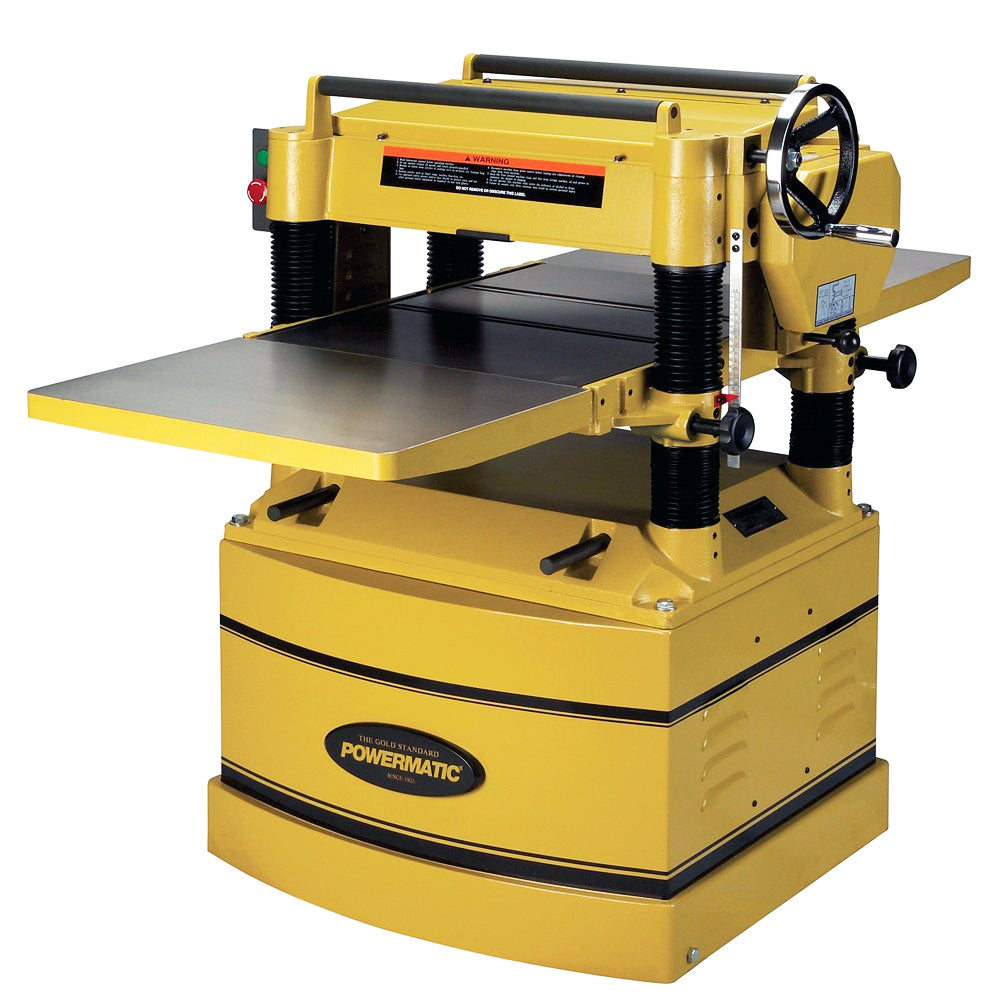

Powermatic 209 5-Hp 230/460V 20" Heavy Duty Planer w/ 5" Dust Port

See all Powermatic

Notify me when this product is available:


Condition: New

SKU: PWC-1791297


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Knife setting gauge
  • 5HP motor and 20" planing capacity for heavy duty work
  • Fully enclosed base cabinet with integrated casters for shop mobility
  • Cast iron table with extensions creates a big 55-1/2" x 20" working area
  • Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility

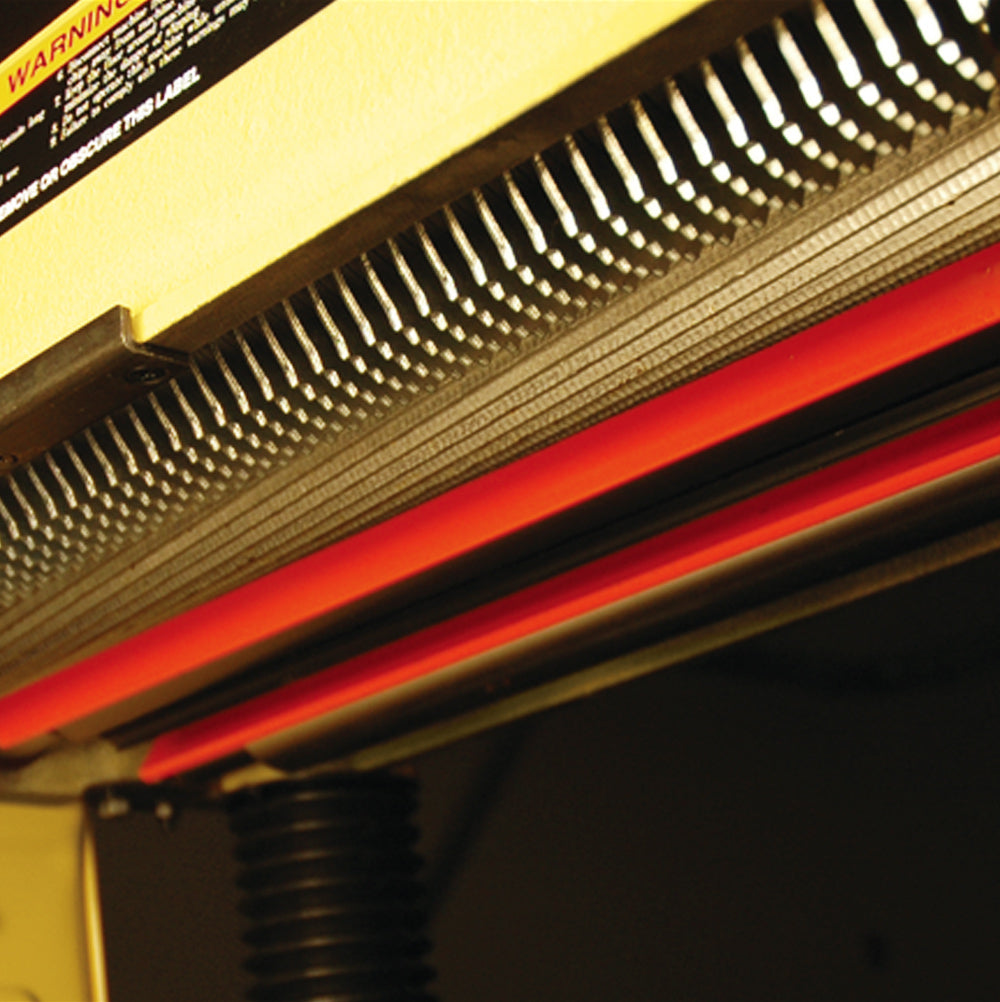

  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
  • 460V operation requires an additional 460V magnetic switch: 209-5016E

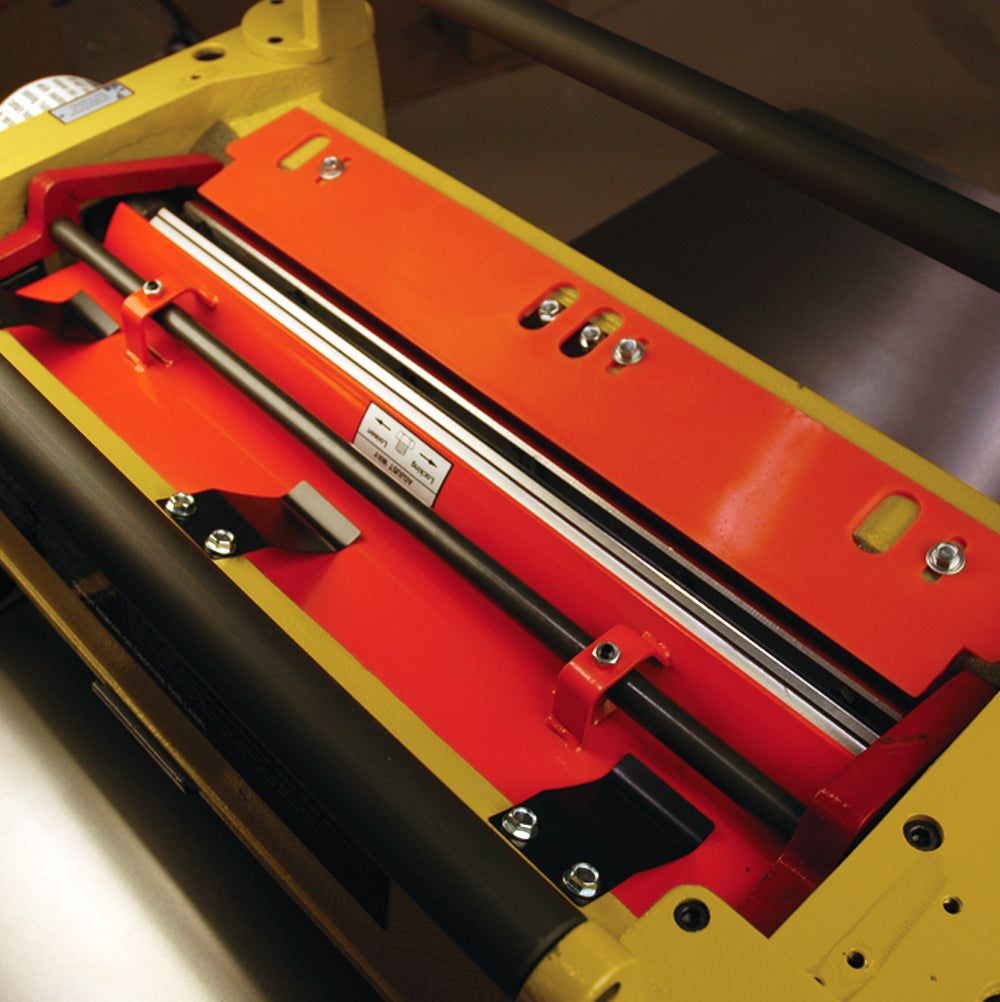

  • Single-sided knives
  • Cast iron extension tables
What's in The Box
  • Powermatic 209, 20" Planer, 5HP 3PH 230/460V
  • Owner's Manual
Warranty
  • Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
  • 90 Days - Parts; Consumable items
  • 1 Year - Motors, Machine Accessories
  • 2 Year - Woodworking Machinery used for industrial or commercial purposes
  • 5 Year - Woodworking Machinery
Specifications
Model 1791297
UPC 662755501234
Style (Type) Planer
Cutterhead Speed (RPM) 5,000
Cutterhead Diameter (In.) 3-3/16
Cuts Per Minute 20,000
Number of Knives 4
Maximum Depth of Cut (In.) 3/32
Maximum Planing Width (In.) 20
Maximum Planing Thickness (In.) 8
Minimum Planing Length (In.) 6-3/4
Feed Rate (FPM) 24, 31; 16, 20 with Gear Change
Number of Speeds 4
Range of Speeds 24, 31, 16, 20
Bed Rollers Adjustable from Front N.A.
Table Support 4 Column

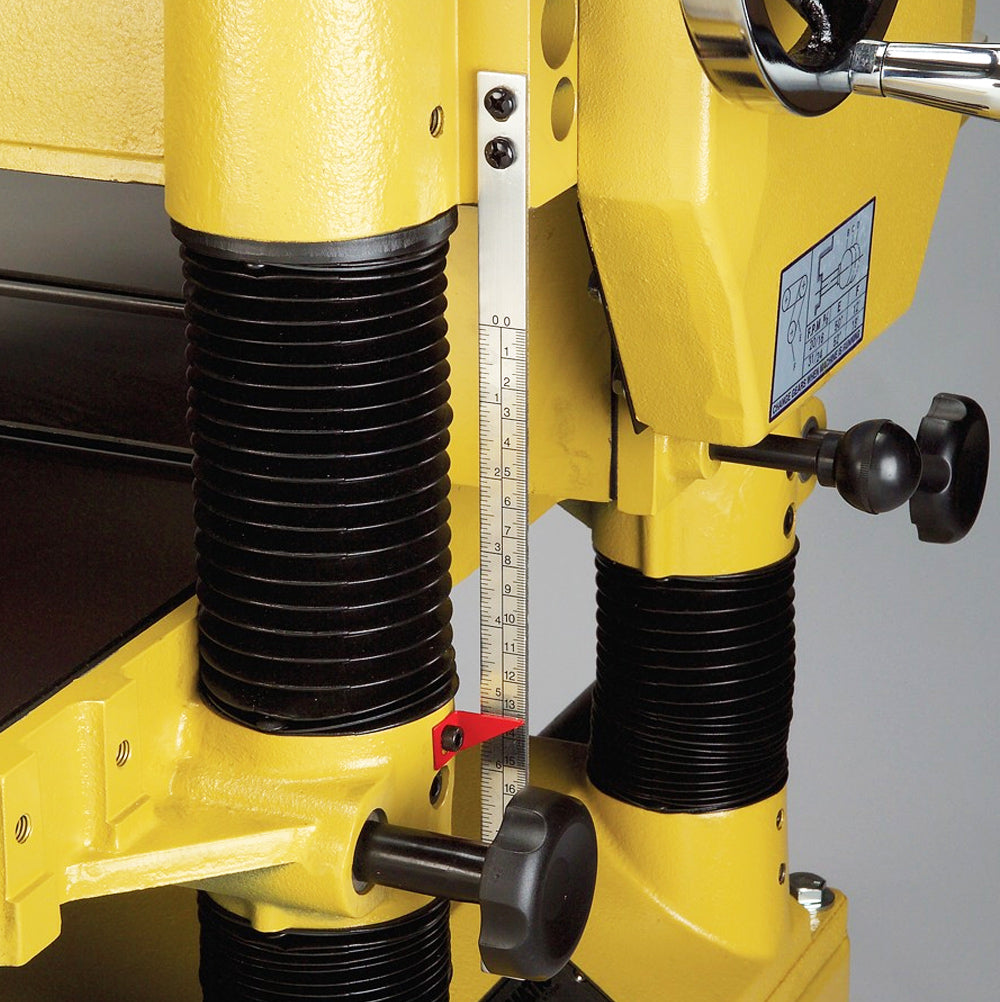

Digital Readout Inch / Metric
Dust Collection Minimum CFM Required (CFM) 900
Dust Port Outside Diameter (In.) 5
Motor Power (HP) 5
Motor Phase 3
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
