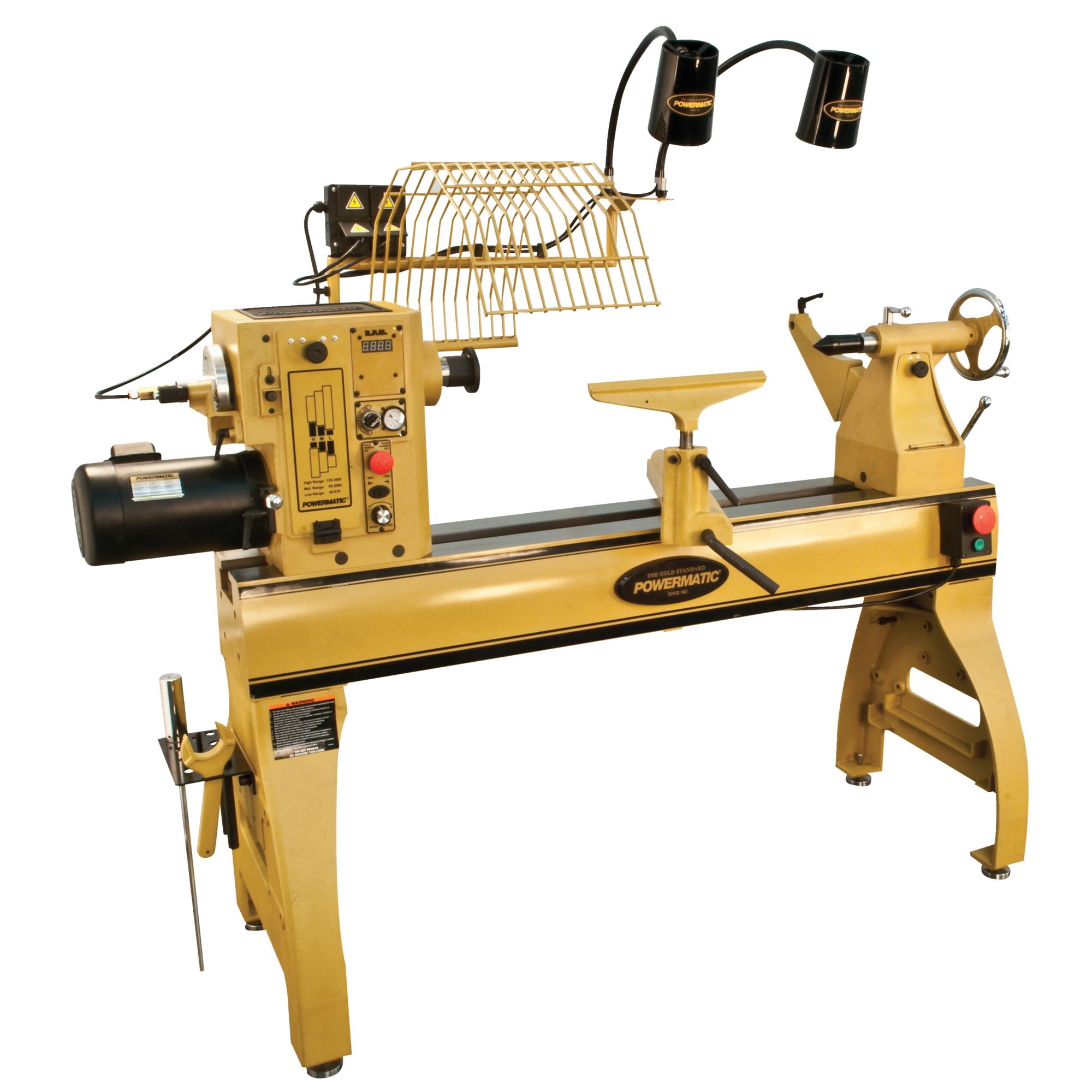

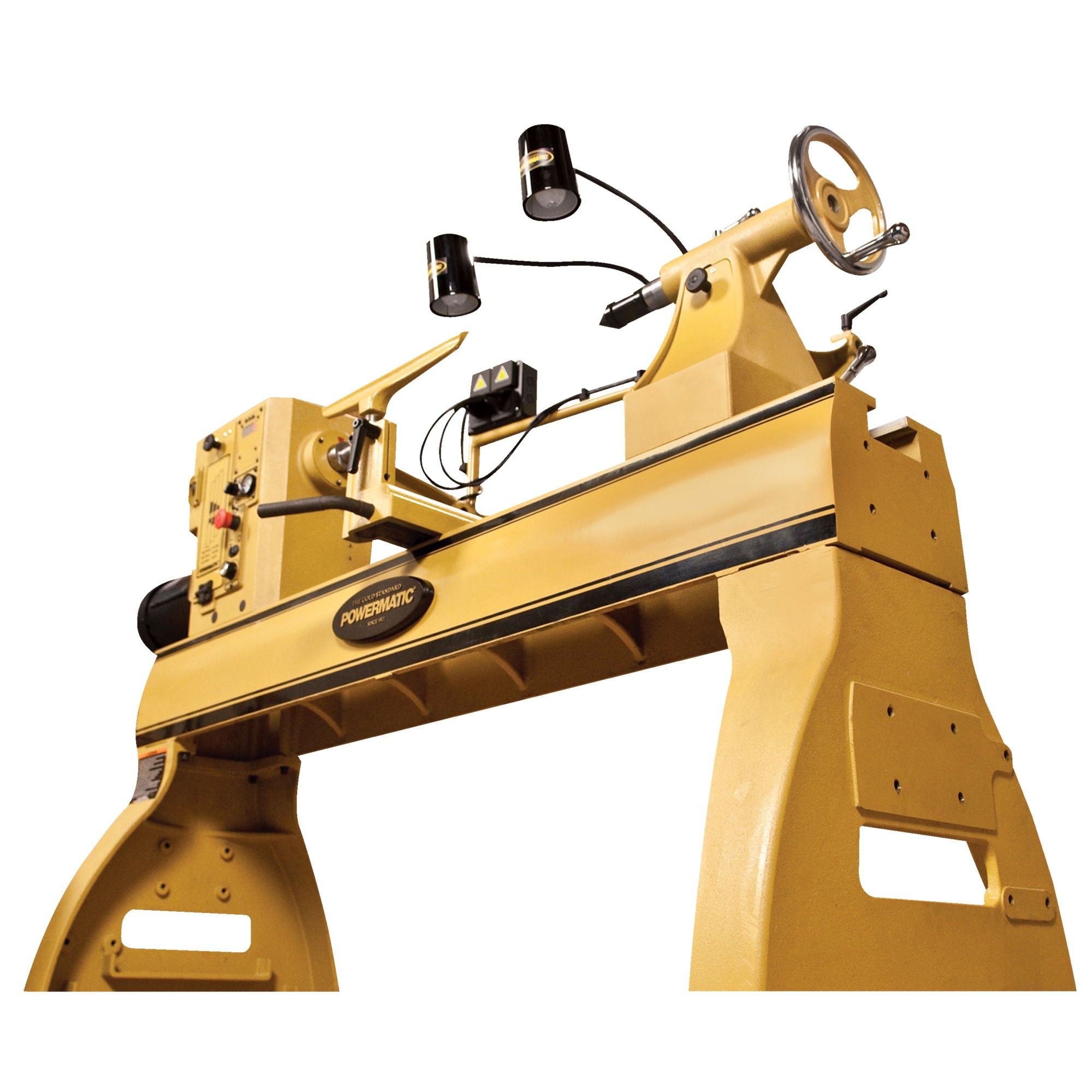

Powermatic 4224B Lathe w/ Lamp Kit 3HP 3PH 220V - 1794224K

See all Powermatic

Notify me when this product is available:


Condition: New

SKU: PWC-1794224K

This item ships via Freight. Appointment is required for delivery. Click for details.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features

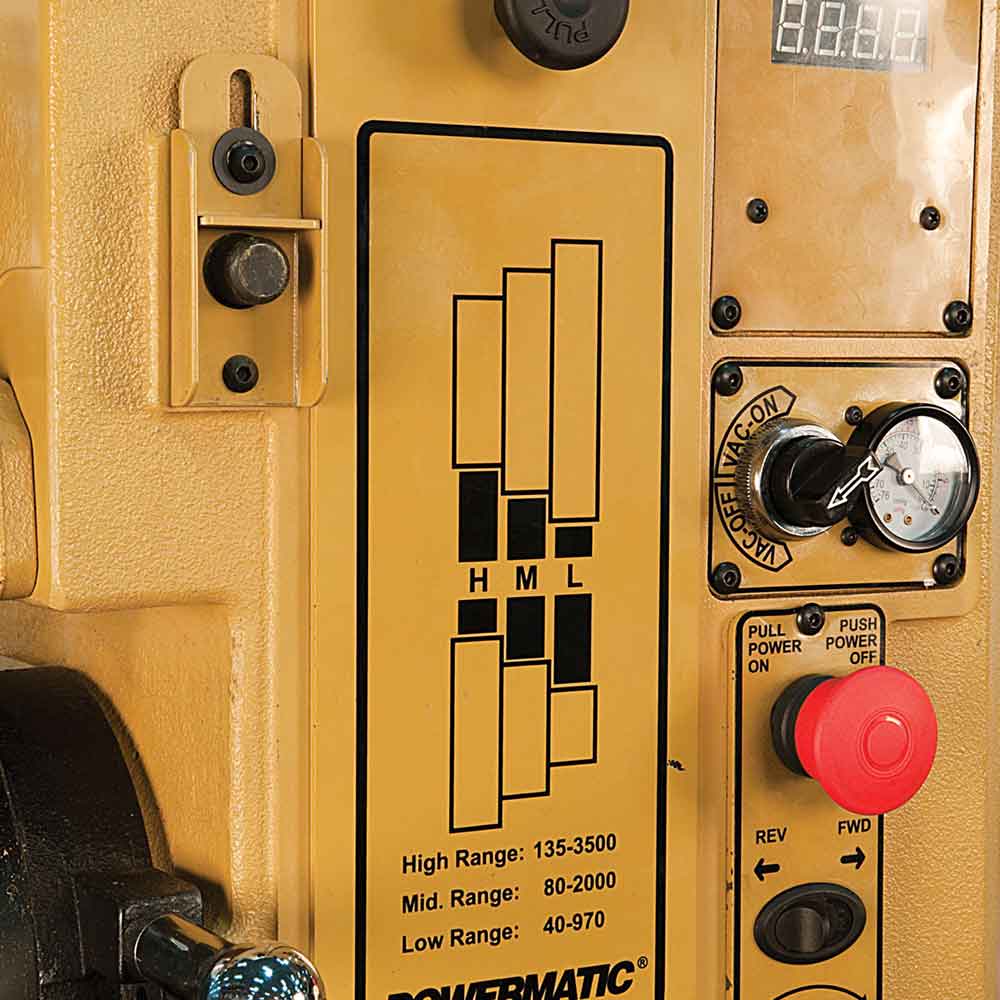

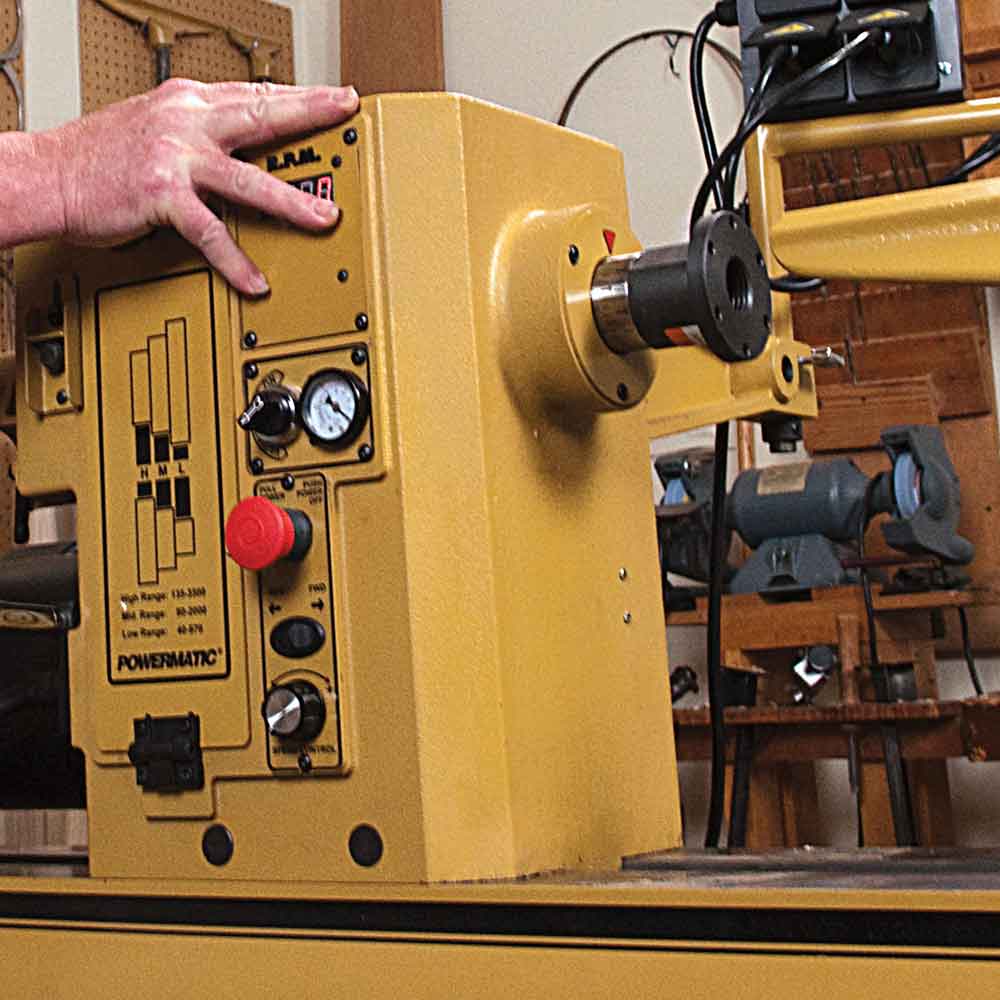

  • Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments

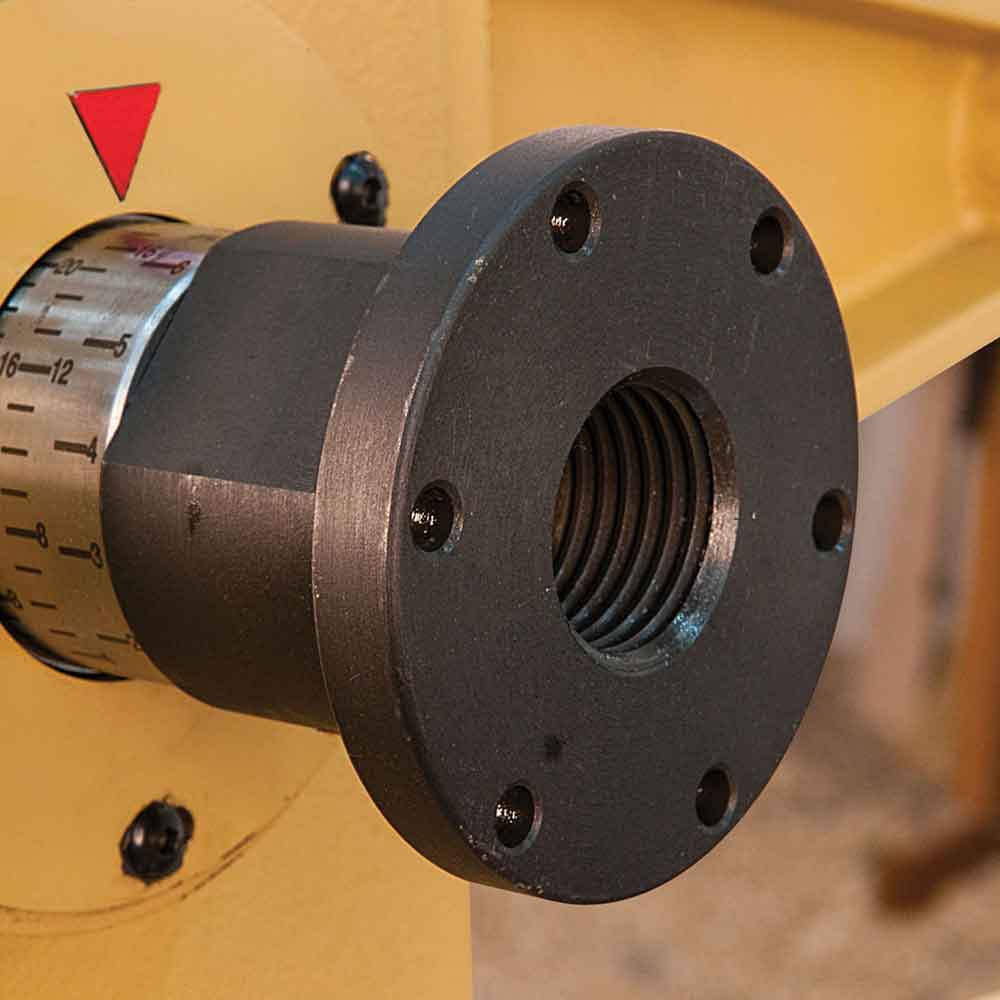

  • Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features

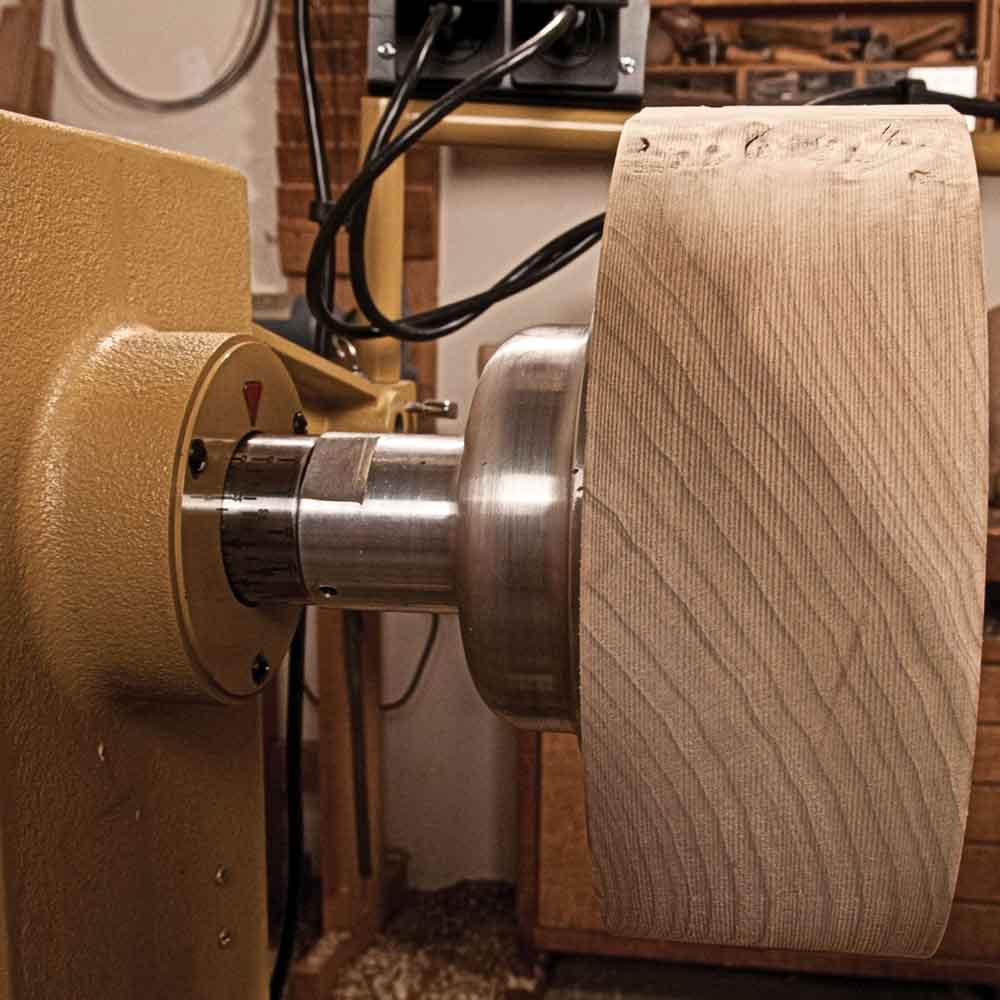

  • Vacuum system provides quick method of chucking bowl blanks
  • 15-amp quad receptacle for easy reach of powered accessories

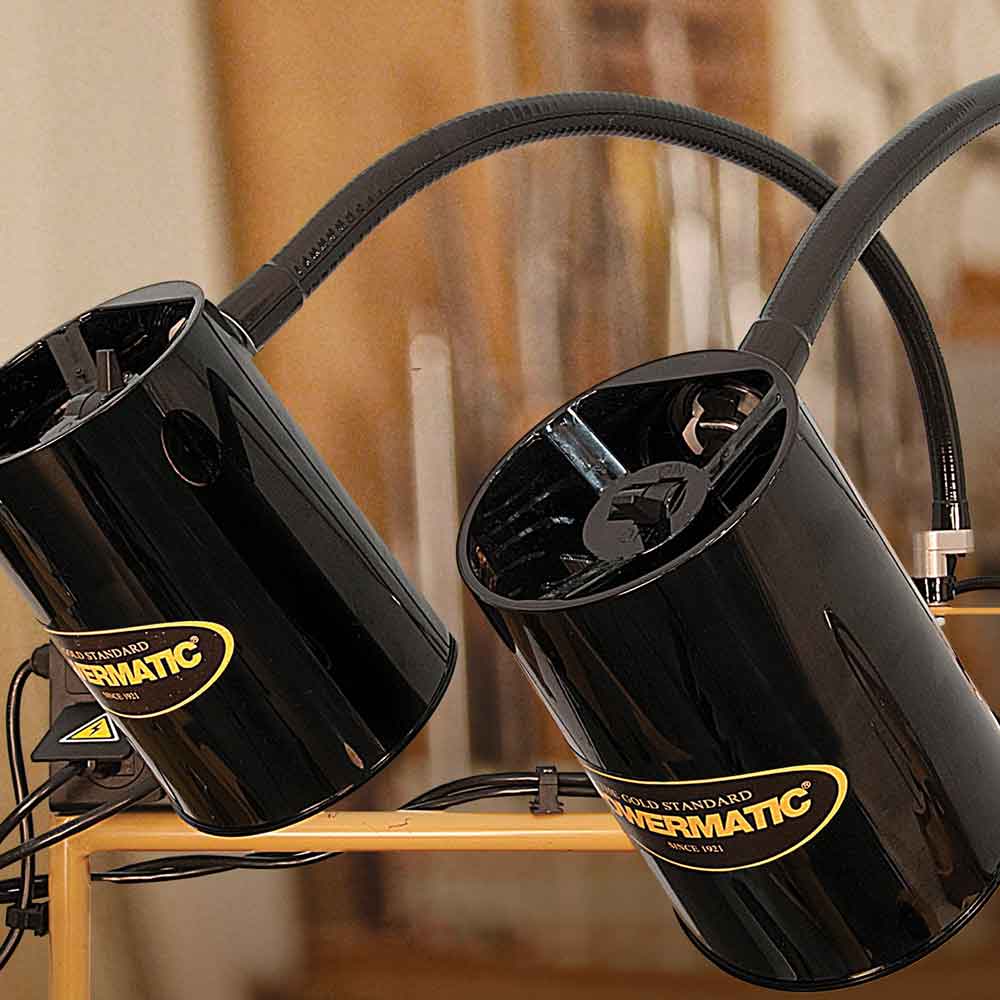

  • Two 100W task lamps provide ideal lighting
  • Air nozzle with quick connect for clearing dust/chips
  • Set of dead centers which hold a spindle for visual comparison
  • Laser etched quill is self ejecting.
  • Two position mount for the optional bed extension
  • Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
  • Attached tool caddy allows convenient access to centers, wrenches, etc.
  • Tailstock has internal storage for additional accessories
  • Chrome trimmed handwheels are ergonomic for a comfortable feel
  • Magnetic-backed remote on/off switch can be moved anywhere on the machine
  • A variable frequency drive allows this machine to run on single or three phase power
What's in The Box
  • Powermatic 4224B Lathe w/ Lamp Kit, 3HP 3PH 220V
  • Owners Manual
Warranty
  • Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
  • 90 Days - Parts; Consumable items
  • 1 Year - Motors, Machine Accessories
  • 2 Year - Woodworking Machinery used for industrial or commercial purposes
  • 5 Year - Woodworking Machinery
  • 30 Day Satisfaction Guaranteed
Specifications
Model 1794224K
UPC 731325221084
Style (Type) Leg Stand
Swing Over Bed (In.) 24
Swing Over Tool Rest Base (In.) 21
Distance Between Centers (In.) 42
Headstock Movement Full Length of Bed
Spindle Taper MT-2
Ram Travel Quill Travel 4-1/2
Spindle Threads (In. x TPI) 1-1/4" x 8 TPI
Spindle Speeds 40 - 3500
Speed Range 40 - 3,500
Number of Indexing Positions 98
Centerline of Spindle to Floor (In.) 44
Outboard Turning 88
Bed Construction Cast Iron
Motor Power (HP) 3
Motor Phase 3
Motor Voltage (V.) 220
