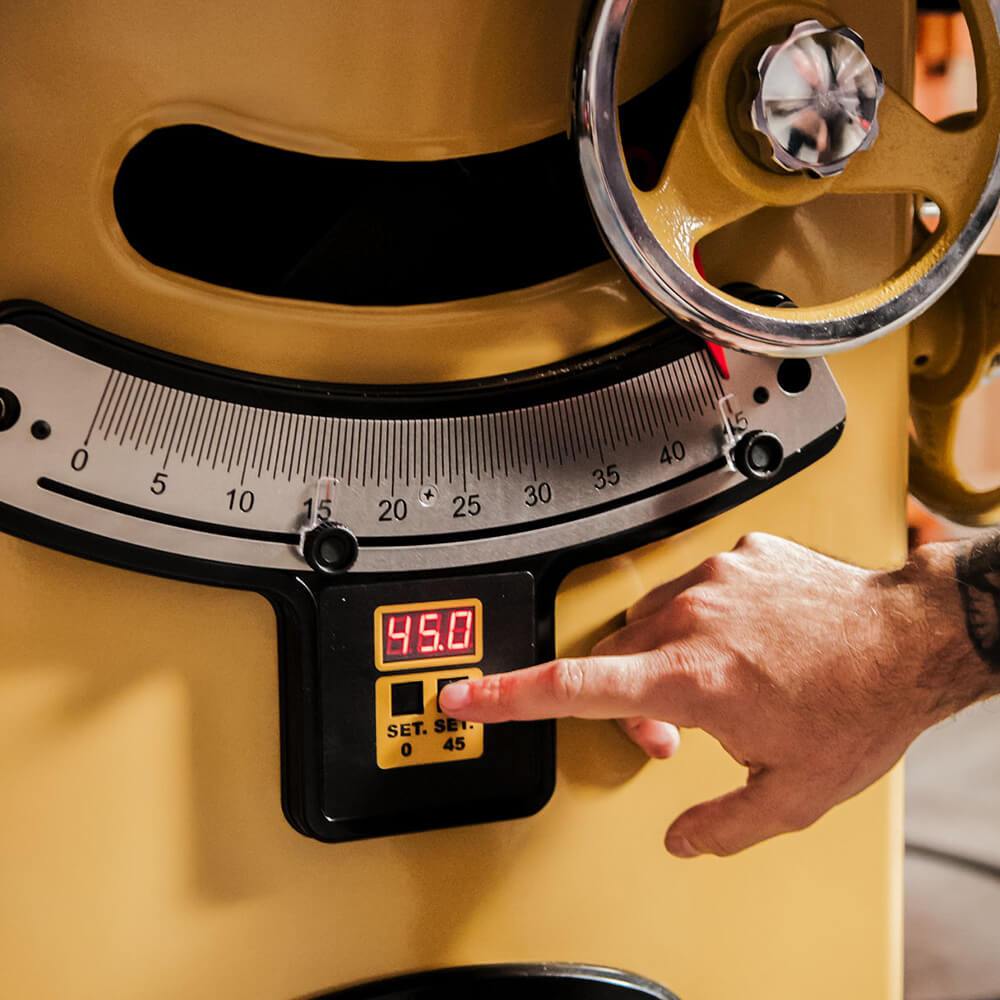

- Integrated Digital Read Out for precise bevel cuts.

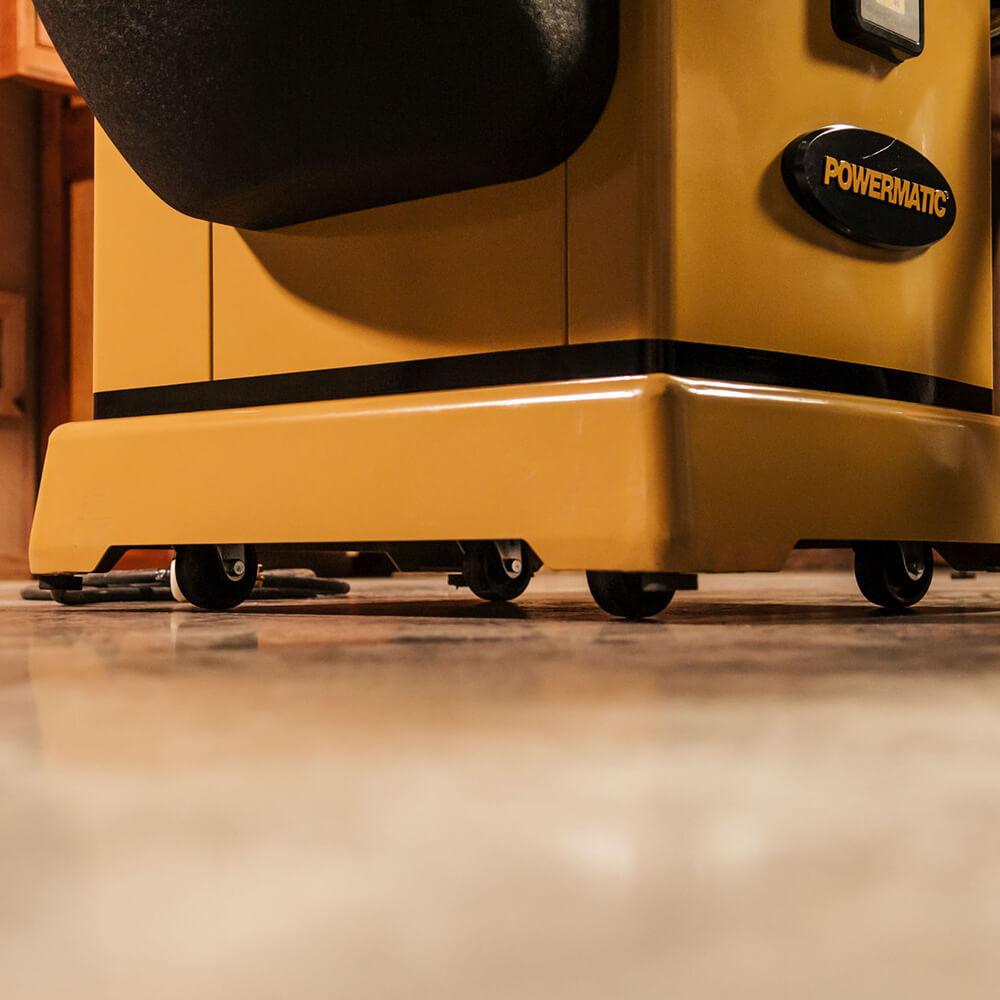

- Newly designed integrated hydraulic castor system with greater travel than previous model.
- Matching beveled edge between table and extension wings.

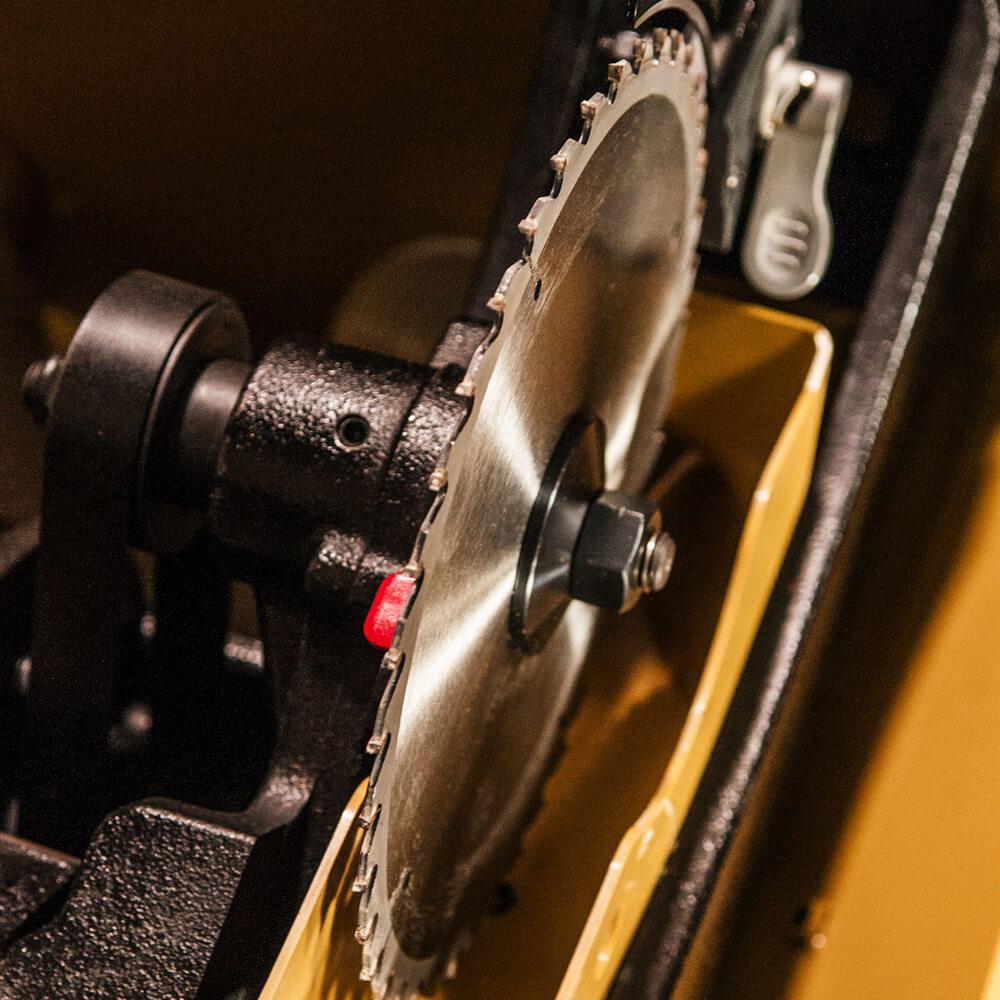

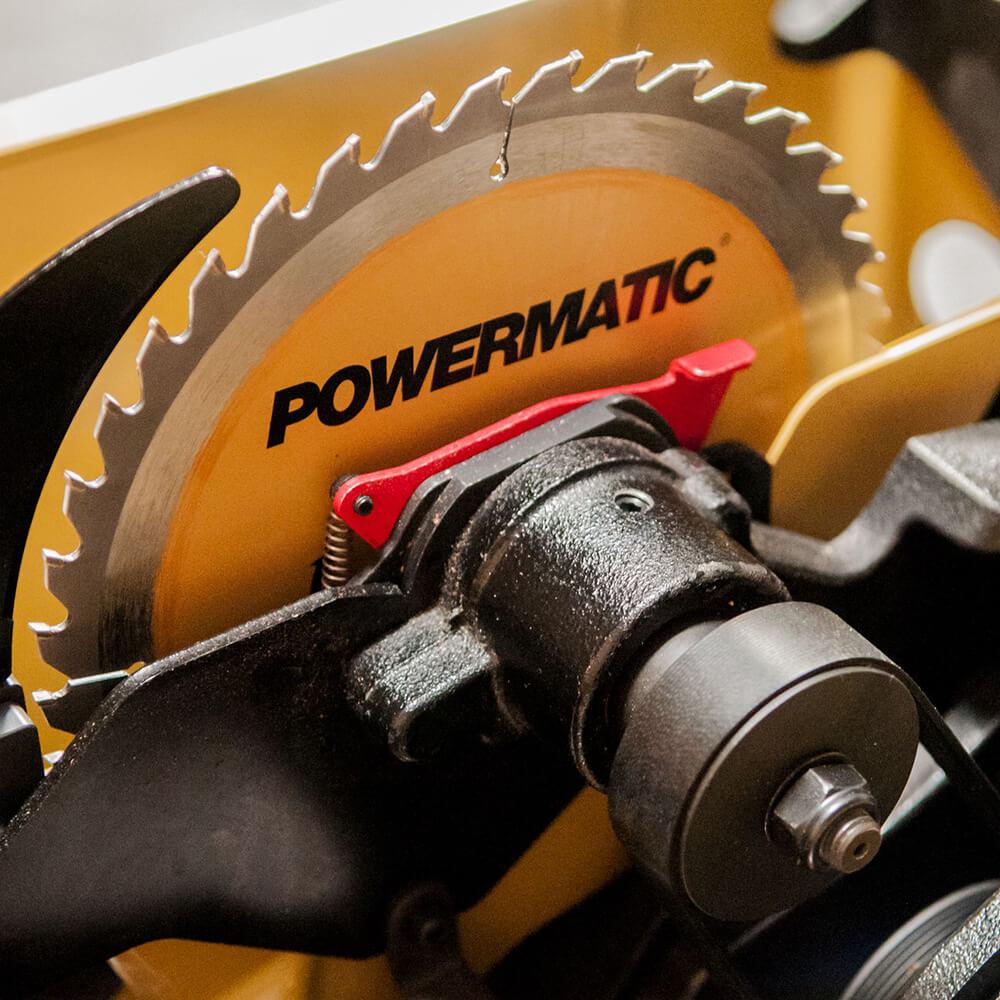

- Newly designed Arbor lock for quick and easy blade changes.

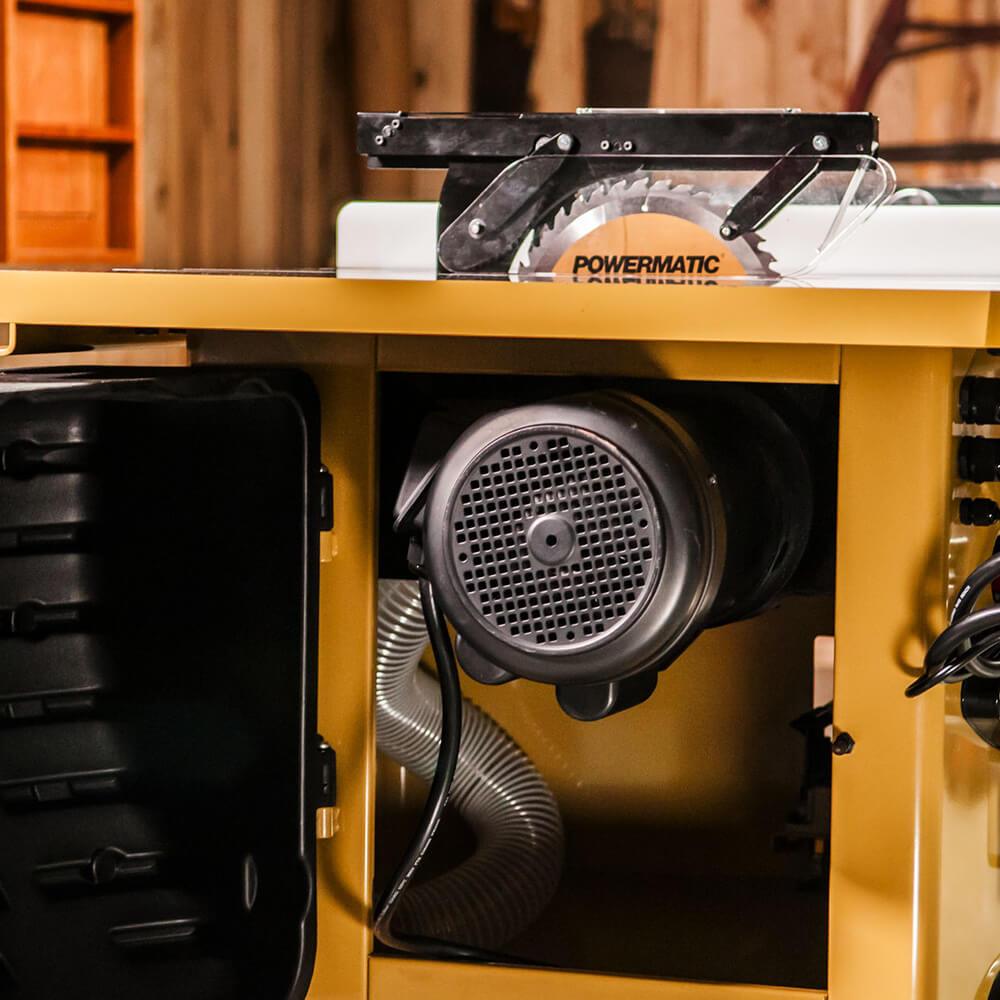

- Improved dust collection inside and outside of the cabinet.

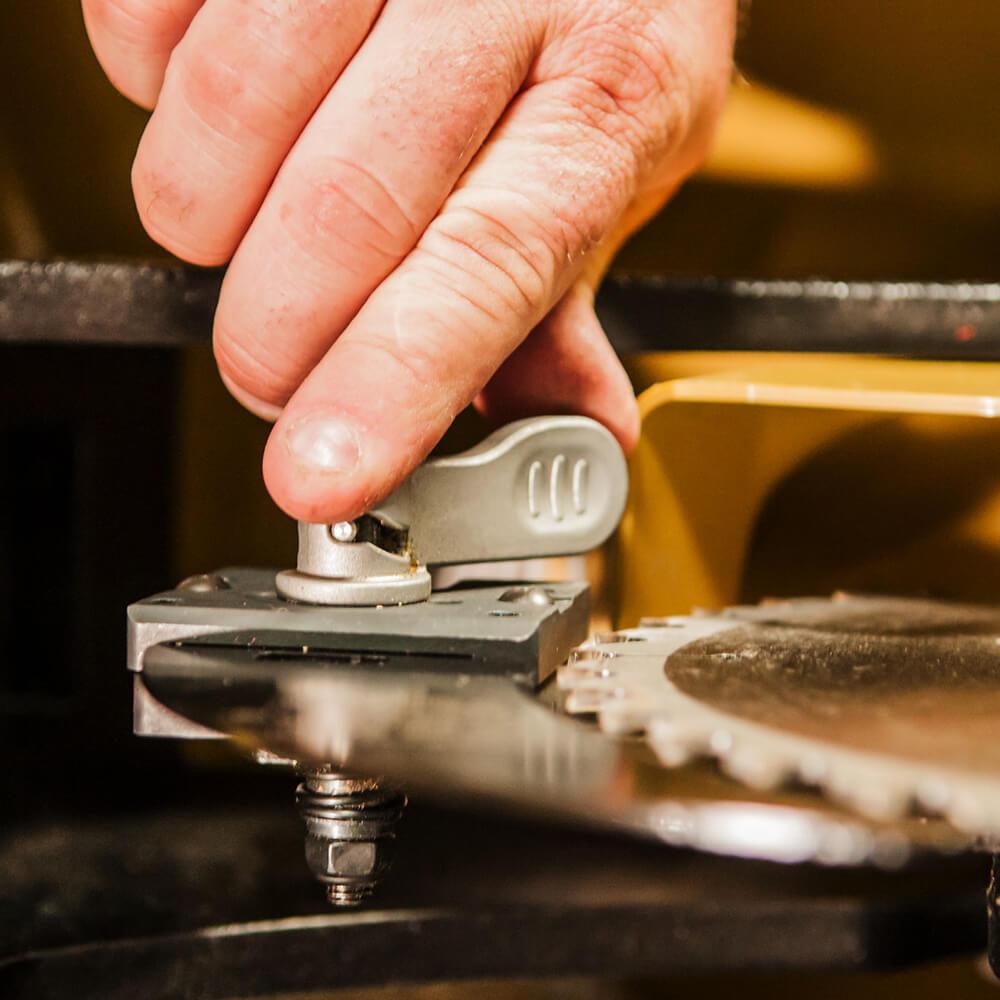

- Quick release riving knife lever for hassle free riving knife changes.
- Wider stance, box trunnion design.

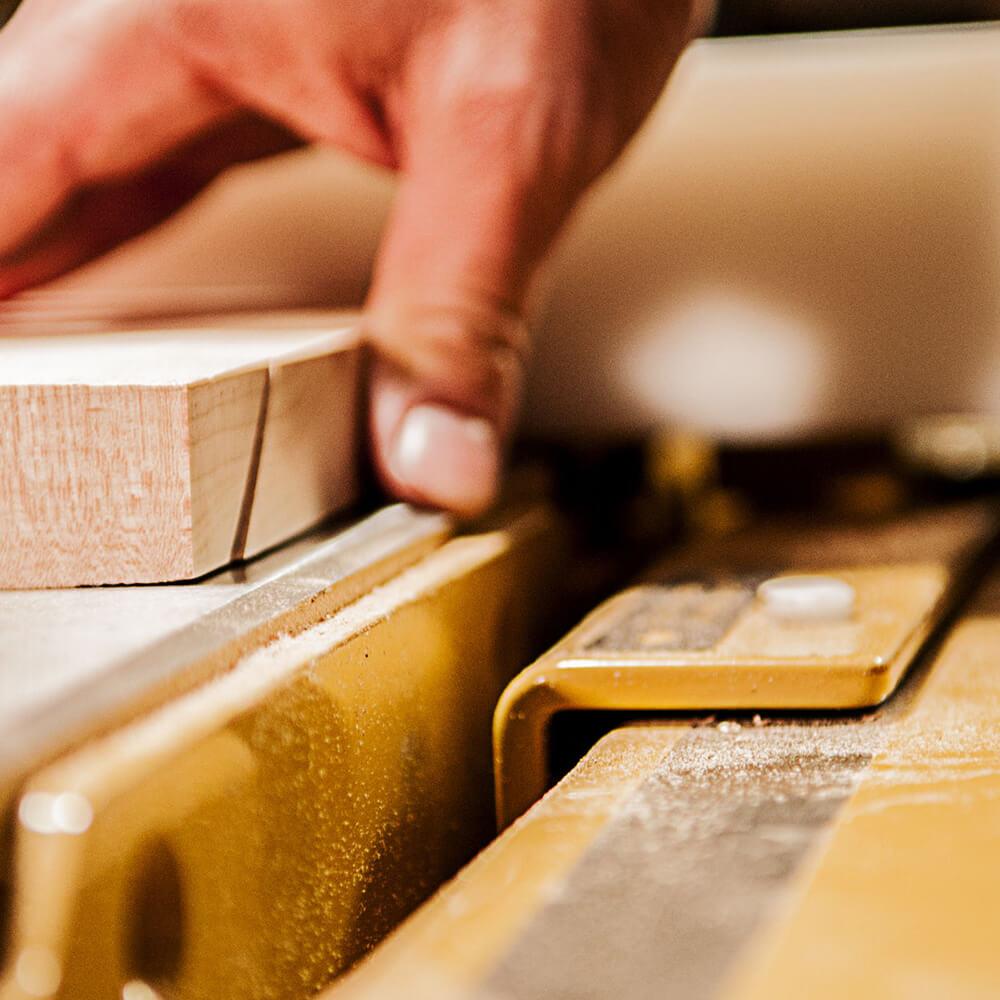

- Newly designed Accu-Fence system for precision cuts.
What's in The Box

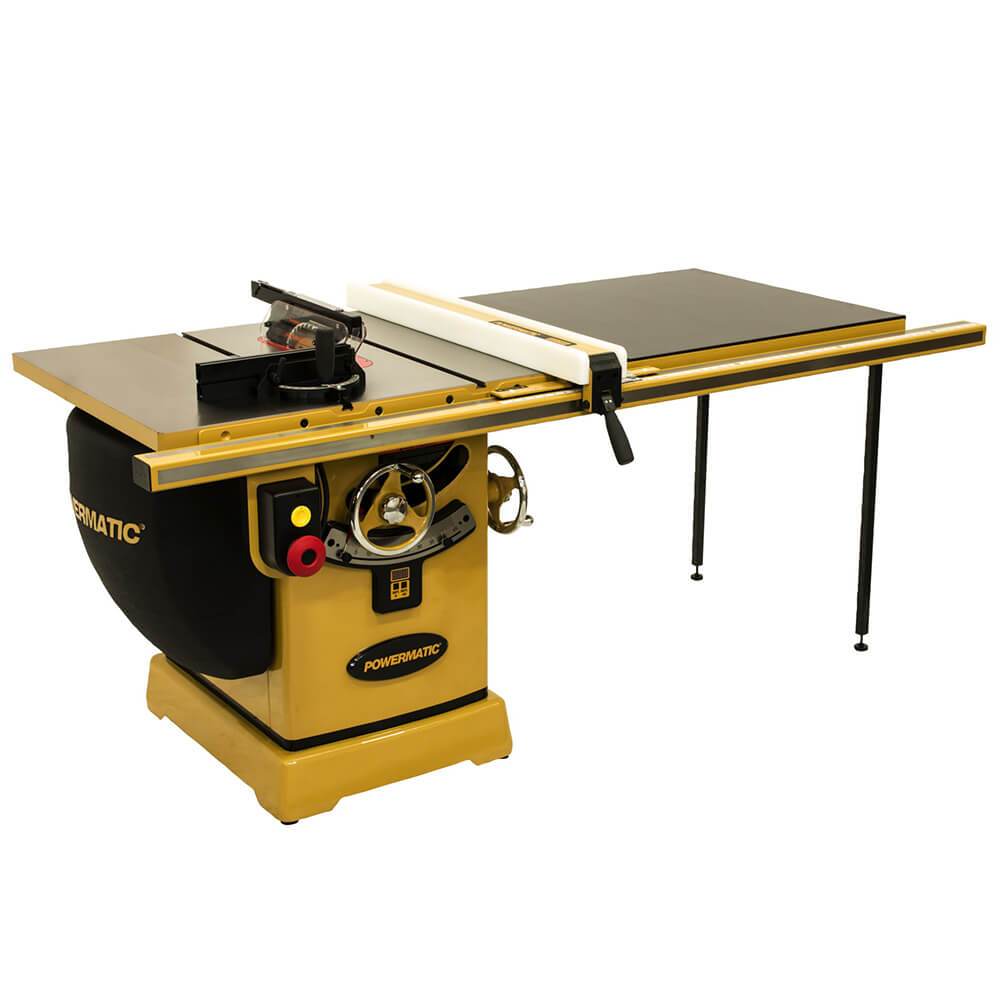

- Powermatic 230/460V 50-Inch 5 HP 3-Phase RIP Table Saw - PM25350K
- Owner's Manual
- 5-Year on Woodworking machinery
- 2-Year on Industrial or commercial woodworking machinery
- 1-Year on Motors
- 30 Day Satisfaction Guaranteed
|Motor Current (Amp)||13/6.5 Amp|
|Recommended Circuit Size (Amp)||20 Amp|
|Motor Power (HP)||5 HP|
|Dust Collection (Cfm)||400 Cfm|
|Dust Port Outside Diameter (In.)||4 In.|
|Blade Diameter (In.)||10 In.|
|Arbor Diameter (In.)||5/8 In.|
|Arbor Speed (Rpm)||4500 Rpm|
|Maximum Depth of Cut at 90 Degrees (In.)||3-1/8 In.|
|Maximum Depth of Cut at 45 Degrees (In.)||2-1/8 In.|
|Maximum Diameter of Dado (In.)||8 In.|
|Maximum Width of Dado (In.)||13/16 In.|
|Table in Front of Saw Blade at Maximum Depth of Cut (In.)||11-1/4 In.|
|Maximum Rip Right of Blade (In.)||50 In.|
|Maximum Rip Left of Blade (In.)||13-1/2 In.|
|Table Type||Cast Iron|
|Table Height from Floor (In.)||35 In.|
|Table Size (In.)||22 x 30-1/2 In.|
|Table Size with Extensions (In.)||42 x 30-1/2 In.|
|Table T-Slot (In.)||3/4 x 3/8 In.|
|Shipping Weight (lbs)||718 lbs|
