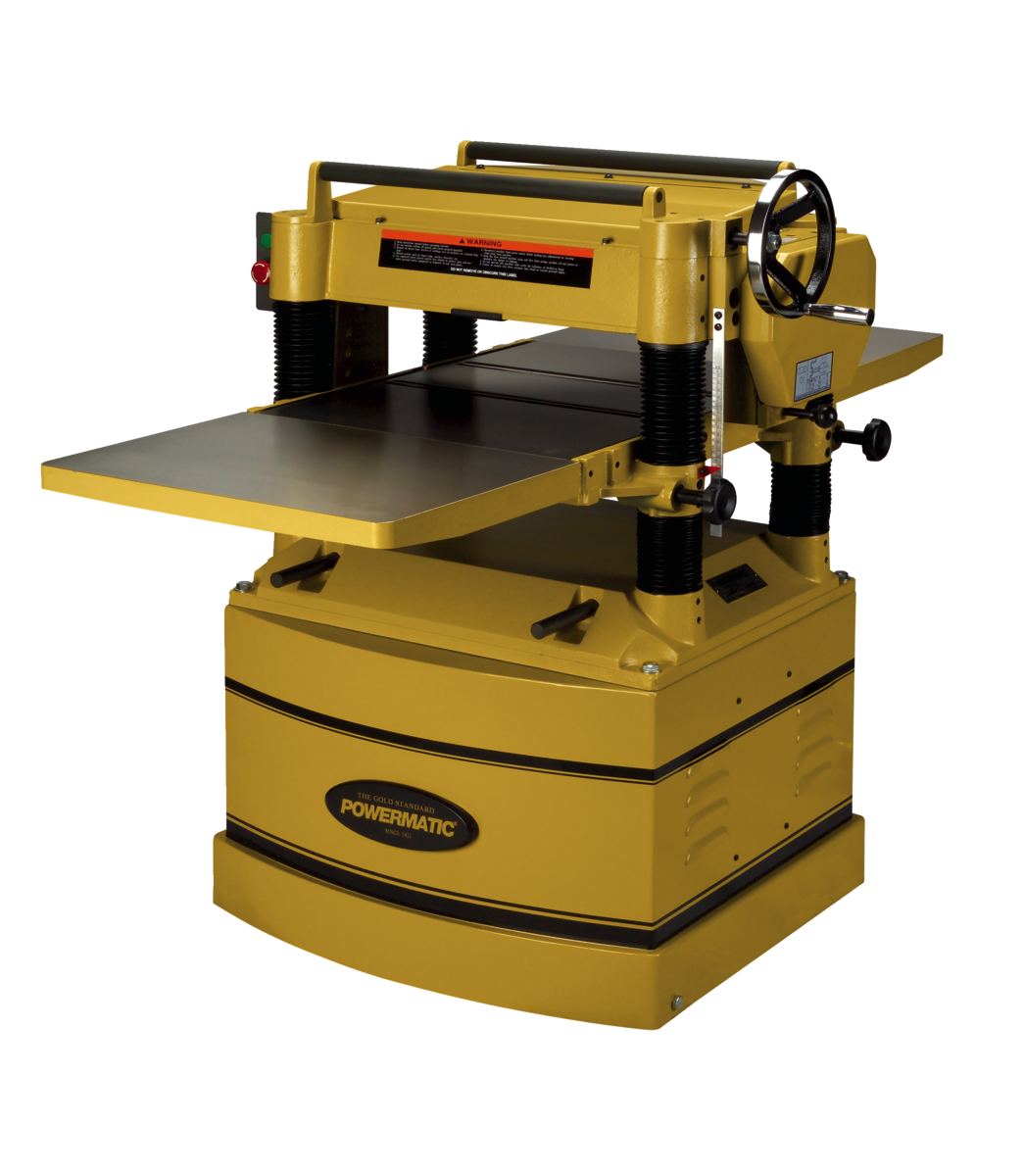

Powermatic PM9-1791316-4 5HP 3PH 460V 20" 209HH Planer Helical Cutterhead

by Powermatic
$6,270.20 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: PWC-1791316-4

Features
  • Cast iron head
  • Cast iron table with extensions creates a big 55-1/2" x 20" working area
  • Chip breaker and pressure bar assists to reduce snipe
  • Chrome-plated, ergonomic handwheel makes adjustments smooth and easy
  • Feed rollers and cutterhead supported by full cast iron head assembly
  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
  • Fully enclosed base cabinet with integrated casters for shop mobility
  • Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8" maximum depth of cut and trouble-free operation

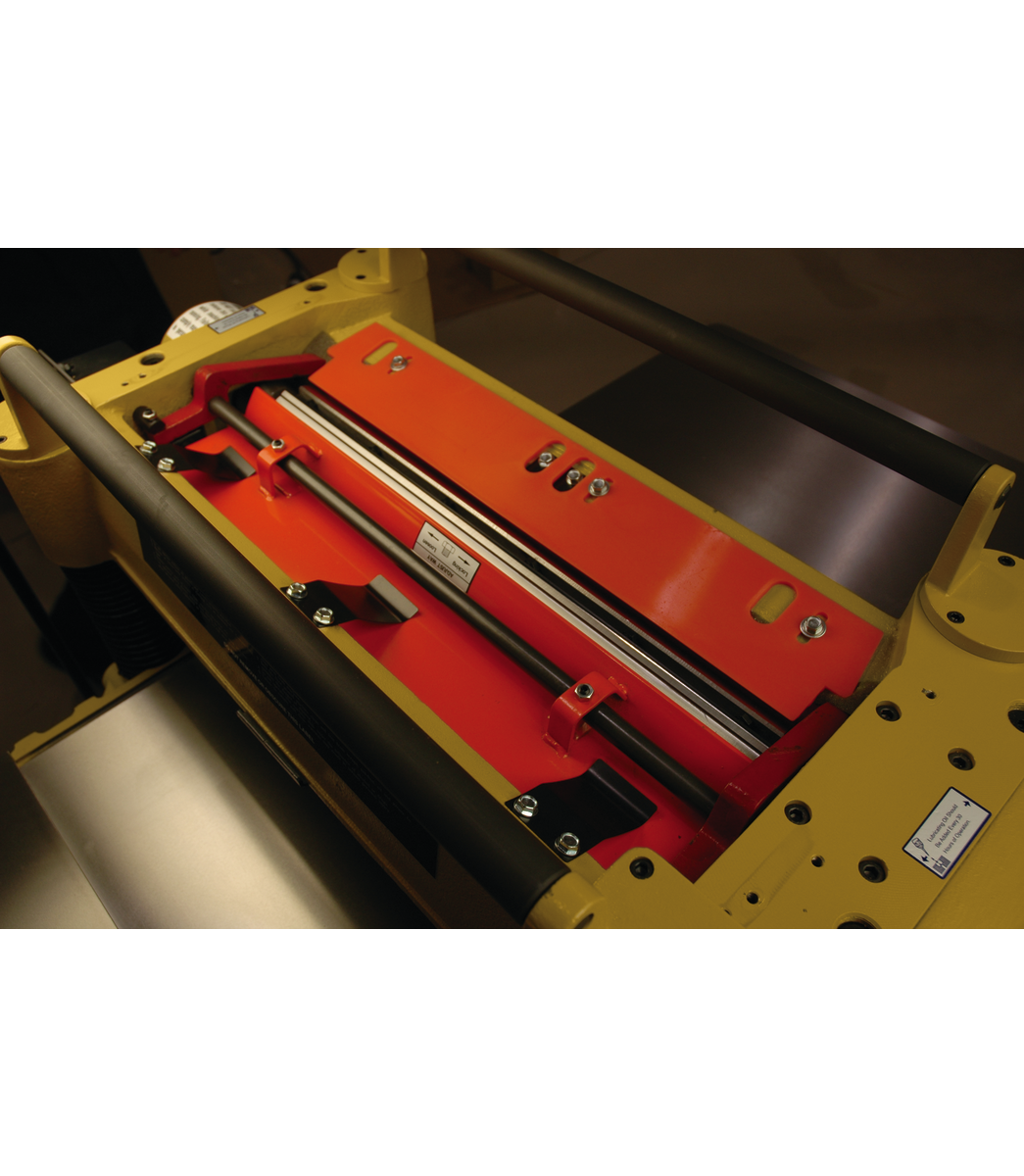

  • The helical cutterhead with 100 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
  • The helical cutterhead with 100 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
What's in The Box
  • (1) 209HH, 20-Inch Planer, Helical Cutterhead, 5 HP, 3Ph 230/460V
  • Owner's Manual
Warranty
  • 5 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU PM9-1791316-4
Brand Powermatic
Cuts Per Minute 20,000
Cutterhead Diameter (In.) 3-3/16
Cutterhead Speed (RPM) 5000.0000
Dust Collection Minimum CFM Required (CFM) 900
Dust Port Outside Diameter (In.) 5
Feed Rate (FPM) 24/31
Maximum Depth of Cut (In.) 3/32
Maximum Full Width Depth of Cut (In.) 3/32
Maximum Planing Thickness (In.) 8
Maximum Planing Width (In.) 20
Minimum Planing Length (In.) 6-3/4
Model Number 209HH
Motor Phase 3
Motor Power (HP) 5
Motor Voltage (V.) 230/460
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Style (Type) Floor
Table Size (L x W) (In.) 25-3/4 x 20
Table Support 4 Column
Type of Cutterhead HELICAL
Warranty 5 Year
Gross Weight 840.0
Net Weight 800.0
