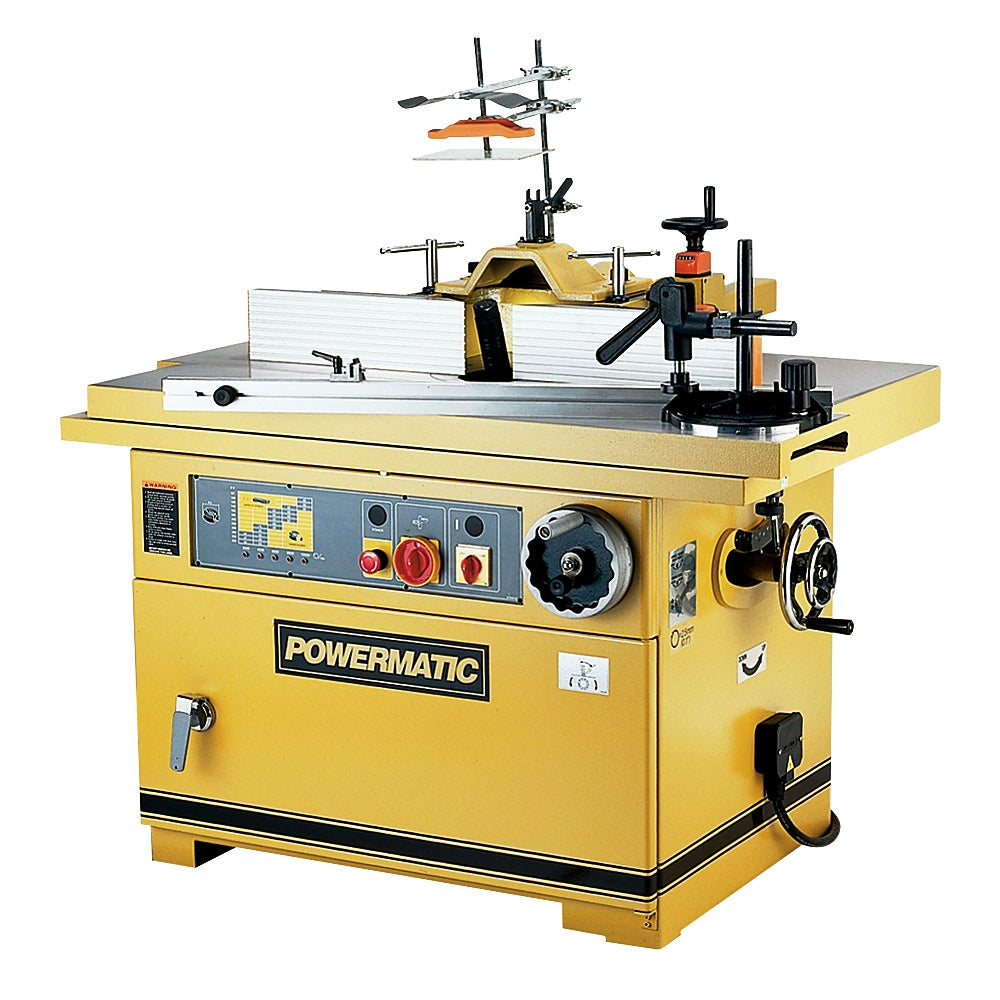

Powermatic TS29 7-1/2" 230/460V Heavy Duty Tilt/Slide Shaper w/ Sliding Table

Name: Powermatic TS29 7-1/2" 230/460V Heavy Duty Tilt/Slide Shaper w/ Sliding Table
Brand: Powermatic
Price: 12499.99 USD
Availability: OutOfStock

See all Powermatic

Sold Out Free

Condition: New

SKU: PWC-1791284

Product Details
Customer Reviews
Shipping & Return Policies

Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
Frequently Viewed Together
Similar Products

Features

Sliding table with 4-foot stroke works with miter head, hold-down and fence to accommodate everything from multiple end cuts to tenons

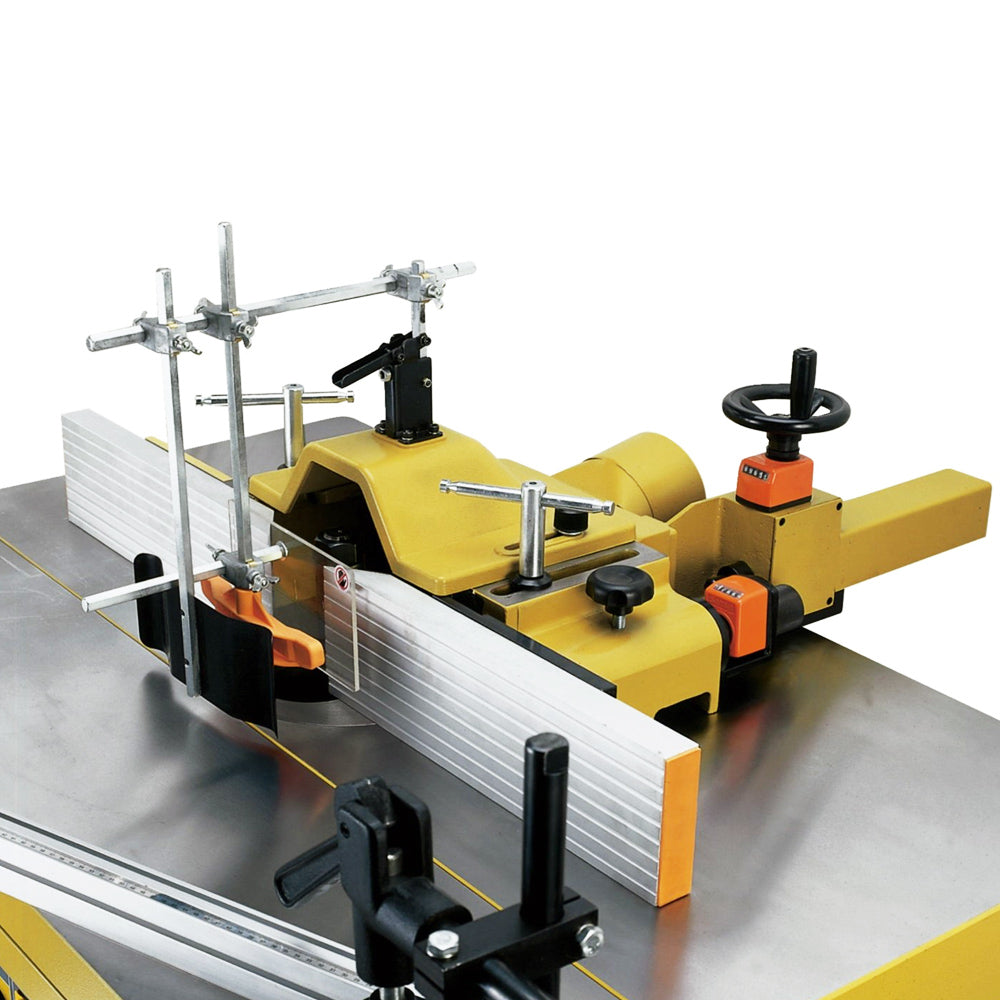

Fully adjustable fence with dual digital readout for fast, accurate set-up and repeatability
Large table with built-in slider with room for stock feeder
7" vertical spindle travel allows stacked tooling
Spindle tilts negative 5° to positive 45° for increased versatility
Large diameter multiple table inserts accommodate virtually any size cutter

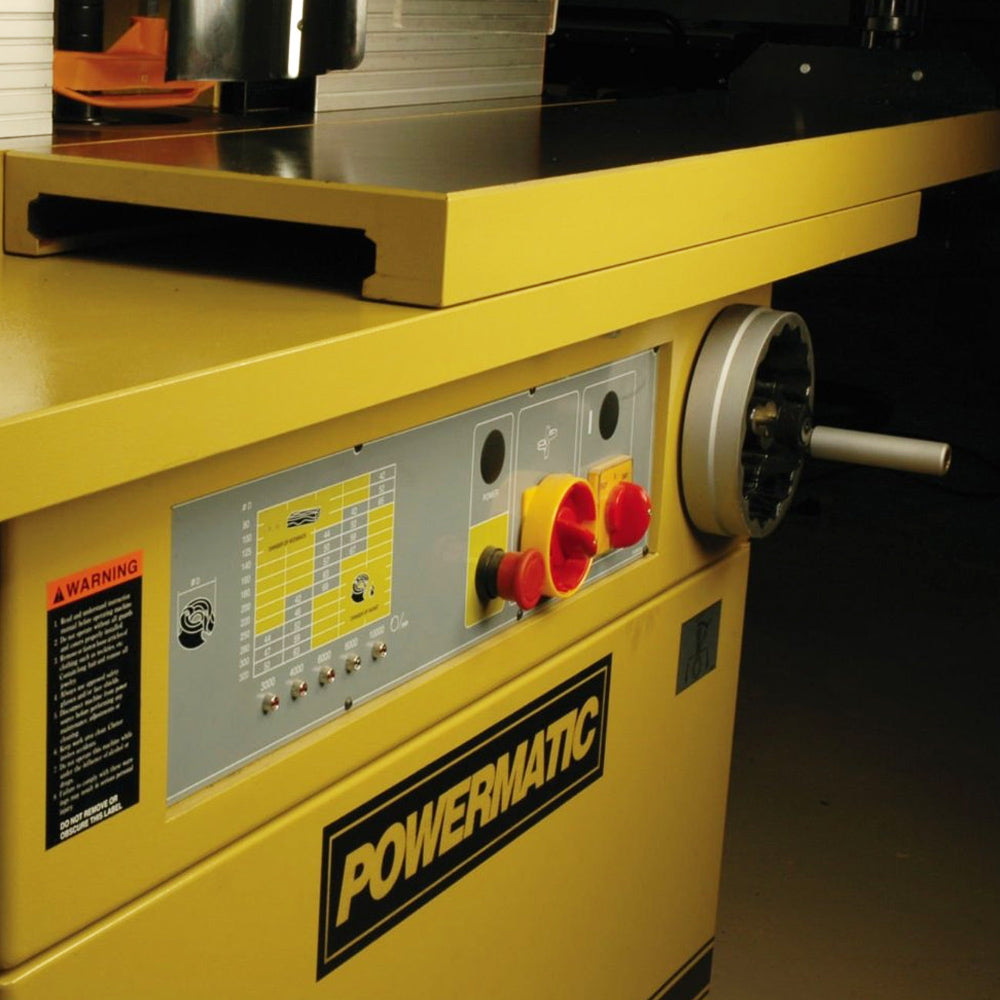

Five spindle speeds in forward and reverse with lighted indicator

What's in The Box

Powermatic TS29 Shaper, 7.5HP 3PH 230/460V, Sliding Table
Owner's Manual

Warranty

Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
90 Days - Parts; Consumable items
1 Year - Motors, Machine Accessories
2 Year - Woodworking Machinery used for industrial or commercial purposes
5 Year - Woodworking Machinery

Specifications

Model	1791284
UPC	662755464232
Style (Type)	Shaper
Spindle Speed (RPM)	3,000, 4,000, 6,000, 8,000, 10,000
Maximum Spindle Diameter (In.)	1-1/4
Spindle Size Under Nut (In.)	3/4 (3-1/2), 1 (6-1/4), 1-1/4 (6-1/4)
Spindle Travel (In.)	7
Spindle Tilt (Deg.)	45 Forward, 5 Back
Reversible	Yes
Router Bit Collet Included	1/4, 1/2
Maximum Diameter Cutter Above Table (In.)	12
Maximum Diameter Cutter Below Table (In.)	9
Table Inserts (In.)	3: One Tilting, Two Straight
Table Size (In.)	51-1/2 x 33-1/2
Table Travel (In.)	49-1/4
Sliding Table Size (In.)	11-1/4 x 51-1/4
Fence Size (L x H) (In.)	46 x 5
Fence Travel (Major and Minor) (In.)	5-3/8, 3-5/8
Dust Port Outside Diameter (In.)	5
Dust Collection Minimum CFM Required (CFM)	800
Electrical Controls	Yes
Motor Power (HP)	7-1/2
Motor Phase	3
Motor Voltage (V.)	230, 460
Prewired Voltage (V.)	230
