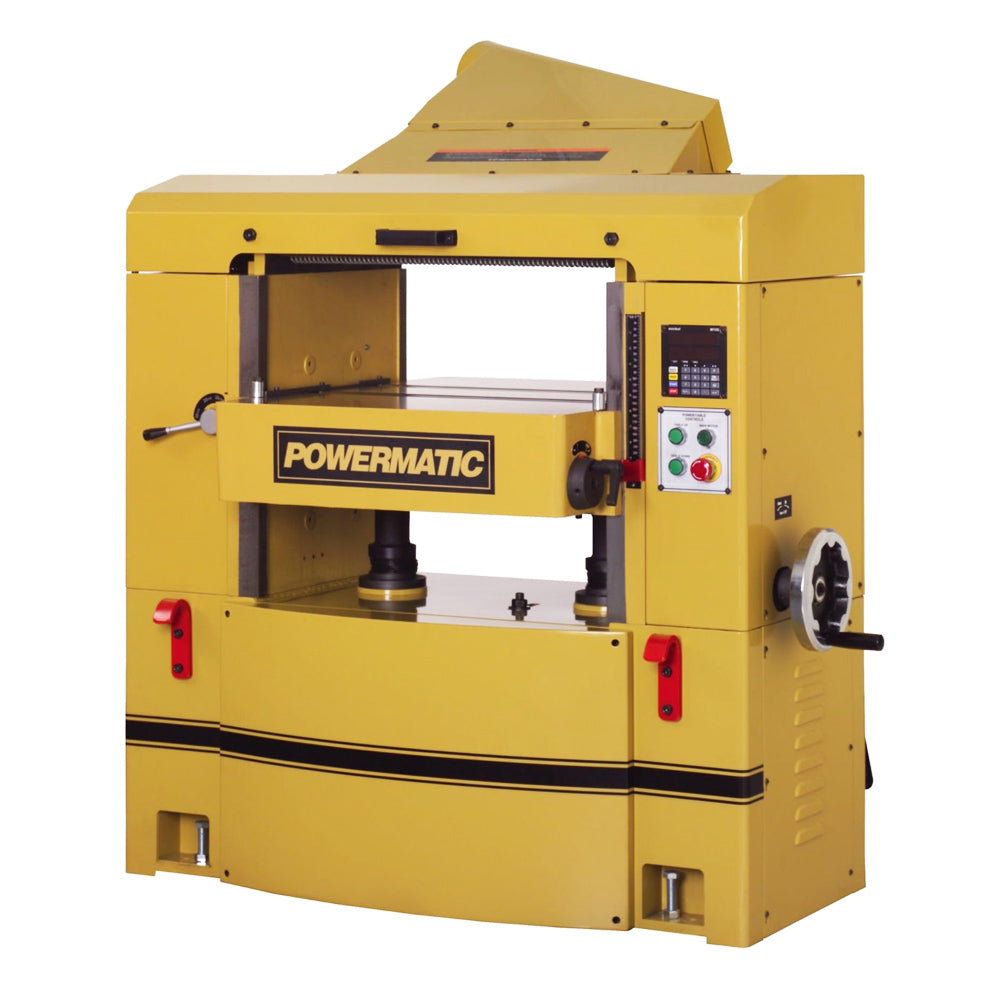

Powermatic WP2510 15-Hp 230/460V 25" Planer w/ Solid Steel Helical Cutterhead

by Powermatic
$18,499.99 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: PWC-1791303

Features

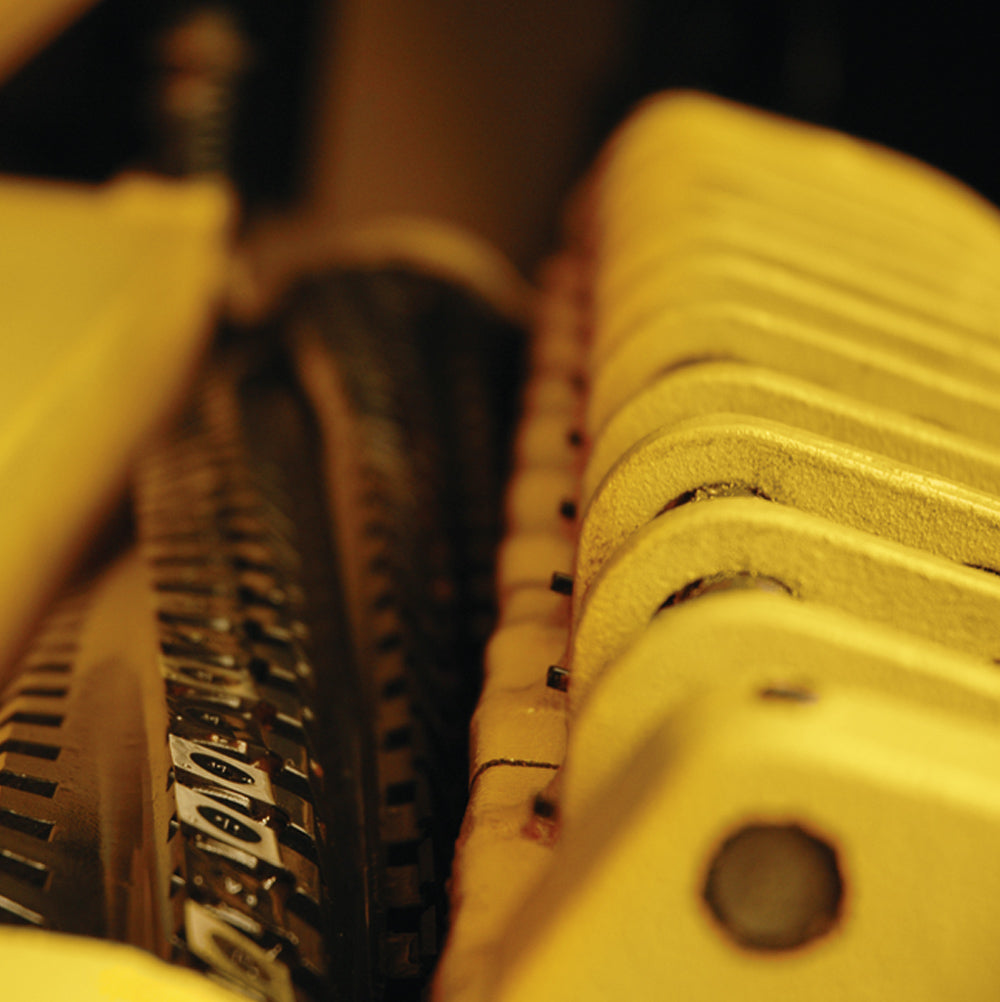

  • Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels
  • Digital readout and simple PC controller make quick and easy table height set ups

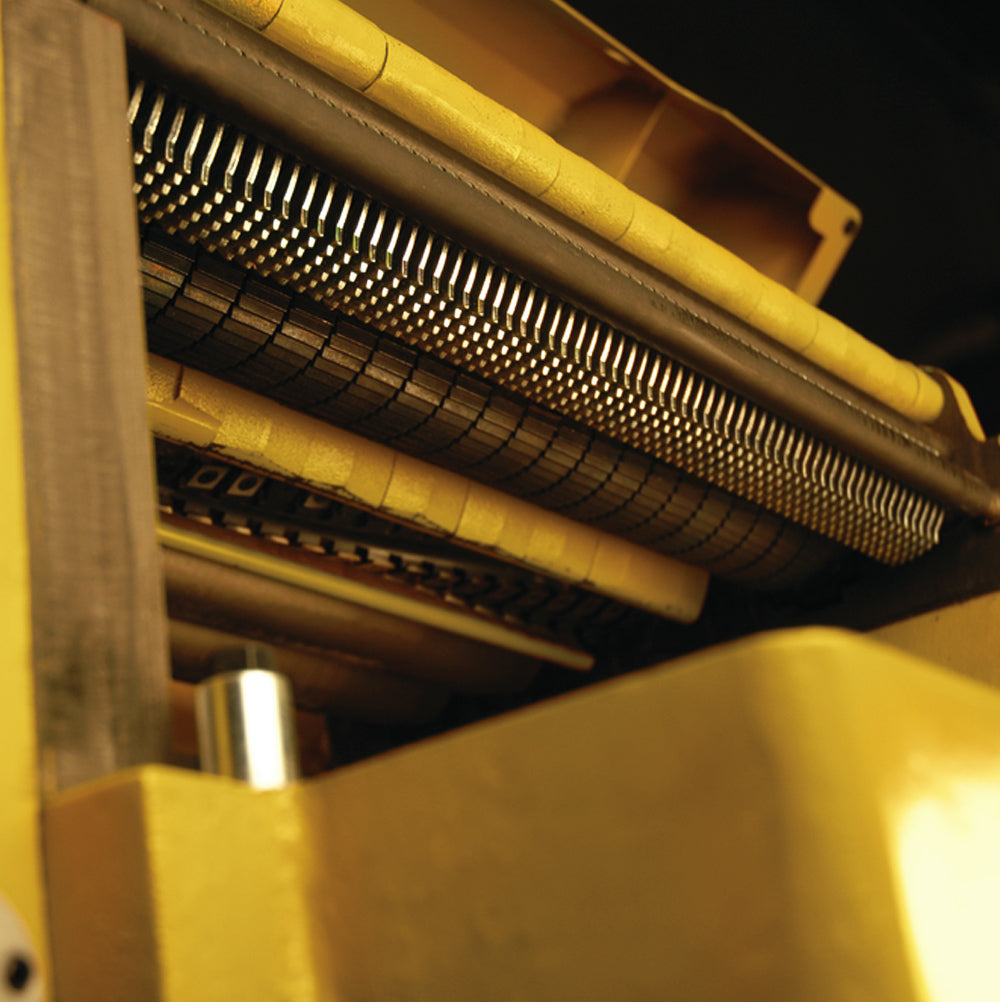

  • Segmented serrated infeed roll with segmented chip breakers has 1/4" independent yield, for planing multiple height stock

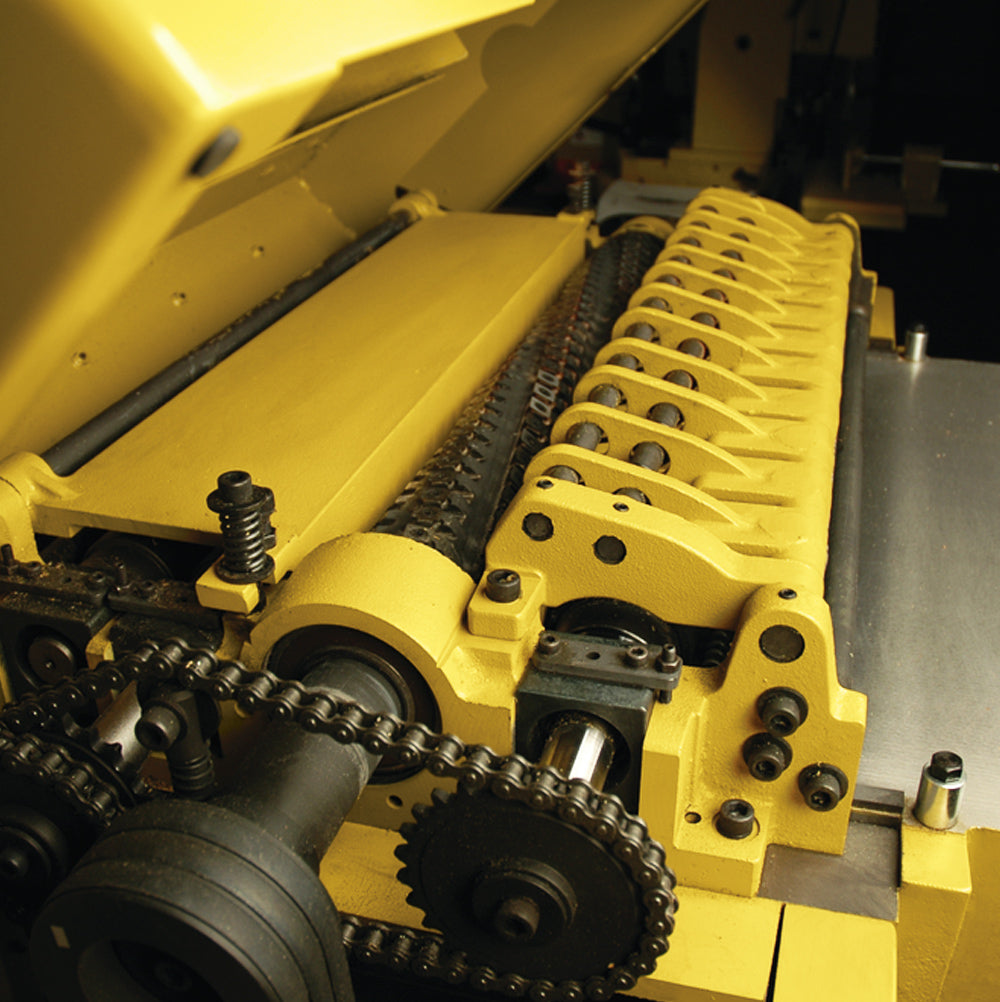

  • Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers
  • 3" diameter infeed and outfeed rollers are supported by four large, sealed, needle bearings for long life
  • Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch
  • Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment
  • Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding
  • 3 speed feed selector allows you to quickly change feed rates
  • Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock
What's in The Box
  • Powermatic WP2510, 25" Planer, 15HP 3PH 230/460V Helical Head
  • Helical head with four sided inserts
  • Segmented infeed rollers
  • Segmented chip breakers
  • Tool kit with pneumatic screwdriver for removing the cutterhead insert blades
  • Owner's Manual
Warranty
  • Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
  • 90 Days - Parts; Consumable items
  • 1 Year - Motors, Machine Accessories
  • 2 Year - Woodworking Machinery used for industrial or commercial purposes
  • 5 Year - Woodworking Machinery
Specifications
Model 1791303
UPC 662755523427
Style (Type) Planer
Cutterhead Speed (RPM) 5,000
Cutterhead Diameter (In.) 3-3/8
Cuts Per Minute 30,000
Number of Knives 174 Four-Sided Inserts
Maximum Depth of Cut (In.) 1/4
Maximum Full Width Depth of Cut (In.) 1/8
Maximum Planing Width (In.) 25
Maximum Planing Thickness (In.) 9-1/4
Minimum Planing Length (In.) 10
Feed Rate (FPM) 20, 25, 30
Segmented Infeed Roller Diameter (In.) 3
Outfeed Roller Diameter (In.) 3
Bed Rollers Adjustable from Front 0 - 0.05
Maximum Height of Rollers Parallel to Tabletop (In.) 0.05
Table Size (L x W) (In.) 32-3/16 x 26
Table Support 2 Column
Column Diameter (In.) 2-1/2
Digital Readout Inch / Metric
Dust Collection Minimum CFM Required (CFM) 600
Dust Port Outside Diameter (In.) 5
Motor Power (HP) 15
Motor Phase 3
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
