Reliance R306A 120/240-Volt 30-Amp 6-Circuit Pro/Tran Outdoor Transfer Switch

See all Reliance

Notify me when this product is available:


Condition: New

SKU: R306A


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features

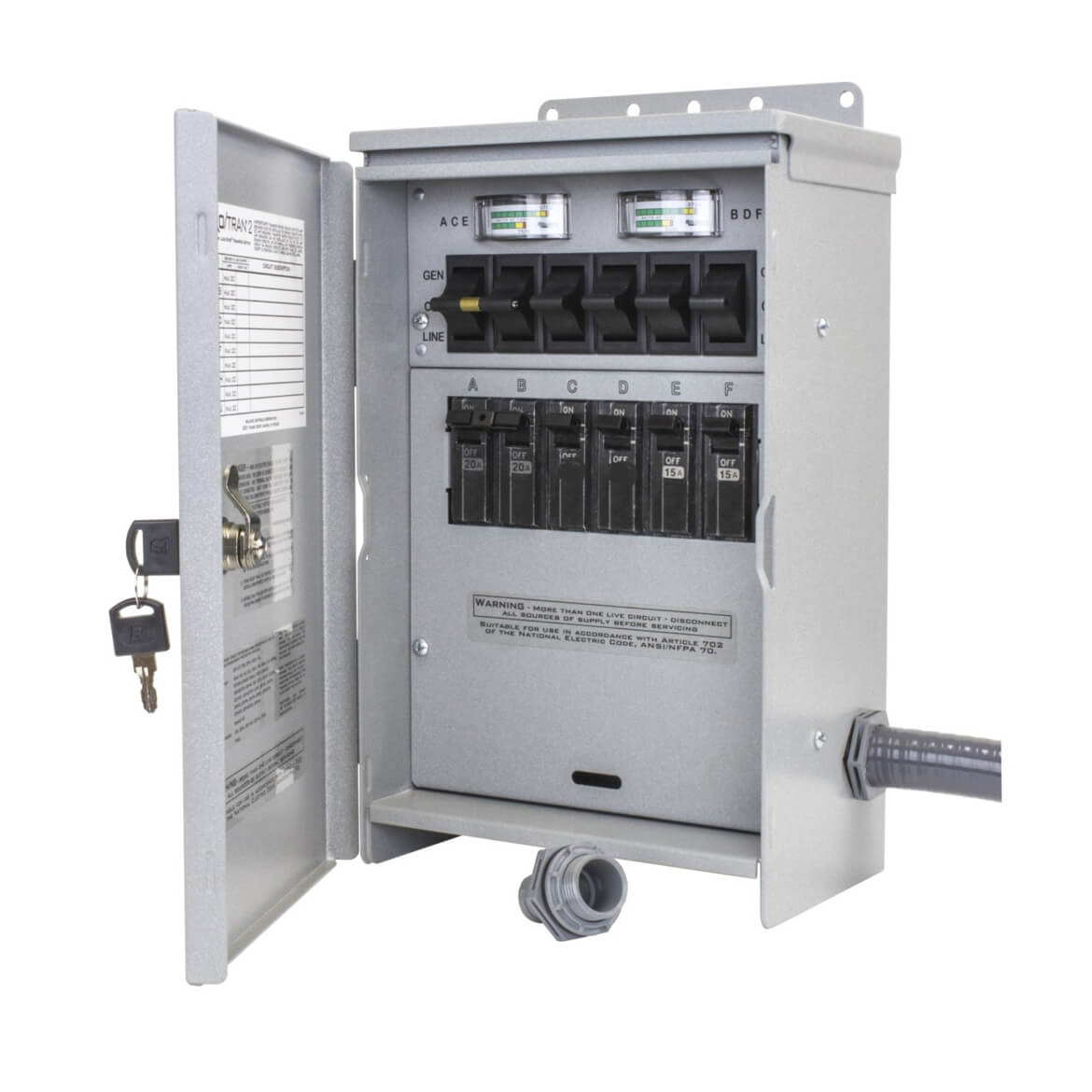

  • Pro/Tran 2 30A 6-Circuit 120/240V Outdoor Manual Transfer Switch
  • The next generation of Loadside manual transfer switches
  • Non-Defeatable (Break-Before-Make) Double-Throw Switch
  • Eliminates dangerous backfeeds and electrical overloads
  • (4) 15A 1-Pole and (1) 20A 2-Pole; Easily re-configured in the field
  • Color-Coded Built-In Wattage Meters
  • Helps you balance and manager generator load

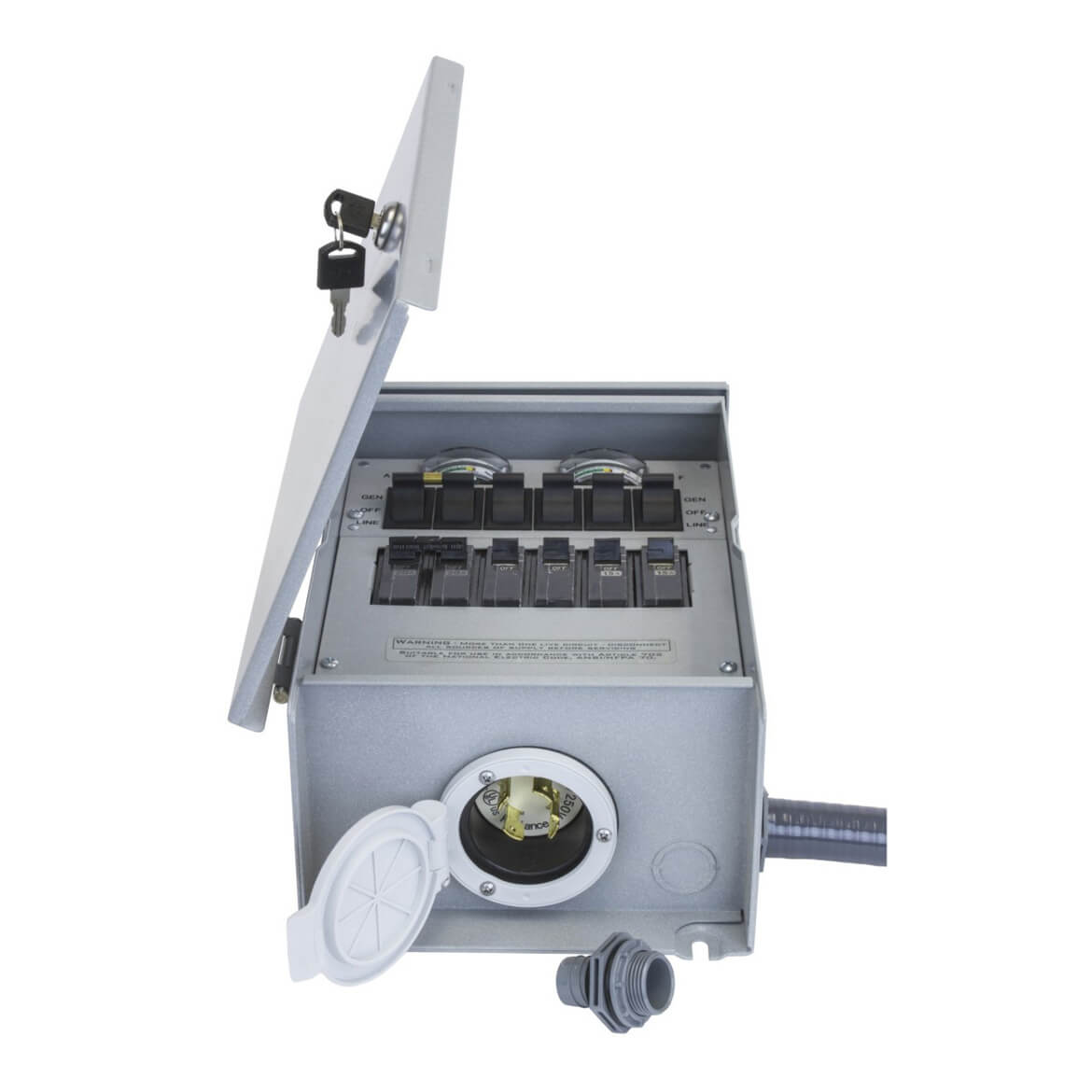

  • Factory Installed (L14-30) Power Inlet w/ Flip-Lid
  • Easily connect your generator cord on bottom of switch

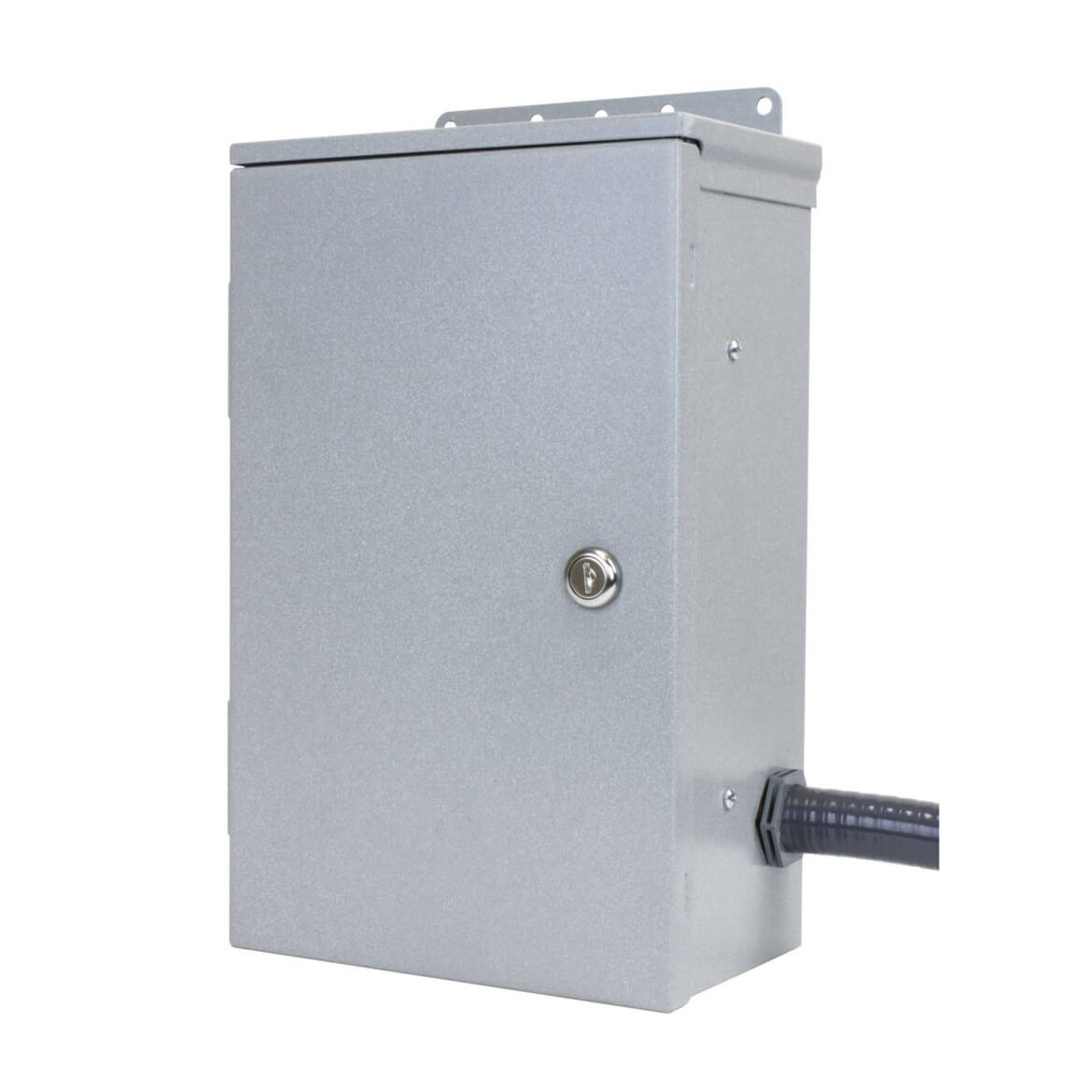

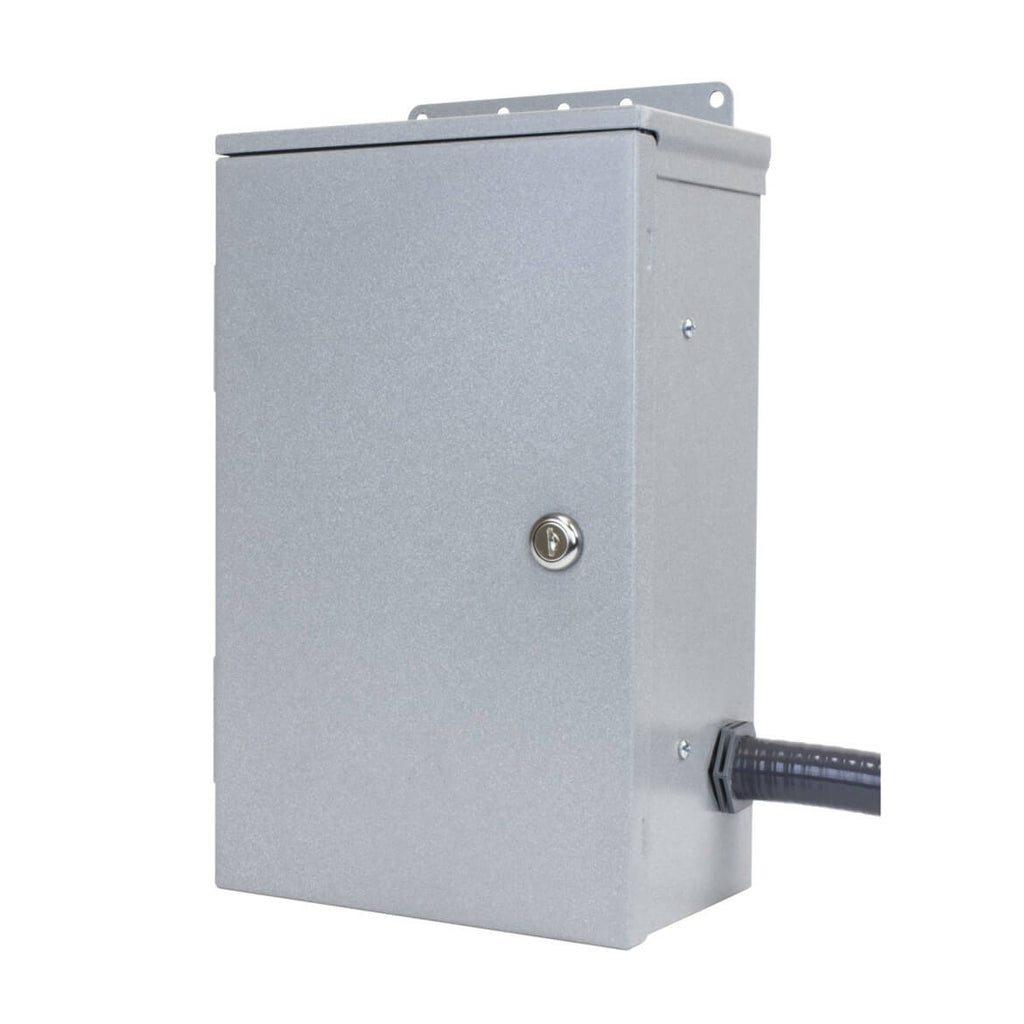

  • NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
  • Gasketd design, provides liquid tight protection in all seasons
  • Key lockable door prevents tampering and unauthorized use
  • 16 Flexible, Non-Metalic Liquid-Tight Conduit (1) w/ Fittings
  • (5) Combination 1/2 and 3/4 knockouts for easier installation
  • Factor-marked, color-coded wires simplifies installation
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
What's in The Box
  • 120/240-Volt 30-Amp 6-Circuit Outdoor Transfer Switch - R306A
  • Owner's Manual
Warranty
  • 5-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Model R306A
Brand Reliance
Voltage 120/240
Max. Generator Running Watts 7,500
Frequency 60 Hertz
Circuits 4 - 15A/120V
1 - 20A/240V
Phase Single
Max. Single-Pole Circuits 6
Max. Double-Pole Circuits 3
Max. Combined Load at 125 Vac 60
Max. Combined Load at 250 Vac 30
Power Inlet L14-30
Recommended Cord Size (Guage) 10
Conduit Size (in.) 1
Watt Meters Yes
Weight (lbs.) 18
Cabinet Type Outdoor
Dimensions (HxWxD) (in.) 13 x 8 x 5
(33.02 x 20.32 x 12.70 cm)
