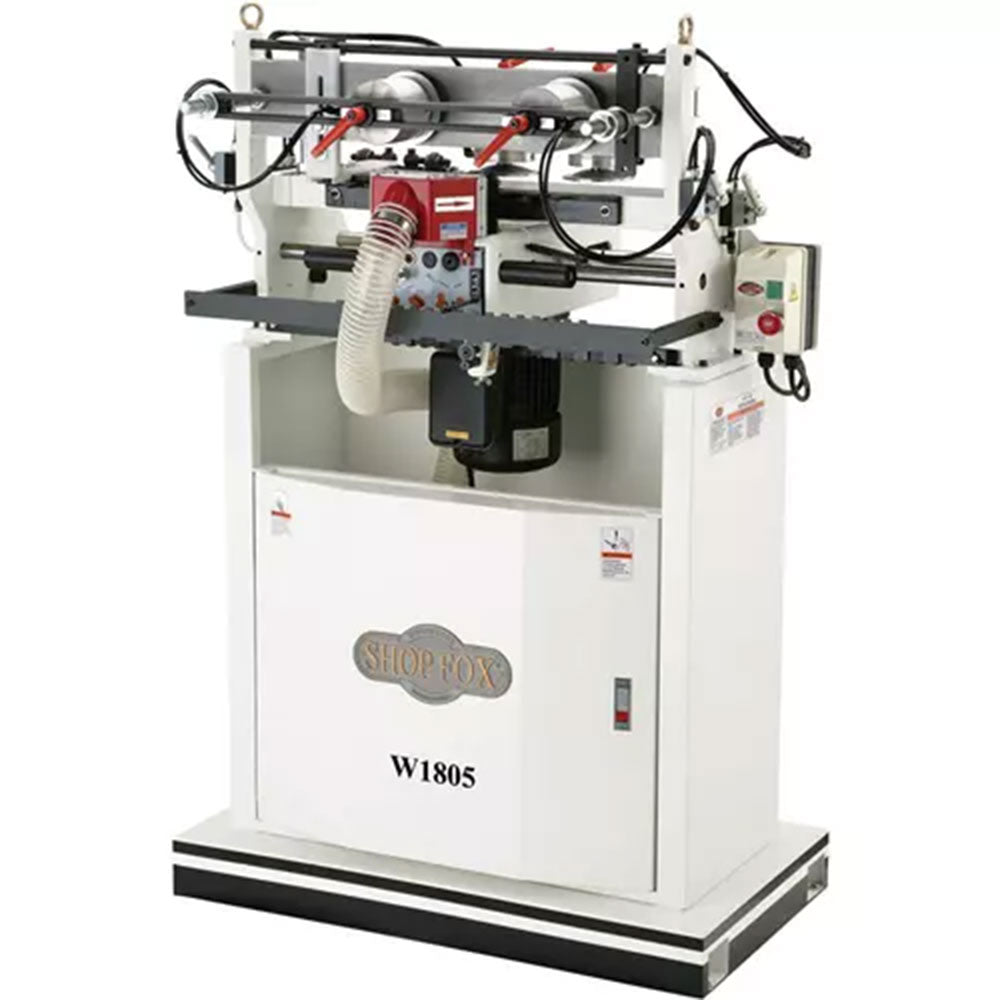

Shop Fox W1805 16-1/2" Ergonomic Dovetail Machine w/ Pneumatic Clamps

by Shop Fox
$6,250.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: W1805

Features
  • 4" dust port
  • Precision-milled cast-iron table frame
  • Cast aluminum carriage
  • Steel stand
  • Hardened-and-ground chrome steel slide ways
  • Ball bearing linear guides
  • Four-sided dovetail template bar

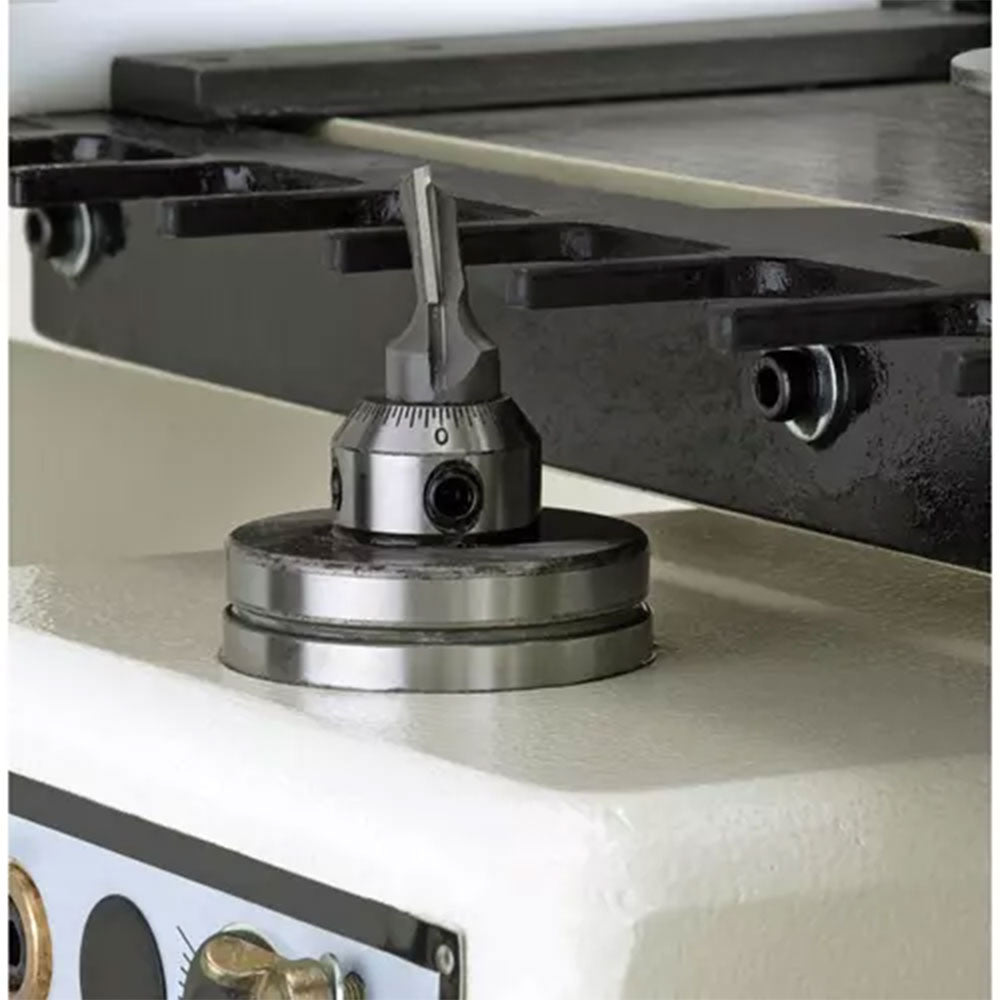

  • Micro-adjustable spindle head
  • Workpiece stops

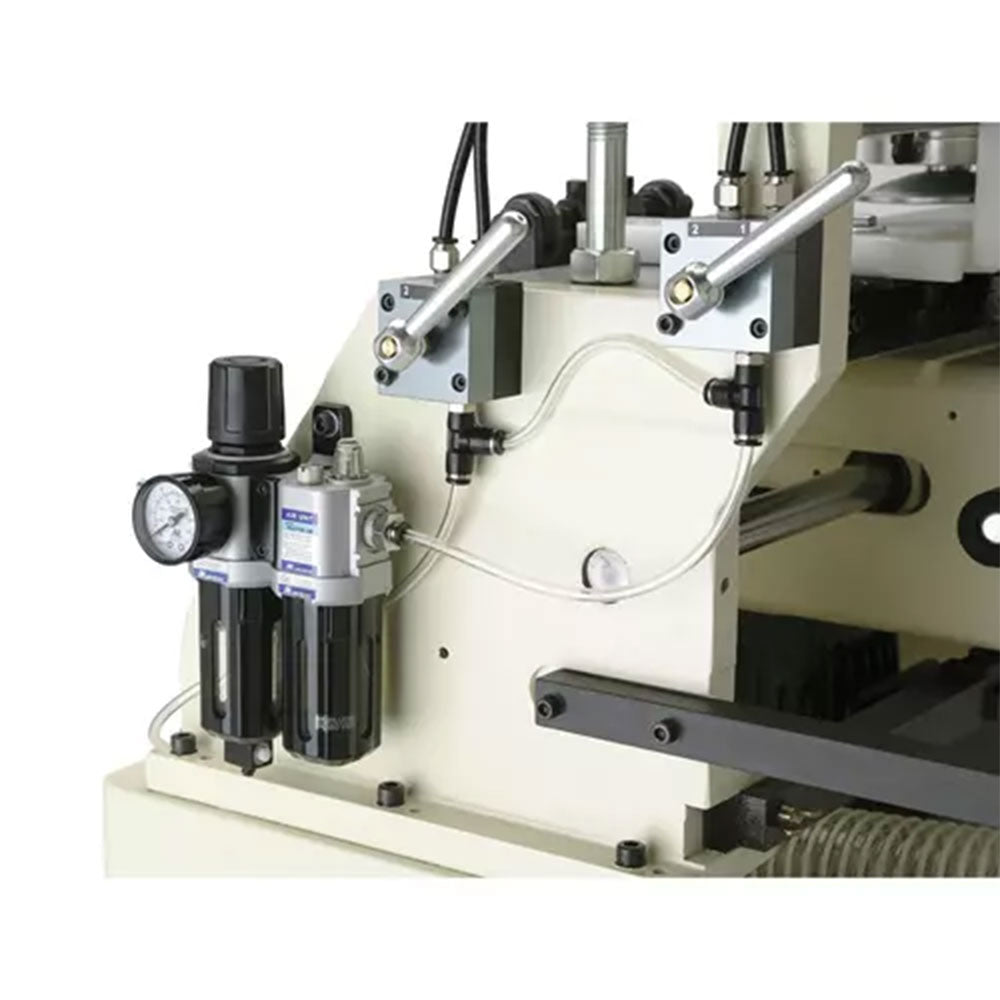

  • Quick air cylinder clamp, air filter/regulator/lubricator with pressure gauge
  • Spring-loaded carriage for smooth operation
  • Magnetic switch with thermal overload protection
What's in The Box
  • 16-1/2" Dovetail Machine - W1805
  • Owner's Manual
Warranty
  • 2 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU W1772
Brand Shop Fox
Motor 1 HP, 110V/220V, prewired 220V, single-phase
Table size 24" x 7-3/4"
Floor to table height 46-7/16"
Overall size 35-5/8"W x 56-7/8"H x 26-1/2"D
Number of spindles 1
Spindle speed 18,500 RPM
Dovetail bit 10° angle x 5/8" left-hand
Dovetail templates 1", 1-1/2", 2", 2-1/2"
Dovetail bit shank 1/2" (12mm)
Max. dovetail height 3/4"
Min. dovetail height 3/16"
Max. stock thickness 2-3/8"
Min. stock thickness 13/32"
Max. stock size 59"L x 16-1/2"W
Min. stock size 7-7/8"L x 2-3/8"W
Weight 492 lbs.
