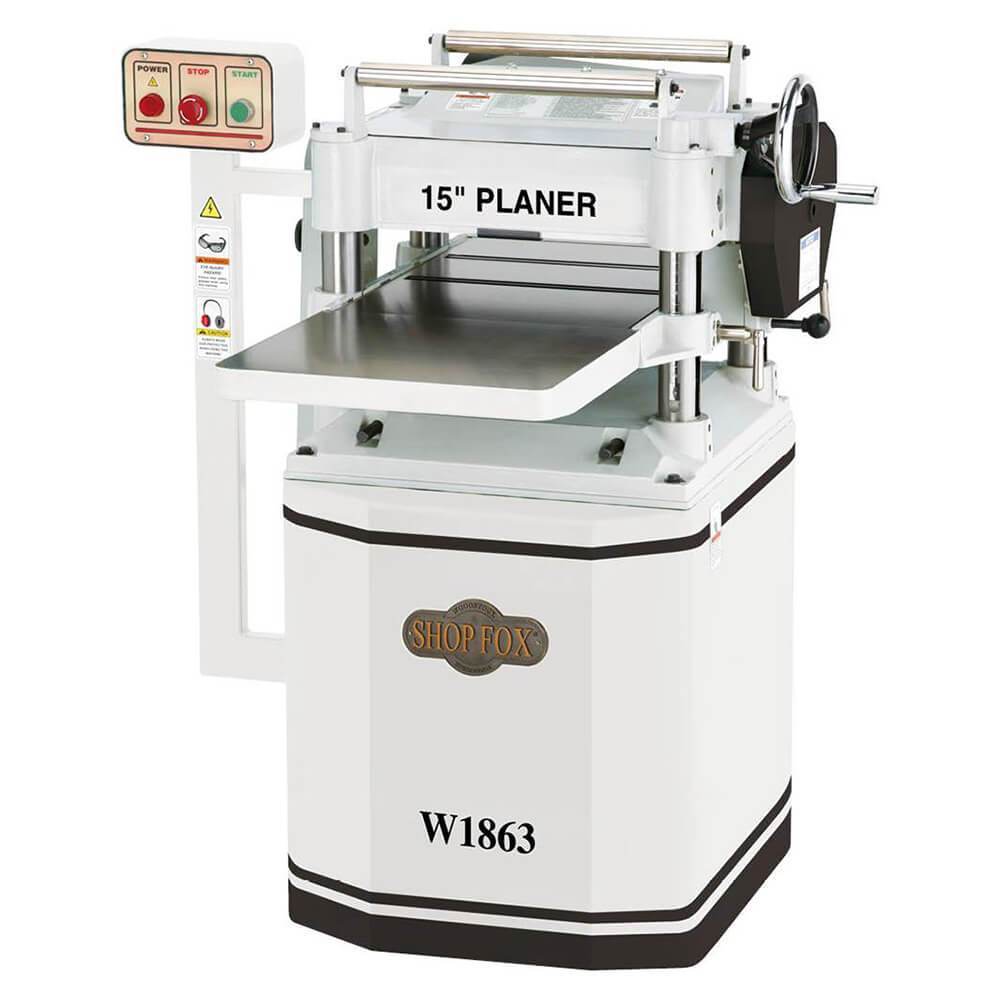

Shop Fox W1863 12-Inch x 15-Inch 3-Hp Spiral Cutterhead Wood Planer

Shop Fox


×
Express checkout with and plus more available at checkout.

Condition: New

SKU: W1863

This item ships via Freight. Appointment is required for delivery. Click for details.


Features
  • Spiral cutterhead with triple V-belt drive
  • 2-speed chain-driven automatic feed rollers
  • Hardened anti-kickback fingers
  • Precision-ground cast-iron table and extension wings
  • Locking table
  • Magnetic switch overload protection
  • Ball bearing return rollers
  • Depth scales in both inch and metric
  • Pedestal-mounted control panel
  • Motor: 3 HP, 240V, 15A, single-phase
  • Maximum cutting width: 15"
  • Maximum cutting height: 6"
  • Minimum stock thickness: 3/16"
  • Minimum stock length: 6"
  • Maximum depth of cut: 1/8"
  • Feed rate: 16 FPM and 20 FPM
  • Cutterhead diameter: 3"
  • Cutterhead inserts: 52
  • Cutterhead flutes: 4
  • Infeed rollers: solid serrated steel
  • Outfeed rollers: knurled steel
  • Table size with extension wings: 15" x 48"
  • Dust port: 4"
  • Approximate shipping weight: 581 lbs.
  • CSA certified
What's in The Box
  • 15-Inch Stationary Planer w/ Spiral Cutterhead
  • Owner's Manual
Warranty
  • 2 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku W1863
Brand Shop Fox
Horsepower 3 Hp
Voltage 240V
Amperage 15A
Phase Single
Max. Cutting Width 15 in.
Max. Cutting Height 6 in.
Min. Stock Thickness 3/16 in.
Min. Stock Length 6 in.
Max. Depth of Cut 1/8 in.
Feed Rate 16 Fpm and 20 Fpm
Cutterhead Diamter 3 in.
Cutterhead Inserts 52
Cutterhead Flutes 4
Table Size w/ Extension Wings 15 in. x 48 in.
Dust Port 4 in.
Product Weight 581 lbs.
